Carnes HXPBB012S User Manual

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2012 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 16644-H

16644-I

4”

(102)

4”

(102)

3/8”

7/8”

3/8”

7/8”

P

MODEL N P R

HXPBB012S 11-13/16” (300mm) 2” (51mm) 9” (229mm)
HXPBB018S 17-13/16” (452mm) 2” (51mm) 15” (381mm)
HXPBB024S 23-13/16” (605mm) 2” (51mm) 21” (533mm)
HXPBB030S 29-13/16” (757mm) 2” (51mm) 27” (686mm)
HXPBB036S 35-13/16” (910mm) 2” (51mm) 33” (838mm)

Lengths 048-120

*The mounting plate on these pipes is adjustable. The “P” and “N” dimensions are shown at both maximum and minimum depending on position of mount­ing plate. An infinite variety of settings are available between the minimum and maximum.



MATERIAL: Stainless steel

Lengths 012-036

Imperial Dimensions

SI (Metric) Dimensions

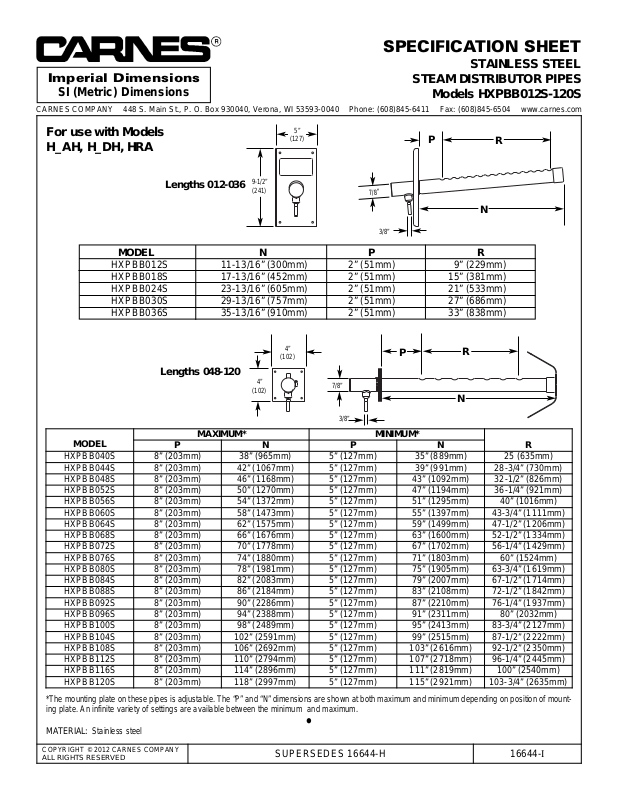

SPECIFICATION SHEET

STAINLESS STEEL

STEAM DISTRIBUTOR PIPES

Models HXPBB012S-120S

9-1/2”
(241)

5”

(127)

R

N

P

R

N

For use with Models
H_AH, H_DH, HRA

MODEL

MAXIMUM* MINIMUM*

R

P N P N

HXPBB040S 8” (203mm) 38” (965mm) 5” (127mm) 35” (889mm) 25 (635mm)
HXPBB044S 8” (203mm) 42” (1067mm) 5” (127mm) 39” (991mm) 28-3/4” (730mm)
HXPBB048S 8” (203mm) 46” (1168mm) 5” (127mm) 43” (1092mm) 32-1/2” (826mm)
HXPBB052S 8” (203mm) 50” (1270mm) 5” (127mm) 47” (1194mm) 36-1/4” (921mm)
HXPBB056S 8” (203mm) 54” (1372mm) 5” (127mm) 51” (1295mm) 40” (1016mm)
HXPBB060S 8” (203mm) 58” (1473mm) 5” (127mm) 55” (1397mm) 43-3/4” (1111mm)
HXPBB064S 8” (203mm) 62” (1575mm) 5” (127mm) 59” (1499mm) 47-1/2” (1206mm)
HXPBB068S 8” (203mm) 66” (1676mm) 5” (127mm) 63” (1600mm) 52-1/2” (1334mm)
HXPBB072S 8” (203mm) 70” (1778mm) 5” (127mm) 67” (1702mm) 56-1/4” (1429mm)
HXPBB076S 8” (203mm) 74” (1880mm) 5” (127mm) 71” (1803mm) 60” (1524mm)
HXPBB080S 8” (203mm) 78” (1981mm) 5” (127mm) 75” (1905mm) 63-3/4” (1619mm)
HXPBB084S 8” (203mm) 82” (2083mm) 5” (127mm) 79” (2007mm) 67-1/2” (1714mm)
HXPBB088S 8” (203mm) 86” (2184mm) 5” (127mm) 83” (2108mm) 72-1/2” (1842mm)
HXPBB092S 8” (203mm) 90” (2286mm) 5” (127mm) 87” (2210mm) 76-1/4” (1937mm)
HXPBB096S 8” (203mm) 94” (2388mm) 5” (127mm) 91” (2311mm) 80” (2032mm)
HXPBB100S 8” (203mm) 98” (2489mm) 5” (127mm) 95” (2413mm) 83-3/4” (2127mm)
HXPBB104S 8” (203mm) 102” (2591mm) 5” (127mm) 99” (2515mm) 87-1/2” (2222mm)
HXPBB108S 8” (203mm) 106” (2692mm) 5” (127mm) 103” (2616mm) 92-1/2” (2350mm)
HXPBB112S 8” (203mm) 110” (2794mm) 5” (127mm) 107” (2718mm) 96-1/4” (2445mm)
HXPBB116S 8” (203mm) 114” (2896mm) 5” (127mm) 111” (2819mm) 100” (2540mm)
HXPBB120S 8” (203mm) 118” (2997mm) 5” (127mm) 115” (2921mm) 103-3/4” (2635mm)
