Carnes HXLA User Manual

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2012 CARNES COMPANY

ALL RIGHTS RESERVED

16727

STEAM HOSE

DIMENSIONS

Model A B

HXSAB 7/8 1-3/16
HXSAC 1-5/8 2

HXRA 3/8 5/8

HXLA 5/8 7/8

Model HXSAB:Steam hose used with “AX” and “B” type steam cylinders. Hose is made from ethylene propylene

terpolymer (EPDM). ASTM Spec. BA-820-A14 B14 C12 F17 G14 Z, or equivalent.

Model HXSAC:Steam hose used with “C” type steam cylinders. Hose is made from ethylene propylene terpolymer

(EPDM). ASTM Spec. BA-820-A14 B14 C12 F17 G14 Z, or equivalent.

CONDENSATE RETURN LINE

Model HXRA: Condensate return line used with steam distributor pipes. Hose is made from ethylene propylene

terpolymer (EPDM). ASTM Spec. BA-720-A14 B14 C12 F17 G14 Z, or equivalent.

Model HXLA: Condensate return line used with fan distribution units. Hose is made from clear PVC tube. NSF

certified under standard NSF-51.

A

B

Dimensions Listed In Inches

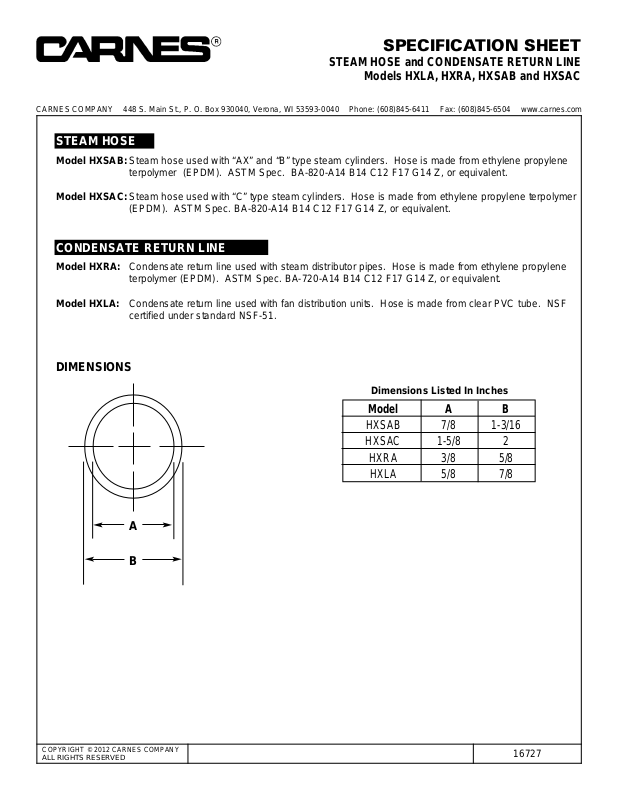

SPECIFICATION SHEET

STEAM HOSE and CONDENSATE RETURN LINE

Models HXLA, HXRA, HXSAB and HXSAC
