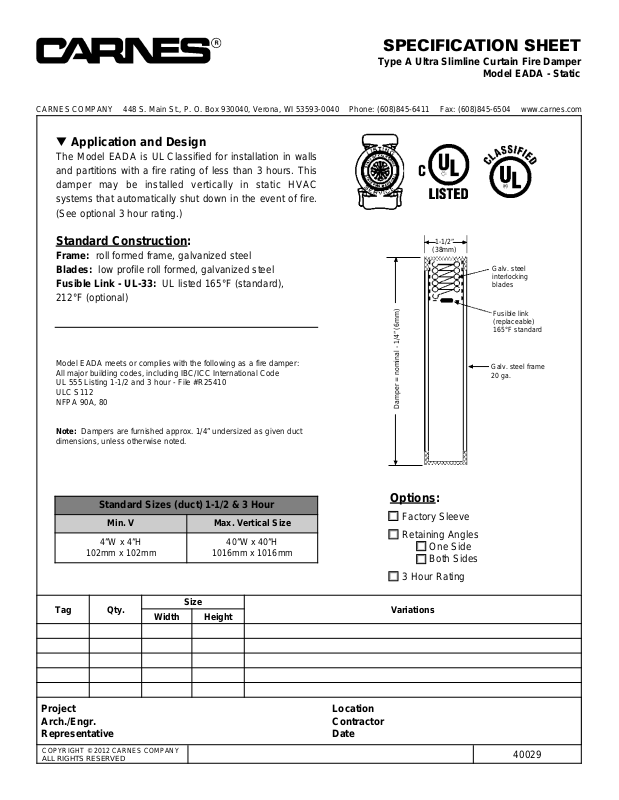

SPECIFICATION SHEET

Type A Ultra Slimline Curtain Fire Damper

Model EADA - Static

Tag Qty.

Size

Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

t Application and Design

The Model EADA is UL Classified for installation in walls
and partitions with a fire rating of less than 3 hours. This
damper may be installed vertically in static HVAC
systems that automatically shut down in the event of fire.
(See optional 3 hour rating.)

Standard Construction:

Frame: roll formed frame, galvanized steel
Blades: low profile roll formed, galvanized steel
Fusible Link - UL-33: UL listed 165°F (standard),

212°F (optional)

Model EADA meets or complies with the following as a fire damper:
All major building codes, including IBC/ICC International Code
UL 555 Listing 1-1/2 and 3 hour - File #R25410
ULC S112
NFPA 90A, 80

Note: Dampers are furnished approx. 1/4” undersized as given duct
dimensions, unless otherwise noted.

Standard Sizes (duct) 1-1/2 & 3 Hour

Min. V Max. Vertical Size

4”W x 4”H

102mm x 102mm

40”W x 40”H

1016mm x 1016mm

Options:

 Factory Sleeve
 Retaining Angles

 One Side
 Both Sides

 3 Hour Rating

1-1/2”

(38mm)

Damper = nominal - 1/4” (6mm)

Galv. steel
interlocking
blades

Fusible link
(replaceable)
165°F standard

Galv. steel frame
20 ga.
