Carnes DRAC User Manual

COPYRIGHT CARNES CO. © 2009
ALL RIGHTS RESERVED

SUPERSEDES 12650-B

12650-C

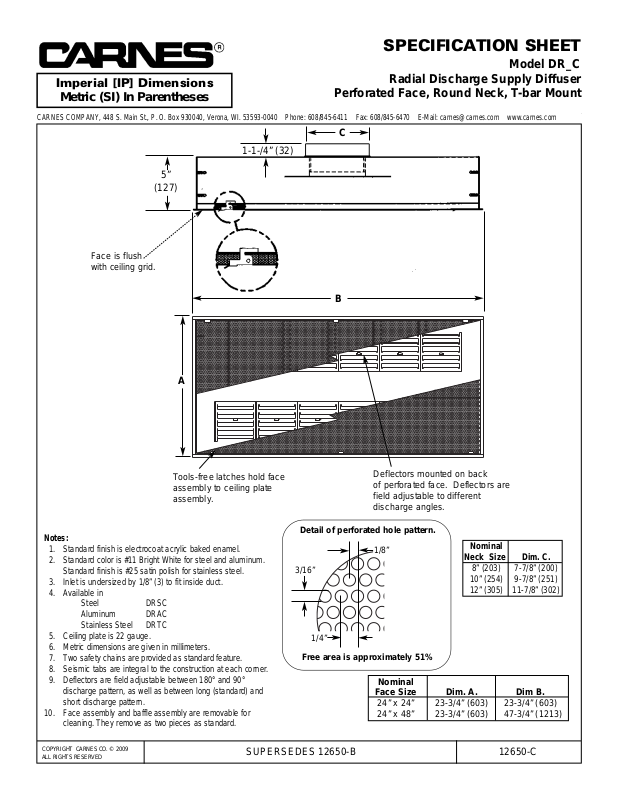

SPECIFICATION SHEET

Model DR_C

Radial Discharge Supply Diffuser

Perforated Face, Round Neck, T-bar Mount

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Nominal

Face Size Dim. A. Dim B.

24” x 24” 23-3/4” (603) 23-3/4” (603)
24” x 48” 23-3/4” (603) 47-3/4” (1213)

Nominal

Neck Size Dim. C.

8” (203) 7-7/8” (200)
10” (254) 9-7/8” (251)
12” (305) 11-7/8” (302)

Detail of perforated hole pattern.

Free area is approximately 51%

1/8”

1/4”

3/16”

A

Deflectors mounted on back
of perforated face. Deflectors are
field adjustable to different
discharge angles.

Tools-free latches hold face
assembly to ceiling plate
assembly.

Face is flush
with ceiling grid.

Notes:

1. Standard finish is electrocoat acrylic baked enamel.

2. Standard color is #11 Bright White for steel and aluminum.
Standard finish is #25 satin polish for stainless steel.

3. Inlet is undersized by 1/8” (3) to fit inside duct.

4. Available in

Steel DRSC
Aluminum DRAC
Stainless Steel DRTC

5. Ceiling plate is 22 gauge.

6. Metric dimensions are given in millimeters.

7. Two safety chains are provided as standard feature.

8. Seismic tabs are integral to the construction at each corner.

9. Deflectors are field adjustable between 180° and 90°
discharge pattern, as well as between long (standard) and
short discharge pattern.

10. Face assembly and baffle assembly are removable for
cleaning. They remove as two pieces as standard.

B

C

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI. 53593-0040 Phone: [phone] Fax: [phone] E-Mail: [e-mail] www.carnes.com

1-1-/4” (32)

5”

(127)
