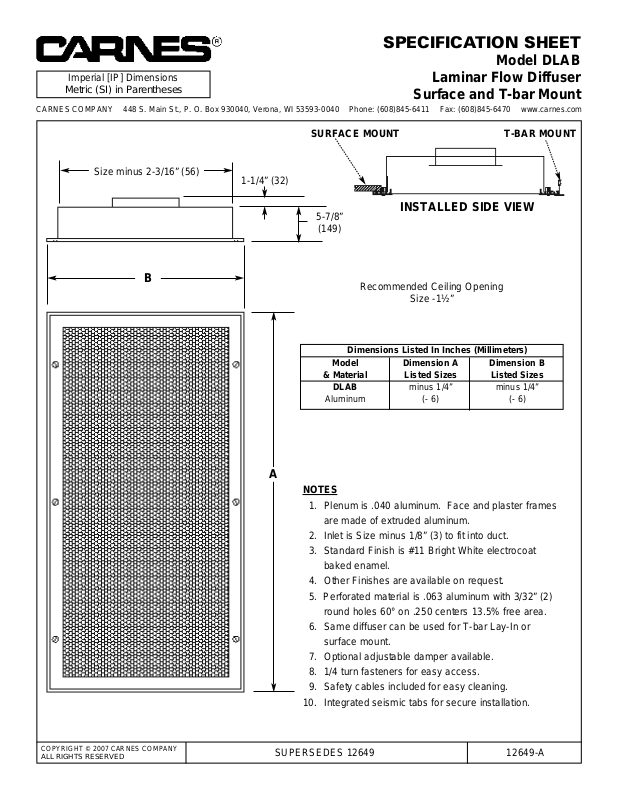

SPECIFICATION SHEET

Model DLAB

Laminar Flow Diffuser

Surface and T-bar Mount

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12649 12649-A

A

INSTALLED SIDE VIEW

B

5-7/8”

(149)

1-1/4” (32)

Size minus 2-3/16” (56)

NOTES

1. Plenum is .040 aluminum. Face and plaster frames
are made of extruded aluminum.

2. Inlet is Size minus 1/8” (3) to fit into duct.

3. Standard Finish is #11 Bright White electrocoat
baked enamel.

4. Other Finishes are available on request.

5. Perforated material is .063 aluminum with 3/32” (2)
round holes 60° on .250 centers 13.5% free area.

6. Same diffuser can be used for T-bar Lay-In or
surface mount.

7. Optional adjustable damper available.

8. 1/4 turn fasteners for easy access.

9. Safety cables included for easy cleaning.

10. Integrated seismic tabs for secure installation.

SURFACE MOUNT T-BAR MOUNT

Dimensions Listed In Inches (Millimeters)

Model Dimension A Dimension B

& Material Listed Sizes Listed Sizes

DLAB minus 1/4” minus 1/4”

Aluminum (- 6) (- 6)

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

Recommended Ceiling Opening

Size -1½”
