Carnes DAPC User Manual
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 18809-A
18809-B

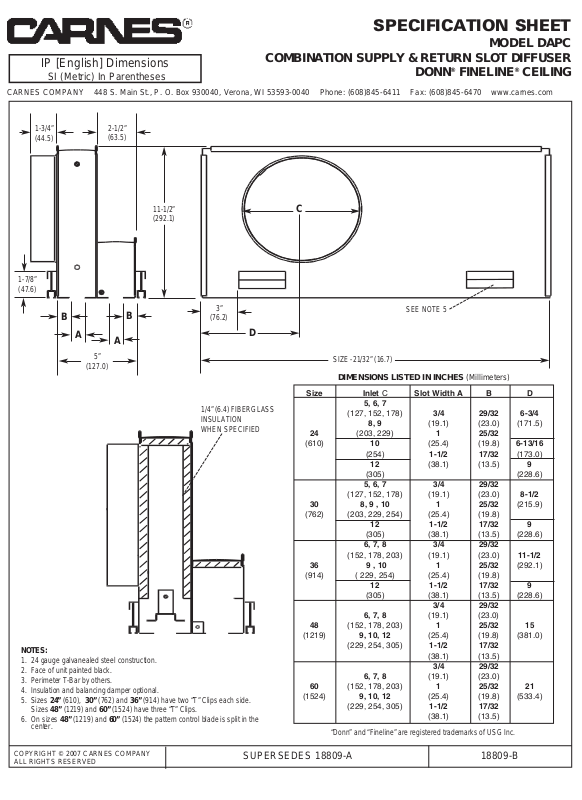

SPECIFICATION SHEET
MODEL DAPC
COMBINATION SUPPLY & RETURN SLOT DIFFUSER
DONN®FINELINE®CEILING
DIMENSIONS LISTED IN INCHES (Millimeters)
Size Inlet C Slot Width A B D
5, 6, 7
(127, 152, 178) 3/4 29/32 6-3/4
8, 9 (19.1) (23.0) (171.5)
24 (203, 229) 1 25/32
(610) 10 (25.4) (19.8) 6-13/16
(254) 1-1/2 17/32 (173.0)
12 (38.1) (13.5) 9
(305) (228.6)
5, 6, 7 3/4 29/32
(127, 152, 178) (19.1) (23.0) 8-1/2
30 8, 9 , 10 1 25/32 (215.9)
(762) (203, 229, 254) (25.4) (19.8)
12 1-1/2 17/32 9
(305) (38.1) (13.5) (228.6)
6, 7, 8 3/4 29/32
(152, 178, 203) (19.1) (23.0) 11-1/2
36 9 , 10 1 25/32 (292.1)
(914) ( 229, 254) (25.4) (19.8)
12 1-1/2 17/32 9
(305) (38.1) (13.5) (228.6)
3/4 29/32
6, 7, 8 (19.1) (23.0)
48 (152, 178, 203) 1 25/32 15
(1219) 9, 10, 12 (25.4) (19.8) (381.0)
(229, 254, 305) 1-1/2 17/32
(38.1) (13.5)
3/4 29/32
6, 7, 8 (19.1) (23.0)
60 (152, 178, 203) 1 25/32 21
(1524) 9, 10, 12 (25.4) (19.8) (533.4)
(229, 254, 305) 1-1/2 17/32
(38.1) (13.5)
C
D
SIZE -21/32” (16.7)
2-1/2”
(63.5)
1-3/4”
(44.5)
11-1/2”
(292.1)
1-7/8”
(47.6)
B
B
A
A
5”
(127.0)
1/4” (6.4) FIBERGLASS
INSULATION
WHEN SPECIFIED
NOTES:
1. 24 gauge galvanealed steel construction.
2. Face of unit painted black.
3. Perimeter T-Bar by others.
4. Insulation and balancing damper optional.
5.
Sizes 24” (610), 30” (762) and 36” (914) have two “T” Clips each side.
Sizes 48” (1219) and 60” (1524) have three “T” Clips.
6. On sizes 48” (1219) and 60” (1524) the pattern control blade is split in the
center.
3”
(76.2)
SEE NOTE 5
“Donn” and “Fineline” are registered trademarks of USG Inc.
IP [English] Dimensions
SI (Metric) In Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
