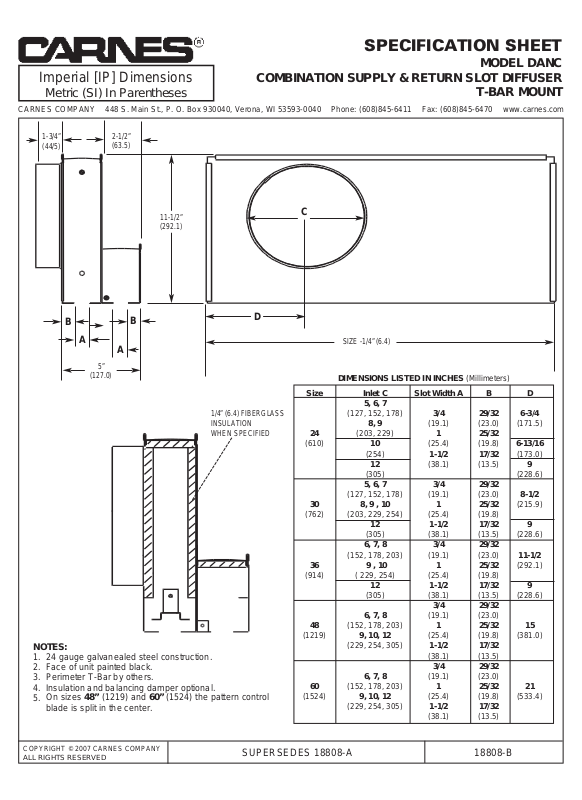

SPECIFICATION SHEET

MODEL DANC

COMBINATION SUPPLY & RETURN SLOT DIFFUSER

T-BAR MOUNT

DIMENSIONS LISTED IN INCHES (Millimeters)

Size Inlet C Slot Width A B D

5, 6, 7

(127, 152, 178) 3/4 29/32 6-3/4

8, 9 (19.1) (23.0) (171.5)

24 (203, 229) 1 25/32

(610) 10 (25.4) (19.8) 6-13/16

(254) 1-1/2 17/32 (173.0)

12 (38.1) (13.5) 9

(305) (228.6)

5, 6, 7 3/4 29/32

(127, 152, 178) (19.1) (23.0) 8-1/2

30 8, 9 , 10 1 25/32 (215.9)

(762) (203, 229, 254) (25.4) (19.8)

12 1-1/2 17/32 9

(305) (38.1) (13.5) (228.6)

6, 7, 8 3/4 29/32

(152, 178, 203) (19.1) (23.0) 11-1/2

36 9 , 10 1 25/32 (292.1)

(914) ( 229, 254) (25.4) (19.8)

12 1-1/2 17/32 9

(305) (38.1) (13.5) (228.6)

3/4 29/32

6, 7, 8 (19.1) (23.0)

48 (152, 178, 203) 1 25/32 15

(1219) 9, 10, 12 (25.4) (19.8) (381.0)

(229, 254, 305) 1-1/2 17/32

(38.1) (13.5)

3/4 29/32

6, 7, 8 (19.1) (23.0)

60 (152, 178, 203) 1 25/32 21

(1524) 9, 10, 12 (25.4) (19.8) (533.4)

(229, 254, 305) 1-1/2 17/32

(38.1) (13.5)

B

B

A

A

5”

(127.0)

2-1/2”
(63.5)

1-3/4”
(44/5)

11-1/2”
(292.1)

C

D

SIZE -1/4” (6.4)

1/4” (6.4) FIBERGLASS
INSULATION
WHEN SPECIFIED

NOTES:

1. 24 gauge galvanealed steel construction.

2. Face of unit painted black.

3. Perimeter T-Bar by others.

4. Insulation and balancing damper optional.

5.

On sizes 48” (1219) and 60” (1524) the pattern control
blade is split in the center.

Imperial [IP] Dimensions

Metric (SI) In Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com
