Carnes DAMC User Manual
COPYRIGHT CARNES CO.© 2003
ALL RIGHTS RESERVED
SUPERSEDES 18801-A
18801-B
CARNES COMPANY, 448 S.Main St., P. O. Box 930040, Verona, WI.53593-0040 Phone: 608/845-6411 Fax:608/845-6470 carnes@carnes.com www.carnes.com

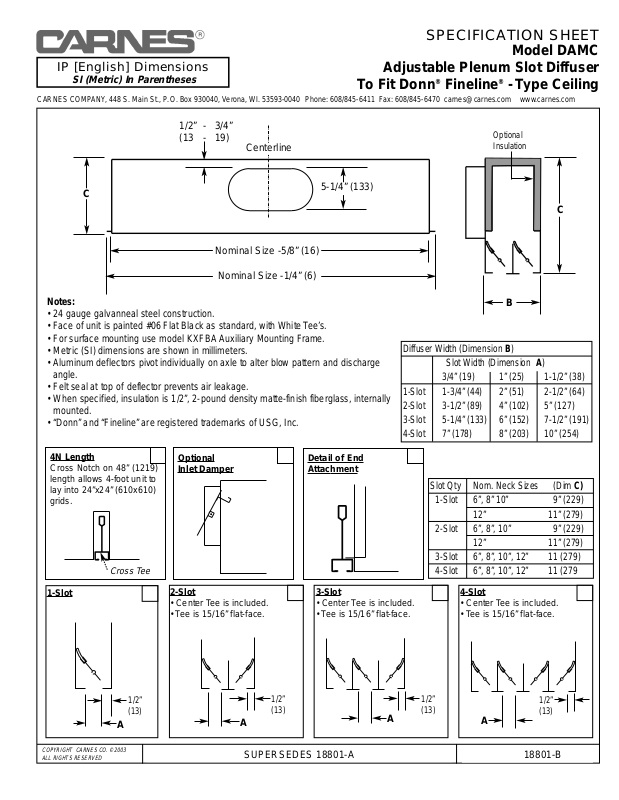

SPECIFICATION SHEET
IP [English] Dimensions
SI (Metric) In Parentheses
Cross Tee
Optional
Inlet Damper
Detail of End
Attac
hment
4N Length
Cross Notch on 48” (1219)
length allows 4-foot unit to
lay into 24”x24” (610x610)
grids.
2-Slot
• Center Tee is included.
• Tee is 15/16”flat-face.
3-Slot
• Center Tee is included.
• Tee is 15/16”flat-face.
4-Slot
• Center Tee is included.
• Tee is 15/16”flat-face.
1-Slot
1/2”
(13)
A
A
1/2”
(13)
A
1/2”
(13)
A
1/2”
(13)
Slot Qty Nom. Neck Sizes (Dim C)
1-Slot 6”, 8” 10” 9” (229)
12” 11” (279)
2-Slot 6”, 8”, 10” 9” (229)
12” 11” (279)
3-Slot 6”, 8”, 10”, 12” 11 (279)
4-Slot 6”, 8”, 10”, 12” 11 (279
Notes:
• 24 gauge galvanneal steel construction.
• Face of unit is painted #06 Flat Black as standard, with White Tee’s.
• For surface mounting use model KXFBA Auxiliary Mounting Frame.
• Metric (SI) dimensions are shown in millimeters.
• Aluminum deflectors pivot individually on axle to alter blow pattern and discharge
angle.
• Felt seal at top of deflector prevents air leakage.
• When specified, insulation is 1/2”, 2-pound density matte-finish fiberglass, internally
mounted.
• “Donn” and “Fineline” are registered trademarks of USG, Inc.
Diffuser Width (Dimension B)
Slot Width (Dimension A)
3/4” (19) 1” (25) 1-1/2” (38)
1-Slot 1-3/4” (44) 2” (51) 2-1/2” (64)
2-Slot 3-1/2” (89) 4” (102) 5” (127)
3-Slot 5-1/4” (133) 6” (152) 7-1/2” (191)
4-Slot 7” (178) 8” (203) 10” (254)
B
Optional
Insulation
C
5-1/4” (133)
1/2”
(13
-
-
3/4”
19)
C
Nominal Size -5/8” (16)
Nominal Size -1/4” (6)
Centerline
Model DAMC
Adjustable Plenum Slot Diffuser
To Fit Donn®Fineline®- T ype Ceiling
