Imperial [IP] Dimensions
Metric (SI) in Parentheses

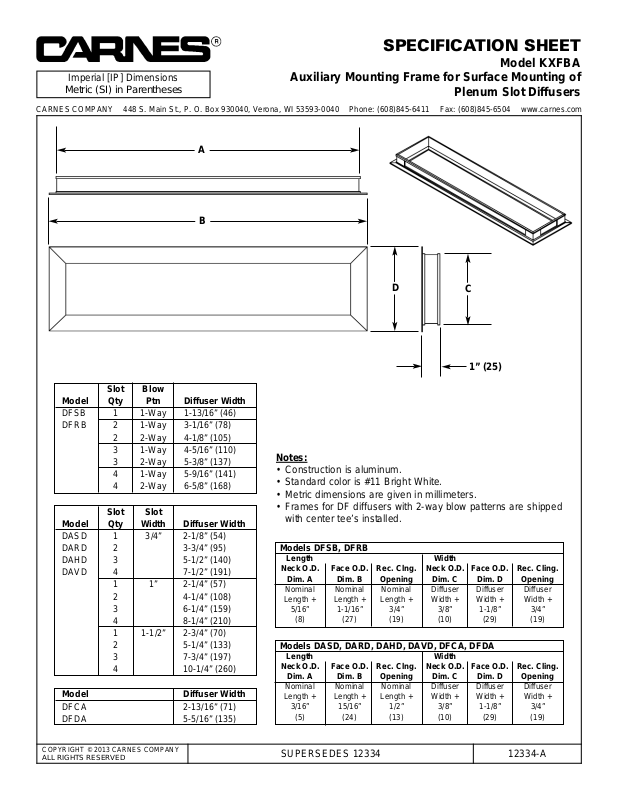

SPECIFICATION SHEET
Model KXFBA
Auxiliary Mounting Frame for Surface Mounting of
Plenum Slot Diffusers
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12334 12334-A
Slot Slot
Model Qty Width Diffuser Width
DASD 1 3/4” 2-1/8” (54)
DARD 2 3-3/4” (95)
DAHD 3 5-1/2” (140)
DAVD 4 7-1/2” (191)
1 1” 2-1/4” (57)
2 4-1/4” (108)
3 6-1/4” (159)
4 8-1/4” (210)
1 1-1/2” 2-3/4” (70)
2 5-1/4” (133)
3 7-3/4” (197)
4 10-1/4” (260)
Slot Blow
Model Qty Ptn Diffuser Width
DFSB 1 1-Way 1-13/16” (46)
DFRB 2 1-Way 3-1/16” (78)
2 2-Way 4-1/8” (105)
3 1-Way 4-5/16” (110)
3 2-Way 5-3/8” (137)
4 1-Way 5-9/16” (141)
4 2-Way 6-5/8” (168)
Model Diffuser Width
DFCA 2-13/16” (71)
DFDA 5-5/16” (135)
Models DASD, DARD, DAHD, DAVD, DFCA, DFDA
Length Width
Neck O.D. Face O.D. Rec. Clng. Neck O.D. Face O.D. Rec. Cling.
Dim. A Dim. B Opening Dim. C Dim. D Opening
Nominal Nominal Nominal Diffuser Diffuser Diffuser
Length + Length + Length + Width + Width + Width +
3/16” 15/16” 1/2” 3/8” 1-1/8” 3/4”
(5) (24) (13) (10) (29) (19)
Models DFSB, DFRB
Length Width
Neck O.D. Face O.D. Rec. Clng. Neck O.D. Face O.D. Rec. Cling.
Dim. A Dim. B Opening Dim. C Dim. D Opening
Nominal Nominal Nominal Diffuser Diffuser Diffuser
Length + Length + Length + Width + Width + Width +
5/16” 1-1/16” 3/4” 3/8” 1-1/8” 3/4”
(8) (27) (19) (10) (29) (19)
Notes:
• Construction is aluminum.
• Standard color is #11 Bright White.
• Metric dimensions are given in millimeters.
• Frames for DF diffusers with 2-way blow patterns are shipped
with center tee’s installed.
B
A
D
C
1” (25)
