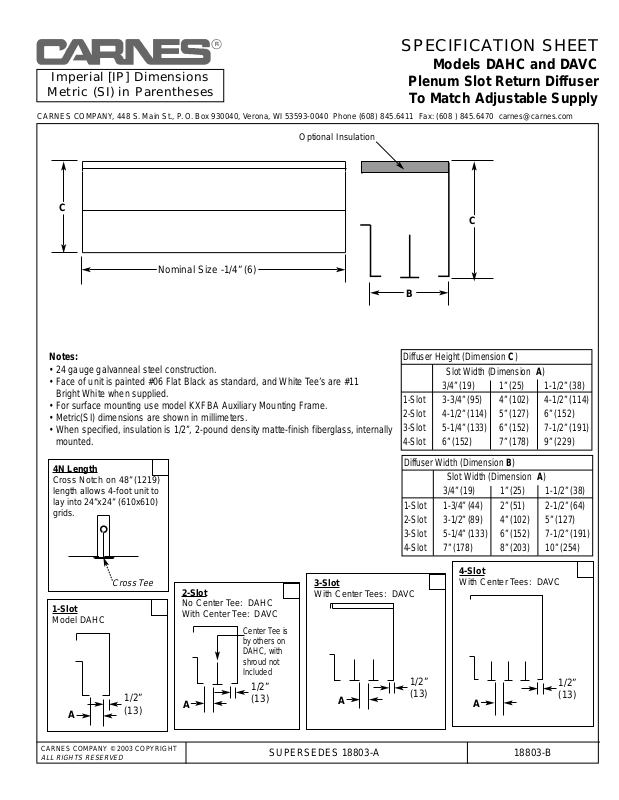

SPECIFICATION SHEET

Models DAHC and DAVC

Plenum Slot Return Diffuser

To Match Adjustable Supply

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax:(608 ) 845.6470 [e-mail]

CARNES COMPANY © 2003 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 18803-A 18803-B

Cross Tee

4N Length

Cross Notch on 48” (1219)
length allows 4-foot unit to
lay into 24”x24” (610x610)
grids.

1-Slot

Model DAHC

2-Slot

No Center Tee: DAHC
With Center Tee: DAVC

3-Slot

With Center Tees: DAVC

4-Slot

With Center Tees: DAVC

Notes:

• 24 gauge galvanneal steel construction.

• Face of unit is painted #06 Flat Black as standard, and White Tee’s are #11
Bright White when supplied.

• For surface mounting use model KXFBA Auxiliary Mounting Frame.

• Metric(SI) dimensions are shown in millimeters.

• When specified, insulation is 1/2”, 2-pound density matte-finish fiberglass, internally
mounted.

Diffuser Height (Dimension C)

Slot Width (Dimension A)

3/4” (19) 1” (25) 1-1/2” (38)
1-Slot 3-3/4” (95) 4” (102) 4-1/2” (114)
2-Slot 4-1/2” (114) 5” (127) 6” (152)
3-Slot 5-1/4” (133) 6” (152) 7-1/2” (191)
4-Slot 6” (152) 7” (178) 9” (229)

Diffuser Width (Dimension B)

Slot Width (Dimension A)

3/4” (19) 1” (25) 1-1/2” (38)
1-Slot 1-3/4” (44) 2” (51) 2-1/2”(64)
2-Slot 3-1/2” (89) 4” (102) 5” (127)
3-Slot 5-1/4” (133) 6” (152) 7-1/2” (191)
4-Slot 7” (178) 8” (203) 10” (254)

1/2”
(13)

1/2”
(13)

1/2”
(13)

1/2”
(13)

A

A

A

A

C

B

Optional Insulation

C

Nominal Size -1/4” (6)

Center Tee is
by others on
DAHC, with
shroud not
Included
