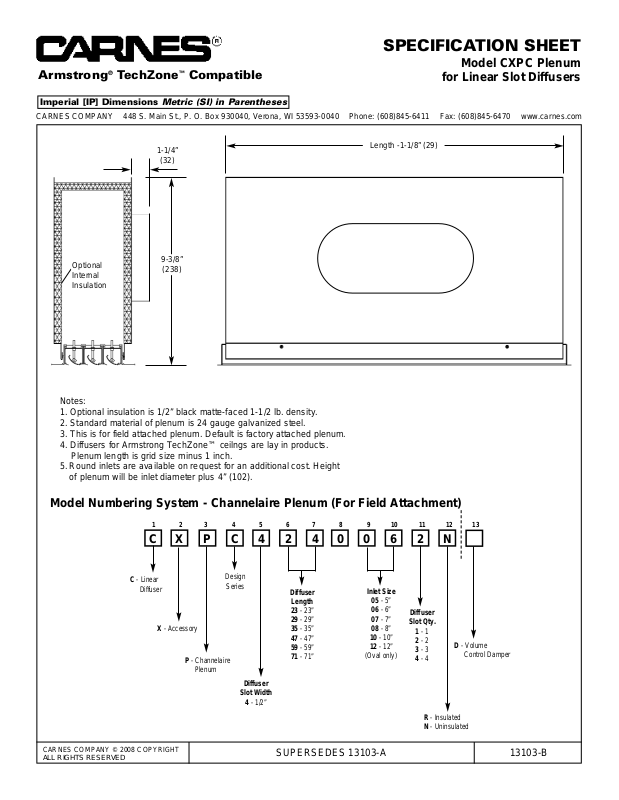

SPECIFICATION SHEET

Model CXPC Plenum

for Linear Slot Diffusers

CARNES COMPANY © 2008 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 13103-A 13103-B

1 2 3 4 5 6 7 8 910 111213

C X P C 4 2 4 0 0 6 2 N

C - Linear

Diffuser

Design

Series

X - Accessory

Diffuser

Slot Width

4 - 1/2”

Diffuser

Length
23 - 23”
29 - 29”
35 - 35”
47 - 47”
59 - 59”
71 - 71”

R - Insulated
N - Uninsulated

D - Volume

Control Damper

P - Channelaire

Plenum

Inlet Size

05 - 5”
06 - 6”
07 - 7”

08 - 8”
10 - 10”
12 - 12”

(Oval only)

Diffuser

Slot Qty.

1 - 1
2 - 2
3 - 3
4 - 4

Notes:

1. Optional insulation is 1/2” black matte-faced 1-1/2 lb. density.

2. Standard material of plenum is 24 gauge galvanized steel.

3. This is for field attached plenum. Default is factory attached plenum.

4. Diffusers for Armstrong TechZone™ ceilngs are lay in products.
Plenum length is grid size minus 1 inch.

5. Round inlets are available on request for an additional cost. Height

of plenum will be inlet diameter plus 4” (102).

Model Numbering System - Channelaire Plenum (For Field Attachment)

Optional
Internal
Insulation

9-3/8”

(238)

1-1/4”

(32)

Length -1-1/8” (29)

Imperial [IP] Dimensions Metric (SI) in Parentheses

Armstrong®TechZone™Compatible
