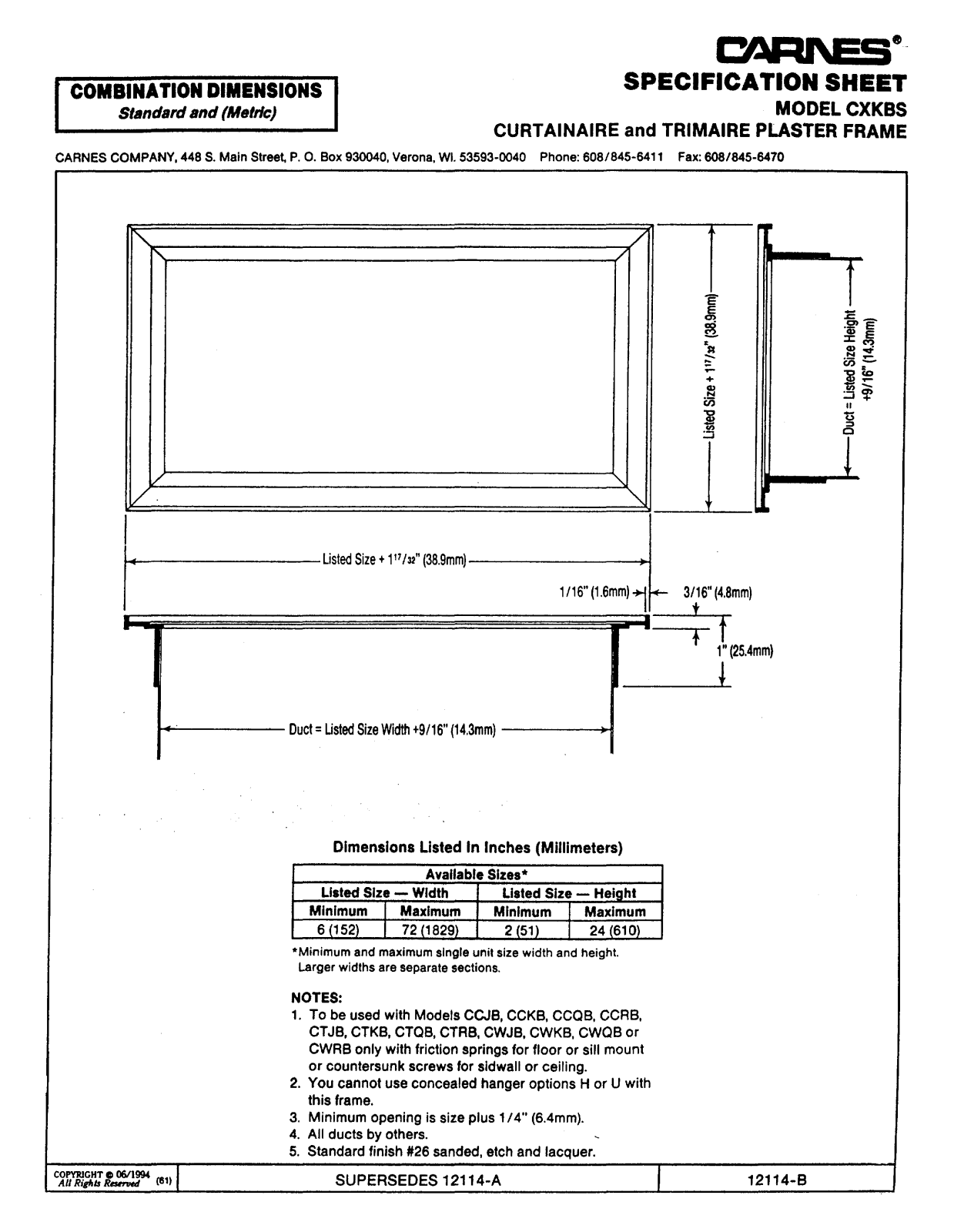

SPECIFICATION SHEET

~

CARNES COMPANY, 448 S. Main Street P. O. Box 930040, Verona, W1.53593-0040 Phone [phone] Fax: [phone]

CURTAINAIRE and TRIMAIRE PLASTER FRAME

MODEL CXKBS

~ T

E
g

g

‘Sl
=

+
gj

.­~

z

4“

Duct=ListedSizeWidth+9/16 (14,3mm)

*

;~$:fj~ (s1)

Dimensions Listed In Inches (Millimeters)

AvailableSizes*

Size - Width

Listed

Minimum

6(1 52)

*Minimum and maximum single unit size width and height.

Larger widths are separate sections.

Maximum

72(1 829)

1

Listed Size — Height

Minimum

2 (51)

Maximum

24 (61O)

I

NOTES:

To be used with Models CCJB, CCKB, CCQB, CCRB,

1.

CTJB, CTKB, CTQB, CTRB, CWJB, CWKB, CWQB or
CWRB only with friction springs for floor or sill mount

or countersunk screws for sidwall or ceiling.

2. You cannot use concealed hanger options

H or U with

this frame,

3. Minimum opening is size pius 1/4” (6.4mm).

4. All ducts by others. .

5. Standard finish #26 sanded, etch and lacquer.
SUPERSEDES 12114-A

I

12114-B
