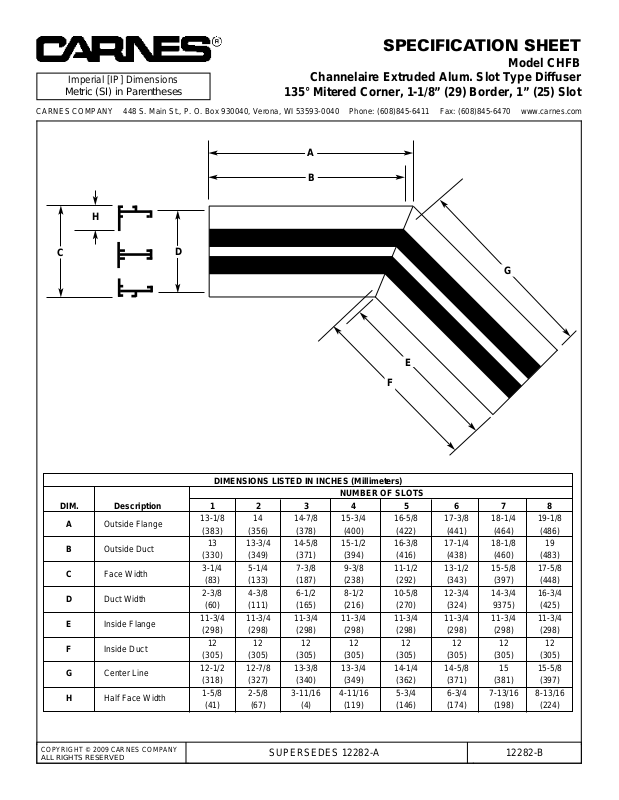

SPECIFICATION SHEET

Model CHFB

Channelaire Extruded Alum. Slot Type Diffuser

135° Mitered Corner, 1-1/8” (29) Border, 1” (25) Slot

COPYRIGHT © 2009 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12282-A 12282-B

DIMENSIONS LISTED IN INCHES (Millimeters)

NUMBER OF SLOTS

DIM. Description 1 2 3 4 5 6 7 8

A Outside Flange

13-1/8 14 14-7/8 15-3/4 16-5/8 17-3/8 18-1/4 19-1/8

(383) (356) (378) (400) (422) (441) (464) (486)

B Outside Duct

13 13-3/4 14-5/8 15-1/2 16-3/8 17-1/4 18-1/8 19

(330) (349) (371) (394) (416) (438) (460) (483)

C Face Width

3-1/4 5-1/4 7-3/8 9-3/8 11-1/2 13-1/2 15-5/8 17-5/8

(83) (133) (187) (238) (292) (343) (397) (448)

D Duct Width

2-3/8 4-3/8 6-1/2 8-1/2 10-5/8 12-3/4 14-3/4 16-3/4

(60) (111) (165) (216) (270) (324) 9375) (425)

E Inside Flange

11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4

(298) (298) (298) (298) (298) (298) (298) (298)

F Inside Duct

12 12 12 12 12 12 12 12

(305) (305) (305) (305) (305) (305) (305) (305)

G Center Line

12-1/2 12-7/8 13-3/8 13-3/4 14-1/4 14-5/8 15 15-5/8

(318) (327) (340) (349) (362) (371) (381) (397)

H Half Face Width

1-5/8 2-5/8 3-11/16 4-11/16 5-3/4 6-3/4 7-13/16 8-13/16

(41) (67) (4) (119) (146) (174) (198) (224)

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

D

C

H

A

B

E

F

G
