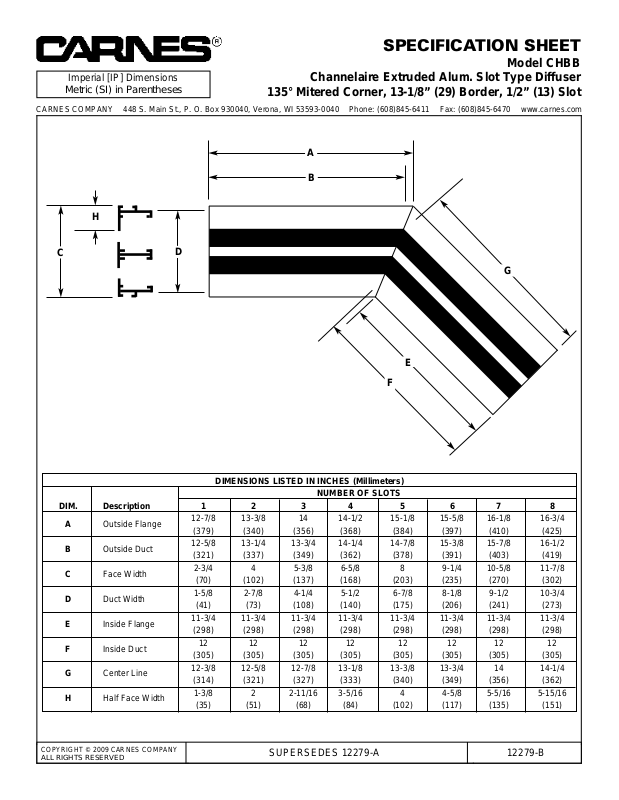

SPECIFICATION SHEET

Model CHBB

Channelaire Extruded Alum. Slot Type Diffuser

135° Mitered Corner, 13-1/8” (29) Border, 1/2” (13) Slot

COPYRIGHT © 2009 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12279-A 12279-B

DIMENSIONS LISTED IN INCHES (Millimeters)

NUMBER OF SLOTS

DIM. Description 1 2 3 4 5 6 7 8

A Outside Flange

12-7/8 13-3/8 14 14-1/2 15-1/8 15-5/8 16-1/8 16-3/4

(379) (340) (356) (368) (384) (397) (410) (425)

B Outside Duct

12-5/8 13-1/4 13-3/4 14-1/4 14-7/8 15-3/8 15-7/8 16-1/2

(321) (337) (349) (362) (378) (391) (403) (419)

C Face Width

2-3/4 4 5-3/8 6-5/8 8 9-1/4 10-5/8 11-7/8

(70) (102) (137) (168) (203) (235) (270) (302)

D Duct Width

1-5/8 2-7/8 4-1/4 5-1/2 6-7/8 8-1/8 9-1/2 10-3/4

(41) (73) (108) (140) (175) (206) (241) (273)

E Inside Flange

11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4

(298) (298) (298) (298) (298) (298) (298) (298)

F Inside Duct

12 12 12 12 12 12 12 12

(305) (305) (305) (305) (305) (305) (305) (305)

G Center Line

12-3/8 12-5/8 12-7/8 13-1/8 13-3/8 13-3/4 14 14-1/4

(314) (321) (327) (333) (340) (349) (356) (362)

H Half Face Width

1-3/8 2 2-11/16 3-5/16 4 4-5/8 5-5/16 5-15/16

(35) (51) (68) (84) (102) (117) (135) (151)

Imperial [IP] Dimensions

Metric (SI) in Parentheses
