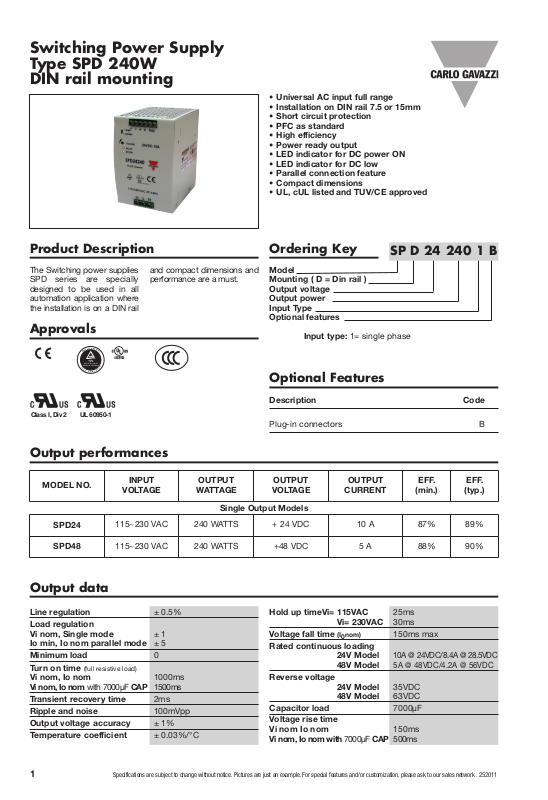

Carlo Gavazzi SPD 240W Data Sheet
1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network . 252011
Output performances
• Universal AC input full range
• Installation on DIN rail 7.5 or 15mm
• Short circuit protection
• PFC as standard
• High efficiency
• Power ready output
• LED indicator for DC power ON
• LED indicator for DC low
• Parallel connection feature
• Compact dimensions
• UL, cUL listed and TUV/CE approved
Product De scrip tion
The Switching power supplies
SPD series are specially
designed to be used in all
automation application where
the installation is on a DIN rail
and compact dimensions and
performance are a must.
Switching Power Supply
Type SPD 240W
DIN rail mounting
Optional Features
Approvals
Description Code
Plug-in connectors B
Output data
Model
Mounting ( D = Din rail )
Output voltage
Output power
Input Type
Optional features
Input type: 1= single phase
Ordering Key
SP D 24 240 1 B
Rheinland
Product Safety
B
a
u
a
r
t
g
e
p
r
ü
f
t
T
y
p
e
a
p
p
r
o
v
e
d
MODEL NO.
INPUT
VOLTAGE
OUTPUT
WATTAGE
OUTPUT
VOLTAGE
OUTPUT
CURRENT
EFF.
(min.)
EFF.
(typ.)
Single Output Models
SPD24
115~230 VAC 240 WATTS + 24 VDC 10 A 87% 89%
SPD48
115~230 VAC 240 WATTS +48 VDC 5 A 88% 90%
Line regulation ± 0.5%
Load regulation
Vi nom, Single mode ± 1
Io min, Io nom parallel mode ± 5
Minimum load 0
Turn on time
(full resistive load)
Vi nom, Io nom 1000ms
Vi nom, Io nom with 7000µF CAP 1500ms
Transient recovery time 2ms
Ripple and noise 100mVpp
Output voltage accuracy ± 1%
Temperature coefficient ± 0.03%/°C
Hold up timeVi= 115VAC 25ms
Vi= 230VAC 30ms
Voltage fall time (I
0
nom) 150ms max
Rated continuous loading
24V Model
10A @ 24VDC/8.4A @ 28.5VDC
48V Model
5A @ 48VDC/4.2A @ 56VDC
Reverse voltage
24V Model 35VDC
48V Model 63VDC
Capacitor load 7000µF
Voltage rise time
Vi nom Io nom 150ms
Vi nom, Io nom with 7000µF CAP 500ms
Class I, Div 2 UL 60950-1
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 252011 2
Input data
Switching Power Supply
Type SPD 240W
DIN rail mounting
Controls and Protections
Rated input voltage 115 - 230
Voltage range
AC in 115V 90 - 132VAC
AC in 230V 180 - 264VDC
DC in 210 - 375VDC
Rated input current
(Vi : 115VAC, Io nom) Typ. 4.4/1.6mA
Max. 5.4/2.2mA
Inrush current
Vi= 115VAC 30A
Vi= 230VAC 60A
Power dissipation
(Vi : 230VAC, Io nom)
24V Model 35W
48V Model 32W
Frequency range 47- 63Hz
Leakage current
Input-Output 0.25mA
Input-FG 3.5mA
Overload 120 – 140%
Input fuse T6.3/250VAC internal
1)
Output short circuit Fold forward
Power ready output
(only SPD 24)
Threshold voltages 17.6 - 19.4VDC
Over voltage protection 125-140%
Internal surge voltage protection
Varistor
(IEC 61000-4-5)
1)
Fuse not replaceable by user
Ambient temperature -40°C to 71°C
Derating (>61°C to +71°C) 2.5%/°C
Ambient humidity 20 ~ 90%RH
Storage -40°C to +85°C
Protection degree IP20
Cooling Free air convection
Pollution degree 2
General Data (@ nominal line, full load, 25°C )
MTBF (Bellcore issue 6 @ 40°C, GB)
24V Model 423000 Hours
48V Model 437000 Hours
Case material Metal
Dimensions LxWxD mm(inch)
Screw terminal type 124.5(4.9) x 83.5(3.29) x 123.6(4.87)
Detachable connector type 143.5(5.65) x 83.5(3.29) x123.6(4.87)
Weight 1380g
Vibration resistance meet IEC 60068-2-6
(Mounting by rail: 10-500Hz,
2G, along X, Y, Z each Axis,
60 min for each Axis)
Shock resistance meet IEC 60068-2-27
(15G, 11ms, 3 Axis, 6 faces,
3 times for each face)
UL / cUL UL508 listed, UL60950-1,
recognized, ISA 12.12.01
(Class1, Division 2, Groups
A, B, C and D)
TUV EN 60950-1, CB scheme
EN 61558-1,
EN 61558-2-17
(meet EN 60204)
CCC
GB4943, GB9254, GB17625.1
Norms and Standards
CE EN 61000-6-3, EN 55022
Class B, EN 61000-3-2
ClassD, EN 61000-3-3,
EN 61000-6-2,
EN 55024, EN 61000-4-2
Level 4, EN 61000-4-3
Level 3, EN 61000-4-4
Level 4, EN 61000-4-5 LLevel 3, L/N-FG Level 4,
EN 61000-4-6 Level 3,
EN 61000-4-8 Level 4,
EN 61000-4-11,
ENV 50204 Level 2,
EN 61204-3
