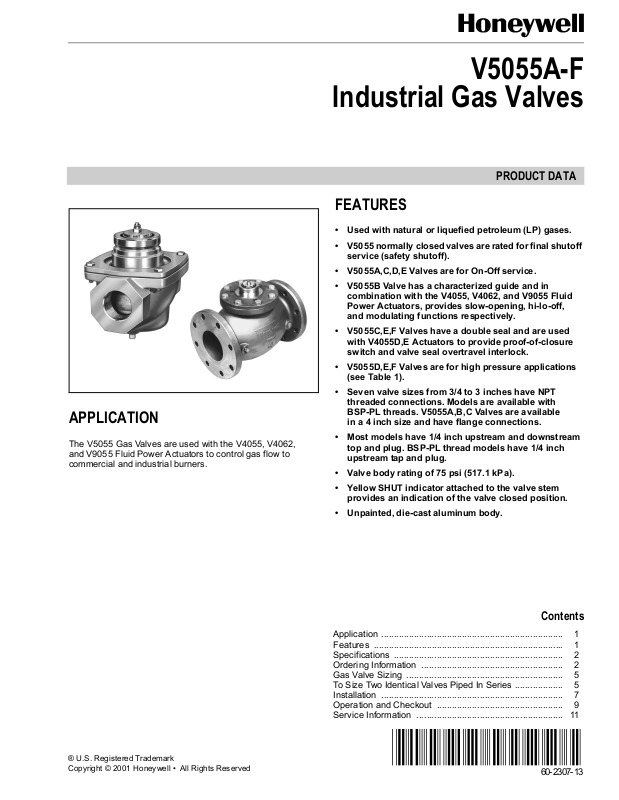

Page 1
APPLICATION
The V5055 Gas Valves are used with the V4055, V4062,
and V9055 Fluid Power Actuators to control gas flow to
commercial and industrial burners.
V5055A-F
Industrial Gas Valves
PRODUCT DATA
FEATURES
• Used with natural or liquefied petroleum (LP) gases.
• V5055 normally closed valves are rated for final shutoff
service (safety shutoff).
• V5055A,C,D,E Valves are for On-Off service.
• V5055B Valve has a characterized guide and in
combination with the V4055, V4062, and V9055 Fluid
Power Actuators, provides slow-opening, hi-lo-off,
and modulating functions respectively.
• V5055C,E,F Valves have a double seal and are used
with V4055D,E Actuators to provide proof-of-closure
switch and valve seal overtravel interlock.
• V5055D,E,F Valves are for high pressure applications
(see Table 1).
• Seven valve sizes from 3/4 to 3 inches have NPT
threaded connections. Models are available with
BSP-PL threads. V5055A,B,C Valves are available
in a 4 inch size and have flange connections.
• Most models have 1/4 inch upstream and downstream
top and plug. BSP-PL thread models have 1/4 inch
upstream tap and plug.
• Valve body rating of 75 psi (517.1 kPa).
• Yellow SHUT indicator attached to the valve stem
provides an indication of the valve closed position.
• Unpainted, die-cast aluminum body.
® U.S. Registered Trademark
Copyright © 2001 Honeywell • All Rights Reserved
Contents
Application ........................................................................ 1
Features ........................................................................... 1
Specifications ................................................................... 2
Ordering Information ........................................................ 2
Gas Valve Sizing .............................................................. 5
To Size Two Identical Valves Piped In Series ................... 5
Installation ........................................................................ 7
Operation and Checkout .................................................. 9
Service Information .......................................................... 11
60- 2307- 13
Page 2
V5055A-F INDUSTRIAL GAS VALVES
SPECIFICATIONS
Models:
V5055A Industrial Gas Valve for On-Off service.
Pipe Size: 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, and 4 in.
(only V5055A,B,C available in 4 in. size).
V5055B Industrial Gas Valve with characterized guide for
slow opening, HI-LO-OFF, or modulating service.
V5055C: Same as V5055A but incorporates a double seal.
Used with the V4055D Actuator to a provide
Pipe Threads: NPT or BSP-PL Threads (equivalent to ISO
R7 and DIN 2999). Available on inlet and outlet of 3/4 to 3 inch
valves. Four inch valves have flange connections.
proof-of-closure switch and a valve seal overtravel
interlock.
Pressure Ratings: See Table 1.
V5055D: Same as V5055A but for high pressure applications.
V5055E: Same as V5055C but for high pressure applications.
Valve Body Rating: 75 psi (517.1 kPa).
V5055F: Same as V5055E but meets the intent of EN161
leakage requirements.
Valve Capacities: I.A.S. ratings at 1 in. (0.25 kPa) pressure
drop; based on gas with specific gravity of 0.64.
Type of G as : Natural or liquefied petroleum (LP) only.
Table 1. Pressure Ratings of Valve-Actuator Combinations.
Actuator
V5055A,C
Valve
Diff.
V4055A,D
b
a
Closeoff
c
V4055B,E,F
b
Diff.
psi kPa psi kPa psi kPa psi kPa psi kPa psi kPa
5 34.5 15 103.4 15 103.4 15 103.4 5 34.5 15 103.4
a
Closeoff
V4062,V9055
c
Diff.
b
a
Closeoff
3/4 to 3 in.
V5055A,C
3 20.7 15 103.4 5 34.5 15 103.4 3 20.7 15 103.4
4 in.
V5055B
5 34.5 15 103.4 15 103.4 15 103.4 5 34.5 15 103.4
3/4 to 3 in.
V5055B
3 20.7 15 103.4 5 34.5 15 103.4 3 20.7 15 103.4
4 in.
V5055D,E,F
d
5 34.5 75 517.1 25 172.4 75 517.1 5 34.5 75 517.1
3/4, 1, 1-1/4, 1-1/2 in.
V5055D,E
5 34.5 45 310.3 15 103.4 45 310.3 5 34.5 45 310.3
2, 2-1/2. 3 in.
a
Use a V4055D, V4055E, V4062D, or V9055D (with proof-of-closure switch) with a V5055C,E or F (with double seal) for valve
seal overtravel interlock.
b
Maximum operating pressure differential.
c
Maximum close-off pressure without seal leakage. This is the maximum allowable pressure drop to which a valve may be
subjected while fully closed, and is independent of the valve body rating.
d
V5055F available in 1 in., 1-1/4 in., 1-1/2 in. and 2 in. sizes only.
Upstream Tapping and Plug: 1 /4 in. NPT or BSP-PL
is standard.
Downstream Tapping and Plug:
1/4 in. NPT on most domestic models.
1/8 in. NPT on V5055C1182.
c
ORDERING INFORMATION
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the
TRADELINE® Catalog or price sheets for complete ordering number.
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Home and Building Control Sales Office (check white pages of your phone directory).
2. Home and Building Control Customer Relations
Honeywell, 1885 Douglas Drive North
Minneapolis, Minnesota 55422-4386
In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.
International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,
Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
60-2307—13 2
Page 3
V5055A-F INDUSTRIAL GAS VALVES
.0
Ambient Operating Temperature Rating:
-40°F to 150°F (-40°C to 66°C); -40°F to 125°F
(-40°C to 52°C) when used with V9055.
Table 2. Valve Rated Capacity.
a
Rated Capacity
I.A.S.
Valve Size (in.)
3/4 665 18.8
1 960 27.2
1-1/4 1406 39.8
1-1/2 1717 48.6
2 3620 102.5
2-1/2 4250 120.3
3 5230 148.1
4 (V5055A) 10200 288.8
4 (V5055B,C) 9180 259.9
a
A joint venture of CGA Approvals Inc. and AGA Laboratories.
1 2 3 4 567891 2 3 4 567891 2 3 4 567891
1
100.0
9
(25)
8
7
6
5
4
3
2
cf/h cu m/hr
Material: Die-cast aluminum.
Mounting: Mounts directly in the gas supply line.

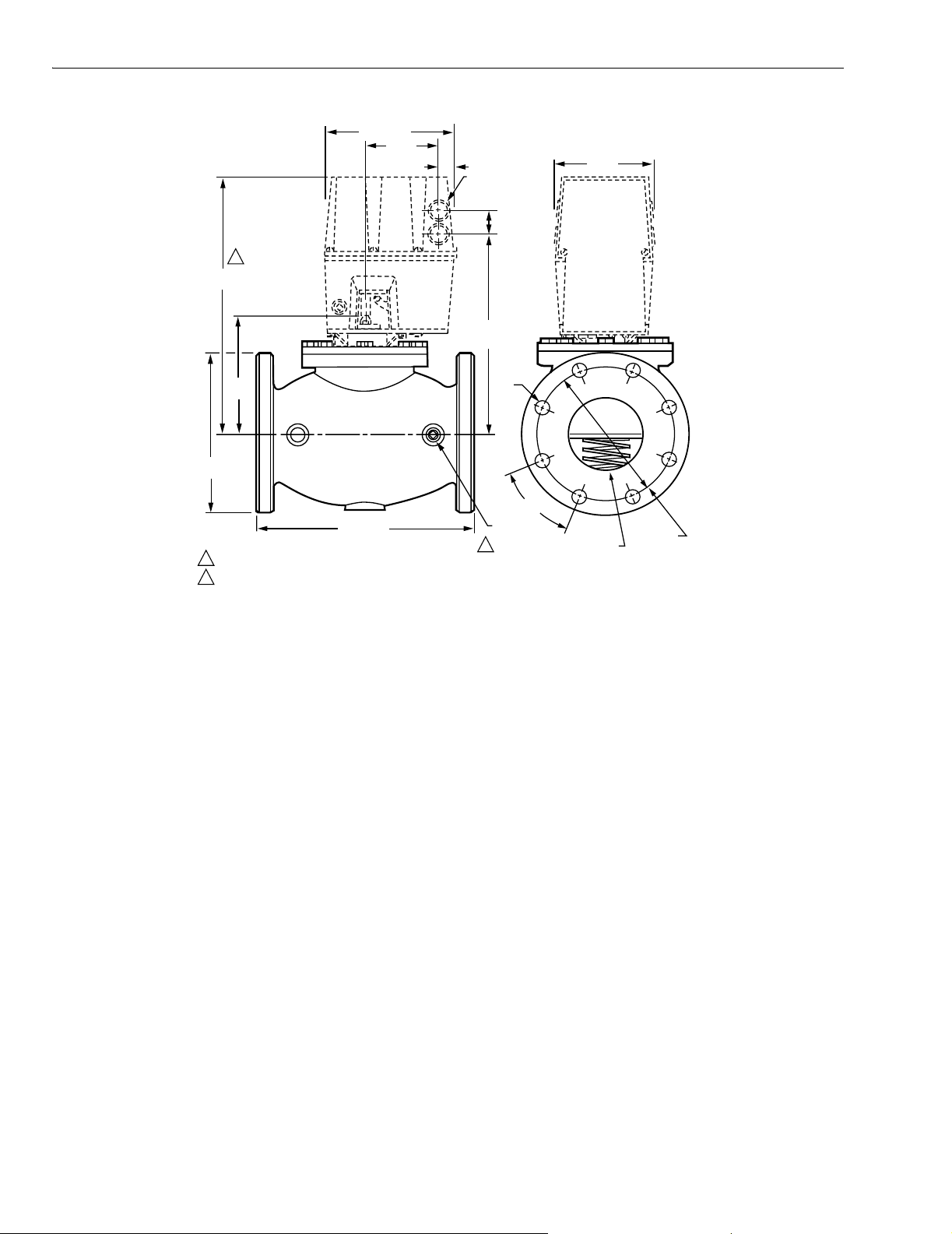

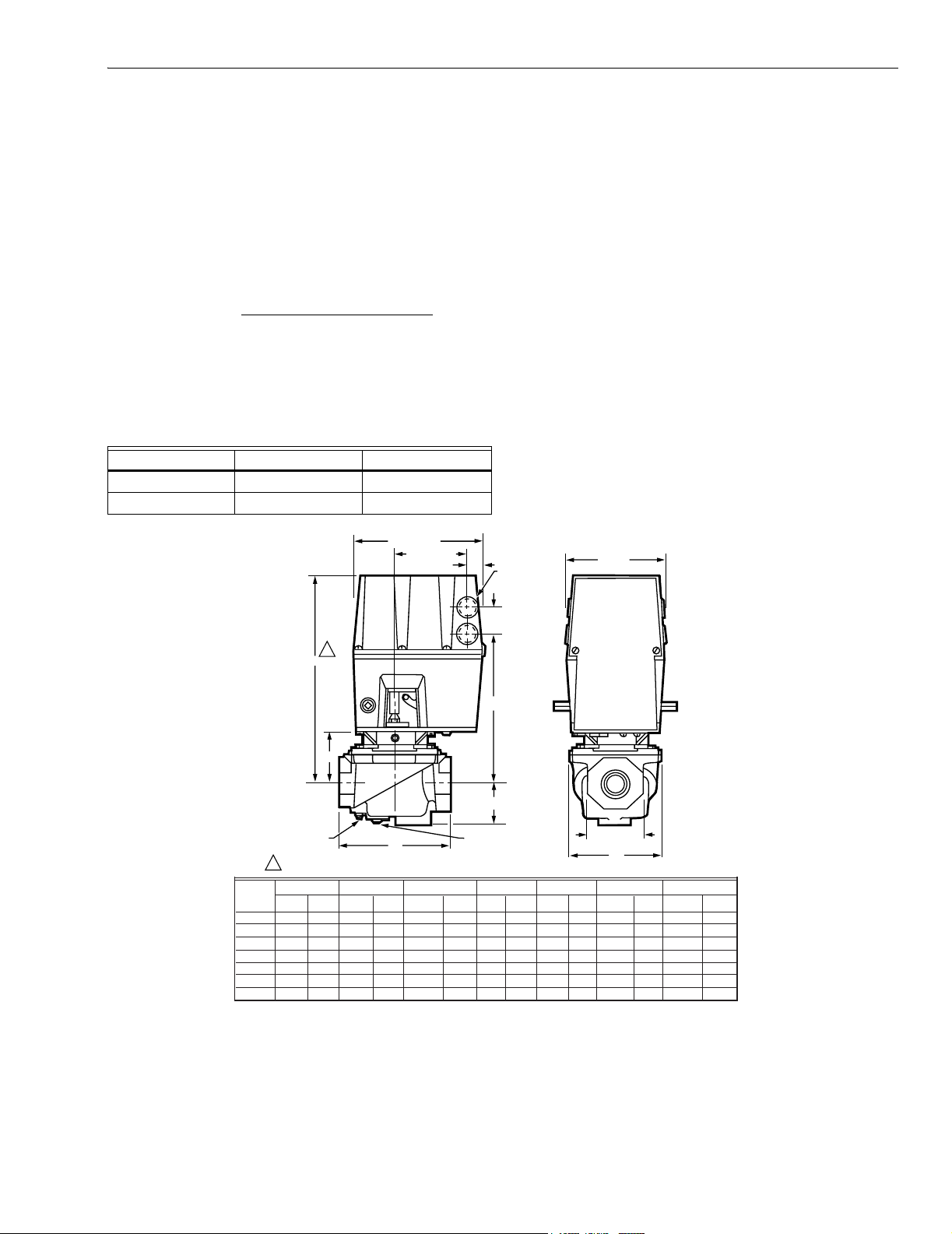

Dimensions: See Fig. 2 and 3.
Weight:
3/4, 1, 1-1/4, 1-1/2, in. valve: 4 lb. (1.8 kg).
2 in. valve: 8 lb. (3.6 kg).
2-1/2, 3 in. valve: 11 lb. (5.0 kg).
4 in. valve: 28 lb. (12.7 kg).
100
9
8
7
6
5
4
3
2
10.0
1
(2.5)
9
8
7
6
5
4
3
[1 in. wc = 0.25 kPa]
2
PRESSURE DROP, INCHES WC
11.0
(0.25)
.9
.8
.7
.6
.5
.4
.3
.2
.1
100
(2.8)
CAPACITY, IN CUBIC FEET PER HOUR (cf/h) FOR GAS WITH SPECIFIC GRAVITY OF 0.64 [1 cf/h = 0.0283 cu m/hr]
3/4 INCH
1 INCH
1 INCH
1 1/4 INCH
1 1/2 INCH
1000
(28)
2 INCH
2 1/2 INCH
3 INCH
4 INCH V5055B, C
4 INCH V5055A
10,000
(283)
100,000
(2830)
M9542
1.0
9
8
7
6
5
4
3
2
1.0
.9
.8
.7
.6
.5
.4
.3
.2
.1
Fig. 1. Flow curves for V5055 Valves.
3 60-2307—13
Page 4
V5055A-F INDUSTRIAL GAS VALVES
Replacement Parts:
Replacement Seal Assembly: Includes valve seal, bonnet
seal, and tube of lubricant.
133393A: for 3/4, 1, 1-1/4, and 1-1/2 in. valves
133392A: for 2, 2-1/2, and 3 in. valves.
137253A: for 4 in. valves.
Replacement Bonnet Assembly: Includes complete bonnet
assembly, plus the required replacement seal assembly.
See Table 3.
Table 3. Replacement Bonnet Assemblies.
Replacement
Valve Model Valve Size (in.)
V5055A
(On-Off)
3/4, 1, 1-1/4,
1-1/2
Bonnet Assembly
133398AA
2, 2-1/2, 3 133417AA
4 136911AA
V5055B
(Characterized
guide)
3/4, 1, 1-1/4,
133398BA
1-1/2
2, 2-1/2, 3 133417BA
4 136911BA
V5055C
(Valve-closed
indicator)
3/4, 1, 1-1/4,
137398CA
1-1/2
2, 2-1/2, 3 133417CA
4 136911CA
V5055D
(High pressure
On-Off)
3/4, 1, 1-1/4,
136308AA
1-1/2
2, 2-1/2, 3 136307AA
Approvals:
The following combinations of V5055 Valves (3/4 through
4 in.) and V4055, V4062 and V9055 Fluid Power Actuators
are approved by these agencies:
Underwriters Laboratories Inc. Listed: (File No. MH1639,
Guide No. YIOZ):
V4055A,B,D,E/V5055A,B,C,D,E,F
V4062/V5055A,B,C,E,F
V9055/V5055A,B,C,E,F
Industrial Risk Insurers (Formerly F.L.A.) Acceptable:
V4055A,B,D,E/V5055A,B,C,D,E,F
V4062/V5055A,B,C,E,F
V9055/V5055A,B,C,E,F
Factory Mutual Approved (Report No. ID92A.AF).
CSA File No. 158158-1205788:
V4055A/V5055A,B V4055E/V5055E
V4055B/V5055D V4062/V5055B,C
V4055D/V5055C V9055/V5055B,C
NOTE: CSA does not certify models equipped with
BSP threads.
British Gas Corporation and Dutch Gas Institute Approved:
V4055 or V4062 with V5055A1145, A1152, A1160,
A1178, B1168, B1184, B1192, B1200, B1218.
Australian Gas Association Approved:
V5055B1267, B1275, and B1291.
DIN-DVGW Approved (Germany):
V5055A1145, A1152, A1160, A1178, B1168, B1184,
B1192, B1200, and B1218.
60-2307—13 4
Page 5
V5055A-F INDUSTRIAL GAS VALVES
5
GAS VALVE SIZING
1. Check the burner nameplate for (a) the type of gas
used, and (b) the gas flow capacity. The capacity will
be listed in Btu/h (Btus per hour) or in cf/h (cubic foot
per hour).
2. Call the gas utility for information on (a) the specific
gravity (sp gr) and (b) Btu per cubic foot (Btu/cu ft) for
type of gas used.
3. Find the capacity in cf/h. If the capacity is listed in
Btu/h, convert to cfh by the following formula:
Capacity in cf/h = :Btu/h (from burner nameplate)
Btu/cu ft (from gas utility)
4. For gases with specific gravities other than 0.64,
multiply the burner cfh by the proper conversion factor.
See Table 4.
Table 4. Conversion Factors for
LP—Propane and LP—Butane.
Type of Gas sp gr (average) Multiply cf/h by:
LP—Propane 1.53 0.647
LP—Propane 1.98 0.569
6-3/4 (172)
3-23/32 (95)
27/32 (21)
1
A
5. Use the corrected capacity in cf/h when determining the
gas valve size in Fig. 1.
6. Determine the maximum pressure drop across the valve
and draw a horizontal line at this pressure in Fig. 1.
7. Draw a vertical line in Fig. 1 at the capacity (cf/h)
previously determined. Use the corrected capacity for
a gas with a specific gravity other than 0.64.
8. Use the valve size at the intersection of the horizontal
and vertical lines. If the intersection is between valve
sizes, use the next higher size to the right.
TO SIZE TWO IDENTICAL VALVES PIPED IN SERIES
1. Find the cf/h for the type of gas used.
2. Consider both valves as one unit. Determine the total
maximum pressure drop across the unit.
3. Find the pressure drop across the first valve by
assuming it to be 45 percent of the total pressure drop.
4. Find the valve size from Fig. 1.
5. The second valve will be the same size as the first
valve.
KNOCKOUT
FOR1/2 INCH
CONDUIT (4)
1-9/32
(33)
5 (127)
C
B
1/4 INCH NPT
DOWNSTREAM
TAP AND PLUG
VALVE
SIZE
INCH
3/4
1
1-1/4
1-1/2
2
2-1/2
3
D
1
ALLOW 2 IN. (51 mm) CLEARANCE FOR ACTUATOR REMOVAL.
IN. MM
11-1/8
11-1/8
11-1/8
11-1/8
11-1/4
11-3/4
11-3/4
DIM A
282.6
282.6
282.6
282.6
285.8
298.5
298.5
DIM B
IN. MM
2-3/4
2-3/4
2-3/4
2-3/4
2-7/8
3-3/8
3-3/8
69.9
69.9
69.9
69.9
73.0
85.7
85.7
DIM C
IN. MM
8-3/16
8-3/16
8-3/16
8-3/16
8-5/16
8-13/16
8-13/16
E
1/4 INCH NPT UPSTREAM
TAP AND PLUG
DIM D
IN. MM
208.0
5-3/4
208.0
5-3/4
208.0
5-3/4
208.0
5-3/4
211.1
8-3/8
223.8
9-1/4
223.8
9-1/4
146.1
146.1
146.1
146.1
212.7
235.0
235.0
DIM E
IN. MM
2-1/4
2-1/4
2-1/4
2-1/4
2-3/4
2-3/4
2-3/4
57.2
57.2
57.2
57.2
69.9
69.9
69.9
OCTAGON
F
DIM F
IN. MM
4-13/16
4-13/16
4-13/16
4-13/16
7-19/32
7-19/32
7-19/32
122.2
122.2
122.2
122.2
192.9
192.9
192.9
OCTAGON
IN. MM
2-13/16
2-13/16
2-13/16
2-13/16
3-1/2
4-1/2
4-1/2
71.4
71.4
71.4
71.4
88.9
114.3
114.3
M958
Fig. 2. Approximate dimensions of the 3/4 through 3 in. V5055 Valves, with valve actuator, in in. (mm).
5 60-2307—13
Page 6
V5055A-F INDUSTRIAL GAS VALVES
4
.71 IN (18 mm) DIAMETER BOLT HOLE (16), 7.087 IN (180 mm) DIAMETER BOLT CIRCLE.
1
14-5/32
(360)
5-25/32
(147)
9-5/32
(233)
1 ALLOW 2 IN. (51 mm) CLEARANCE ABOVE V4055 SO IT MAY BE REMOVED FROM VALVE.
2
DIMENSIONS ON DIN-APPROVED VALVES: 1/4 - 19 BSP.PL UPSTREAM PLUG (2),
Fig. 3. Approximate dimensions of the 4 in. V5055 Valves, with valve actuator, in in. (mm).
6-3/4
12-1/2 (318)
(171.5)
3-23/32
(94.5)
27/32
(21.4)
KNOCKOUT
FOR1/2 INCH
CONDUIT (4)
1-9/32
(33)
11-7/32
(285)
3/4 (19)
DIAMETER
(16)
1/4 - 18 NPT
UPSTREAM
PLUG (2)
2
45° (16)
5 (127)
4 (102)
DIAMETER
7-1/2 (191)
DIAMETER
M958
60-2307—13 6
Page 7
V5055A-F INDUSTRIAL GAS VALVES
INSTALLATION
IMPORTANT:
The V5055 Valve is designed to provide control
of gaseous fuel (natural and LP gas) flow in
applications in which there is minimal exposure to
water. V5055 Valves used in maritime, beverage,
food processing, outdoor and other installations in
which occasional exposure to water is experienced
may be subject to valve stem and spring corrosion.
The presence of corrosion decreases the operating
life of the valve. V5055 Valves used in such
installations should be inspected at least annually
and should have the valve bonnets replaced if
corrosion is noted.
A V4055 Valve Actuator with a NEMA 4 rating is also
recommended for such installations. The water-tight
design of the NEMA 4 rated V4055 Actuator prevents
water from entering the V4055 valve stem and spring
chamber through the actuator. Under certain
conditions, some water may be retained by the
external upper portion of the valve body. The
retained water is effectively excluded from the valve
stem and spring chamber by a functional seal that is
incorporated into the NEMA 4 rated actuator.
When Installing This Product…
1. Read these instructions carefully. Failure to follow
them could damage the product or cause a hazardous
condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced, flame
safeguard control technician.
4. After installation is complete, check out product
operations as provided in these instructions.
WARNING
Electrical Shock Hazard and Explosion Hazard.
Can cause serious injury, death or property
damage.
1. Turn off gas supply before starting installation.
2. Disconnect power supply for valve actuator before
beginning installation to prevent electrical shock
and equipment damage.
3. Be sure the valve is installed so the arrow on
the valve points in the direction of gas flow.
(Gas pressure helps to close the valve.)
Location
Install the valve in the gas supply line downstream from the
pressure regulator. The valve and actuator may be mounted in
any position that allows sufficient clearance for installation and
for repair or replacement.
1. The valve position indicators should be easily visible
with the valve and actuator in the final position.
2. The final position of the valve and actuator must allow
for damper linkage, if used.
IMPORTANT:
Allow room for turning the valve body (actuator not
attached) onto the gas piping. Swing dimensions,
measured from the center of the pipe are:
3/4 through 1-1/2 in. valves: 4 in. (101.6 mm).
2 through 3 in. valves: 5 in. (127.0 mm).
4 in. valves: 7 in. (177.8 mm).
7 60-2307—13
Page 8
V5055A-F INDUSTRIAL GAS VALVES
:
T
Mounting (Figs. 4 through 6)
WARNING
Explosion Hazard.
Can cause serious injury, death or property
damage.
If flow is not in the direction of the arrow on the valve
body, the valve may not shut off.
1. Use new, properly reamed, pipe, free from chips.
2. Do not thread pipe too far (Fig. 4). Valve distortion or
malfunction may result from excess pipe in the valve.
EXCESS DOPE MAY BLOCK
DISK OFF
VALVE
SEAT
LOOSE
CHIPS
INCORRECT:
TOO LONG,
DISTORTS
VALVE SEAT
CORRECT:
NORMAL
FULL
THREAD
TWO CLEAN
THREADS,
MODERATE
AMOUNT
OF DOPE
1
3. Remove the protective caps from the ends of the valve.
Do not attach the valve actuator until the valve body
installation is complete.
4. Apply good quality pipe dope resistant to action of
LP gas, putting a moderate amount on the male threads
only. Use dope sparingly; if pipe dope lodges on the
valve seat, it will prevent proper closure.
5. Install valve with the gas flow in the direction indicated
by the arrow on the casting.
6. Apply a parallel jaw wrench only to the flat next to the
pipe being inserted (Fig. 5). A wrench applied to the
valve body itself, or to the end farthest from the pipe
being inserted, may distort the casting, causing a
malfunction. Do not use the valve for a lever.
7. Be sure the gas flow is in the same direction as the
arrow on the bottom of the valve body.
8. Use two threaded companion flanges, two gaskets
(included with valve), and 16 bolts (with washers and
nuts) for mounting a 4 in.-V5055 Valve. Mount a
threaded flange and gasket on each end of the valve as
shown in Fig. 6. Then screw the pipes into the threaded
flanges. Apply dope sparingly, and use wrenches and
vises properly as shown in Fig. 4 and 5.
9. Make sure the power supply is disconnected from
the valve actuator. Then mount the actuator on the
valve body and complete the electrical and linkage
connections following the instructions packed with the
actuator.
CORRECT:
NORMAL
FULL
THREAD
USE PIPE DOPE RESISTANT TO ACTION OF LP GAS.
1
REAM PIPE,
BLOW OUT
CHIPS (TO AVOID
LODGING ON SEAT)

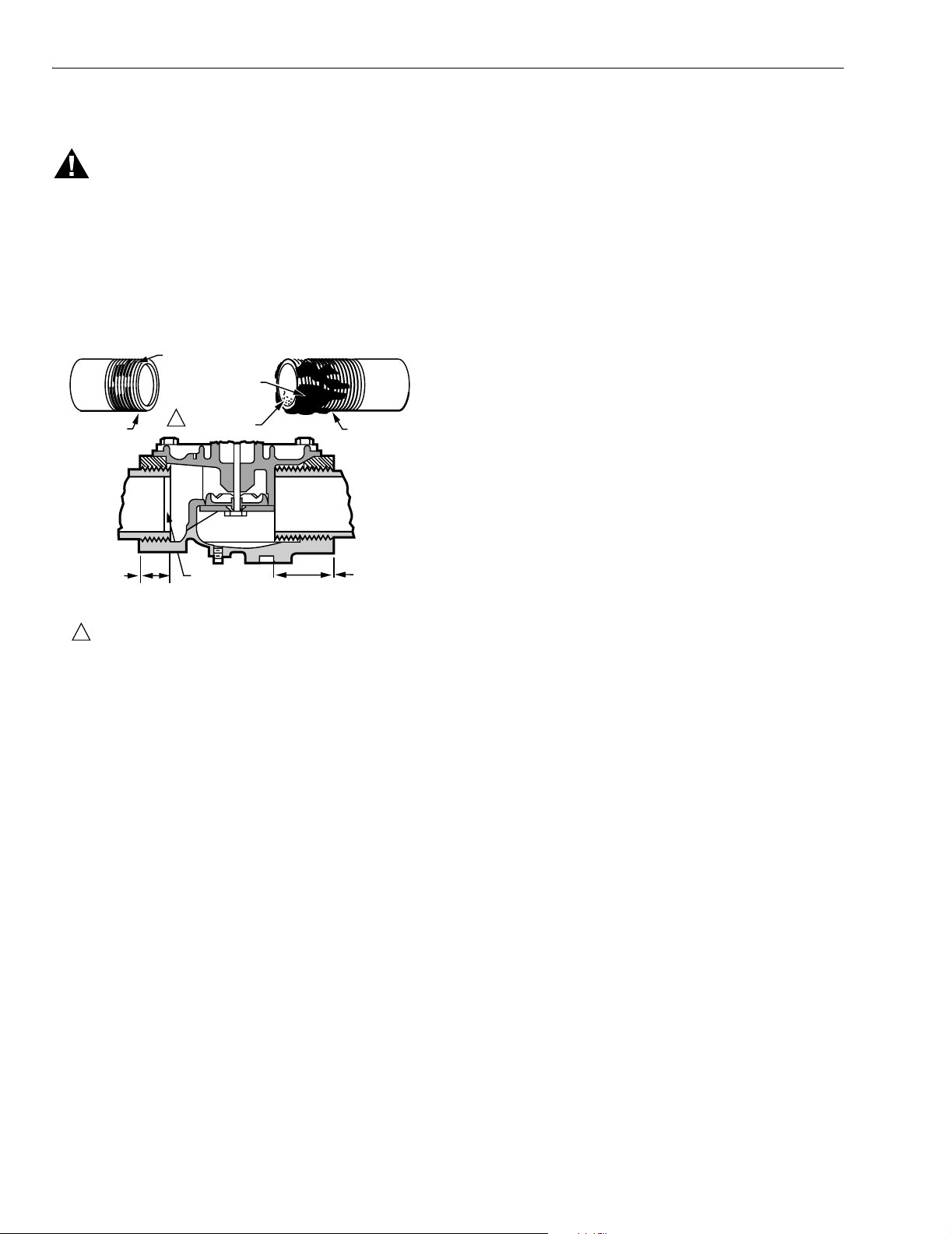

Fig. 4. Preparing the pipes.
INCORRECT
TOO LONG,
DISTORTS
VALVE SEA
M9571
60-2307—13 8
Page 9
OPERATION AND CHECKOUT
C
0
1
V5055A-F INDUSTRIAL GAS VALVES
Operation
A V5055 Industrial Gas Valve is operated by a V4055, V4062,
or V9055 Fluid Power Gas Valve Actuator. The valve opens
when the actuator is energized, and closes when power is
removed. When closed, the valve seals off against the
rated close-off pressure with no power applied. For further
information, refer to the Instructions for the actuator.
Checkout
WARNING
Explosion Hazard.
Can cause serious injury, death or property
damage.
Do not allow fuel to accumulate in the combustion
chamber. If fuel is allowed to enter the chamber
for longer than a few seconds without igniting, an
explosive mixture could result.
CORRECT:
VISE GRIPS END
NEXT TO PIPE
BEING INSERTED
ORRECT:
WRENCH CORRECTLY
APPLIED NEXT
TO PIPE BEING
INSERTED
INCORRECT:
WRENCH HERE
STRAINS
VALVE BODY

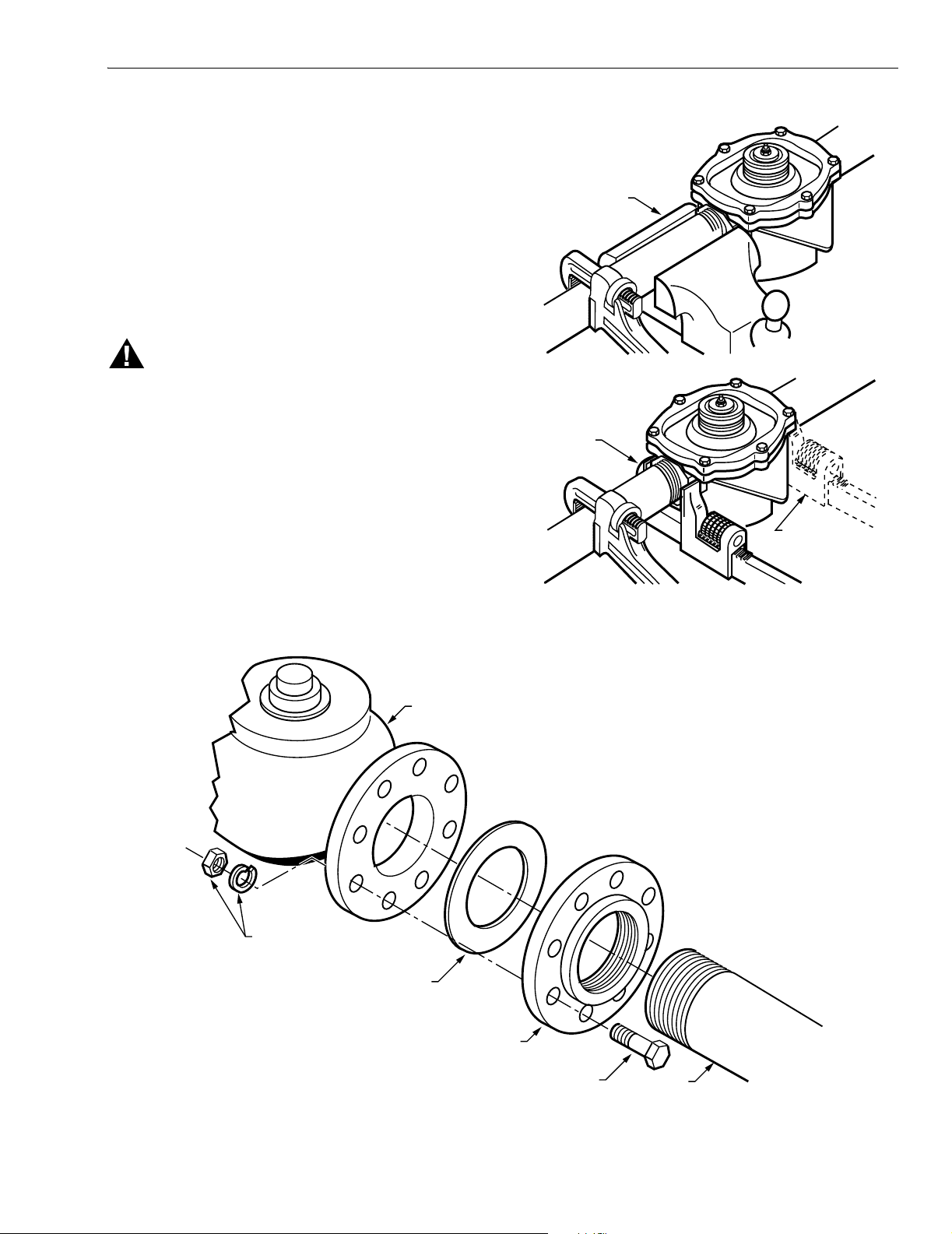

Fig. 5. Installing a 3/4 through 3 in. V5055 Valve.
M958
4 IN. VALVE
NUT AND WASHER
(NOT INCLUDED)
GASKET
(2 INCLUDED WITH VALVE)
THREADED COMPANION
FLANGE (2 - NOT INCLUDED)
5/8 X 3 IN. [76] BOLT
(16 - NOT INCLUDED)
4 IN. PIPE
M958
Fig. 6. Installing a 4 in. V5055 Valve.
9 60-2307—13
Page 10
1. De-energize the control system to assure that there is
M9547E
G
S
M
CAUTION
Equipment Damage Hazard.
Operation without proper checkout can damage
the equipment.
1. Do not put the system into service until you have
satisfactorily completed the following Valve Leak
Test, all applicable tests described in the Checkout
section of the Instructions for the flame safeguard
control, and any other tests required by the burner
manufacturer.
2. All tests must be performed by a trained,
experienced flame safeguard control technician.
3. Close all manual fuel shutoff valves as soon as
trouble occurs.
After the installation is complete, cycle the valve several times
with the manual fuel shutoff cock closed. Make sure the valve
and actuator function properly. Also perform the Valve Leak
Test that follows before putting the valve into service.
no power to the safety shutoff valve (C) shown in Fig. 7.
2. Close the upstream manual gas cock (A).
3. Make sure the manual test petcock (F) is closed in the
leak test tap assembly (D).
4. Remove the leak test tap plug and connect the test
apparatus to the Leak Tap (D).
5. Close the downstream manual gas cock (E).
6. Open the upstream manual gas cock (A).
7. Run the safety shutoff valve (C) to its fully open position
(through the safety system); then immediately
de-energize the system to close the valve.
8. Immerse a 1/4 in. tube vertically 1/2 in. (12.7 mm) into
a jar of water.
9. Slowly open the test petcock (F).
10. When the rate of bubbles coming through the water
stabilizes, count the number of bubbles appearing
during a ten-second period. Each bubble appearing
during a ten-second period represents a flow rate of
approximately 0.001 cfh.
To meet U.S. requirements, leakage must not exceed the

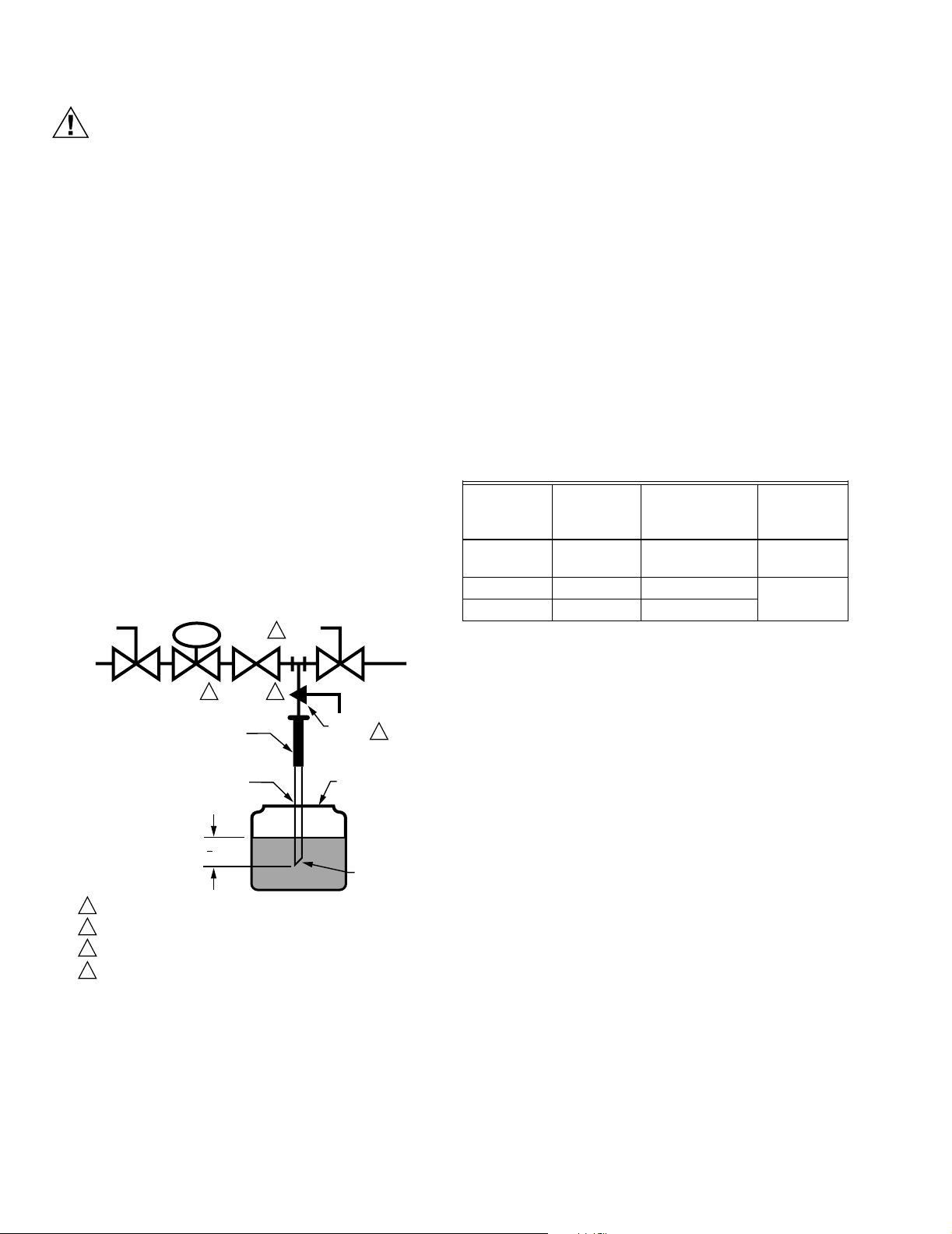

Valve Leak Test (Fig. 7)
This is a test for checking the closure tightness of a gas
safety shutoff valve. It should be performed by qualified
personnel during the initial startup of a burner system, or
whenever the valve or valve bonnet is replaced (see
Service Information section). It is recommended that this
test also be included in the scheduled inspection and
maintenance procedures. For a periodic inspection test,
follow steps 1, 3, 4, 5, 8, 9, 10, 12, 13, 16, and 17.
values listed in Table 5.
Table 5. Allowable Leakage for V5055 Valves.
V5055 Pipe
Size (in.)
3/4, 1, 1-1/4,
Allowable
leakage
a,b
(cc/hr)
458 16 10.2
Number of
bubbles per 10
sec. (maximum)
1-1/2
Seconds for
10 bubbles
minimum
2, 2-1/2, 3 752 26 6.2
4100335
a
Based on air at standard conditions, test pressures provided
by ANSI Z21.21, Section 2.4.2 and a maximum of 235 cc/hr
per inch of seal-off diameter. Seal-off diameter is not to be
confused with pipe size.
b
V5055F leakage rate is 1 bubble in 7.6 seconds.
NOTE: For international leak test requirements, contact
the office of the appropriate approval agency.
After the test:
AS
UPPLY
SSOV
4
D
LEAK
TEST
TAP
DOWNSTREA
MANUAL
GAS COCK
F
MANUAL
TEST
PETCOCK
JAR OR GLASS
WITH WATER
ABC E
UPSTREAM
MANUAL
GAS COCK
PRV
2 3
1/4 IN. (6 MM)
FLEXIBLE
TUBING
1/4 IN. (6 MM)
ALUMINUM OR
COPPER PILOT
TUBING
BURNER
1
11. Close the upstream manual gas cock (A).
12. Close the test petcock (F), remove the test apparatus,
1
(13 MM)
2
CAN ALSO BE A PERMANENT PETCOCK.
1
PRV = PRESSURE REGULATING VALVE.
2
3
SSOV = SAFETY SHUTOFF VALVE.
ONLY USE ONE OF THE DOWNSTREAM TAPS ON THE SS0V.
4
CUT AT
45 DEGREE
ANGLE
and replace the leak test tap plug (D).
13. Open the upstream manual gas cock (A) and energize
the safety shutoff valve (C).
14. Test with soap bubbles to assure that there is no leak
at the test tap (D).
15. De-energize the safety shutoff valve (C).
16. Open the downstream manual gas cock (E).
17. Restore the system to normal operation. If two safety
shutoff valves are utilized, each V5055 valve is to be
checked for tightness of closure.
Fig. 7. Valve leak test.
60-2307—13 10
Page 11
SERVICE INFORMATION
WARNING
Explosion and Electrical Shock Hazard.
Can cause serious injury, death or property
damage.
1. Before servicing, turn off the gas supply and
disconnect all electrical power to the valve actuator.
2. Only qualified service technicians should attempt
to service or repair flame safeguard controls and
burner systems.
3. Do not disassemble the valve bonnet assembly;
the valve seat is not replaceable.
4. Failure to properly position and seat the seals in the
valve body may result in a hazardous gas leak.
Scheduled Inspection and Maintenance
Setup and follow a schedule for periodic inspection and
maintenance, including the burner, all other controls, and
the valve(s). It is recommended that the Valve Leak Test in
the Checkout section be included in this schedule. Refer to
the Instructions for the primary safety control for more
information.
BONNET SEAL
Valve Bonnet Replacement
The entire valve bonnet may be replaced without removing
the valve body from the gas line. Do not disassemble the
valve bonnet assembly; the valve seat is not replaceable.
For part numbers, refer to Replacement Parts in the
Specifications section. Complete instructions for replacing
the bonnet assembly are included with the replacement part.
Replacement of Seals (Fig. 8 or 9)
When removing the bonnet to inspect and clean the valve,
install new seals (see Replacement Parts in Specifications
section). Coat the new seals with the grease provided, and
position them in the valve body as shown in Fig. 8 or 9.
Failure to properly position and seat the seals in the valve
body may result in a hazardous gas leak.
After the new bonnet assembly is installed, or the bonnet is
removed for any reason, check for gas leakage around the
bonnet seal. Turn on the gas at the manual valve. Paint the
seal area with a rich soap and water solution. Bubbles
indicate a gas leak. If a leak is detected, check to see that
the bonnet screws are tight. If necessary, turn off the gas
again and remove the bonnet to be sure the seals are
properly seated.
VALVE SEAL

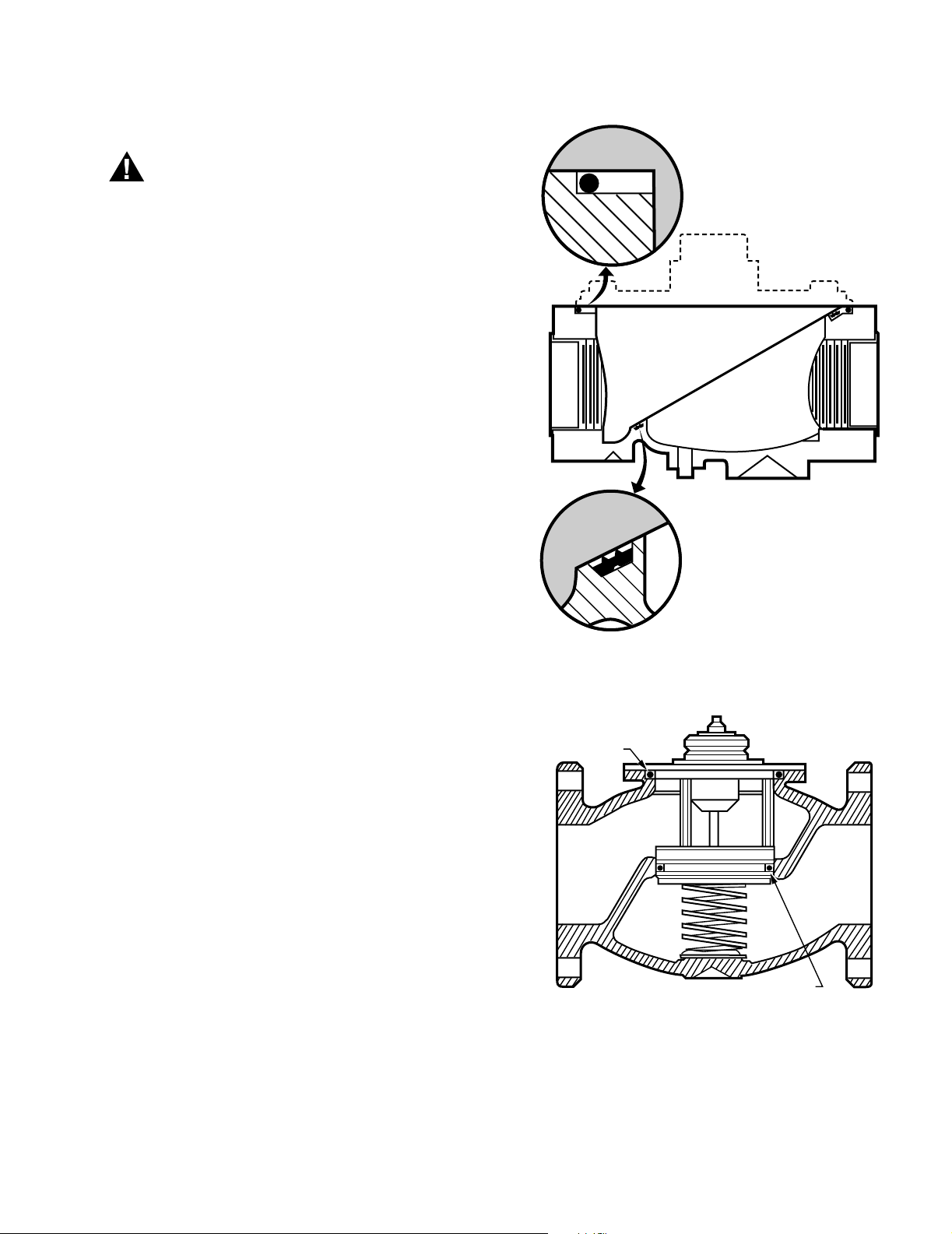

Fig. 8. Proper positions of valve and bonnet
seals in 3/4 through 3 in. valves.
LARGE SEAL
SMALL SEAL
M9578
M9579
Fig. 9. Proper positions of valve and
bonnet seals in 4 in. valve.
11 60-2307—13
Page 12
Home and Building Control Home and Building Control
Honeywell Honeywell Limited-Honeywell Limitée
1985 Douglas Drive North 35 Dynamic Drive
Golden Valley, MN 55422 Scarborough, Ontario
60-2307—13 G.R. Rev. 10-01 www.honeywell.com/bbc
M1V 4Z9
Printed in U.S.A. on recycled
paper containing at least 10%
post-consumer paper fibers.
Loading...
