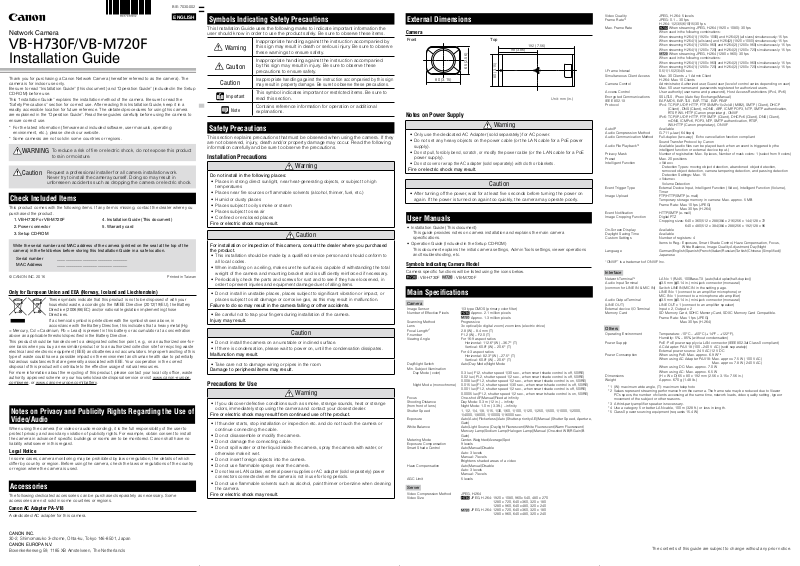

Canon VB-M720F, VB-H730F User Manual

BIE-7030-002

192 (7.56)

JPN

ENGLISH

Network Camera

Installation Guide

Thank you for purchasing a Canon Network Camera (hereafter referred to as the camera). The camera is for indoor use only. Be sure to read “Installation Guide” (this document) and “Operation Guide” (included in the Setup CD-ROM) before use. This “Installation Guide” explains the installation method of the camera. Be sure to read the “Safety Precautions” section for correct use. After reading this Installation Guide, keep it in a readily accessible location for future reference. The detailed procedures for using this camera are explained in the “Operation Guide”. Read these guides carefully before using the camera to ensure correct use.

* For the latest information (ﬁrmware and included software, user manuals, operating

environment, etc.), please check our website.

* Some cameras are not sold in some countries or regions.

WARNING

Caution

Check Included Items

This product comes with the following items. If any item is missing, contact the dealer where you purchased the product.

1. VB-H730F or VB-M720F 4. Installation Guide (This document)

2. Power connector 5. Warranty card

3. Setup CD-ROM

Write the serial number and MAC address of the camera (printed on the seal at the top of the camera) in the ﬁeld below before storing this Installation Guide in a safe location.

Serial number _________________________________

MAC Address _________________________________

Only for European Union and EEA (Norway, Iceland and Liechtenstein)

= Mercury, Cd = Cadmium, Pb = Lead) is present in this battery or accumulator at a concentration above an applicable threshold speciﬁed in the Battery Directive.

This product should be handed over to a designated collection point, e.g., on an authorized one-forone basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this type of waste could have a possible impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. Your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city ofﬁce, waste authority, approved scheme or your household waste disposal service or visit com/weee, or www.canon-europe.com/battery.

Notes on Privacy and Publicity Rights Regarding the Use of Video/Audio

When using the camera (for video or audio recording), it is the full responsibility of the user to protect privacy and avoid any violation of publicity rights. For example, obtain consent to install the camera in advance if speciﬁc buildings or rooms are to be monitored. Canon shall have no liability whatsoever in this regard.

Legal Notice

In some cases, camera monitoring may be prohibited by law or regulation, the details of which differ by country or region. Before using the camera, check the laws or regulations of the country or region where the camera is used.

Accessories

The following dedicated accessories can be purchased separately as necessary. Some accessories are not sold in some countries or regions.

Canon AC Adapter PA-V18

A dedicated AC adapter for this camera.

To reduce a risk of ﬁre or electric shock, do not expose this product to rain or moisture.

Request a professional installer for all camera installation work. Never try to install the camera yourself. Doing so may result in unforeseen accidents such as dropping the camera or electric shock.

These symbols indicate that this product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/EU), the Battery Directive (2006/66/EC) and/or national legislation implementing those Directives.

If a chemical symbol is printed beneath the symbol shown above, in accordance with the Battery Directive, this indicates that a heavy metal (Hg

www.canon-europe.

Symbols Indicating Safety Precautions

This Installation Guide uses the following marks to indicate important information the user should know in order to use the product safely. Be sure to observe these items.

Inappropriate handling against the instruction accompanied by

Warning

this sign may result in death or serious injury. Be sure to observe these warnings to ensure safety.

Inappropriate handling against the instruction accompanied

Caution

by this sign may result in injury. Be sure to observe these precautions to ensure safety.

Inappropriate handling against the instruction accompanied by this sign

Caution

may result in property damage. Be sure to observe these precautions.

This symbol indicates important or restricted items. Be sure to

Important

read this section.

Contains reference information for operation or additional

Note

explanations.

Safety Precautions

This section explains precautions that must be observed when using the camera. If they are not observed, injury, death and/or property damage may occur. Read the following information carefully and be sure to observe the precautions.

Installation Precautions

Warning

Do not install in the following places:

• Places in strong direct sunlight, near heat-generating objects, or subject to high temperatures

• Places near ﬁre sources or ﬂammable solvents (alcohol, thinner, fuel, etc.)

• Humid or dusty places

• Places subject to oily smoke or steam

• Places subject to sea air

• Conﬁned or enclosed places

Fire or electric shock may result.

Caution

For installation or inspection of this camera, consult the dealer where you purchased the product.

• This installation should be made by a qualiﬁed service person and should conform to all local codes.

• When installing on a ceiling, make sure the surface is capable of withstanding the total weight of the camera and mounting bracket and is sufﬁciently reinforced if necessary.

• Periodically check the parts and screws for rust and to see if they have loosened, in order to prevent injuries and equipment damage due to falling items.

• Do not install in unstable places, places subject to signiﬁcant vibration or impact, or places subject to salt damage or corrosive gas, as this may result in malfunction.

Failure to do so may result in the camera falling or other accidents.

• Be careful not to trap your ﬁngers during installation of the camera.

Injury may result.

Caution

• Do not install the camera on an unstable or inclined surface.

• If there is condensation, please wait to power on, until the condensation dissipates.

Malfunction may result.

• Take care not to damage wiring or pipes in the room.

Damage to peripheral items may result.

Precautions for Use

Warning

• If you discover defective conditions such as smoke, strange sounds, heat or strange odors, immediately stop using the camera and contact your closest dealer.

Fire or electric shock may result from continued use of the product.

• If thunder starts, stop installation or inspection etc. and do not touch the camera or continue connecting the cable.

• Do not disassemble or modify the camera.

• Do not damage the connecting cable.

• Do not spill water or other liquid inside the camera, spray the camera with water, or otherwise make it wet.

• Do not insert foreign objects into the camera.

• Do not use ﬂammable sprays near the camera. Do not leave LAN cables, external power supplies or AC adapter (sold separately) power

• connectors connected when the camera is not in use for long periods.

• Do not use ﬂammable solvents such as alcohol, paint thinner or benzine when cleaning the camera.

Fire or electric shock may result.

External Dimensions

Camera

Front Top

98 (3.86)

65 (2.56)

80 (3.15)

Unit: mm (in.)

Notes on Power Supply

Warning

• Only use the dedicated AC Adapter (sold separately) for AC power.

• Do not set any heavy objects on the power cable (or the LAN cable for a PoE power supply).

Do not pull, forcibly bend, scratch, or modify the power cable

• power supply)

•

Do not cover or wrap the AC adapter (sold separately) with cloth or blankets.

(or the LAN cable for a PoE

Fire or electric shock may result.

Caution

• After turning off the power, wait for at least ﬁve seconds before turning the power on again. If the power is turned on again too quickly, the camera may operate poorly.

User Manuals

• Installation Guide (This document) This guide provides notes on camera installation and explains the main camera speciﬁcations.

• Operation Guide (Included in the Setup CD-ROM) This document explains the initial camera settings, Admin Tools settings, viewer operations and troubleshooting, etc.

Symbols Indicating Camera Model

Camera speciﬁc functions will be listed using the icons below.

: VB-H730F : VB-M720F

Main Speciﬁcations

Camera

Image Sensor 1/3 type CMOS (primary color ﬁlter) Number of Effective Pixels

Scanning Method Progressive Lens 3x optical (4x digital zoom) zoom lens (electric drive) Focal Length* F-number F1.2 (W) – F2.0 (T) Viewing Angle For 16:9 aspect ratios Horizontal: 112.6° (W) – 36.7° (T)

For 4:3 aspect ratios Horizontal: 82.3° (W) – 27.5° (T)

Day/Night Switch Auto/Day Mode/Night Mode Min. Subject Illumination Day Mode (color) 0.3 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)

Night Mode (monochrome) 0.015 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)

Focus One-shot AF/Manual/Fixed at inﬁnity Shooting Distance Day Mode: 0.3 m (12 in.) – inﬁnity (from front of lens) Night Mode: 1.0 m (3.3 ft.) – inﬁnity Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000,

Exposure Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture,

White Balance Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/

Metering Mode Center-Weighted/Average/Spot Exposure Compensation 9 levels Smart Shade Control Auto/Manual/Disable Auto: 3 levels Manual: 7 levels Brightens shaded areas of a video Haze Compensation Auto/Manual/Disable Auto: 3 levels Manual: 7 levels AGC Limit 5 levels

Server

Video Compression Method JPEG, H.264 Video Size

2.8 (W) – 8.4 mm (T)

Approx. 2.1 million pixels Approx. 1.3 million pixels

Vertical: 60.8° (W) – 20.6° (T)

0.02 lux (F1.2, shutter speed 1/2 sec., when smart shade control is off, 50IRE)

0.008 lux (F1.2, shutter speed 1/2 sec., when smart shade control is on, 50IRE)

0.001 lux (F1.2, shutter speed 1/2 sec., when smart shade control is off, 50IRE)

0.0005 lux (F1.2, shutter speed 1/2 sec., when smart shade control is on, 50IRE)

1/4000, 1/8000, 1/10000, 1/16000 sec.

Gain)

Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual (One-shot WB/R Gain/B Gain)

JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270

1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240

JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180

1280 x 960, 640 x 480, 320 x 240

Video Quality JPEG, H.264: 5 levels Frame Rate*

Max. Frame Rate

When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960) simultaneously: 15 fps When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720) simultaneously: 15 fps When streaming JPEG, H.264 (1280 x 960): 30 fps

When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960) simultaneously: 15 fps When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720) simultaneously: 15 fps I-Frame Interval 0.5/1/1.5/2/3/4/5 sec. Simultaneous Client Access Max. 30 Clients + 1 Admin Client

Camera Control

Access Control User authority (user name and password), Host Access Restrictions (IPv4, IPv6) Encrypted Communications SSL/TLS, IPsec (Auto Key Exchange/Manual) IEEE 802.1X EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP Protocol IPv4: TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), SMTP (Client), DHCP

IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),

AutoIP Available Audio Compression Method G.711 μ-law (64 kbps) Audio Communication Method Full-duplex (two-way) Echo cancellation function compliant Sound Transfer Protocol by Canon Audio File Playback*

Privacy Mask Preset Max. 20 positions Intelligent Function <Video>

Event Trigger Type External Device Input, Intelligent Function (Video), Intelligent Function (Volume),

Image Upload FTP/HTTP/SMTP (e-mail)

Frame Rate: Max. 10 fps (JPEG)

Event Notiﬁcation HTTP/SMTP (e-mail) Image Cropping Function Digital PTZ Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72

On-Screen Display Available Daylight Saving Time Available Custom Settings Number of registers: 4 Items to Reg.: Exposure, Smart Shade Control, Haze Compensation, Focus,

Language German/English/Spanish/French/Italian/Russian/Turkish/Chinese (Simpliﬁed)/

“ONVIF” is a trademark of ONVIF Inc.

Interface

Network Terminal*4 LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) Audio Input Terminal (common for LINE IN & MIC IN) Switch LINE IN/MIC IN in the setting page.

Audio Output Terminal (LINE OUT) LINE OUT x 1 (connect to an ampliﬁer speaker) External device I/O Terminal Input x 2, Output x 2 Memory Card SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible. Frame Rate: Max. 1 fps (JPEG)

Others

Operating Environment Temperature: -10°C – +50°C (+14°F – +122°F),

Power Supply PoE: PoE power supply via LAN connector (IEEE802.3af Class 0 compliant)

Power Consumption When using PoE: Max. approx. 6.9 W*

When using DC: Max. approx. 7.0 W When using AC: Max. approx. 6.5 W Dimensions (H x W x D) 65 x 80 x 192 mm (2.56 x 3.15 x 7.56 in.) Weight Approx. 670 g (1.48 lb.)

*1 (W): maximum wide angle, (T): maximum telephoto *2 Values represent streaming performance from the camera. The frame rate may be reduced due to Viewer

*3 A third-party ampliﬁer speaker is necessary. *4 Use a category 5 or better LAN cable, 100 m (328 ft.) or less in length. *5 Class 0 power sourcing equipment (requests 15.4 W)

JPEG: 0.1 – 30 fps

Available (audio ﬁles can be played back when an event is triggered by the

PC’s specs, the number of clients accessing at the same time, network loads, video quality setting, type or movement of the subject or other reasons.

H.264: 1/2/3/5/6/10/15/30 fps

When streaming JPEG, H.264 (1920 x 1080): 30 fps

When used in the following combinations:

H.264: Max. 10 Clients Administrator, Authorized user, Guest user (level of control varies depending on user) Max. 50 user names and passwords registered for authorized users.

(Client), DNS (Client), mDNS, ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF

mDNS, ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF

intelligent function or external device input.) Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)

Detection Types: moving object detection, abandoned object detection,

removed object detection, camera tampering detection, and passing detection Detection Settings: Max. 15

Volume Detection

Timer

Temporary storage memory in camera: Max. approx. 5 MB

Max. 30 fps (H.264)

640 x 480/512 x 384/384 x 288/256 x 192/128 x 96

White Balance, Image Quality Adjustment, Day/Night

Japanese

3.5 mm ( 0.14 in.) mini-jack connector (monaural)

LINE IN x 1 (connect to an ampliﬁer microphone) or MIC IN x 1 (connect to a microphone w/o ampliﬁer)

3.5 mm ( 0.14 in.) mini-jack connector (monaural)

Max. 30 fps (H.264)

Humidity: 5% – 85% (without condensation)

AC Adapter: PA-V18 (100 – 240 V AC) (sold separately) External power source: 24 V AC/12 V DC

When using AC Adapter PA-V18: Max. approx. 7.5 W (100 V AC)

Max. approx. 7.8 W (240 V AC)

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

The contents of this guide are subject to change without any prior notice.

Mounting bracket

Mounting screw holes

Example installations

Using a ceiling mounting bracket Using a wall mounting bracket

Power connector

LAN cable

Installing the Camera

Before installing the camera, set the IP address and other network information on the camera using the “Camera Management Tool” on the Setup CD-ROM. For details on how to operate the “Camera Management Tool”, see “Camera Management Tool User Manual”.

Mount the camera to the mounting bracket

Use the mounting screw holes on the camera to securely ﬁx the camera to the mounting bracket.

Important

• You must consult your retailer or provide the mounting bracket yourself.

• A tripod mounting screw (1/4-20 UNC) will ﬁt the ﬁxing screw hole.

• Be sure to use a mounting bracket with a mounting screw shorter than 5.5 mm (0.22 in.). Using a mounting bracket with a mounting screw 5.5 mm (0.22 in.) or longer may damage the camera.

Connect the cables to the camera

Connect the LAN cable.

If AC Adapter (sold separately) or an external power supply is used, connect the power connector to the camera.

Connect cables to the external device I/O terminals and audio input/output terminals as necessary.

Set the camera angle

When installation is complete, use the Camera Angle Setting Tool to check the image on the camera and manually adjust the camera angle. Zoom and focus can be adjusted with the Camera Angle Setting Tool (see “Operation Guide” > “Camera Angle Setting Tool”).

Part Names

MAC address

The camera's unique address. Write the address on the front of this Installation Guide before installing the camera.

Serial number

The camera's serial number. Write the number on the front of this Installation Guide before installing the camera.

Mounting screw holes

Lens

Protection plate

Front cover

Power connection terminal

100Base-TX LAN connector

Audio output terminal (LINE OUT)

External Device I/O Terminals

LED

The blue LED light comes on.

• On: when powered on, during reboot, during normal use

• Off: when [Turn Off] is selected (see “Operation Guide” > “Setting Page” > “Installation Conditions”)

* When [Turn Off] is selected, the LED light will come on for several seconds

when the camera is powered on and during reboot.

Reset Switch

Turn on the power while pushing this switch using a sharp object. Continue to push the switch for 5 seconds or more to restore all factory settings except for the date and time.

Memory card cover

Audio input terminal (dual LINE IN and MIC IN)

Recommended Power Cables [Reference]

Cable (AWG) 24 22 20 18 16

12 V DC maximum cable length m (ft.)

24 V AC maximum cable length m (ft.)

Use UL cable (UL-1015 or equivalent) for 12 V DC or 24 V AC wiring.



AC Adapter

(16.4)

(36.1)

(29.5)

(59.1)

(45.9)

(95.1)

(75.5)

(150.9)

(105.0)

(210.0)

Use the dedicated AC Adapter (sold separately).

External Device I/O Terminals

External device I/O terminals consist of two input and output systems each. Viewer can be used to check external device input status and control output to an external device (please refer to the “Operation Guide” > “Selecting the External Device Output” and “Displaying Event Status”).



External Device Input Terminals (IN1, IN2)

External device input terminals consist of two sets (IN1, IN2) of two terminals, with the negative terminals connected to the camera interior GND. Connecting cables to the positive and negative terminals and opening or closing the circuit notiﬁes the Viewer.

Important

• When connecting sensors and switches, connect terminals that are electrically isolated from the respective power and GND.

•

Do not push the external device I/O terminal button with too much force. Doing so may cause the button to remain pushed-in.



External Device Output Terminals (OUT1, OUT2)

External device output terminals consist of two sets (OUT1, OUT2) of two terminals. The sets have no polarity. Controls from the viewer can be used to open and close the circuit between the terminals. Using optical couplers, the output terminals are isolated from the camera's internal circuit.

The load connected to the output terminals should be within the following rating range. Rating between output terminals: Maximum voltage 50 V DC Continuous load current at or below 100 mA On resistance: Max. 30 Ω

Note

Adaptive wiring for external device cables Solid conductor AWG: No. 28 – 22 Cable strip should be approx. 8 – 9 mm (0.31 – 0.35 in.)

Internal Connection Diagram

10 kΩ 10 kΩ

External device

0.1 μF

External device

Internal controller

+3.3 V 1 kΩ

Output terminal

Input terminal

IN1, IN2

OUT1, OUT2

Using an Memory Card

Open the memory card cover as shown in the diagram to insert or remove the memory card. Firmly shut the memory card cover after inserting or removing the memory card.

Memory card slot

Memory card cover

Inserting the card

Push the memory card as far as possible into the memory card slot.

Removing the card

Push the memory card in all the way until the card slightly pops out. Pinch the card and remove.

Important

• Insert the memory card before installing the camera.

• Make sure the memory card is not write-protected.

• When using an memory card with the camera for the ﬁrst time, it is recommended to format the card after inserting it into the camera (see “Operation Guide” > “Setting Page” > “Memory Card”).

Using Camera Housing

When using the camera mounted in commercial camera housing, remove the camera's protection plate to reduce the effects of excess reﬂections within the housing.

• Remove the lock screw on the front cover and remove the front cover and protection plate. Then return only the front cover to its original position and ﬁx in place with the lock screw.

Lock screw

Protection plate

Front cover

•

When reattaching the protection plate, face the side with the cutout toward the lens.

Cutout

Connecting the Camera

Power Connection

Power can be supplied to the camera in the three ways described below. Please be sure to read the user manual for the dedicated power supply before use.

Note

• The camera does not have a power switch. Connecting and disconnecting the LAN cable (PoE power supply), AC adapter, or external power supply plug turns the power ON and OFF, respectively.

• When the camera needs to be rebooted, perform the reboot operation from the camera setting page (see “Operation Guide” > “Setting Page” > “Maintenance”).



PoE (Power over Ethernet)

The camera supports PoE functions. Power can be supplied to the camera by using a LAN cable to connect it to a PoE HUB that conforms to the IEEE 802.3af standard.

Important

• Check with your dealer for more information about PoE HUB and Midspan technology. Midspan (a LAN cable power supply device) is a device that, like a PoE HUB, supplies power to the camera via a LAN cable.

• Some PoE HUBs allow the limitation of power for each port, but applying limits may interfere with performance. If using this type of PoE HUB, do not limit the operating power.

• Some PoE HUBs have limits for the total power consumption for the ports, which can interfere with performance when multiple ports are in use. For more information, check the instruction guide for your PoE HUB.

• The camera can also be connected to an AC adapter (sold separately) while receiving power from a PoE HUB. In such cases, the PoE power supply is given priority, and the camera does not use the power supply from the AC adapter (sold separately). When the PoE power supply is disconnected, power is supplied automatically from the AC adapter (sold separately).



External Power Supply

12 V DC or 24 V AC input can be used. Connect the included power connector as shown below.

Screwdriver Tightening torque: 0.25 N·m (max.)

Strip

Approx. 5 – 7 mm (0.20 – 0.28 in.)

Power connector (included)

12 V DC can be connected in a non-polar conﬁguration.

Important

• The power supply should be within the following voltage range.

• 24 V AC:

• 12 V DC: Voltage ﬂuctuation within

• When using a 12 V DC battery power supply, be sure to connect resistors of at least 0.5 – 1.0

• For an external power supply, use a double-insulated device.

Voltage ﬂuctuation within ±10% of 24 V AC (50 Hz or 60 Hz ±0.5 Hz or less) Current supply capacity of at least 1.0 A per camera

10% of 12 V DC

Current supply capacity of at least 1.5 A per camera

Ω/20 W in series to the power line.

Audio Input/Output Terminals

Each audio input/output terminal has one input system and one output system. Connecting the camera to an audio input/output device such as a microphone or a speaker with an ampliﬁer allows you to send/receive audio through the viewer.



Audio Input Dual LINE IN/MIC IN (monaural input)

Although the camera has a single audio input system, it supports two types of microphone input: LINE IN and MIC IN. Before using the audio input, change the [Audio Input] on the Setting Page (see “Operation Guide” > “Audio Input”). LINE IN is selected by default. Input terminal:

• Dynamic MIC IN

Input impedance: 1.5 kΩ ±5%

* Supported microphones: Output impedance: 400 Ω – 600 Ω

• Condenser MIC IN

Input impedance (microphone bias resistance): 2.2 kΩ ±5%

Microphone power supply: plug-in power (voltage: 2.3 V)

* Supported microphones: Condenser microphones with plug-in power support

• LINE IN

Input level: Max. 1 Vp-p

* Use a microphone with an ampliﬁer.



Audio Output Terminal LINE OUT (monaural output)

Connect the camera to a speaker with an ampliﬁer. Audio can be sent to the speaker from Viewer. Output terminal: Output level: Max. 1 Vp-p * Use a speaker with an ampliﬁer.

Important

• Using incorrect settings for [Audio Input] may damage the camera and/or microphone. Be sure to conﬁgure the settings correctly.

• Microphone characteristics may affect volume and sound quality.

• Images and audio do not always synchronize properly.

• Audio may be interrupted depending on PC characteristics and network environment.

• Video and audio can be streamed to up to 30 clients. However, audio may be interrupted when streaming to many clients or using SSL.

• Audio may be interrupted when using antivirus software.

• Connecting and disconnecting the LAN cable interrupts the audio. Use the viewer to reconnect.

3.5 mm ( 0.14 in.) mini-jack (monaural)
