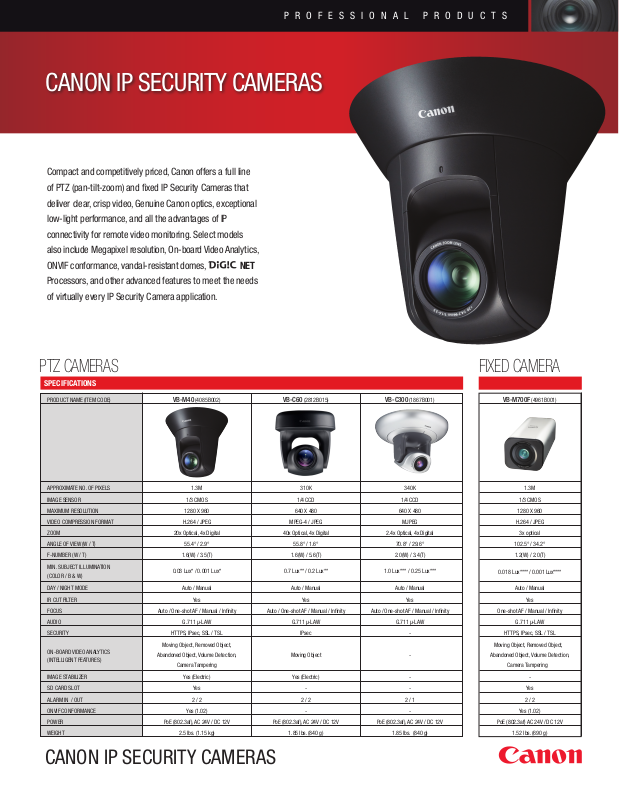

Canon VB-M40, VB-M600D, VB-C500VD, VB-C300, VB-M600VE BROCHURE
...
PROFESSIONAL PRODUCTS
CANON IP SECURITY CAMERAS
Compact and competitively priced, Canon offers a full line
of PTZ (pan-tilt-zoom) and fixed IP Security Cameras that
deliver clear, crisp video, Genuine Canon optics, exceptional
low-light performance, and all the advantages of IP
connectivity for remote video monitoring. Select models
also include Megapixel resolution, On-board Video Analytics,
ONVIF conformance, vandal-resistant domes, NET
Processors, and other advanced features to meet the needs
of virtually every IP Security Camera application.
PTZ CAMERAS FIXED CAMERA
SPECIFICATIONS
PRODUCT NAME (ITEM CODE) VB-M40 (4085B002) VB-C60 (2812B015) VB-C300 (1867B001)
APPROXIMATE NO. OF PIXELS 1.3M 310K 340K
IMAGE SENSOR 1/3 CMOS 1/4 CCD 1/4 CCD
MAXIMUM RESOLUTION 1280 X 960 640 X 480 640 X 480
VIDEO COMPRESSION FORMAT H.264 / JPEG MPEG-4 / JPEG MJPEG
ZOOM 20x Optical, 4x Digital 40x Optical, 4x Digital 2.4x Optical, 4x Digital
ANGLE OF VIEW (W / T) 55.4° / 2.9° 55.8° / 1.6° 70.8° / 29.6°
F-NUMBER (W / T) 1.6(W) / 3.5(T) 1.6(W) / 5.6(T) 2.0(W) / 3.4(T)
MIN. SUBJECT ILLUMINATION
(COLOR / B & W)
DAY / NIGHT MODE Auto / Manual Auto / Manual Auto / Manual
IR CUT FILTER Yes Yes Yes
FOCUS Auto / One-shot AF / Manual / Infinity Auto / One-shot AF / Manual / Infinity Auto / One-shot AF / Manual / Infinity
AUDIO G.711 μ-LAW G.711 μ-LAW G.711 μ-LAW
SECURITY HTTPS, IPsec, SSL / TSL IPsec -
ON-BOARD VIDEO ANALYTICS
(INTELLIGENT FEATURES)
IMAGE STABILIZER Yes (Electric) Yes (Electric) -
SD CARD SLOT Ye s - -
ALARM IN / OUT 2 / 2 2 / 2 2 / 1
ONVIF CONFORMANCE Yes (1.02) - -
POWER PoE (802.3af), AC 24V / DC 12V PoE (802.3af), AC 24V / DC 12V PoE (802.3af), AC 24V / DC 12V
WEIGHT 2.5 lbs. (1.15 kg) 1.85 lbs. (840 g) 1.85 lbs. (840 g)
Abandoned Object, Volume Detection, Moving Object -
0.03 Lux* / 0.001 Lux* 0.7 Lux** / 0.2 Lux** 1.0 Lux*** / 0.25 Lux***
Moving Object, Removed Object,
Camera Tampering
SPECIFICATIONS
VB-M700F (4961B001)
1.3M
1/3 CMOS
1280 X 960
H.264 / JPEG
3x optical
102.5° / 34.2°
1.2(W) / 2.0(T)
0.018 Lux**** / 0.001 Lux****
Auto / Manual
Yes
One-shot AF / Manual / Infinity
G.711 μ-LAW
HTTPS, IPsec, SSL / TSL
Moving Object, Removed Object,
Abandoned Object, Volume Detection,
Camera Tampering
-
Yes
2 / 2
Yes (1.02)
PoE (802.3af) AC 24V / DC 12V
1.52 lbs. (690 g)
CANON IP SECURITY CAMERAS
PROFESSIONAL PRODUCTS
DOME CAMERAS
SPECIFICATIONS
PRODUCT NAME (ITEM CODE) VB-M600VE (4960B001) VB-M600D (4959B001) VB-C500VD (4073B002) VB-C500D (3934B003)
APPROXIMATE NO. OF PIXELS 1.3M 1.3M 310K 310K
IMAGE SENSOR 1/3 CMOS 1/3 CMOS 1/4 CCD 1/4 CCD
MAXIMUM RESOLUTION 1280 X 960 1280 X 960 640 X 480 640 X 480
VIDEO COMPRESSION FORMAT H.264 / JPEG H.264 / JPEG MPEG-4 / JPEG MPEG-4 / JPEG
ZOOM 3x optical 3x optical 2.4x optical, 4x Digital 2.4x optical, 4x Digital
ANGLE OF VIEW (W / T) 101.2° / 33.7° 101.2° / 33.7° 82° / 34° 82° / 34°
F-NUMBER (W / T) 1.2(W) / 2.0(T) 1.2(W) / 2.0(T) 1.1(W) / 1.6(T) 1.1(W) / 1.6(T)
MIN. SUBJECT ILLUMINATION (COLOR / B & W) 0.018 Lux**** / 0.001 Lux**** 0.018 Lux**** / 0.001 Lux**** 0.2 Lux***** / 0.1 Lux***** 0.2 Lux***** / 0.1 Lux*****
DAY / NIGHT MODE Auto / Manual Auto / Manual Auto / Manual Auto / Manual
IR CUT FILTER Yes Yes - -
FOCUS One-shot AF / Manual / Infinity One-shot AF / Manual / Infinity Manual Manual
AUDIO G.711 μ-LAW G.711 μ-LAW G.711 μ-LAW G.711 μ-LAW
SECURITY HTTPS, IPsec, SSL / TSL HTTPS, IPsec, SSL / TSL IPsec IPsec
INTELLIGENT VIDEO
SD CARD SLOT Yes Yes - -
ALARM IN / OUT 2 / 2 2 / 2 2 / 2 2 / 2
ONVIF Yes (1.02) Yes (1.02) - -
IP RATED IP66 - - -
VANDAL / TOUGH Yes - Yes -
POWER PoE (802.3af) AC 24V / DC 12V PoE (802.3af) AC 24V / DC 12V PoE (802.3af) AC 24V / DC 12V PoE (802.3af) AC 24V / DC 12V
WEIGHT 4.2 lbs. (1.9 kg) 2.6 lbs. (1.2 kg) 1.72 lbs. (780 g) 1.36 lbs (640 g)
Moving Object, Removed Object, Abandoned Moving Object, Removed Object, Abandoned
Object, Volume Detection, Camera Tampering Object, Volume Detection, Camera Tampering
Moving Object Moving Object
SOFTWARE INTEGRATION PARTNERS
*Ratings based on F1.6, 1/8 second and Smart Shade Control on.
**Ratings based on F1.6, 1/30 second.
***Ratings based on F2.0, 1/30 second.
****Ratings based on F1.2, 1/8 second and Smart Shade Control on.
*****Ratings based on F1.1, 1/30 second.
©2011 Canon U.S.A., Inc. All rights reserved. Specications and availability are subject to
change without notice. Weight and dimensions are approximate. All images and effects
are simulat ed. Canon and DIGIC are registered trademarks of Canon Inc. in the United
States and may also be registered trademarks in other countries. IMAGEANYWARE is
a trademark of Canon. “ONVIF” and are trademarks of ONVIF Inc. Other names
and products not mentioned above may be registered trademarks or trademarks of
their respective companies. Warning: Unauthorized recording of copyrighted materials
may infringe on the rights of copyright owners and be contrary to copyright laws.
