Canon TS-E45MM, TS-E90MM, TS-E24MM User Manual
TS-E24mm f/3.5L TS-E24mm f/3.5L
COPY
TS-E45mm f/2.8 TS-E45mm f/2.8
TS-E90mm f/2.8 TS-E90mm f/2.8
EENNGG
Instructions
Thank you for purchasing a Canon product.
COPY
Canon’s TS-E lenses are tilt-shift lenses
designed for EOS cameras. The tilt-shift
mechanism enables photographers to control
the depth of field and the area photographed
and to correct image distortion, making it
possible to take sophisticated pictures that
cannot be shot using a conventional lens.
● To ensure that you make the most of the TS-E lens
functionality, it is recommended that you use it with
an EOS camera with 100% viewfinder visibility
(EOS-1, EOS-1D or EOS-1Ds series) and use the
laser matte with grid focusing screen Ec-D and a
tripod.
● On EOS cameras with a built-in flash, some partial
restrictions may apply to the shift and rotation
functions.
● On EOS cameras equipped with a grip for vertical
shooting, some partial restrictions may apply to the
shift and rotation functions.
Features
1. The lens can be tilted up to ±8° and shifted up
to ±11mm.
2. The tilt and shift functions can be used singly
or in combination.
3. The lens can be rotated to change the tilt or
shift direction.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
ENG-1
a Safety Precautions
COPY
a Safety Precautions
●
Do not look at the sun or a bright light source
through the lens or camera. Doing so could result in
loss of vision. Looking at the sun directly through the
lens is especially hazardous.
●
Whether it is attached to the camera or not, do not
leave the lens under the sun without the lens cap
attached. This is to prevent the lens from concentrating
the sun’s rays, which could cause a fire.
Handling Cautions
● If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation
in this case, first put the lens into an airtight plastic bag
before taking it from a cold to warm environment. Then
take out the lens after it has warmed gradually. Do the
same when taking the lens from a warm environment
into a cold one.
● Do not leave the lens in excessive heat such as in a
car in direct sunlight. High temperatures can cause
the lens to malfunction.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
ENG-2
Nomenclature
COPY
Infrared index (→ 11 )
Distance index
Distance scale (→ 5, 11)
Depth-of-Field scale (→ 11 )
Tilt scale (→ 7)
Tilt index
Tilt knob (→ 7)
Shift knob (→ 9)
Shift scale (→ 9)
For detailed information, reference page numbers are provided in parentheses (→ **).
Shift index
Lens mount index (→ 5)
Contacts
ENG-3
Nomenclature
COPY
Focusing ring (→ 5)
Tilt index
Tilt scale (→ 7)
Tilt lock knob (→ 7)

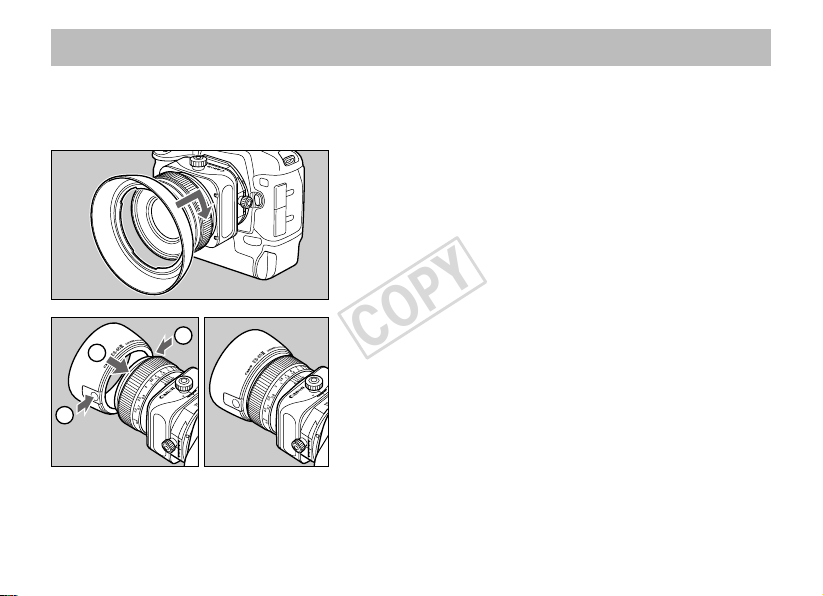

Hood mount (→ 13)
Lens
Shift lock knob (→ 9)
Filter mounting thread
For detailed information, reference page numbers are provided in parentheses (→ **).
(→ 14)
Shift index
Rotation lock release button
(→ 10)
Shift scale (→ 9)
ENG-4
1.
COPY
Mounting and Detaching the Lens
See your camera’s instructions for details on
mounting and detaching the lens.
● When mounting or detaching the lens, always
ensure that the tilt and shift scales are set to the
“0” position.
● After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
contacts from getting scratched.
● If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
● If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
● If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the
clockwise. To remove it, reverse the order.
index of the dust cap, and turn
2. Focusing
Focus a TS-E lens by turning the focusing ring.
(Shots cannot be taken using the auto focus.)
● After using tilt or shift, readjust the focus.
● The distance scale is only valid when the tilt
scale is set to the “0” position.
ENG-5
