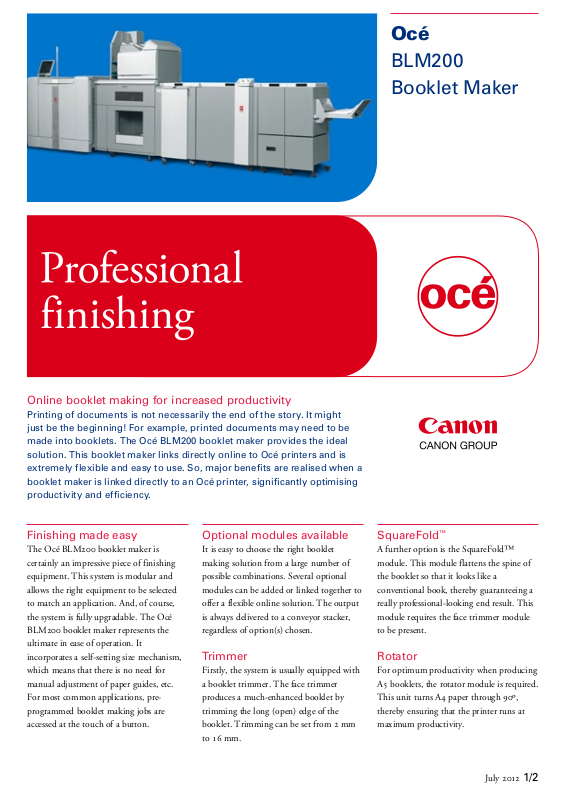

Canon OCE BLM200 BROCHURE
Océ
BLM200
Booklet Maker
Online booklet making for increased productivity
Printing of documents is not necessarily the end of the story. It might
just be the beginning! For example, printed documents may need to be
made into booklets. The Océ BLM200 booklet maker provides the ideal
solution. This booklet maker links directly online to Océ printers and is
extremely flexible and easy to use. So, major benefits are realised when a
booklet maker is linked directly to an Océ printer, significantly optimising
productivity and efficiency.
Finishing made easy
The Océ BLM200 booklet maker is
certainly an impressive piece of finishing
equipment. This system is modular and
allows the right equipment to be selected
to match an application. And, of course,
the system is fully upgradable. The Océ
BLM200 booklet maker represents the
ultimate in ease of operation. It
incorporates a self-setting size mechanism,
which means that there is no need for
manual adjustment of paper guides, etc.
For most common applications, preprogrammed booklet making jobs are
accessed at the touch of a button.
Optional modules available
It is easy to choose the right booklet
making solution from a large number of
possible combinations. Several optional
modules can be added or linked together to
offer a flexible online solution. The output
is always delivered to a conveyor stacker,
regardless of option(s) chosen.
Trimmer
Firstly, the system is usually equipped with
a booklet trimmer. The face trimmer
produces a much-enhanced booklet by
trimming the long (open) edge of the
booklet. Trimming can be set from 2 mm
to 16 mm.
SquareFold
A further option is the SquareFold™
module. This module flattens the spine of
the booklet so that it looks like a
conventional book, thereby guaranteeing a
really professional-looking end result. This
module requires the face trimmer module
to be present.
™
Rotator
For optimum productivity when producing
A5 booklets, the rotator module is required.
This unit turns A4 paper through 90º,
thereby ensuring that the printer runs at
maximum productivity.
July 2012 1/2
Hand feeding is also possible with the BLM200
Key benefits for productivity
• Modular online solution
• One control panel for Booklet Maker,
Trimmer, and SquareFold
™
• Easy to change from one paper size
to another
• No manual adjustment of paper guides
• Highly productive for booklets
with a small number of pages
• Stacker allows unloading during run
• Optional rotator ensures maximum
printer productivity when A5-size
booklets are produced
Specifications
Full compatibility
• Océ VarioPrint 6160/6200/6250/6320
Ultra Line
Compatibility (limited paper size)
• Océ VarioPrint 2100/2110
• Océ VarioPrint 4110/4120
Options
• Trimmer - trims face of booklet
• SquareFold - for square-spine booklets
• Rotator - optimizes productivity for A5
booklets
Modes
• Saddle stapling and folding
• Folding only (sheet by sheet)
- minimum 80 g/m
• Hand feeding of individual sets
2
paper
Paper sizes - Hand feeding
(Note also minimum and maximum
trimmed booklet width specification)
• Minimum
: 120 mm x 210 mm
• Maximum: 320 mm x 470 mm
Paper sizes - Online
• Minimum: 203 mm x 248 mm
• Maximum: 320 mm x 470 mm
Trimm ing
• Minimum: 2 mm
• Maximum: 16 mm
Trimmed booklet width
• Minimum: 120 mm
• Maximum: 220 mm
Paper weight
• 80 up to 160 g/m
2
normal Océ
paper types
• 70 up to 300 g/m
2
dependent upon
paper type and quality
• 60 g/m
2
Océ Top Mail paper
Cover stock
• Minimum: 80 g/m
2
• Booklets with 20 or more sheets:
minimum 120 g/m
2
Capacity
• Up to 25 sheets/100 pages (80 g/m²)
• Up to 28 sheets/112 pages (70 g/m²)
Output capacity
• 50-100 booklets depending upon
thickness
• Power stacker option: up to 400
booklets
Job memory
10 jobs
Paper presets
Memory for different standard paper sizes
(e.g. A3 and A4 are pre-programmed)
Stapling
• Two heads and clinchers
• Flat staples
• Cassettes of 5,000 chisel pointed staples
Physical dimensions
BLM200 + Stacker
• Height 1,135 mm
• Width 1,540 mm
• Depth 680 mm
• Weight 150 kg
BLM200 + Trimmer + Stacker
• Height 1,135 mm
• Width 1,900 mm
• Depth 680 mm
• Weight 240 kg
BLM200 + Trimmer + SquareFold™
+ Stacker
• Height 1,135 mm
• Width 2,260 mm
• Depth 680 mm
• Weight 300 kg
BLM200 + Trimmer + SquareFold™
+ Rotator + Stacker
• Height 1,135 mm
• Width 2,940 mm
• Depth 700 mm
• Weight 400 kg
Additional options
2-Side Trimmer BLT6202
• Height 1,135 mm
• Width 600 mm
• Depth 700 mm
• Weight 200 kg
Power Stacker BST6200
• Height 700 mm
• Width 1,800* mm
• Depth 440 mm
• Weight 60 kg
* Can be used at right angles to the booklet maker
which reduces the space requirement to 440 mm.
™
In this case the SquareFold
module must be present
Printing for
Professionals
For information and ser vices, visit us at www.oce.com
© 2012 Océ. Illustrations and specifications do not necessarily apply to products and services offered in each local market.
Technical specifications are subject to change without prior notice. All other trademarks are the property of their respective owners.
July 2012
