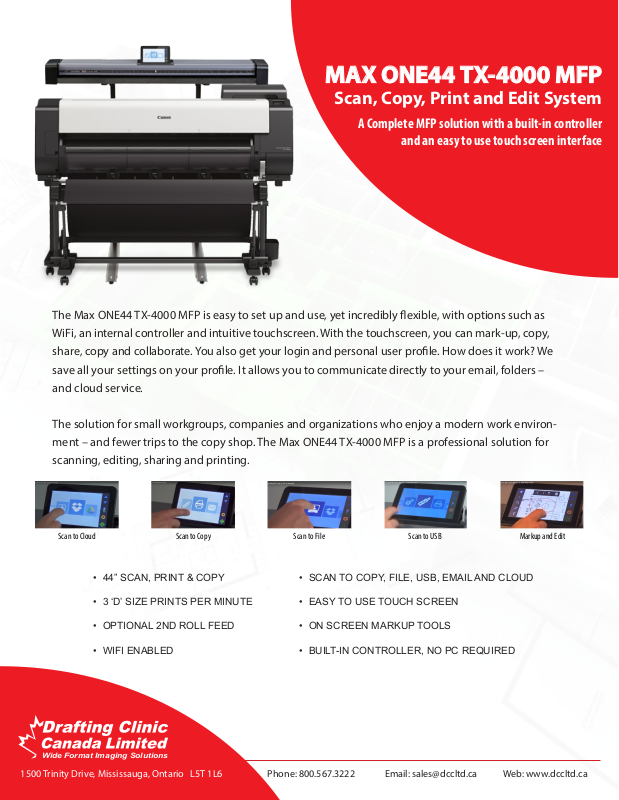

Canon MAX ONE44 TX-4000 MFP Datasheet

MAX ONE44 TX-4000 MFPMAX ONE44 TX-4000 MFP

Wide Format Imaging Solutions

Scan, Copy, Print and Edit System

A Complete MFP solution with a built-in controller

and an easy to use touch screen interface

The Max ONE44 TX-4000 MFP is easy to set up and use, yet incredibly exible, with options such as

WiFi, an internal controller and intuitive touchscreen. With the touchscreen, you can mark-up, copy,

share, copy and collaborate. You also get your login and personal user prole. How does it work? We

save all your settings on your prole. It allows you to communicate directly to your email, folders –

and cloud service.

The solution for small workgroups, companies and organizations who enjoy a modern work environ-

ment – and fewer trips to the copy shop. The Max ONE44 TX-4000 MFP is a professional solution for

scanning, editing, sharing and printing.

Scan to Cloud Scan to Copy Scan to File Markup and EditScan to USB

• 44” SCAN, PRINT & COPY

• 3 ‘D’ SIZE PRINTS PER MINUTE

• OPTIONAL 2ND ROLL FEED

• WIFI ENABLED

• SCAN TO COPY, FILE, USB, EMAIL AND CLOUD

• EASY TO USE TOUCH SCREEN

• ON SCREEN MARKUP TOOLS

• BUILT-IN CONTROLLER, NO PC REQUIRED

1500 Trinity Drive, Mississauga, Ontario L5T 1L6 Phone: [phone] Email: [e-mail] Web: www.dccltd.ca

Scanner Specications Printer Specications

Wide Format Imaging Solutions

Maximum Scan Width 44” (1118mm)

Maximum Media Width 47.2” (1200 mm)

Weight & Dimensions 14.1kg (31 lbs) 1349x227x125mm

Touch Panel / Screen 7” Multi Touch Screen

Scan speed (inch/sec) colour and monochrome while scanning 24” document

150 dpi 300 dpi 600 dpi

3.8 1.9 1.0

Optical Resolution 600 dpi

Maximum Resolution 9600 dpi

Scanning Technology Contex CleanScan

Scan to USB Yes 3.0

Maximum Media Thickness 0.03” / 0.75mm

Accuracy 0.1% +/- 1 pixel

Data Capture (colour/mono) 48-bit

Colour Space sRGB (24 bit) / Grayscale (8 bit) / Monochrome (1 bit)

Connectivity Ethernet

Energy Star Compliant Yes

Operating Software Windows 10, 8, 7 and Vista, 64-bit

Power Consumption Ready 26, Power Save 3.6, Scanning 31W, ENERGY STAR©

Certied

Power Requirements External power supply 100-240V, 60/50Hz, 33W

Whats in the box Scanner, 2 m Ethernet cable, external power supply,

installation guide, calibration poster, calibration sheet and
cleaning cloth.

Printer Type 5-Colour 44-inch Printer

Number of Nozzles Total: Total: 15,360 MBK:5,120 nozzles - C,M,Y,BK:2,560 each

Print Resolution 2400 x1200 dpi (Max)

OS Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10

(32/64 bit), Windows Server 2008 R2, (64 bit), Windows Serv­er 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows
Server 2016 (64 bit), Macintosh OS X v10.10.5-v10.12x

Standard Interfaces Standard (Built-in): USB 2.0 Hi-Speed, 10/100/ 1000Base-T/

TX, Wireless LAN (IEEE 802.11 b/g/n) Direct USB Thumb Drive
Printing

Ink Droplet Size 5 picoliter

Ink Capacity 160ml/330ml/700ml per colour

Ink Type Dye/Pigment Reactive Ink

Standard Memory 128 MB

Hard Drive 500 GB

Media Width Cut Sheet: 8" - 44", Roll Feed: 10" - 44"

Media Thickness 0.07-0.8mm (2.8-31.4mil)

Maximum Roll Print Length Roll Feed: 59' (18 meters)

Cut Sheet: 63” (1.6 meters)

Maximum Media Roll Diameter 6.7" (150mm)

Borderless Printing Width 8”, 10”, 12”, 14”, 16”, 17”, 20”, 24”, 30”, 36”, 42”, 44”

Paper Feed Method Roll Feed: One Roll, front output

Front Loading Manual Feed: One sheet, front output

Print Language SGRaster, HP-GL/2, HP RTL, PDF, JPEG

Noise Level Approx Operation: 51 dB (A) or less

Standby: 35 dB or less

Power Consumption Maximum: 107W or less

Standby: 3.6W or less
Power O: .3w or less (compliant with Executive Order)

Physical Dimensions Printer with Basket Open

46.0” x 62.7” x 46.8”

Weight Approximately 277 lbs with stand

Power Source AC-100-240V (50-60Hz)

Operating Environment Temperature: 59°-86° F (15°-30° C)

Relative Humidity - 10-80% (No Condensation)

Print Head (PF-06)

Maintenance Cartridge (MC-30)

Ink Tanks : PFI110 (130ml), PFI310 (330ml), PFI710 (700ml)

Cutter Blade (CT-07)

Whats in the box Printer, Roll Unit, 1 x Print Head, 1 x Maintenance Cartridge, 3”

Paper Core Attachment, EU & UK Power Cable, 1 Set of Starter
Ink Tanks, Set Up Guide, Safety/Standard, Software CD-ROM
(OSX/Windows), PosterArtist Lite CD-ROM, EU Biocide Sheet,
Eurasian Economic Union Sheet, Important Information Sheet,
Quick Guide and Print head Alignment Sheet
