Canon LV-729 Specification

Multimedia Projector

Key features

•

Native XGA resolution (1024 x 768 pixels) for crisp image detail

•

2200 lumens for bright, clear images

•

High 500:1 contrast ratio for vivid colours

•

Canon wide-angle 1.2x zoom lens offers large images from short

throw distances

•

Easy operation with Auto Input search and Auto PC adjust

•

Image Capture Function for local customisation

•

Wide variety of Image Modes including Screen Colour compensation

and four user presets

•

Sustainable Features: 6000 hour lamp life, 5500 hour filter life

and less than 1W power consumption in standby (all in Eco Mode)

•

Direct Power On/Off

•

Low Noise: Just 29dBA in Eco Mode

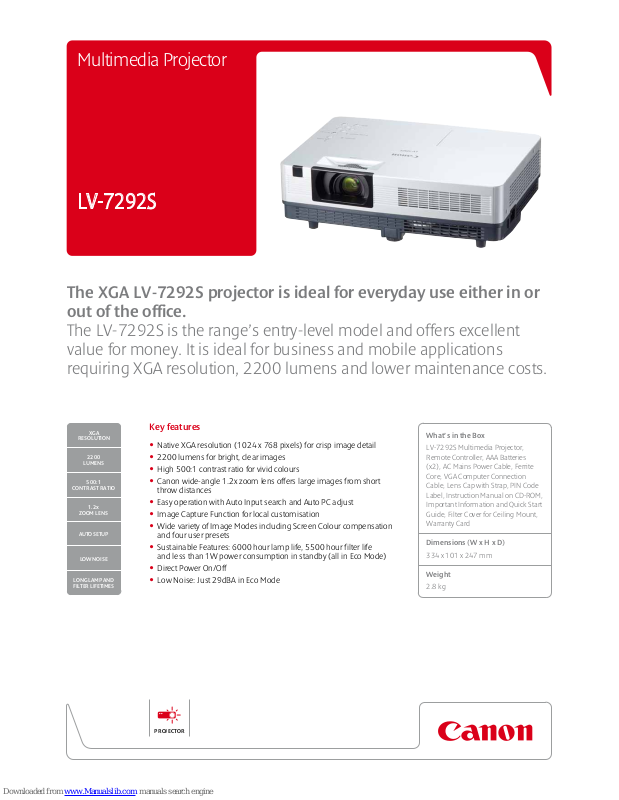

The XGA LV-7292S projector is ideal for everyday use either in or
out of the office.

The LV-7292S is the range’s entry-level model and offers excellent
value for money. It is ideal for business and mobile applications
requiring XGA resolution, 2200 lumens and lower maintenance costs.

2200

LUMENS

500:1

CONTRAST RATIO

AUTO SETUP

LOW NOISE

LONG LAMP AND
FILTER LIFETIMES

XGA

RESOLUTION

What’s in the Box

LV-7292S Multimedia Projector,
Remote Controller, AAA Batteries
(x2), AC Mains Power Cable, Ferrite
Core, VGA Computer Connection
Cable, Lens Cap with Strap, PIN Code
Label, Instruction Manual on CD-ROM,
Important Information and Quick Start
Guide, Filter Cover for Ceiling Mount,
Warranty Card

Dimensions (W x H x D)

334 x 101 x 247 mm

Weight

2.8 kg

PROJECTOR

LV-7292S

1.2x

ZOOM LENS

Specifications

MULTIMEDIA PROJECTOR

Product Class Ultra-Portable

PANEL

Type Transmissive LCD, Poly-silicon TFT Active Matrix
Size and Number 0.55” diagonal, 3 panels
Aspect Ratio 4:3
Native Resolution 1024 x 768 (XGA), 786432 pixels

OPTICS
Lamp Type 215W NSHA
Lens F Number and Focal Length F2.00 – F2.15; f=18.38 – 22.06mm
Zoom Magnification and Control 1.2x Manual
Focus Control Manual
Lens Shift 6 : 1 (fixed)

IMAGE AND AUDIO

Brightness 2200 lumens
Brightness Uniformity 85%
Contrast Ratio 500:1
Projection Distance Coverage 1.3m – 11.8m (3.3m – 3.9m for 100” image)
Screen Size 40” – 300” (813 x 610mm – 6096 x 4572mm)
Digital Zoom Magnification 0.5x – 4x
Keystone Correction Range Vertical: Manual +/-30° ; Auto +/-20°
Digital RGB Compatibility –
Analogue RGB Compatibility (WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA / MAC
Digital Video Scan Systems –
Component Video Scan Systems 1080i / 1035i / 720p / 575p / 575i / 480p / 480i
Video / S-Video Colour Systems PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Display Modes Presentation, Standard, High Contrast, Cinema, Blackboard (green),
Colour board (red, blue, yellow, green), User 1 – 4
Image Enhancement 8-bit Colour Reproduction (16.7 million colours) for analogue RGB
Built-in Speaker –

PORTS AND CONNECTORS

Analogue RGB Input 1 Mini D-Sub 15-pin (Component Video via optional cable /
S-Video via optional cable / SCART-RGB via optional cable)
Analogue RGB Input 2 –
Analogue RGB Output –
S-Video Input Mini D-Sub 15-pin (Shared with RGB input 1, via optional cable)
Composite Video Input RCA x1
Audio Input 1 –
Audio Input 2 –
Audio Input 3 –
Audio Output –
Service Port / Projector Control Mini D-Sub 9-pin (RS-232c)
Network Port –

MECHANISMS
Front Elevation Mechanism 1x Mechanical foot, 10° maximum image elevation
Rear Adjustment Mechanism –

RATINGS
Dimensions (W x H x D) 334mm x 101mm x 247mm
Weight 2.8kg
Power Source 100V – 240V AC, 50/60Hz
Power Consumption Lamp Mode – High / Normal / Eco: 243W / 218W / 175W
Standby in Eco Mode: 0.5W
Noise Level Lamp Mode – High / Normal / Eco: 36.4dBA / 34.4dBA / 29.0dBA
Operating Environment +5°C to +35°C
Storage Environment -10°C to +60°C
Warranty 3 years

All data is based on Canon’s standard testing method. This Leaflet and the specifications of the product have been developed
prior to the date of product launch. Specifications are subject to change without notice.
™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in
their markets and/or countries.

Canon Europe Ltd

3 The Square, Stockley Park
Uxbridge, Middlesex
UB11 1ET UK

Connectivity

Canon Inc.

canon.com

Canon Europe

canon-europe.com

English Edition
© Canon Europa N.V., 2012

LV-7292S

Mini D-Sub 15-pin: Analogue RGB Input 1 / Component Input (with optional adapter cable) /

S-Video Input (with optional adapter cable) / SCART RGB Input (with optional adapter cable).

RCA x1: Composite Video Input.

Mini D-Sub 9-pin: Control Port (RS-232c).

1

2

3

1 23
