Introduction

COPY

Introduction

EOS Utility (hereinafter EU) is software for communication with your EOS DIGITAL camera. By connecting the camera and computer with the cable provided with the camera, you can download to your computer images saved in the camera’s memory card as well as set various camera settings or shoot remotely from EU on your computer.

Main Features of EU

From EU, you can control the camera remotely and perform the following main features.

 Batch download to your computer images

saved in the camera’s memory card.

 You can also download to your computer only images you have

selected.

 Set various camera settings from your

computer.

 Shoot remotely by controlling the camera

from your computer.

 Remote Live View shooting – Shoot while checking your subject in

real time on your computer.

 You can also shoot remotely by operating the camera’s shutter

button.

 Preset a time allowing the camera to shoot automatically with

timer shooting.

 When downloading images or shooting

remotely, view/check images with the linked Digital Photo Professional.

System Requirements

Windows 7*

Computer

CPU 1.3GHz Pentium or higher

RAM Minimum 1GB*

Interface Hi-Speed USB

Display

*1Compatible with 32-bit/64-bit systems for all versions except Starter

Edition

Compatible with 32-bit/64-bit systems for Service Pack 1 and Service

Pack 2 except Starter Edition

Compatible with Service Pack 3

.NET Framework is Microsoft software. It is installed together with EU.

For Windows 7 64-bit systems, minimum 2GB Check the Canon website for the latest system requirements, including supported OS versions.

Windows Vista* Windows XP Professional/Home Edition*

PC with one of the above OS preinstalled and a USB port as a standard feature (Upgraded machines not supported) * .NET Framework 3.0 or later is required.*

Screen resolution: 1024 × 768 pixels or more Color quality: Medium (16 bit) or more

Supported Camera

Can be used for RAW images, JPEG images or MOV movies shot with the cameras below.

EOS-1D X EOS-1D Mark IV

EOS-1Ds Mark III EOS-1D Mark III

EOS 5D Mark III EOS 5D Mark II

EOS 7D EOS 60D

EOS 50D EOS 40D

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

EOS REBEL T4i/650D EOS REBEL T3i/600D

EOS REBEL T2i/550D EOS REBEL T1i/500D

EOS DIGITAL REBEL XSi/450D EOS REBEL T3/1100D

EOS DIGITAL REBEL XS/1000D EOS M

Contents at a Glance

COPY

Downloading images from your camera to a computer

 To batch download all the images to a computer  p.7

 To download to a computer selected images only  p.8

 To download images using a third-party card reader  p.10

Camera settings from a computer

 To set the camera owner’s name, copyright notice

and date/time

 To set a Picture Style and apply to the camera  p.17

 To apply a Picture Style file to the camera  p.19

 To register a personal white balance in the camera  p.22

 To set a JPEG quality and apply to the camera  p.23

 To adjust a white balance setting and apply to the

camera

 To register lens aberration correction/peripheral

illumination correction data for the lens in the camera

 To set My Menu and apply to the camera  p.26

 p.13

 p.23

 p.24

Remote shooting

 To shoot by controlling the camera from a computer

(Remote Live View shooting)

 To shoot with accurate horizontal/vertical alignment  p.47

 To change the aspect ratio and shoot  p.48

 To shoot with another image displayed as overlay to

align several images at the same angle

 To shoot by operating the camera  p.56

 To shoot movies  p.57

 To shoot with timer  p.68

 To shoot with flash  p.70

 p.31

 p.51

Functions for use with other accessories sold separately



To shoot with the Wireless File Transmitter WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFT-E5, WFTE6, or WFT-E7 and check the images in real time

 To start up the WFT-E2, WFT-E2 II, WFT-E3, WFT-

E4, WFT-E4 II, or WFT-E5 software from EU

 p.85

 p.86

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Other



To register background music to the camera’s memory card

 p.74

COPY

Downloading Images to your Computer

Basic operation such as preparing for downloading images to your computer (connecting your camera and computer), starting up EU, downloading images from your camera to your computer and exiting EU are explained here.

Introduction

Contents at

a Glance

Connecting the Camera and Computer..................... 5

Starting up EU ........................................................... 6

Batch Downloading Images to Your Computer ......... 7

Downloading Selected Images to Your Computer........ 8

Using the Camera to Download Images to Your

Computer....................................................................

Downloading Images with a Card Reader .................. 10

Downloading Images Using Digital Photo Professional ...

Downloading Images Using ImageBrowser EX .... 10

Downloading Images without Using Canon Software...

Exiting EU................................................................ 11

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Connecting the Camera and Computer

1D Mk IV

With , you can fix the plug to the camera with the cable protector to prevent the plug from disconnecting. For details on using, see p.88 to p.90.

1D X

1D Mk IV

1Ds Mk III

1D Mk III

COPY

To download to your computer images shot with your camera, you will need to connect your camera and computer using the interface cable provided with your camera.

Connect the large plug of the cable into the USB port

of your computer.

 For the location and direction of the USB port, refer to the

computer User’s Manual.

Connect the small plug of the cable into the terminal

on your camera.

Cameras other than

 With the < > mark on the plug facing the front of the camera,

connect it to the camera’s < > terminal or <A/V OUT / DIGITAL> terminal.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 Once the plug is connected to the camera according to the steps

for your camera model, preparation for downloading images is complete. Continue with “Starting up EU”.

 With the < > mark on the plug facing the back of the camera,

connect it to the camera’s <A/V OUT / DIGITAL> terminal.

Reference

Index

Starting up EU

REBELT1i

500D

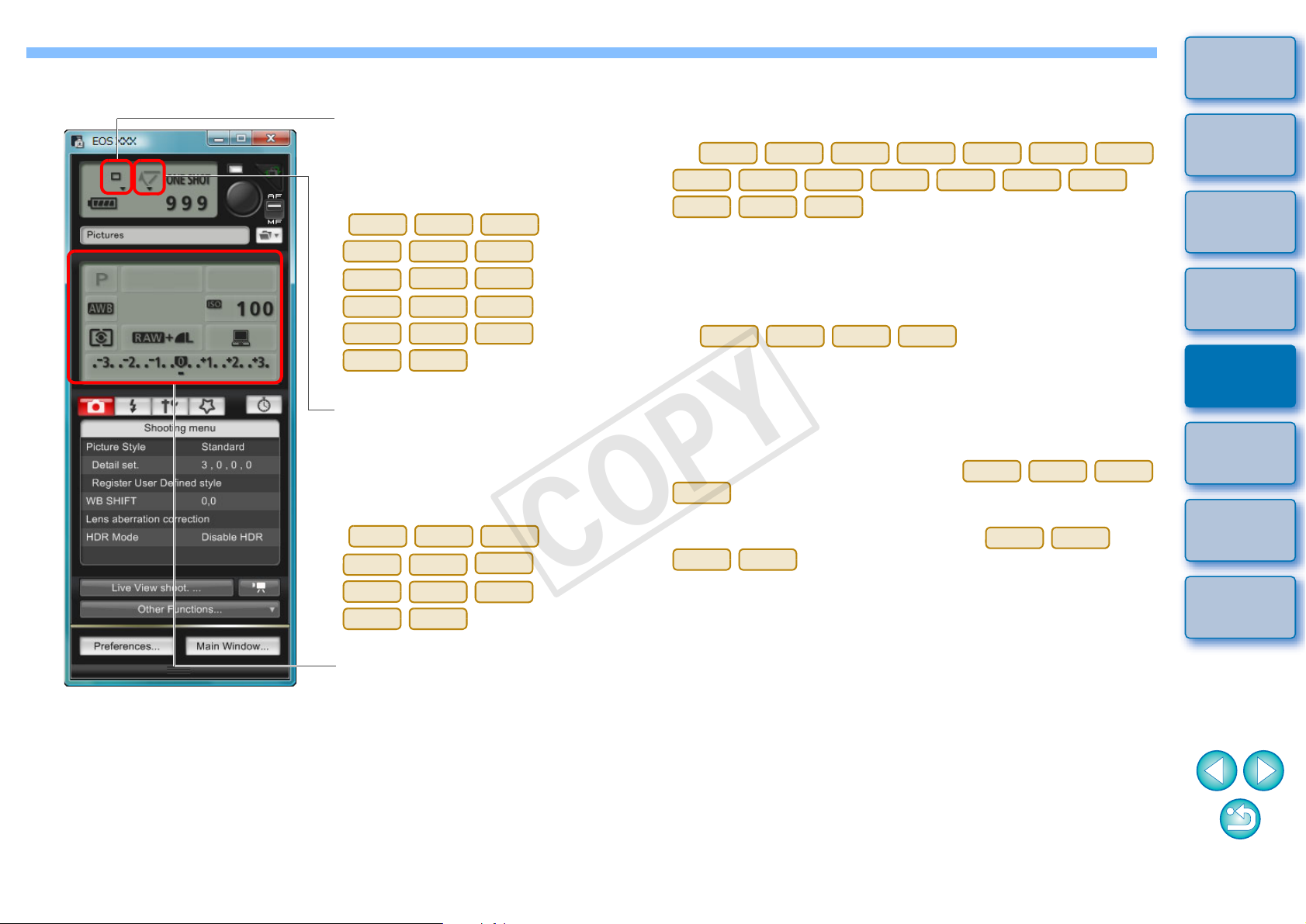

EU Main window

 EU starts up, the main window

appears, and your camera and computer can now communicate. Continue with “Batch Downloading Images to Your Computer”.

1D Mk IV

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

COPY

When the camera’s power switch is set to < ON >, EU will start up, and the camera and computer will be able to communicate.

Introduction

Click [Downloads images from EOS camera].

Set the camera’s power switch to < ON >.

 Communication between the camera and the computer begins

and the dialog box in step 2 is displayed.

 If the window in step 2 is not displayed even when you set the

camera’s power switch to < ON >, double-click the [EOS Utility] icon on your desktop to start up EU.

 cannot communicate with EU if the camera’s

Mode Dial is set to < >. Set the Mode Dial to a mode other than < >.

 The displayed main window differs depending on the connected

camera (p.91).

 In Windows XP, select [Canon EOS Utility] and then click the

[OK] button to start up EU.

 When [Always do this for this device] ([Always use this program

for this action] in Windows XP) is checkmarked, from the next time you connect your camera and computer, EU will start when you set your camera’s power switch to < ON >.

 The camera’s LCD monitor turns on when EU starts up.  For cameras other than

, you can operate the camera and download images saved on the memory card inserted in the camera to your computer. Refer to your camera’s Instruction Manual for details.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Batch Downloading Images to Your Computer

Save File dialog box

DPP Main window

 When you download images, you can change the software that

starts up from DPP to ImageBrowser EX or other software in preferences ([Linked Software] tab sheet) (p.81).

 You can change the save destination for images downloaded and

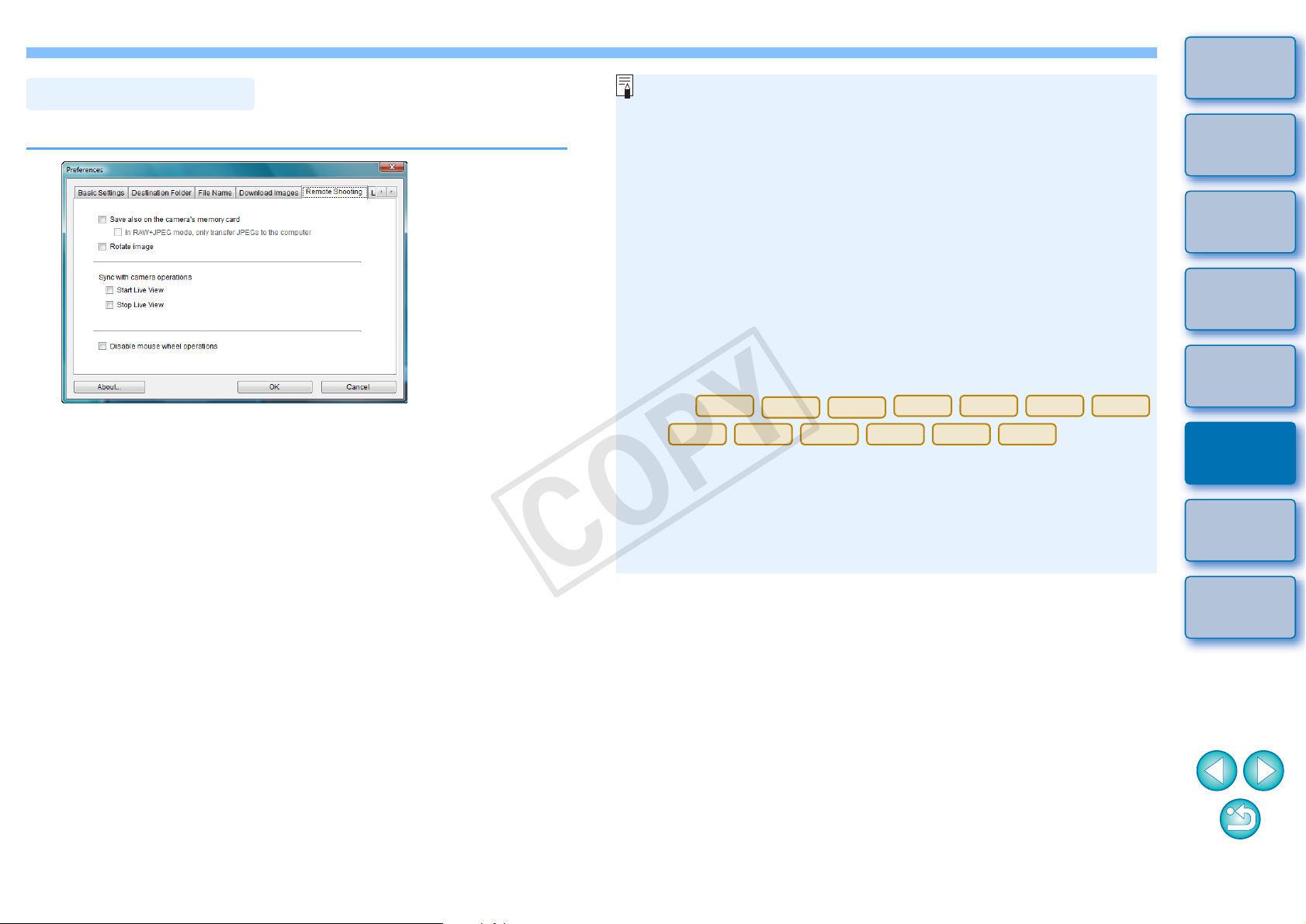

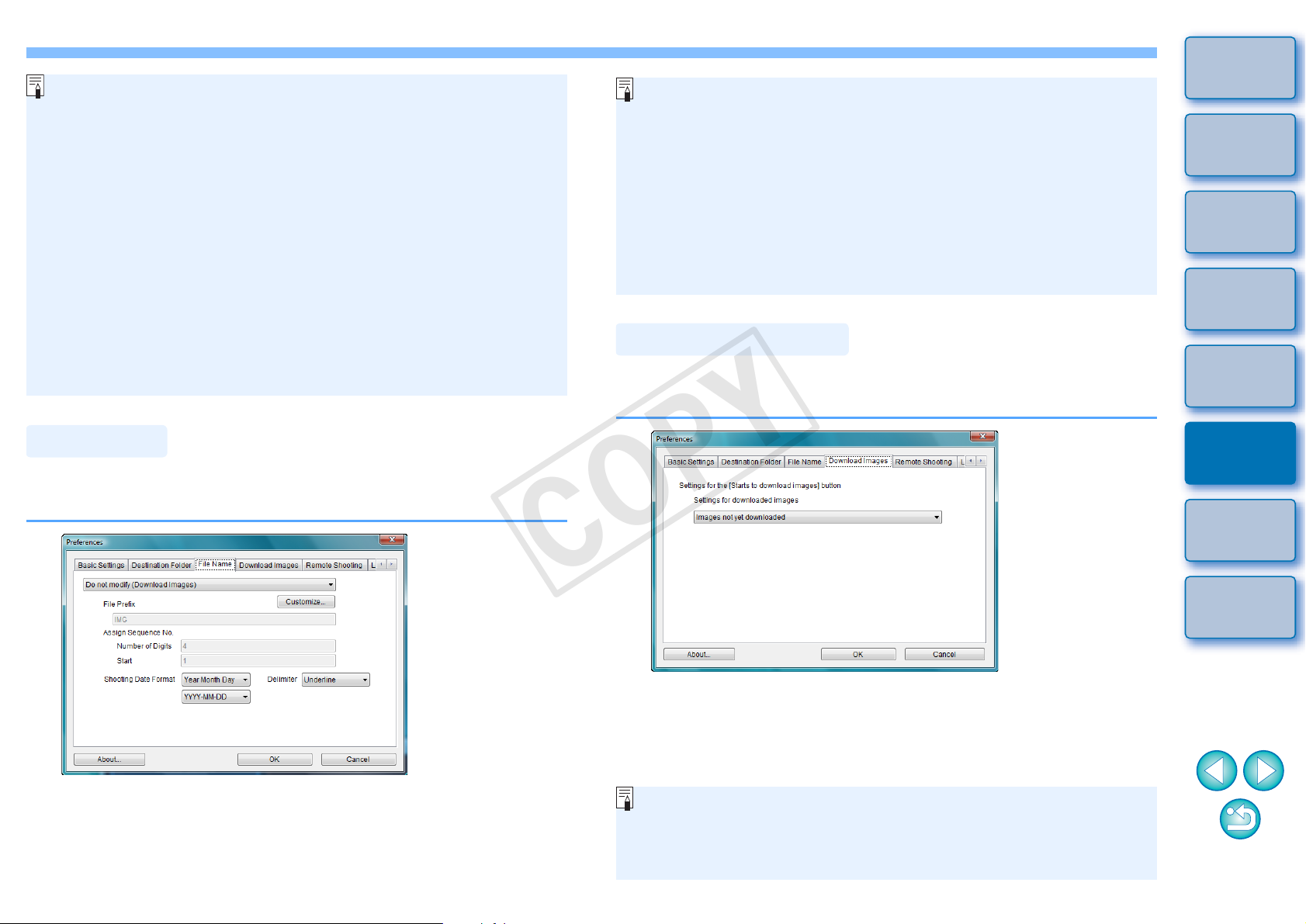

images to download in preferences ([Destination Folder] tab sheet, [Download Images] tab sheet) (p.78, p.79).

 Downloading movie files may take some time due to the large file

size.

COPY

You can batch download to your computer all the images saved on the memory card inserted in the camera that you have not already downloaded.

The downloaded images are sorted by date into folders and are then displayed in the main window of Digital Photo Professional (RAW image processing, viewing and editing software) (hereinafter DPP), which is linked to start up automatically, where you can check them immediately.

Click [Starts to download images].

Check the downloaded images.

 Check the downloaded images in DPP.

For details on using DPP, refer to the “Digital Photo Professional Instruction Manual” (PDF electronic manual).

 Continue with “Exiting EU” (p.11).

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 The [Save File] dialog box appears and image downloading to

your computer begins.

 The downloaded images are saved in the [My Pictures] folder.  When all images have been downloaded, DPP starts up

automatically and the downloaded images are displayed in DPP’s main window.

Reference

Index

From the images saved in your camera’s memory card, you can select

Downloading Selected Images to Your Computer

Viewer window

Add check mark

You can click the [ ] button and extract images by a variety of criteria to select images to download.

COPY

the ones you want and download them to your computer.

Click [Lets you select and download images].

View the images and checkmark images to

download.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 A viewer window appears and the images in the memory card

are displayed.

Reference

Index

Click the [Download] button.

Download image dialog box

Specify the save destination

Displays the save destination on the computer

 In step 2, you can batch checkmark several images in sequence.

After clicking the first image you want to download, hold the < Shift > key and click the last image, and [ ] will be displayed. By clicking the [ ] button, the selected images will be checkmarked in a batch.

 For a list of viewer window functions, see p.92.

COPY

 The [Download image] dialog box appears.

Specify the save destination and then click the [OK]

button.

 The images downloaded to your computer are displayed in the

[Quick Preview] window.

 The [Quick Preview] window allows you to quickly review the

downloaded images. You can also resize the [Quick Preview] window.

 When all images have been downloaded, DPP starts up

automatically and the downloaded images are displayed.

 To switch to the main window, click the [Main Window] button in

the viewer window.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The [Save File] dialog box appears and image downloading to

your computer begins.

Introduction

Using the Camera to Download Images to Your Computer

1D X

1Ds Mk III

1D Mk III

5D Mk III

5D Mk II

50D

40D

REBELT1i

500D

REBELXSi

450D

REBELXS

1000D

Downloading Images with a Card Reader

COPY

If your camera has a direct image transfer function, you can use it to download to your computer the images saved on the memory card inserted in the camera. Refer to your camera’s Instruction Manual for details on its direct image transfer function.

 This function is compatible with

Connect your camera and computer, and then start

up EU (p.5).

Operate the camera to transfer the images directly.

 The images in the camera are saved to your computer.

 When all images have been downloaded, Digital Photo Professional

starts up and the downloaded images are displayed.

For users with a third-party card reader, you can also download to your computer images stored in a memory card using the card reader. However, EU does not support image downloading using a card reader. For this reason, when downloading images using a card reader, use one of the following 3 procedures.

Downloading Images Using Digital Photo Professional

You can use DPP to download to your computer shot images from a memory card inserted in a third-party card reader connected to your computer.

For detailed instructions, refer to “Downloading Images Using Your Card Reader” in the “Digital Photo Professional Instruction Manual” (PDF electronic manual).

Downloading Images Using ImageBrowser EX

You can use ImageBrowser EX to download to your computer shot images from a memory card inserted in a third-party card reader connected to your computer.

For detailed instructions, refer to “ImageBrowser EX User Guide” (PDF electronic manual).

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Downloading Images without Using Canon Software

To download images with a card reader without using Canon software such as DPP or ImageBrowser EX, copy to your computer the [DCIM] folder in the memory card. For more details about folder structures and files in the memory card, see p.87.

1010

Exiting EU

COPY

Click the [Quit] button.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

 The window closes and EU exits.

Turn the camera’s power switch to < OFF >.

Disconnect the cable from the camera and computer.

 Do not pull on the cable; hold the plug and pull out.

Preferences

Reference

Index

COPY

Setting the Camera from Your Computer

This section explains how to set the camera’s functions from EU.

Setting the Camera Owner’s Name, Copyright Notice

Introduction

Contents at

a Glance

and Date/Time............................................................

Available Settings by Camera Model.......................... 14

Setting up Camera Functions .................................. 15

Available Settings by Camera Model.......................... 16

Setting Picture Styles and Applying to the Camera.... 17

Selecting a Picture Style and Applying to the

Camera...................................................................

Changing Picture Style Settings and Applying to the

Camera...................................................................

Applying Picture Style Files to the Camera ............ 19

Saving White Balance to your Computer ....................

Registering Personal White Balance in the Camera ...

Setting JPEG Quality and Applying to the Camera .... 23

Adjusting White Balance and Applying to the Camera... Registering Lens Aberration Correction/Peripheral Illumination Correction Data for the Lens in the Camera

21 22

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Setting My Menu and Registering to the Camera .....

Specifying Settings for EOS M Camera Functions....

Available Settings and How to Specify the Settings for

EOS M........................................................................

Setting the Camera Owner’s Name, Copyright Notice and Date/Time

Capture window

COPY

You can set and apply to the camera, the camera owner’s name, copyright notice and date/time recorded as shooting information in shot images.

How to specify settings for differs from that for other cameras.

For details on specifying settings for , see p.27.

Click the [ ] button.

Introduction

Contents at

a Glance

Connect your camera and computer, and then start

up EU

Click [Camera settings/Remote shooting].

 The capture window appears.

(p.5).

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The [Set-up menu] appears.

Click the required setting and specify each one.

Set-up menu

Available Settings by Camera Model

1Ds Mk III

1D Mk III

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

40D

REBELXSi

450D

REBELXS

1000D

COPY

Setting

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

 Available settings are displayed for the camera that is connected.

For more details, see “Available Settings by Camera Model”.

For a list of the capture window functions, see p.95.

Owner’s name

Author* Copyright holder

(copyright notice)* Date/Time/Zone* Live View/Movie func. set.* Firmware

Owner’s name



Author*

 You can enter and set up to 63 characters or symbols, including a

You can enter and set up to 31 characters as the camera owner’s name.

prefix, as the author’s name.

prefix, as the photo creation’s copyright holder (copyright notice).



–



 * 



–

 

Remote

Shooting

Preferences

Reference

Index

1414

Date/Time/Zone*

1D X

5D Mk III

REBELT4i

650DMM

1D X

5D Mk III

REBELT4i

650D

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

COPY

 You can set the camera’s date/time and the time zone where images

were shot.

 You can retrieve the computer’s system time to sync the camera’s

date and time.

 You can set and cancel daylight savings time on

Live View/Movie func. set.*

 You can set whether the Live View function settings or Movie function

settings (p.31, p.57) are available or not. Setting is not possible for

Firmware

 You can display the version of the camera’s firmware.  You can update the firmware by clicking on this item. How to specify

settings for differs from that for other cameras. For details on

specifying settings for , see p.27.

 For more details on updating firmware, refer to the Canon’s website.

When the author or copyright holder (copyright notice) set is not displayed in full, moving the cursor to the displayed setting item will display all the entered information as a pop-up.

Area setting is for (firmware version 2.0.0

(firmware version 2.0.0 or later) .

or later) only.

Movie function settings are for

Setting up Camera Functions

You can set and apply to the camera Picture Styles, personal white balance, JPEG quality and white balance adjustment.

Settings that can be performed and how to specify settings for differ from those for other cameras. For details of available settings and specifying settings for , see p.27.

Connect your camera and computer, and then start

up EU

(p.5).

Click [Camera settings/Remote shooting].

 The capture window appears.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Cameras other than .

only.

Click the [ ] button.

Shooting menu

Available Settings by Camera Model

1D X

1D Mk IV

1Ds Mk III

1D Mk III

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

40D

REBELXSi

450D

REBELXS

1000D

1D X

1D Mk IV

5D Mk III

COPY

 The [Shooting menu] appears.

Click the required setting and specify each one.

Setting

Picture Style Personal white balance JPEG quality White balance adjustment Registering lens aberration

correction/peripheral illumination correction data

HDR Shooting



Setting is possible for , but not for other models.



Only registering Picture Style file is possible for .



Setting is not possible for .



Setting is possible for , but not for other models.



*

  *

*

–

*

– ––



*



Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

–

Remote

Shooting

Preferences

Reference

Index

 Available settings are displayed for the camera that is connected.

For more details, see “Available Settings by Camera Model”.

For a list of the capture window functions, see p.95.

1616

Picture Style

Setting Picture Styles and Applying to the Camera

1D X

1D Mk IV

5D Mk III

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

COPY

 You can set a Picture Style and apply it to the camera, in the same

way as operating from the camera (p.17).

Personal white balance

 You can register to the camera a personal white balance file (p.22).

JPEG quality

 You can set the JPEG image quality and apply it to the camera, in the

same way as operating from the camera (p.23).

White balance adjustment

 You can adjust the white balance, in the same way as operating from

the camera (p.23).

Registering lens aberration correction/peripheral illumination correction data

 You can register lens aberration correction/peripheral illumination

correction data for the lens to the camera or delete registered data from the camera (p.24).

HDR (High Dynamic Range) shooting

 You can shoot photos with a wide dynamic range where clipping in

highlights and shadows has been reduced, and photos that appear like paintings (p.37).

You can set and apply Picture Styles to the camera, in the same way as operating from the camera. You can change the values for [Sharpness], [Contrast], [Saturation] and [Color tone] of each Picture Style and register up to three of your own Picture Styles in the camera as userdefined settings.

You can also register Picture Style files in the camera as user-defined settings you have downloaded from the Canon’s website or created with Picture Style Editor (Picture Style file creating software) (hereinafter PSE) and saved to your computer.

For

, registering

Picture Styles may take some time.

Selecting a Picture Style and Applying to the Camera

Click [Picture Style].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The [Picture Style] window appears.

1717

Click the Picture Style to be set in the camera.

Picture Style window

[Auto] appears for Picture Styles only with

1D X

5D Mk III

REBELT4i

650D

REBELT3i

600D

Cursor position

Default setting

Setting

COPY

Changing Picture Style Settings and Applying to the Camera

You can set your own Picture Style [Sharpness], [Contrast], [Saturation] and [Color tone] and apply them to the camera, in the same way as operating from the camera.

Introduction

Contents at

a Glance

 The setting is applied to the camera and the display returns to

the [Shooting menu].

Click [Detail set.].

 The [Detail set.] dialog box appears.

Set by clicking the pointer on the slider for each

item.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 If you select [Monochrome] for the Picture Style (p.17), the [Filter

effect] and [Toning effect] list boxes appear.

1818

Click the [Return] button.

COPY

 The settings are applied to the camera, and the display returns to

the [Shooting menu].

Applying Picture Style Files to the Camera

You can register up to three Picture Style files downloaded from the Canon’s website or created with PSE and saved to your computer, as user-defined settings in your camera.

Click [Register User Defined style].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

 The [Register Picture Style File] dialog box appears.  How to specify settings for differs from that for other

cameras. See “Specifying Settings for EOS M Camera Functions” (p.27).

Select a tab from one of [User Defined 1]

to [User Defined 3].

Preferences

Reference

Index

1919

Click the [ ] button.

 A Picture Style file is an extended function of Picture Style. For

more details on Picture Style files, refer to the Canon’s website.

 The Picture Style files that you can apply to the camera are files

with the “.PF2” extension only.

 For details on using PSE, refer to the “Picture Style Editor

Instruction Manual” (PDF electronic manual).

COPY

 The [Open] window appears.

Select a Picture Style file and then click the [Open]

button.

Click the [OK] button.

 The Picture Style file is registered in the camera.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 The Picture Style file is loaded.

Reference

Index

2020

You can save the adjustment results for an image’s white balance to

Saving White Balance to your Computer

1D X

1D Mk IV

COPY

your computer as a white balance file (extension “.WBD”). White balance files saved to your computer can be registered in the camera as personal white balances (p.22).

Start by registering a white balance in your camera after adjusting it in the [Remote Live View window] or [Test Shooting] window.

Click [Personal WB].

Select the white balance to be saved to your

computer and click the [Save] button.

In the window that appears, enter a filename, select a

save destination, and then click the [Save] button.

 The white balance file is saved to your computer.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 The [Personal white balance settings] dialog box appears.

Reference

Index

2121

White balance files created by adjusting the white balance of an image

Registering Personal White Balance in the Camera

1D X

1D Mk IV

COPY

and saving the results can be registered in the camera as personal white balances.

Click [Personal WB].

Open the folder containing the saved white balance

file, select the file and then click the [Open] button.

 The white balance file is loaded.  The white balance files that you can register to the camera are

files with the “.WBD” extension.

Enter a title into the [Title] input field.

Click the [Apply to camera] button.

 The personal white balance is registered on the camera.  To register another setting, repeat step 2 to step 5.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

 The [Personal white balance settings] dialog box appears.

Select the personal white balance to be registered

and click the [Open] button.

 The [Open] dialog box appears.

Click the [Close] button.

 The [Personal white balance settings] dialog box closes and the

display returns to the [Shooting menu].

Select a registered personal white balance on the

camera.

 Select a registered personal white balance as the white balance.

 For selecting personal white balance or manual white balance,

refer to “Setting the White Balance” in the camera’s Instruction Manual provided with your camera.

Remote

Shooting

Preferences

Reference

Index

2222

Introduction

Setting JPEG Quality and Applying to the Camera

1D X

1D Mk IV

1Ds Mk III

1D Mk III

Adjusting White Balance and Applying to the Camera

Displays the compensation value

Compensates amber

Compensates magenta

Compensates green

Compensates blue

COPY

You can set the JPEG image quality and apply it to the camera, in the same way as operating from the camera.

Click [JPEG quality].

 The [JPEG Quality] window appears.

Click the setting position.

You can adjust white balance, in the same way as operating from the camera.

Click [WB SHIFT].

 The [WB SHIFT] window appears.

Click the compensation position.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

 The settings are applied to the camera.  Higher values give a lower compression ratio and higher image

quality for any size.

Click [Return].

 The display returns to the [Shooting menu].

 The settings are applied to the camera.

Click [Return].

 The display returns to the [Shooting menu].  To revert the corrected values to the original values, follow the

procedure in step 2.

Index

2323

You can register lens aberration correction/peripheral illumination

Registering Lens Aberration Correction/Peripheral Illumination Correction Data for the Lens in the Camera

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

COPY

correction data for the lens to the camera, or delete registered data from the camera.

For cameras where [Lens aberration correction] is displayed in the [Shooting menu], data is registered or deleted for lens peripheral illumination correction, distortion correction, and chromatic aberration correction. (Data for distortion correction and chromatic aberration correction is used during RAW processing on the camera.)

For cameras where [Peripheral illumin. correct.] is displayed in the menu, only lens peripheral illumination correction data is registered or deleted. You do not have to register correction data for an EF-M lens.

Click [Lens aberration correction] or [Peripheral

illumin. correct.].

 The [Register lens aberration correction data] window or

[Register peripheral illumination correction data] window appears. Lenses for which correction data is registered in the camera are displayed with a check mark.

 Window names that appear and data to be registered in the

camera differ depending on the camera. However, the following steps are the same.

 How to specify settings for differs from that for other

cameras. See “Specifying Settings for EOS M Camera Functions” (p.27).

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

2424

Select the lens category for which you want to

 For a list of the [Register lens aberration correction data] window

or [Register peripheral illumination correction data] window functions, see p.93.

 Lens names displayed in the [Register lens aberration correction

data] window or [Register peripheral illumination correction data] window may be partially shortened depending on the lens type.

 The EF 15mm f/2.8 Fisheye and EF 8-15mm f/4L USM Fisheye

are not compatible with [Register lens aberration correction data]/ [Register peripheral illumination correction data].

COPY

Select the lens for which you want to register

correction data and click the [OK] button.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

 A list appears showing only the selected lens category.

 The correction data for the selected lens is registered in the

camera.

 You can delete correction data from the camera by removing the

check mark from the registered lens and clicking the [OK] button.

Preferences

Reference

Index

2525

Setting My Menu and Registering to the Camera

COPY

You can register up to six frequently used menu items as My Menu and register them to the camera, in the same way as operating from the camera.

You can register top layer items of each tab as well as all items of Custom Functions.

Click the [ ] button.

Introduction

Contents at

a Glance

Connect your camera and computer, and then start

up EU

Click [Camera settings/Remote shooting].

(p.5).

 The capture window appears.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The [My Menu] appears.

Click [My Menu settings].

My Menu

My Menu settings window

For a list of the [My Menu settings] window functions, see p.94.

COPY

 The [My Menu settings] window appears.

Select the item to be registered and click the [Add]

button.

Specifying Settings for EOS M Camera Functions

How to specify settings for is different from that of other cameras. How to connect with your computer and settings that can be performed are explained here. When linked to EU, the capture window does not appear as is unable to perform remote shooting and Remote Live View shooting.

Connect your camera and computer, and then start

up EU

Click [Camera settings].

(p.5).

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 The selected item is added to [Items that can be configured in My

Menu on the camera] on the left side of the window.

 You can register up to six items with the above procedure.  You can change the position of an item by selecting it and then

clicking the [ ] or [ ] button to move it.

Click the [Apply to camera] button.

 The setting is applied to the camera.

Reference

Index

 The Camera settings window appears.

Click the required settings and specify each one.

Available Settings and How to Specify the Settings for EOS M

COPY

 The settings window for each setting appears. For more details,

see “Available Settings and How to Specify the Settings for EOS M” on the right of this page.

Updating firmware

 Update firmware as directed by the on-screen messages. For more

details on updating firmware, refer to the Canon's website.

Date/Time/Zone

 You can set the camera's date/time and the time zone where images

were shot.

 You can retrieve the computer's system time to sync the camera's

date and time.

 You can set and cancel daylight savings time.

Registering lens aberration correction data

You can register lens aberration correction data to the camera, or delete registered data from the camera. Data is registered or deleted for lens peripheral illumination correction, distortion correction, and chromatic aberration correction. (Data for distortion correction and chromatic aberration correction is used during RAW processing on the camera.) For how to register, see instructions for step 2 and later of “Registering Lens Aberration Correction/ Peripheral Illumination Correction Data for the Lens in the Camera”

(p.24, p.25). You do not have to register correction data for an EF-M

lens.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Registering Picture Style files

You can register up to three Picture Style files downloaded from the Canon's website or created with PSE and saved to your computer, as user-defined settings in your camera. For how to register, see instructions for step 2 and later of “Applying Picture Style Files to the Camera” (p.19, p.20).

2828

Registering background music

COPY

You can register WAV-format music files, saved to your computer, to the camera's memory card as background music. Registered background music can be played together with a Video Snapshot Album or slideshow played on the camera. For how to register, see instructions for step 2 and later of “Registering Background Music to a Camera Memory Card” (p.74 to p.76).

Registering owner/author/copyright holder

Owner's name

 You can enter and set up to 31 characters as the camera owner's

name.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Author

 You can enter and set up to 63 characters or symbols, including a

prefix, as the author's name.

 You can enter and set up to 63 characters or symbols, including a

prefix, as the photo creation's copyright holder (copyright notice).

Remote

Shooting

Preferences

Reference

Index

2929

COPY

Remote Shooting by Controlling the Camera from Your Computer

Introduction

From EU you can control the camera remotely, and by viewing the subject in the EU window, you can set the camera and shoot. You can also shoot by directly operating your camera even during remote shooting, or preset a time allowing the camera to shoot automatically with timer shooting. With , you can only register BGM in the camera's memory card.

Remote Live View Shooting ..................................... 31

HDR (High Dynamic Range) Shooting..................... 37

Remote Live View Window Functions...................... 39

Focusing Manually..................................................... 39

Focusing Using AF .................................................... 40

Focusing Using Quick Mode.................................. 40

Focusing Using Live Mode .................................... 42

Focusing Using Face Detection Live Mode ........... 43

Focusing Using Face+Tracking ............................. 43

Focusing Using FlexiZone-Multi ............................ 44

Checking the Depth of Field and Exposure ............... 44

White Balance with the Remote Live View Window .. 45

White Balance for Flash Photography ....................... 45

Hiding an Overlay Image ........................................ 55

Displaying Grid Lines.................................................. 55

Shooting by Operating the Camera ......................... 56

Shooting Movies ...................................................... 57

Timer-controlled Shooting ....................................... 68

Timer Shooting ........................................................... 68

Interval Timer Shooting .............................................. 68

Bulb Exposures .......................................................... 69

Flash Shooting......................................................... 70

Registering Background Music to a Camera Memory

Card......................................................................... 74

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Displaying an Electronic Level................................... 47

Changing the Aspect Ratio........................................ 48

Audio Recording Setting ............................................ 49

Audio Recording/Audio Recording Level ............... 50

Wind Filter Function............................................... 50

Overlaid Display Function.......................................... 51

Enlarging/Reducing an Overlay Image .................. 52

Rotating an Overlay Image .................................... 53

Setting the Composite Ratio of an Overlay Image ..

Moving an Overlay Image...................................... 54

Displaying a Different Overlay Image .................... 54

Index

Remote Live View Shooting

REBELT1i

500D

COPY

You can control your camera remotely from EU and shoot still images from your computer screen.

Also, the shot images are saved directly on your computer and you can recheck them using the linked software Digital Photo Professional (hereinafter DPP).

This function is effective for shooting large numbers of shots with fixedframing such as for studio shooting.

Connect your camera and computer, and then turn

the camera’s power switch to < ON >.

 EU starts up.  cannot communicate with EU if the camera’s

Mode Dial is set to < >. Set the Mode Dial to a mode other than < >.

Click [Camera settings/Remote shooting].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

 The capture window appears.

Preferences

Reference

Index

Set the camera.

Drive mode setting

Right-click  under the setting item and select settings from the menu*

that

appears

(

)

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

Mirror lockup menu display and setting

Right-click  under the setting item and select settings from the menu*

that

appears

(

)

1D X

1D Mk IV

5D Mk III

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

Double-click or right-click the setting item and select the setting*

1 *2

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

1D X

5D Mk III

REBELT4i

650D

1D X

5D Mk III

REBELT4i

650D

1D X

5D Mk III

REBELT4i

650D

COPY

*1 You can also use the scroll-wheel on your mouse to select

settings for items in the settings window and menus that appear. You cannot use the scroll-wheel in the mirror lockup menu.

*2 On

Introduction

Contents at

a Glance

, you can right-click the Exposure level/ AEB level item and perform AEB setting using the <Shift> key + scroll-wheel.

 You can also use the functions of the [Shooting menu] (p.15).  The settings that cannot be set in the capture window can be set

by operating the camera.

 On a warning lamp blinks

during the countdown for self-timer shooting and the countdown time is displayed in the area for the number of possible shots.

 Mirror lockup settings are available when the camera mode is P,

Tv, Av, M, A-DEP or B.

 During mirror lockup, the mirror lockup icon blinks.  When shooting with auto exposure on

, the shutter speed or aperture blinks to indicate under-

exposure or over-exposure conditions.

 When shooting with manual exposure on

, the metering value is displayed in real time in

the exposure level area.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

3232

Click the [ ] button.

Click

Live View shoot. window

Click

1Ds Mk III

1D Mk III

50D

40D

REBELXSi

450D

REBELXS

1000D

COPY

Set the Live View function.

 Click [Live View/Movie func. set.], and click [Enable] in the [Live

View shoot.] window that appears.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 The [Set-up menu] appears.

Reference

Index

 For cameras other than

, the [Live View/Movie func. set.] window appears. For details on specifying settings, see the next page.

3333

Introduction

Live View/Movie func. set. window

1D X

1D Mk IV

Select [Stills] for [LV func. setting] and a setting for [Exposure simulation], and click the [OK] button.

1D X

ClickSelect

1D Mk IV

ClickSelect

5D Mk II

Click

Select

Exposure simulation

Exposure simulation simulates and displays the image with a brightness close to the actual resulting image.

 Enable

The displayed image brightness will be close to the actual brightness (exposure) of the resulting image. If you set exposure compensation, the image brightness will change accordingly.

 Disable

The image is displayed at the standard brightness to make the Live View image easy to see. Even if you set exposure compensation, the image is displayed at the standard brightness.

 Enable (DOF preview)

Normally, the image is displayed at the standard brightness to make the Live View image easy to see. The image will be displayed close to the actual brightness (exposure) of the resulting image only while you hold down the depth-of-field preview button.

5D Mk III

60D

ClickSelect

5D Mk III

ClickSelect

COPY

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Select [Stills only] and [Still display], and click the [OK] button.

Select [Enable] for [LV func. setting] and the setting for [Exposure simulation], then click the [OK] button.

Preferences

Reference

Index

3434

60D

ClickSelect

Select Click

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

Select [Enable] and click the [OK] button.

REBELT1i

500D

Select Click

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

Click the [Live View shoot.] button.

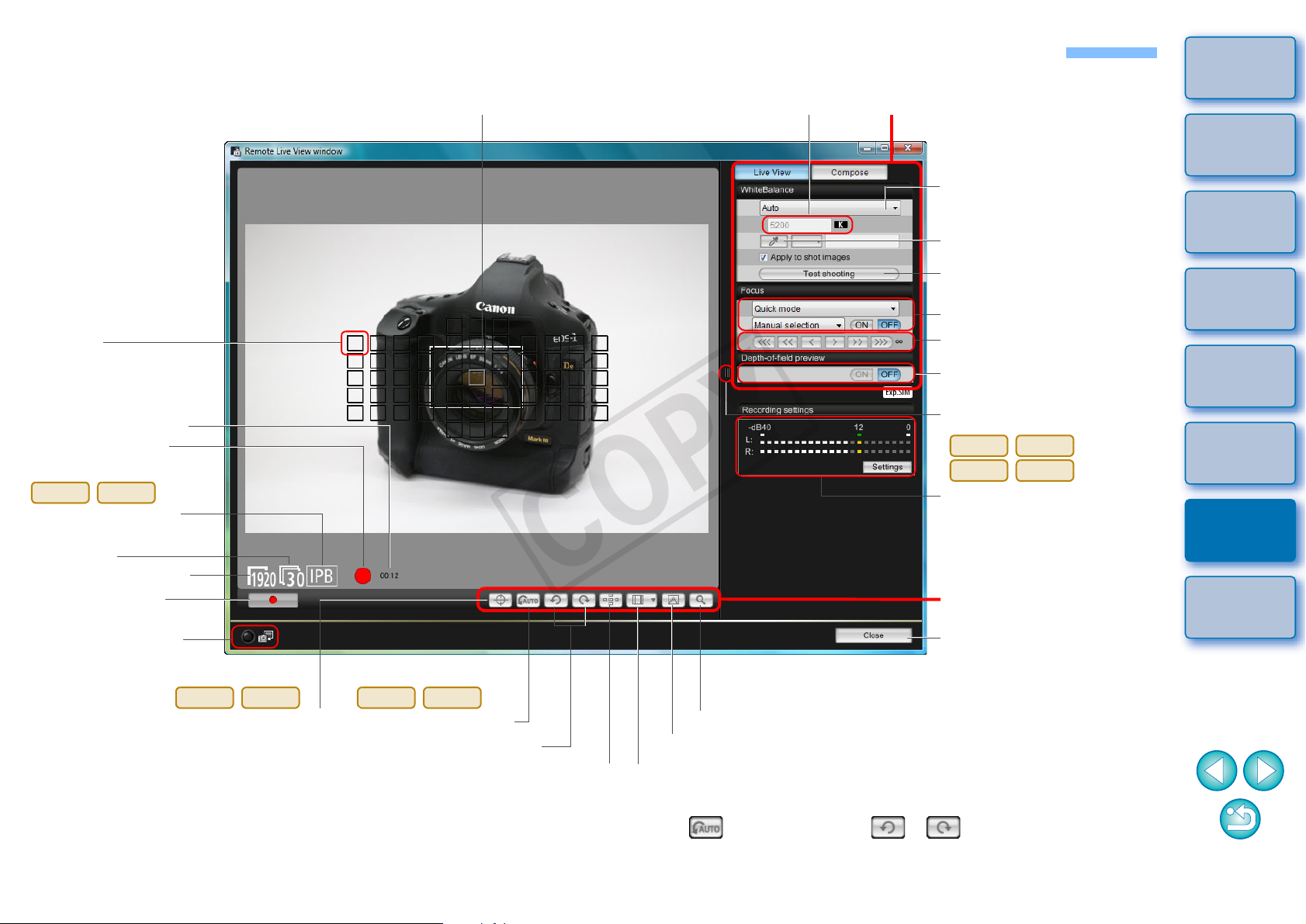

Remote Live View window

COPY

Introduction

Contents at

a Glance

Downloading

Images

 The [Remote Live View window] appears.

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

3535

Click the [ ] button to shoot.

 You cannot perform RAW processing. If you connect the camera

to your computer during in-camera RAW processing, the camera and computer will connect after you finish processing.

 On

you cannot set [Creative Auto].

You can also shoot using the <space> bar on the keyboard.

60D

REBELT4i

650D

REBELT3i

600D

REBELT3

1100D

 You cannot operate the camera when the [Remote Live View

window] is displayed. Pressing the Live View shooting button (the camera’s <SET> button on the

) will also display the Live View image on the camera’s LCD monitor, allowing you to view the image while operating the camera.

 You can shoot by operating the capture window, even if the

[Remote Live View window] is not displayed.

 To perform exposure simulation (p.44) with [Remote Live View

window] or enable display of histograms (p.99), set your camera’s Custom Function [Live View exposure simulation] to [Enable]. On

set [Exposure simulation] in the menu to [Enable].

 On

, you can also use mirror lockup with remote shooting. (You cannot take test shots after setting mirror lockup.)

 On , self-timer shooting is

possible.

 With , mirror lockup and Silent single shooting

cannot be performed in remote shooting.

 The [Test Shooting] window appears when you click the [Test

shooting] button. During flash shooting, you can take a test shot under the same conditions as an actual shot, and adjust the white balance based on the shot test image (p.45).

 You can save shot images to both your computer and a memory

card by checkmarking [Save also on the camera’s memory card] in preferences ([Remote Shooting] tab sheet) (p.80).

 You can change the software that starts up automatically when

remotely shot images are transferred to your computer from DPP to ImageBrowser EX or other software in preferences ([Linked Software] tab sheet) (p.81).



For a list of the [Remote Live View window] functions, see p.99.

 For a list of the [Zoom View] Window functions, see p.101.

1D Mk IV

1Ds Mk III

1D Mk III

40D

REBELXSi

450D

REBELXS

1000D

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

1D X

5D Mk III

REBELT4i

650D

1Ds Mk III

1D Mk III

COPY

Introduction

Contents at

a Glance

 The shot image is transferred to your computer and displayed in

the [Quick Preview] window. And then, DPP starts up automatically.

 You can quickly review the shot image in the [Quick Preview]

window displayed before DPP starts up. You can also resize the [Quick Preview] window.

 You can show/hide the [Quick Preview] window by clicking the

[Other Functions] button in the capture widow and selecting [Quick Preview] from the menu that appears.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

3636

HDR (High Dynamic Range) Shooting

5D Mk III

COPY

You can shoot photos with a wide dynamic range where clipping in highlights and shadows has been reduced, and photos that appear like paintings. This is suited for scenes such as still-life and landscape. In HDR shooting, one shot is taken using three images shot with different exposures (negative exposure, standard exposure, positive exposure), and they are combined into a single image automatically. Shot HDR images are recorded in JPEG quality.

* HDR stands for High Dynamic Range.

Set to HDR.

 Select [HDR Mode] in the [Shooting menu], and in the dialog box

that appears, specify the required settings and click the [OK] button.

 [Adjust dynamic range]: Sets the range of adjustment for

dynamic range. Select from [Disable HDR], [Auto], [±1], [±2], and [±3]. When selecting [Auto], the range of adjustment will be set automatically depending on the image's overall tonal range. The higher the number, the wider the dynamic range will be.

 [Effect]: Selects the finishing effect. For specific finishing effects,

refer to the pages about HDR (High Dynamic Range) shooting in the Instruction Manual provided with your camera.

 [Continuous HDR]: If [1 shot only] is selected, HDR shooting is

cancelled automatically after you finish shooting. If you select [Every shot], HDR shooting is continued until you select [Disable HDR] in [Adjust dynamic range].

 [Save source images]: To save the three shot images and the

completed HDR image, select [All images]. To save only the completed HDR image, select [HDR image only].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Take a shot.

 The HDR mode cannot be set if you use any of the following

functions: AEB, white balance bracketing, multiple exposures, flash exposure, bulb exposure, or movie shooting.

 HDR shooting of a moving subject is not recommended because

the movement of the subject will appear as afterimages in the merged image. HDR shooting is recommended for still subjects.

 In HDR shooting, 3 images are captured with different shutter

speeds set automatically. Therefore, even in Tv and M shooting modes, the shutter speed will be shifted based on the shutter speed set.

 To prevent camera shake, the ISO speed may be set higher than

usual.

 Auto image alignment may not work properly with repetitive

patterns (lattice, stripes, etc.) or flat, single-tone images.

 The color gradation of the sky or white walls may not be

reproduced correctly. Irregular colors or noise may appear.

 With HDR shooting, the three images will be merged after you

take a picture. Therefore, it will take a longer time to record the HDR image than with normal shooting. During the merging of the images, “BUSY” will be displayed on the camera and you cannot take another picture until the merging is completed.

 Using a tripod is recommended. For handheld shooting, using a

fast shutter speed is recommended.

 If [Auto Image Align] is set to [Enable] and the HDR picture is shot

handheld, the edges of the photos will be cropped, lowering the resolution slightly. Also, if the images cannot be aligned properly due to camera shake, etc., auto image alignment may not take effect. Note that when shooting with excessively bright or dark exposure settings, auto image alignment may not work properly.

 If you perform handheld HDR shooting while [Auto Image Align] is

set to [Disable], the 3 images may not be properly aligned and the HDR effect may be minimal.

 HDR shooting under fluorescent or LED lighting may result in

unnatural color reproduction of the illuminated areas.

 In HDR mode, the options dimmed in the menu cannot be set.

When you set HDR mode, the Auto Lighting Optimizer will be set automatically to [Disable]. It will revert to the original setting when you cancel the HDR mode.

 If you perform HDR shooting with the image quality set to RAW,

HDR images are recorded in [ ] quality.

 If you perform HDR shooting with the image quality set to

RAW+JPEG, HDR images are recorded in JPEG quality.

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

3838

Remote Live View Window Functions

Focusing Manually

Drag

Zoom View window

COPY

These pages explain the functions available in the [Remote Live View window], including checking the camera settings and focusing while viewing your subject on the computer screen.

See also the list of [Remote Live View window] functions at the end of this manual (p.99, p.100).

You can focus manually while viewing the enlarged image in the [Remote Live View window].

Set the lens’s focus mode switch to < AF >.

Drag [ ] to the section you want to enlarge.

Click the [ ] button.

 The section you selected in step 1 is displayed enlarged at 100%

(actual pixel size) in the [Zoom View] window.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 To move the display position in the [Zoom View] window, click on

[ ], [ ], [ ], [ ]. You can also move the display position by dragging the window.

 You can checkmark [Maintain Zoom View] to maintain display of

the [Zoom View] window.

 You can also double-click the section you want to enlarge in step

1 to display an enlarged view at 100% (actual pixel size) in the [Zoom View] window.

 Double-click an image in the [Zoom View] window to return to the

[Remote Live View window].

 You can checkmark [200%] to view the section enlarged to

200%.

Reference

Index

Adjust the focus.

Closer

Further away

You can also focus using a key operation on the keyboard.

Adjustment Closer Further away

Large amount < I > < O >

Medium amount < K > < L >

Small amount < < > < > >

Focusing Using AF

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

COPY

In Quick, Live, Face Detection Live, and other AF modes, images can be focused automatically in the same way as on the camera itself.

Introduction

Contents at

a Glance

Downloading

Images

 [ ], [ ]: Adjustment Large amount  [ ], [ ] : Adjustment Medium amount  [ ], [ ] : Adjustment Small amount  The [Remote Live View window] changes in real time according

to the focus position adjustment.

Focusing Using Quick Mode

Select [Quick mode] from the list box.

 The AF points appear.  You can switch between showing and hiding the AF points by

clicking the [ ] button.

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

4040

Select an AF point selection method from the list box.

Click

On , cancel the AF point registration function on the camera if AF points have been registered. When the camera’s AF points are registered, focusing with AF in the [Remote Live View window] may not be performed properly.

 Double-clicking an AF point also performs AF.  To cancel AF operation, click the [OFF] button.

1D X

5D Mk III

COPY

 Selectable items differ depending on the camera settings.

Click the AF point in the position where you want to

focus.

Click the [ON] button.

 AF is executed.  When focus is achieved, the camera makes a beeping sound

and the AF point color changes.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 If [Automatic selection] is selected in step 2, all the AF points are

automatically selected.

 If [Manual selection] is selected in step 2, only the selectable AF

points are displayed.

Reference

Index

4141

Focusing Using Live Mode

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

REBELT4i

650D

Drag

COPY

Drag the enlargement display frame to move it to the

position where you want to focus.

Introduction

Contents at

a Glance

Select [Live mode] or [FlexiZone – Single] from the

list box.

 The AF point appears.  On , you can set continuous AF to on/off with

the [Continuous AF] box. When shooting movies, the [Continuous AF] box changes to the [Movie servo AF] on/off box.

 You can switch between showing and hiding the AF point by

clicking the [ ] button.

Click the [ON] button.

 AF is executed.  When focus is achieved, the camera makes a beeping sound

and the AF point turns green.

 If focus is not achieved, the AF point turns red.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

4242

Focusing Using Face Detection Live Mode

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

REBELT4i

650D

COPY

Focusing Using Face+Tracking

Select [Face detection + Tracking AF] from the

[Focus] list box.

Introduction

Contents at

a Glance

Select [Face Detection Live mode] from the list box.

 When a face is detected, an AF point appears.  When there is a face other than the face detected in the scene, a

new AF point appears if you move the cursor to the position of the other face. The AF point is selected by clicking that position.

 You can switch between showing and hiding the AF point by

clicking the [ ] button.

Click the [ON] button.

 When a face is detected, an AF point appears.  The AF point also tracks the face if the face moves.  When there is a face other than the face detected in the scene, a

new AF point appears if you move the cursor to the position of the other face. The AF point is selected by clicking that position.

 You can set continuous AF to on/off with the [Continuous AF]

box. When shooting movies, the [Continuous AF] box changes to the [Movie servo AF] on/off box.

 You can switch between showing and hiding the AF point by

clicking the [ ] button.

Click the [ON] button on the [Focus] list box.

 AF is executed.  When focus is achieved, the camera makes a beeping sound

and the AF point turns green.

 If focus is not achieved, the AF point turns red.  If a face is not detected, the mode changes to [FlexiZone-Multi]

(p.44).

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 AF is executed.  When focus is achieved, the camera makes a beeping sound

and the AF point turns green.

 If focus is not achieved, the AF point turns red.  If the camera cannot detect a face, the AF point is fixed to the

center to focus.

4343

Focusing Using FlexiZone-Multi

REBELT4i

650D

Checking the Depth of Field and Exposure

COPY

Introduction

This AF mode allows focus to be easily achieved on moving subjects. You can adjust focus over a wide area, and also divide the area into zones for focusing.

Select [FlexiZone-Multi] from the [Focus] list box.

 An AF point appears.  You can click in the window to select an AF zone.

To cancel a selected zone, select [FlexiZone-Multi] again from the [Focus] list box.

 You can set continuous AF to on/off with the [Continuous AF]

box. When shooting movies, the [Continuous AF] box changes to the [Movie servo AF] on/off box.

 You can switch between showing and hiding the AF point by

clicking the [ ] button.

Click the [ON] button on the [Focus] list box.

 AF is executed.  When focus is achieved, the camera makes a beeping sound

and the AF point turns green.

 If focus is not achieved, the AF point turns red.  The number of AF points and zones depend on the selected

aspect ratio and the image being shot (still image/movie).

You can check the depth of field and exposure in the [Remote Live View window].

Click the [ON] button.

 The aperture value (exposure simulation) is set in the capture

window (p.95).

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

4444

Introduction

White Balance with the Remote Live View Window

White Balance for Flash Photography

Test Shooting window

COPY

You can change the white balance of an image in the [Remote Live View window] and register the changed white balance in the camera.

Select the white balance to apply to the image.

 The selected white balance is applied to the image displayed in

real time and you can check it in the [Remote Live View window].

Checkmark [Apply to shot images].

When taking flash shots where the subject is illuminated instantaneously, you can take a test shot under the same conditions as an actual shot, and adjust the white balance in the [Test shooting] window based on the shot test image. Also, you can take a test shot even when flash is not used.

You can perform the same operation by clicking the [Test shooting] button in the [Remote Live View window].

Click the [Other Functions] button and select [Test

shooting] from the menu that appears.

 The shot image is displayed in the [Test Shooting] window.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The selected white balance is registered in the camera as a

personal white balance and applied to images that will be taken.

4545

Click the [ ] button.

Click white balance window

Click

 You can perform the following operations in the [Test Shooting]

window using keyboard controls.

• Test shooting: <Ctrl> + <space>

• 50% image display: <Ctrl> + <1>

• 100% image display: <Ctrl> + <2>

• 200% image display: <Ctrl> + <3>

• Match image size to window: <Ctrl> + <4>

 On

, you can link flash setting/test shooting/white balance adjustment by simultaneously displaying the [Flash function settings] window

(p.72) and the [Test Shooting] window.

 For a list of the [Test Shooting] window functions, see p.102.

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

COPY

 The [Click white balance] window appears.

Click the [Apply to camera and execute test

shooting] button.

Introduction

Contents at

a Glance

Downloading

Images

Click on a point that is to be the standard for white.

 A shot will be taken again using the part of the image in step 3

clicked as the standard for white and the shot image is displayed in the [Test Shooting] window.

 The test image will not be saved. To save the test image, click

the [ ] button.

 To close the [Test Shooting] window, click the [Close] button.

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

4646

You can display an electronic level in the [Remote Live View window] to

Displaying an Electronic Level

1D X

5D Mk III

Camera’s horizontal position

Horizontal reference

Position of camera top

Horizontal level

Vertical reference Camera’s vertical position

Vertical level

* One horizontal increment is equal to 10°, and one vertical increment is

equal to 5

 To adjust horizontal tilt, move the camera so the camera’s horizontal

position and the horizontal reference match.

 To adjust vertical tilt, move the camera so the camera’s vertical

position and the vertical reference match.

 To hide the level, click the [ ] button again.

 During movie shooting, the electronic level will not be displayed.  Even when tilt is corrected, there may be a margin of error of

approx. ±1°.

 If the camera is very tilted, the electronic level’s margin of error

will be bigger.

COPY

check the tilt of the camera.

Click the [ ] button in the [Remote Live View window].



An electronic level is displayed in the [Remote Live View window].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Check the tilt of the camera.

Remote

Shooting

Preferences

Reference

Index

Introduction

Changing the Aspect Ratio

1D X

1D Mk IV

5D Mk III

1Ds Mk III

1D Mk III

60D

REBELT4i

650D

REBELT3i

600D

60D

REBELT4i

650D

REBELT3i

600D

1D X

1D Mk IV

1Ds Mk III

1D Mk III

5D Mk III

1D X

1D Mk IV

1Ds Mk III

1D Mk III

60D

REBELT4i

650D

REBELT3i

600D

60D

REBELT4i

650D

REBELT3i

600D

COPY

As with the camera’s Live View function, it is possible to shoot with a feeling similar to film-type medium-format/large-format cameras such as 6 x 6 cm, 6 x 4.5 cm and 4 x 5 inches. Depending on the connected camera, there are the following differences.



For a RAW image, aspect ratio information is only attached with the shot image, and the image is not trimmed. For a JPEG image, the image is trimmed.



For both RAW and JPEG images, aspect ratio information is only attached with the shot image, and the image is not trimmed.



You can select the two following modes. [Add aspect ratio information]: JPEG images shot in this mode are

trimmed.

[Add cropping information]: Aspect ratio information is only

attached, and the JPEG images shot are not trimmed.

With either mode, RAW images will only have aspect ratio information attached to them, and they will not be trimmed.

Click the [ ] button and select the aspect ratio.

 In the [Remote Live View window], the vertical lines of the aspect

ratio you selected are displayed.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Move the camera and compose your picture.

 To revert the aspect ratio to as it is normally, click the [ ]

button. For , select the original aspect ratio; for other cameras, select [Off].

4848

Click the [ ] button.

5D Mk III

Audio Recording Setting

1D X

5D Mk III

REBELT4i

650D

COPY

 The [Specify Aspect Ratio/Cropping Info] dialog box appears.

Set [Add aspect ratio information] or [Add cropping

information].

You can set the audio recording level when shooting movies in Remote Live View shooting. This function can be set only when the camera is in P, Tv, Av, M, or B shooting mode. You should also refer to the page related to “Setting the Sound Recording” in your camera’s Instruction Manual.

Click the [Settings] button in the audio recording

area of the [Remote Live View window].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 [Add aspect ratio information] mode trims the JPEG images shot.  [Add cropping information] mode only attaches aspect ratio

information to the JPEG images shot without trimming them.

 With either [Add aspect ratio information] or [Add cropping

information] selected, RAW images will only have aspect ratio information attached to the shot images, and they will not be trimmed.

 Only either one of [Add aspect ratio information] and [Add

cropping information] can be set. When one mode is set, the other mode will be set to its default automatically.

 Clicking the [Close] button completes the setting.

Move the camera and compose your picture.

 The [Recording settings] window appears.

Reference

Index

4949

From the [Sound recording] list box, select [Auto], [Manual], or [Disable]

Wind filter function

Audio recording level slider

Level meter

REBELT4i

650D

COPY

Specify settings.

 Select [Auto], [Manual], or [Disable] from the list box.  When setting is completed, click the [Close] button to close the

[Recording settings] window.

 An attenuator settings box appears when is

connected. In conditions with much loud sound, sound cracking may occur even when shooting with [Sound recording] set to [Auto] or [Manual]. If there is sound cracking, it is recommended that you checkmark the attenuator function box to enable the attenuator function.

Audio Recording/Audio Recording Level

[Auto]: The audio recording level is adjusted automatically

according to the volume of the sound. When [Auto] is selected, you can only set the Wind filter function.

[Manual]: Function for advanced users. You can adjust the audio

recording level as desired. Drag the audio recording level slider while checking the level meter to adjust the audio recording level. When the volume is loud, refer to the peak hold function (approx. 3 seconds) while adjusting so that the right side of “12” on the level meter (-12 dB) lights intermittently. Exceeding “0” results in sound cracking.

[Disable]: Sound is not recorded.

Wind Filter Function

When you want to reduce the sound of the wind recorded while shooting outdoors, checkmark the Wind filter function box to enable the Wind filter function. It will function only when using a built-in microphone. However, when enabled, low bass sounds are also partially reduced, and it is recommended that you remove the check mark from this box in locations with no wind, to disable the Wind filter function.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

5050

An image saved in your computer can be overlaid on top of the image

Overlaid Display Function

COPY

displayed in the [Remote Live View window]. As this function allows you to accurately align angles, it is useful when shooting several images at the same angle, such as when shooting product photos. Images loaded from your computer are only displayed, and are not included in the shot.

Select the [Compose] tab sheet in the [Remote Live

View window] and click the [Open] button in [Overlay].

Select the image you want to display as an overlay

and click the [Open] button.

 The [Open] dialog box appears.  RAW*, JPEG, TIFF, BMP (bitmap), and GIF images can be

displayed as an overlay.

* • Only RAW images with the extension “.CR2” shot with a

Canon camera can be displayed as an overlay.

• Images that have been adjusted with Digital Photo Professional are also displayed in the condition when they were shot.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

 The [Open] dialog box appears.

 Even with supported image file types, the display of the image as

an overlay may not be possible.

 [Show overlay image] is checkmarked, and the selected image is

displayed as an overlay in the [Remote Live View window].

Index

5151

Enlarging/Reducing an Overlay Image

COPY

An image displayed as an overlay (the overlay image) can be enlarged/ reduced from 25 to 200%. Use the [Enlarge/Reduce] slider to set the enlargement or reduction.

Introduction

Contents at

a Glance

 An overlaid image (the overlay image) can be displayed

enlarged/reduced, rotated, or with its composite ratio adjusted

(p.53).

Move the camera and subject to compose your

picture.

 You cannot use the Overlaid Display function in the [Zoom View]

window.

Drag the [Enlarge/Reduce] slider left or right.

 The enlargement/reduction set with the [Enlarge/Reduce] slider

is applied to the overlaid display.

 You can also set the enlargement/reduction by entering a value

directly.

 You can also move the cursor over the slider, click, and then

press the <> or <> key on the keyboard or use the scrollwheel on your mouse to set the enlargement/reduction.

 Clicking the [Reset] button resets the image to its default state.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

5252

Rotating an Overlay Image

COPY

An image displayed as an overlay (the overlay image) can be rotated from -180° to +180°. Use the [Rotate] slider to set the rotation.

Drag the [Rotate] slider left or right.

Setting the Composite Ratio of an Overlay Image

The composite ratio (transparency) of an image displayed as an overlay (the overlay image) can be set from 0 to 100%. Use the [Composite Ratio] slider to set the composite ratio.

Introduction

Contents at

a Glance

 The rotated angle set with the [Rotate] slider is applied to the

overlaid display.

 You can also set the rotated angle by entering a value directly.  You can also move the cursor over the slider, click, and then

press the <> or <> key on the keyboard or use the scrollwheel on your mouse to set the rotated angle.

 Clicking the [Reset] button resets the image to its default state.

Drag the [Composite Ratio] slider left or right.

 The composite ratio set with the [Composite Ratio] slider is

applied to the overlaid display.

 You can also set the composite ratio by entering a value directly.  You can also move the cursor over the slider, click, and then

press the <> or <> key on the keyboard or use the scrollwheel on your mouse to set the composite ratio.

 Clicking the [Reset] button resets the image to its default state.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

5353

Moving an Overlay Image

COPY

An image displayed as an overlay (the overlay image) in the [Remote Live View window] can be moved to a new position. You can also use the cursor of your mouse to enlarge/reduce or rotate the image.

Click the [Move overlay image] button.

Displaying a Different Overlay Image

An image displayed as an overlay (the overlay image) can be changed to another image.

Click the [Open] button in [Overlay].

 The [Open] dialog box appears.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Drag the cursor of your mouse over the overlay

image.

 The overlay image is moved to a new position.  You can drag the cursor of your mouse in the [Remove Live View

window] in the area outside the overlay image to rotate it.

 You can drag the cursor of your mouse in the corners of the

overlay image to enlarge or reduce it.

 Clicking the [Reset] button resets the image to its default state.

Select the image you want to switch to in the [Open]

dialog box and click the [Open] button.

 The image that was displayed changes to the selected image.

Reference

Index

5454

Hiding an Overlay Image

Displaying Grid Lines

COPY

Hide an image displayed as an overlay (the overlay image).

Remove the check mark from [Show overlay image].

 The overlay image is hidden.

You can display grid lines in the [Remote Live View window] in the same way as the camera's Live View function, to check the camera's horizontal/vertical alignment.

Select the [Compose] tab sheet and checkmark

[Show grid] in [Grid].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 Checkmarking [Show overlay image] redisplays the overlay

image.

Reference

Index

 Grid lines are displayed in the [Remote Live View window].

5555

Select a display method for the grid lines from the

When the [Remote Live View window] is displayed, the camera cannot be operated. Press the Live View shooting button (the camera’s <SET> button on the

), to display the Live View image

on the camera’s LCD monitor and operate the camera.

1D Mk IV

1Ds Mk III

1D Mk III

40D

REBELXSi

450D

REBELXS

1000D

COPY

[Grid] list box.

Shooting by Operating the Camera

Even when remote shooting is set, you can still operate the camera and shoot – as when shooting with only the camera. Also, since the shot images are saved to your computer’s hard disk, you can shoot large quantities without having to worry about the capacity of the memory card.

Display the capture window (p.31).

Press the camera’s shutter button and take a shot.

 The shot images are transferred to the computer, DPP starts up

automatically, and the shot images are displayed.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

 By selecting [Customize grid], you can set the following items.

• Number of grid blocks vertically and horizontally (2-90)

• Grid line thickness (1-10)

•Grid color

• Show/hide diagonal lines

Move the camera to check its horizontal/vertical

alignment.

 To hide the grid lines, remove the check mark from [Show grid].

Remote

Shooting

Preferences

Reference

Index

Shooting Movies

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

1D X

1D Mk IV

The following kinds of movie compression formats are selectable on

• ALL-I (I-only): Compresses one frame at a time for recording. Although the file size will be larger than with IPB, the movie will be more suited for editing.

• IPB: Compresses multiple frames at a time efficiently for recording. Since the file size will be smaller than with ALL-I, you can shoot longer.

1D X

COPY

You can control your camera from EU and shoot movies from your computer screen. You cannot shoot movies without a memory card in your camera.

Introduction

Contents at

a Glance

Downloading

Images

Prepare for Live View shooting.

 Follow the procedure from step 1 to step 3 for “Remote Live View

Shooting” (p.31).

Click [Live View/Movie func. set.].

 The [Live View/Movie func. set.] window appears.

Select [Movies] for [LV func. setting], and select the

movie recording size from the list box.

Click the [OK] button.

 The [Live View/Movie func. set.] window closes.

Click [Live View shoot.].

 The [Remote Live View window] appears.  On , specify audio recording settings as needed.

For specifying audio recording settings, see “Audio Recording Setting” (p.49).

Adjust the focus. (p.39, p.40).

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Click the [ ] button and begin shooting.

Recording time

COPY

 At the bottom left of the [Remote Live View window], a [ ] icon

and the recording time are displayed.

 Click the [ ] button again to end shooting.  When the [Remote Live View window] closes, the following

window appears if some image data remains to be downloaded to your computer.

 After you click the [Download] button, the file names of the image

data shot in movie mode (movie/still image) appear in a list.

After specifying [Destination Folder] and [File Name], click the [Download] button in the window, and image data will be downloaded from the camera’s memory card to your computer. Image data having a check mark removed from its file name are not downloaded. Afterward, when downloading image data to your computer from the camera’s memory card, use the method described on p.7 to p.10 of this Instruction Manual to download.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

5858

Prepare for Live View shooting.

5D Mk II

 You cannot shoot movies when [Screen settings] is set to [Still

display] or [Exposure simulation].

 If the camera firmware is Ver.2.0.0 or later, set the frame rate on

the camera. Note that if the frame rate has been set to 24 fps on the camera, if you change the movie recording size with EU, the frame rate will be changed to another setting.

Recording time

COPY

 Follow the procedure from step 1 to step 3 for “Remote Live View

Shooting” (p.31).

Click the [OK] button.

 The [Live View/Movie func. set.] window closes.

Click [Live View shoot.].

Introduction

Contents at

a Glance

Click [Live View/Movie func. set.].

 The [Live View/Movie func. set.] window appears.

Select [Stills+movie] and [Movie display], set the

movie recording size.

 The [Remote Live View window] appears.

Adjust the focus. (p.39, p.40).

Click the [ ] button and begin shooting.

 At the bottom left of the [Remote Live View window], a [ ] icon

and the recording time are displayed.

 Click the [ ] button again to end shooting.  When the [Remote Live View window] closes, the following

window appears if some image data remains to be downloaded to your computer.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 After you click the [Download] button, the file names of the image

data shot in movie mode (movie/still image) appear in a list.

5959

Prepare for Live View shooting.

5D Mk III

REBELT3

1100D

5D Mk III

 You cannot operate the camera when the [ ] button is

clicked. To operate the camera, click the [ ] button again or close the [Remote Live View window].

 You cannot shoot still photos in movie mode with

REBELT3

1100D

COPY

 Follow the procedure of step 1 and step 2 for “Remote Live View

Shooting” (p.31).

 On , set your camera’s Live View shooting/

Movie shooting switch to < >.

Click the [ ] button.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

 The [Remote Live View window] appears.  On , specify audio recording settings as needed.

For specifying audio recording settings, see “Audio Recording Setting” (p.49).

Preferences

Reference

Index

6060

When setting the movie recording size, click [Live View/Movie

Click

Select

The following movie compression formats can be selected on

• ALL-I (I-only): Compresses one frame at a time for recording. Although the file size will be larger than with IPB, the movie will be more suited for editing.

• IPB: Compresses multiple frames at a time efficiently for recording. Since the file size will be smaller than with ALL-I, you can shoot longer.

5D Mk III

Recording time

COPY

func. set.], and display the [Live View/Movie func. set.] window before setting.

Adjust the focus. (p.39, p.40).

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

 Selectable movie recording sizes depend on the camera.

Click the [ ] button and begin shooting.

 At the bottom left of the [Remote Live View window], a [ ] icon

and the recording time are displayed.

 Click the [ ] button again to end shooting.  When the [Remote Live View window] closes, the following

window appears if some image data remains to be downloaded to your computer.

 After you click the [Download] button, the file names of the image

data shot in movie mode (movie/still image) appear in a list.

Remote

Shooting

Preferences

Reference

Index

6161

Prepare for Live View shooting.

60D

You cannot operate the camera when the [ ] button is clicked. To operate the camera, click the [ ] button again or close the [Remote Live View window].

COPY

 Follow the procedure of step 1 and step 2 for “Remote Live View

Shooting” (p.31).

Introduction

Contents at

a Glance

Click the [ ] button.

 The [Remote Live View window] appears.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

6262

When setting the movie recording size, movie shooting mode,

Click

Select

Note the following when you set the movie recording size to [Movie Crop 640 x 480].

• The Movie crop image cannot be magnified for focusing.

• Two AF modes can be selected, [Live mode] (p.42) and [Face

Detection Live mode] (p.43).

• AF mode automatically switches to [Live mode] (p.42) when in

[Quick mode] (p.40).

• Still photos cannot be taken.

• The movie recording size icon appears as [ ].

Recording time

COPY

etc., click [Live View/Movie func. set.], and display the [Live View/ Movie func. set.] window before setting.

Adjust the focus (p.39, p.40).

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Click the [ ] button and begin shooting.

 At the bottom left of the [Remote Live View window], a [ ] icon

and the recording time are displayed.

 Click the [ ] button again to end shooting.  When the [Remote Live View window] closes, the following

window appears if some image data remains to be downloaded to your computer.

 After you click the [Download] button, the file names of the image

data shot in movie mode (movie/still photo) appear in a list.

Remote

Shooting

Preferences

Reference

Index

6363

Prepare for Live View shooting.

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT4i

650D

You cannot operate the camera when the [ ] button is clicked. To operate the camera, click the [ ] button again or close the [Remote Live View window].

COPY

 Follow the procedure of step 1 and step 2 for “Remote Live View

Shooting” (p.31).

Introduction

Contents at

a Glance

Click the [ ] button.

 The [Remote Live View window] appears.  On , specify audio recording settings as

needed. For specifying audio recording settings, see “Audio Recording Setting” (p.49).

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

6464

When setting the movie recording size, click [Live View/Movie

Click

Select

 Note the following when you set the movie recording size to

[Movie Crop 640 x 480] on .

• The Movie crop image cannot be magnified for focusing.

• Two AF modes can be selected, [Live mode] (p.42) and [Face Detection Live mode] (p.43).

• AF mode automatically switches to [Live mode] (p.42) when in [Quick mode] (p.40).

• Still photos cannot be taken.

• The movie recording size icon appears as [ ].

 The following operations are not available when Movie Digital

Zoom is set on .

• Remote Live View display

• AF focusing

• Shooting still photos

 In EU, Video Snapshot shooting is not available on

REBELT2i

550D

REBELT3i

600D

REBELT4i

650D

REBELT3i

600D

Recording time

COPY

func. set.], and display the [Live View/Movie func. set.] window before setting.

Adjust the focus (p.39, p.40).

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Click the [ ] button and begin shooting.

 At the bottom left of the [Remote Live View window], a [ ] icon

and the recording time are displayed.

 Click the [ ] button again to end shooting.  When the [Remote Live View window] closes, the following

window appears if some image data remains to be downloaded to your computer.

Reference

Index

6565

Prepare for Live View shooting.

REBELT1i

500D

Click

Select

COPY

 Follow the procedure of step 1 and step 2 for “Remote Live View

Shooting” (p.31).

Introduction

Contents at

a Glance

 After you click the [Download] button, the file names of the image

data shot in movie mode (movie/still image) appear in a list.

After specifying [Destination Folder] and [File Name], click the [Download] button in the window, and image data will be downloaded from the camera’s memory card to your computer. Image data having a check mark removed from their file name are not downloaded. Afterward, when downloading image data to your computer from the camera’s memory card, use the method described on p.7 to p.10 of this Instruction Manual to download.

Set the camera’s Mode Dial to < >.

 When setting the movie recording size, click [Live View/Movie

func. set.], display the [Live View/Movie func. Set.] window before setting.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

6666

Click [Live View shoot].

Recording time

COPY

Introduction

Contents at

a Glance

Downloading

Images

 The [Remote Live View window] appears.

Adjust the focus. (p.39, p.40).

Click the [ ] button and begin shooting.

 At the bottom left of the [Remote Live View window], a [ ] icon

and the recording time are displayed.

 Click the [ ] button again to end shooting.  When the [Remote Live View window] closes, the following

window appears if some image data remains to be downloaded to your computer.

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 After you click the [Download] button, the file names of the image

data shot in movie mode (movie/still image) appear in a list.

6767

Timer-controlled Shooting

Timer Shooting

Interval Timer Shooting

On certain types of computer, if you set a short interval between shots and there is insufficient time to transfer and save the images, it may not be possible to take shots at the specified interval. In this case, set a longer interval between shots and take the shots again.

The shooting mode cannot be changed when the [Timer shooting settings] dialog box is displayed. Display the [Timer shooting settings] dialog box after setting the shooting mode.

COPY

Two types of timer shooting are available where the camera automatically takes shots at a specified time or a specified number.

Introduction

You can automatically take a shot when the specified time elapses.

Display the capture window (p.31).

Click the [ ] button.

 The [Timer shooting settings] dialog box appears.

Enter a delay time and click the [Start] button.

 Enter a value between 0 seconds and 99 minutes and 59

seconds in one-second increments.

 The shot is taken when the specified time elapses.

You can automatically take shots by setting the interval between shots and the number of shots to be taken.

Display the capture window (p.31).

Click the [ ] button.

 The [Timer shooting settings] dialog box appears.

Checkmark [Interval timer shooting].

Enter the shooting interval and the number of shots.

 Enter a value between 5 seconds and 99 minutes and 59

seconds in one-second increments.

 The minimum number of interval-timed shots is two. The number

of shots you can take at timed intervals depends on the available space on your computer’s hard disk.

Click the [Start] button.

 The shots are taken at the specified intervals and for the

specified number of shots.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Bulb Exposures

1D X

1D Mk IV

1Ds Mk III

1D Mk III

Set the desired aperture.

You can start/end bulb exposure without setting an exposure time by clicking the [ ] button.

COPY

Introduction

Display the capture window (p.31).

Double-click the shooting mode icon and select [BULB].

 Specify the following settings for cameras other than

• For cameras with < B > (bulb) on the Mode dial, set to < B >.

• For cameras without < B > (bulb) on the Mode dial, set the Mode dial to < M > (manual), and select [BULB] in the capture window or set the camera’s shutter speed to [BULB].

Click the [ ] button.

 The [Timer shooting settings] dialog box appears.

Enter the exposure time and click the [Start] button.

 Enter a value between 5 seconds and 99 minutes and 59

seconds in one-second increments.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

6969

Flash Shooting

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

COPY

Introduction

Click the [ ] button.

From EU you can set the camera’s flash function, as well as EX-series Speedlite (sold separately) compatible with flash function setting, in order to perform flash shooting.

For more details on setting items, also refer to the Instruction Manual provided with your EX-series Speedlite and with your camera.

Prepare your camera and flash.

 When using an external flash, mount it on your camera.

Connect your camera and computer, and then start

up EU

Click [Camera settings/Remote shooting].

(p.5).

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The capture window appears.

 The [Flash control menu] appears.

Click [Flash function settings].

Flash control menu

REBELT4i

650D

REBELT3i

600D

Select [Raise built-in flash] to use the built-in flash on

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

COPY

 When is connected, [Built-in

flash] is also displayed. You can change the way you set the built-in flash functions by selecting setting items displayed in [Built-in flash]. Refer to your camera’s Instruction Manual for details on setting items ([NormalFiring], [EasyWireless], [CustWireless]).

 The [Flash function settings] window appears.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

7171

Specify settings.

Click setting items, and select settings from the menu that appears*

Enable the wireless function, click the setting items, and then select settings from the menu that appears*

[Wireless func.] button

To enable the wireless function, click the button and select [Enable] from the menu that appears. To cancel, select [Disable] from the menu.

To enable the wireless function, click the button and select the flash combination from the menu that appears. To cancel, select [Disable] from the menu. To enable the wireless function for the built-in flash on the

, select [Built-in flash] in [Flash control menu], then select [EasyWireless] or [CustWireless]. To cancel, select [NormalFiring].

* You can also use the scroll-wheel on your mouse to select settings for items in the

settings window that appears.

1D X

1D Mk IV

5D Mk III

5D Mk II

REBELT2i

550D

REBELT3

1100D

60D

REBELT4i

650D

REBELT3i

600D

REBELT4i

650D

REBELT3i

600D

Check that this box is checkmarked

Flash function settings window

The window displayed differs depending on the connected camera and flash.

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

If the [Flash control] menu is displayed on the camera’s LCD monitor, EU [Flash function settings] window automatically closes.

 You can use modeling flash by clicking the [Modeling flash]

button. You should only use modeling flash for a maximum of 10 times continuously. (For more information, refer to the Instruction Manual provided with the flash.)

 Information displayed in the [Flash function settings] window is

updated by clicking the [ ] button, so it is synchronized with the current flash settings. (Since setting changes made with the flash unit are not reflected in the [Flash function settings] window, you can click the [ ] button and update the [Flash function settings] window to match the current flash settings.)

 You can name and save the flash setting as a file separate from

the image by clicking the [Save] button. You can also click the [Load] button and load this file into EU for use in other shooting.

 You can use flash shooting and Remote Live View shooting (p.31)

together. However, you cannot use modeling flash during Remote Live View shooting.

 Settings that can be performed in the [Flash function settings]

window differ depending on the flash and camera.

Click the [ ] button to shoot.

 For a list of [Flash function settings] window functions, see p.97.  You can also shoot using the <space> bar on the keyboard.

COPY

Introduction

Contents at

a Glance

Downloading

Images

 The shot image is transferred to your computer and displayed in

the [Quick Preview] window. Then, DPP starts up automatically.

 When the capture window AF/MF selector is set to [AF], AF/AE is

executed when the cursor is moved to the [ ] button (p.95).

 You can quickly review the shot image in the [Quick Preview]

window displayed before DPP starts up. You can also resize the [Quick Preview] window.

 You can show/hide the [Quick Preview] window by clicking the

[Other Functions] button in the capture widow and selecting [Quick Preview] from the menu that appears.

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

7373

Registering Background Music to a Camera Memory Card

REBELT4i

650D

REBELT3i

600D

COPY

You can register WAV-format music files, saved to your computer, to the camera’s memory card as background music. Registered background music can be played together with a Video Snapshot Album or slideshow played on the camera.

Introduction

Contents at

a Glance

Connect your camera and computer, and then start

EU (p.5).

 If your camera and computer are not connected, [Register

Background Music] is not displayed.

 How to specify settings for differs from that for other

cameras. See “Specifying Settings for EOS M Camera Functions” (p.27).

Click [Register Background Music].

Edit [Background music to register].

Adding New Music Files

 Click the [Add] button, select a music file in the [Open] dialog box

that appears, and then click the [Open] button.

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

 The [Register Background Music] window appears.  When the [EOS Sample Music] folder is installed to your

computer, five tracks appear in [Background music to register] the first time as EOS Sample Music.

 When the camera is in movie shooting mode, registering

background music is not possible.

 A music file is added to [Background music to register].  You can also directly drag and drop a music file saved anywhere

in your computer to add it to [Background music to register].

 Music can be added only one track at a time.  A total of 20 tracks can be added, each up to 29 minutes 59

seconds long.

Changing the Playback Order of Music Files

COPY

 Select a music file in [Background music to register], and then

click the [ ] or [ ] button.

 The order of the music files changes.  You can also directly drag and drop music files within the

[Background music to register] to change the order.

Deleting Music Files

 Select a music file in [Background music to register], and then

click the [Remove] button.

Editing Track Names of Music Files

 Select a music file in [Background music to register], click the

[Edit track Name] button and enter a track name up to 25 characters (single-byte). Then, click the [OK] button.

 The track name for the music file changes.  You can also display the [Edit Track Name] dialog box by

double-clicking a music file in the [Background music to register].

Playing Music Files

 Select a music file in [Background music to register], and then

click the [Play] button.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

 The music file is deleted from [Background music to register].

Index

 The music file plays.

7575

Adding EOS Sample Music

Music copied through this function may not be used without permission from the copyright holder, except for cases permitted under applicable laws, such as for personal use.

Music files meeting the following requirements may be registered to the camera’s memory card.

File format Music file export: WAVE (.wav, .wave)

files in linear PCM

File time limit Up to 29 min. 59 sec. per one file

File number limit Up to 20 files

Channels 2 channels

COPY

 Click the [EOS Sample Music] button.

 Music files already registered on the camera’s memory card are

overwritten as music files are registered.

 Registering music files to your camera one track at a time is not

possible.

Click the [Close] button.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

 The EOS Sample Music on your computer is added to

[Background music to register].

 This operation cannot be performed if EOS Sample Music is not

installed on your computer.

Click the [Register] button.

 The music files in [Background music to register] are registered

(copied) to the camera's memory card.

 The [Register Background Music] window closes.

Remote

Shooting

Preferences

Reference

Index

7676

COPY

Preferences

You can change each of the EU functions on each tab sheet of the preferences window to make them easier to use.

Preferences ............................................................. 78

Introduction

Contents at

a Glance

Basic Settings............................................................. 78

Destination Folder ...................................................... 78

File Name ................................................................... 79

Download Images....................................................... 79

Remote Shooting........................................................ 80

Linked Software.......................................................... 81

Time Settings.............................................................. 81

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Preferences

Basic Settings

 When [Show [Lets you select and download images] screen] is

selected in [Startup Action], the viewer window (p.92) appears.

 When [Show [Camera settings/Remote shooting] screen] is

selected in [Startup Action], the capture window (p.95) appears. (For , main window appears.)

 When [Execute [Starts to download images]] is selected in

[Startup Action], the [Save File] dialog box (p.7) appears and downloading to your computer begins. When all the images have been downloaded, DPP starts up automatically and the downloaded images are displayed in DPP’s main window.

 If you checkmark [Auto power off], the camera’s auto power off

function is enabled. If you remove the check mark, the auto power off function remains disabled, even if you set the auto power off function on the camera (only when the camera is connected to a computer.).

 If you checkmark [Add WFT Pairing Software to the Startup

folder], the WFT pairing software is added to the Windows start menu.

 If you remove the check mark from [Automatically display Quick

Preview window], the [Quick Preview] window will no longer appear during Remote Live View shooting or when loading images.

Destination Folder

COPY

On the main window, click the [Preferences] button.

 The [Preferences] dialog box appears.

Specify the required settings and click the [OK]

button.

 The settings are applied to EU.

You can specify the operation when EU starts up and whether the auto power off function is enabled or disabled.

You can specify the save destination folder of images downloaded from your camera or of images shot remotely.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Introduction

 You can also specify a save destination folder by entering text

directly in the textbox for the save destination folder.

 To specify a save destination folder, click the [Browse] button.

After you click the [Browse] button and specify a save destination folder, a subfolder is created automatically below the save destination folder you specified.

 After you checkmark any of [Download Images], [Remote

Shooting], or [Monitor Folder], a subfolder is generated when the checkmarked function is used.

 You can select the naming rule for a generated subfolder from the

list box. You can also customize the naming rule for subfolders by clicking the [Customize] button.

 If you are using the shooting date for a generated subfolder, you

can specify the format (order and style for year-month-date) and dividing characters.

File Name

 When specifying an image’s file name, select a naming rule for

the file from the list box. (If [Do not modify] is selected, images are saved with the file name set in the camera.) You can also customize the naming rule for files by clicking the [Customize] button.

 You can set prefix characters, number of digits for serial

numbers, and the start number individually for file names.

 If you are using the shooting date in file names, you can specify

the format (order and style for year-month-date) and dividing characters.

Download Images

[Images whose transfer settings were specified with the camera] in the [Settings for downloaded images] menu is only enabled for cameras capable of direct transfer of shot images. Refer to your camera's Instruction Manual for details.

COPY

Contents at

a Glance

Downloading

Images

Camera

Settings

You can specify the file name of images downloaded from your camera or of images shot remotely.

From the list box, you can select the images to be downloaded when [Starts to download images] in the main window is clicked.

Remote

Shooting

Preferences

Reference

Index

7979

You can set operations performed during remote shooting.

Remote Shooting

1D X

1D Mk IV

5D Mk III

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

COPY

 If you checkmark [Save also on the camera’s memory card],

images shot during remote shooting will also be saved to the camera’s memory card.

 If you checkmark [In RAW+JPEG mode, only transfer JPEGs to

the computer], only the JPEG image of images shot in RAW+JPEG recording quality with remote shooting will be transferred to your computer.

 If you checkmark [Rotate image], you can set a function that

rotates shot images regardless of the camera’s position during shooting. Set the rotation angle in the capture window (p.95).

 If you checkmark [Start Live View], the [Remote Live View

window] automatically appears when the camera’s Live View starts up.

 Is you checkmark [Stop Live View], the [Remote Live View

window] automatically closes when the camera’s Live View ends.

, if the camera’s Live View display is active when Remote Live View ends, the camera’s Live View display also ends.

 If you checkmark [Disable mouse wheel operations], you can no

longer use the scroll-wheel on your mouse over the capture window display/control buttons or the [Flash function settings] window.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

8080

Introduction

Linked Software

In the window displayed when you click the [Settings] button, you can specify the type of images to be posted when linked third-party software is started up.

Time Settings

 When you select [Notify me if the time does not match], you can

set the number of minutes, from 1 to 60 minutes, for which the camera clock and computer clock are out of sync before you are notified. When you start up EU, the camera clock and computer clock are compared. If the time difference exceeds the set number of minutes, a notification dialog box is displayed.

 When you select [Always match the computer time], the camera

is set to the computer’s time when you start up EU.

COPY

From the list box, you can select the linked software that starts up when images are downloaded from the camera or when images are shot remotely. Also, you can register third-party software as linked software by clicking the [Settings] button.

You can specify settings for clock time when connected to a camera.

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

8181

Reference

COPY

This reference section has been provided to enhance your experience using EU. It contains various troubleshooting solutions, how to delete EU from your computer and explanations of the various windows. An index is provided at the end of the chapter for you to easily find information you are looking for.

Troubleshooting....................................................... 83

Introduction

Contents at

a Glance

Downloading

Images

Monitor Folder Function (Function for Use with the WFTE2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFT-E5, WFT-E6, or WFT-E7)

Function for Use with the Accessories .................... 86

Folder Structure and File Names in the Memory Card

Uninstalling the Software......................................... 87

Fixing the Plug to the Camera ................................. 88

List of Main Window Functions................................ 91

List of Viewer Window Functions............................. 92

List of Register Data Window Functions for Lens

Aberration and Peripheral Illumination Correction .......

List of My Menu Settings Window Functions........... 94

List of Capture Window Functions........................... 95

Exposure Level/AEB Level ..................................... 96

List of Flash Function Settings Window Functions List of Remote Live View Window (Live View Tab) Functions List of Remote Live View Window (Compose Tab) Functions

..........................................................

.....

...... 97

.....

...

100

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

List of Zoom View Window Functions.................... 101

List of Test Shooting Window Functions ............... 102

Index...................................................................... 103

About This Instruction Manual .............................. 104

Trademark Acknowledgments .............................. 104

Troubleshooting

Installation could not be completed correctly

EU does not start up

The card reader does not detect the SD card.

EU and the camera are not communicating

COPY

Introduction

If EU is not operating correctly, see the items below.

 You cannot install the software if a user setting with privileges other

than [Administrator] or [Computer administrator] is selected. Select a user setting with [Administrator] privileges in Windows 7/Windows Vista or [Computer administrator] privileges in Windows XP. For detailed information on selecting the user setting, refer to your computer User’s Manual.

 If EU does not start up even when you have set the camera’s power

switch to < ON >, either double-click the [EOS Utility] icon on the desktop or click the [ ] button ([Start] button in Windows XP), select [All Programs]  [Canon Utilities]  [EOS Utility]  [EOS Utility] to start up EU.

 Depending on the card reader and computer OS used, SDXC cards

might not be correctly detected. In such a case, connect your camera and computer with the provided interface cable, and transfer the images to your computer.

 EU does not operate correctly on a computer if its system

requirements are not met. Use EU on a computer with compatible system requirements (p.2).

 Push the plug of the interface cable all the way into the socket. Loose

connections can cause faults and malfunctions (p.5).

 Check that the camera’s power switch is < ON > (p.6).



EU and the camera may not communicate normally with a cable other than the EOS DIGITAL camera-dedicated Canon interface cable

 Connect your camera and computer directly with the interface cable

provided with your camera. Do not connect the camera via a hub; doing so may prevent EU and your camera from communicating normally.

 If you connect multiple USB devices (not including the mouse or

keyboard) to your computer, the camera may not communicate normally. If the camera cannot communicate normally, disconnect USB devices other than the mouse or keyboard from your computer.

 Do not connect more than one camera to the same computer. Two or

more cameras may not operate normally.

 Do not connect your camera with the computer while performing

“Linked shooting” with a WFT series Wireless File Transmitter (sold separately). Your camera may not operate normally.

 If there is insufficient charge left in the camera battery, the camera

cannot communicate with EU. Either replace with a fully charged battery or use the AC adaptor kit provided with your camera. Your computer does not supply power to the camera through the interface cable.

(p.5).

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

8383

Introduction

Communication between EU and the camera disconnected

A non-Canon flash does not fire during Remote Live View shooting

Remotely shot images using EU are not displayed in DPP

COPY

 Operation of the auto power off function will automatically switch the

camera off, disabling communication with EU, if you turn the auto power off function to [ON]. Remove the check mark from [Auto power off] in the preferences window (the [Basic Settings] tab sheet) (p.78) or set the auto power off function in the camera to [OFF].

 If you do not perform any operation while the camera and computer

are connected, depending on the computer system, a confirmation message may appear on the screen asking whether you wish to continue communicating with the camera. If you do not perform an operation while this message appears, communication with your camera is discontinued and EU shuts down. In this case, turn the camera’s power switch to < OFF >, then again to < ON > and start up EU.

 Do not put your computer to sleep while it is connected to the camera.

If your computer goes into sleep mode, never disconnect the interface cable while your computer is still in sleep mode. Always wake your computer up while it is still connected to the camera. Depending on the type of computer, disconnecting the interface cable while your computer is in sleep mode could prevent the computer from waking up correctly. Refer to the computer User’s Manual for more information on sleep mode.

 In Digital Photo Professional, select the [Tools] menu  [Sync folder

with EOS Utility].

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

 When a non-Canon flash is mounted on the camera for Remote Live

View shooting, set [Silent shooting] in the camera to [Disable].

Index

8484

Monitor Folder Function (Function for Use with the WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFT-E5, WFT-E6, or WFT-E7)

You cannot specify the same folders in step 2 and step 3.

You can change the software that starts up in step 5, from DPP to ImageBrowser EX or other software in preferences ([Linked Software] tab sheet) (p.81).

COPY

This is a function for checking your images with Digital Photo Professional (hereinafter DPP) in real time using the Wireless File Transmitter WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFTE5, WFT-E6, or WFT-E7 (sold separately).

For setting the WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFTE5, WFT-E6, or WFT-E7 refer to the Instruction Manual provided with each product.

Click [Monitor Folder].

Click the [Browse] button and specify the save

destination folder for shot images.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting



You can specify the save destination folder for the shot images set in the WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFT-E5, WFT-E6, or WFT-E7.

Click the [Change] button and specify the transfer

destination folder.

Preferences

Reference

 The [Monitor Folder] dialog box appears.

Click the [ ] button.

 Image transfer preparation is complete.

Take a shot.

 If images are saved in the folder specified in step 2, they are

transferred/saved in the folder specified in step 3.

 DPP starts up and the images saved in the folder specified in

step 3 are displayed.

Index

Function for Use with the Accessories

COPY

If you have the Wireless File Transmitter WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, or WFT-E5 (sold separately), you can start up the previously mentioned accessory software from EU.

You can also start up the Picture Style Editor (Picture Style file creating software).

For details on using each software, refer to the instruction manual for the software. For Picture Style files, see p.19.

Connect your camera and computer, and then start

up EU

Click the [Accessories] tab.

(p.5).

Click the software you want to start up.

 The clicked software starts up.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 The [Accessories] tab sheet appears.

Reference

Index

Folder Structure and File Names in the Memory Card

 The camera specific character string set at the

time of factory shipment or set in the camera appears in “****” of the file name.

 The “YYYY” in the file names represents a

number between 0001 and 9999.

File name File type

****YYYY.JPG JPEG image file ****YYYY.CR2 RAW image file

****YYYY.MOV MOV movie file

****YYYY.THM Thumbnail file

****YYYY.WAV Audio file

Contains a file allowing the camera to manage the images in the [DCIM] folder.

xxxEOS1D

xxxCANON

DCIM

EOSMISC

REBELT4i

650D

REBELT3i

600D

1D Mk IV

5D Mk II

REBELT2i

550D

REBELT1i

500D

1D Mk IV

5D Mk II

REBELT2i

550D

REBELT1i

500D

When Adobe RGB is specified, the file names of images shot with your camera have an underscore “_” as the first character.

COPY

Images shot with the camera are saved in the memory card’s [DCIM] folder with the following folder structure and file names. Refer to the following when copying images to your computer using a card reader.

Uninstalling the Software

 Before starting the software uninstallation, exit all programs you are

using.

 Log in under the Administrator privileges when uninstalling the

software.

 To prevent computer malfunctions, always restart your computer after

you have uninstalled the software. Also, reinstalling the software without first restarting your computer is likely to result in computer malfunctions.

Click the [ ] button ([Start] button in Windows XP),

select [All Programs]  [Canon Utilities]  [EOS Utility]  [EOS Utility Uninstall].

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

 The “xxx” in the folder names represents a number between 100

and 999.

 For the 1D series cameras, the folder structure is the same for

CF cards and SD cards.

 When you perform DPOF settings on the camera, a [MISC] folder

is created. The files that manage the DPOF settings are saved in the [MISC] folder.

 When you register background music on

registering music files and WAV files are saved there.

 A thumbnail file is a file saved with the same file name as the

movie and that includes shooting information. When a movie is shot with or

 When you play on the camera a movie that was shot with

, both the movie file and the thumbnail file are required.

, it is generated together with the movie file.

, a MUSIC folder is generated for

Proceed with the uninstallation as directed by the

on-screen messages.

 The software is uninstalled.

Remote

Shooting

Preferences

Reference

Index

Fixing the Plug to the Camera

1D X

1D Mk IV

1Ds Mk III

1D Mk III

1D X

Cable protector

(1)

(2)

(1)

(2)

COPY

Fasten the plug to the camera with the cable protector to prevent it from detaching during remote shooting.

Introduction

Cable protector attached.

Contents at

a Glance

Open the cover, and connect the small plug of the

cable to the camera’s <A/V OUT / DIGITAL> terminal.

 Check the direction of the < > mark on the plug and push it

in.

Attach the cable protector in the order (1), (2).

Remove the cable protector in the order (1), (2).

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Open the covers.

1D Mk IV

Cable protector

<> mark

<A/V OUT / DIGITAL> terminal

COPY

Pass the small plug of the cable through the cable

protector, and pull it in the direction of the arrow.

With the plug as it is in step 2, connect it to the

camera’s <A/V OUT / DIGITAL> terminal.

Fix the cable protector with the fixing screw.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

 Check the direction of the < > mark on the plug and pull it in.

Reference

Index

8989

Remove the cap.

1Ds Mk III

1D Mk III

Cable protector

COPY

Attach the cap on the fixing screw.

Attach the cable protector and fix it with the fixing

screw.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Connect the small plug of the cable into the < > terminal on your camera.

 Connect the plug with the < > mark facing the front of the

camera.

Reference

Index

9090

List of Main Window Functions

(p.7)

(p.8, p.92)

(p.31, p.95)

(p.85)

Exits EU (p.11)(p.78)

Control camera tab sheet

REBELT4i

650D

REBELT3i

600D

(p.74)

(p.27)

(p.7)

(p.8, p.92)

(p.86)

COPY

 The window below appears when is connected.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

 The window below appears when

is connected.

Accessories tab sheet

 If you click the [Accessories] tab, you can start up from EU the

software for accessories such as the Wireless File Transmitter WFTE2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, or WFT-E5 (sold separately) and the Picture Style Editor (Picture Style file creating software). (p.86)

Preferences

Reference

Index

List of Viewer Window Functions

(p.8)

RAW image icon

Audio recording icon

Switches the recording media

Downloads the images to the computer

Selects the condition of the image

Deletes the image

RAW + JPEG image icon

Images already transferred to computer icon

Protect icon

Image display size

Movie icon

Check mark (p.8)

Exits EU

Displays the main window

Displays the [Preferences] window

Displays the capture window

Recording media folder hierarchy

Displays the quick preview window

Bracketing icon

Recording time

Ratings set on (firmware version 2.0.0 or later)

, Digital Photo Professional Ver. 3.9 or later is displayed. However, the [Reject] rating is not displayed. Also, ratings cannot be set in EU.

1D X

5D Mk III

60D

REBELT4i

650D

REBELT3i

600D

REBELT3

1100D

Rating icon*

Video Snapshot album icon

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

List of Register Data Window Functions for Lens Aberration and Peripheral Illumination Correction

(p.24)

Displays lenses selected in [Select a lens category] by category

Lens category

Displays all the categories

No. of lenses registered in the camera/No. of lenses that can be registered

Displays only the registered lenses

Lens names displayed in the [Register lens aberration correction data] window/ [Register peripheral illumination correction data] window may be partially shortened depending on the lens type.

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

List of My Menu Settings Window Functions

(p.26)

My Menu (up to 6 items)

Deletes from My Menu

Applies My Menu to the camera

Switches My Menu position

Adds to My Menu

All items that can be applied to My Menu

Closes [My Menu settings] window

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

List of Capture Window Functions

Exposure Level/AEB Level (See next page for details)

Image recording quality

Shutter speed

Shooting mode*

White balance

Metering mode

Power status*

Displays the viewer window (p.8, p.92) Shows/hides the [Quick Preview] window Displays the [Test Shooting] window (p.45, p.102)

Number of possible shots

Drive mode

Aperture*

ISO speed

Color temperature

Save destinations for shot images*

Displays the [Shooting menu] (p.16)

Displays [Flash control menu] (p.71)

Displays the [Preferences] window (p.78)

Rotates shot images*

Save destination for shot images

Displays the [Timer shooting settings] window

(p.68, p.69)

Displays the [My Menu] (p.27)

Displays the main window (p.91)

Displays the [Remote Live View window]

(p.35, p.99)

Shoot button*5 (p.36)

AF mode

Mirror lockup

Displays the [Set-up menu] (p.14)

AF/MF selector button*

Flash ready*

Displays the [Remote Live View window (Movie)]*9

(p.60, p.62, p.64)

Warning lamp*3

Bracketing*

COPY

 Displayed items differ depending on the model and settings of the camera connected.  For *

to *11 explanations, see the next page.

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

*1When using the battery, the charge level is displayed. *

Displayed only on

. Appears after flash charging is complete and the cursor is moved to the Shoot button.

Turns on red when shooting was unsuccessful or is impossible. Also blinks during countdown for self-timer shooting.

Each time you click the button, the shot image rotates 90 degrees. To make this function available, checkmark [Rotate image] in preferences ([Remote Shooting] tab sheet) (p.80).

when the AF/MF selector button is set to [AF], AF/AE is performed when the cursor is moved to the Shoot button.

Displayed only on

. Even when it is set to [MF], “AF” appears in the shooting information for the shot image. Setting < A-DEP > as the camera’s shooting mode disables this button.

Right-click the aperture, and you can decrease the aperture by pressing <O> on the keyboard, or increase the aperture by pressing <C>.

You can select whether the shot images are saved only to the computer or both to the computer and to the memory card in the camera. In movie mode, shot movies are saved only to the camera’s memory card.

Displayed only on

During HDR (High Dynamic Range) shooting on , the icon is displayed as [ ]. When [Multi Shot Noise Reduction] is set, the icon is displayed as [ ].

You can also set custom shooting mode C1, C2,

and C3.

1D X

1D Mk IV

5D Mk III

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

50D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT1i

500D

REBELT3

1100D

5D Mk III

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

5D Mk III

REBELT4i

650D

1D X

5D Mk III

Exposure level adjustment

AEB level setting

Setting width 0 Maximum

setting range

Narrow setting range 1 level

1 level brighter

Widen setting range 1 level

Brightest exposure

1 level darker

Darkest exposure

When the AEB bracketing setting exceeds the displayable range, [ ], [ ] marks are displayed to show there are bracketing indicators beyond the scale.

1D X

1D Mk IV

5D Mk III

1D X

5D Mk III

COPY

Exposure Level/AEB Level

 The display changes as follows by double-clicking the Exposure level/

AEB level item.

Introduction

Contents at

a Glance

 Display appears as follows if [2 shots] is set for AEB shooting on

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

9696

List of Flash Function Settings Window Functions

(p.70)

1D X

1D Mk IV

5D Mk III

5D Mk II

60D

REBELT4i

650D

REBELT3i

600D

REBELT2i

550D

REBELT3

1100D

MULTI flash count 1st curtain sync/ 2nd curtain sync/ Hi-speed sync

Flash exposure compensation amount/ Flash output level*

Master flash ON/OFF

[Save] button

Zoom/focal length

MULTI flash frequency

Wireless function button

[Modeling flash] button

Flash mode

Flash ratio

[Load] button

Flash metering

Channel

Flash exposure compensation amount/ Flash output level*

during wireless setting

*1 The window displayed differs depending on the connected camera and flash. *2 Displayed information differs depending on the settings. For more details on settings,

also refer to the Instruction Manual provided with your EX-series Speedlite or camera.

Settings update button

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Introduction

Flash metering

Zoom/focal length

Master flash ON/OFF

[Save] button

Flash exposure compensation amount / Flash output level*

Wireless function button

[Modeling flash] button

Flash mode

Wireless radio ID

[Load] button

Syncro setting*

Channel

Flash exposure compensation amount / Flash output level during wireless setting*

*1 1st curtain sync/ 2nd curtain sync/ Hi-speed sync *2 Displayed information differs depending on the settings. For more details on settings,

also refer to the Instruction Manual provided with your EX-series Speedlite or camera.

Settings update button

MULTI flash frequency

MULTI flash count

Flash ratio

COPY

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

List of Remote Live View Window (Live View Tab) Functions

(p.31)

Closes the window

Controllers 2

Selects the white balance

(p.45)

Enlargement display frame

Lens drive (p.40)

Checks the depth of field

(p.44)

Shows/hides the histogram

Sets the aspect ratio (p.48)

AF point

Displays the [Zoom View] window (p.39, p.101)

Shows/hides the controllers 1

Controllers 1

Shows/hides the AF points

Sets the color temperature

AF mode (p.40 to p.44)

Movie recording time Movie recording in

progress icon

Movie recording size

Displays the [Test Shooting] window (p.102)

Frame rate

Click white balance

Show/hide electronic level

(p.47)

1D X

5D Mk III

*1When automatic rotation is set, the [Remote Live View window] display

also rotates automatically to match the camera’s rotation when it is detected that the camera is held vertically.

*2When [ ] is set to ON, the [ ] [ ] buttons cannot be used

to rotate images.

Recording level settings

(p.49)

1D X

5D Mk III

REBELT4i

650D

Movie compression format

1D X

5D Mk III

Rotates the image*2

Auto rotation button*

1D X

5D Mk III

COPY

Introduction

Contents at

a Glance

Downloading

Images

Camera

Settings

Remote

Shooting

Preferences

Reference

Index

Canon EOS M EF-M 22 Instruction Manual for Windows

Specifications and Main Features

Frequently Asked Questions

User Manual

EOS Utility

READ CAREFULLY BEFORE USING!

Introduction

Main Features of EU

System Requirements

Supported Camera

Contents at a Glance

Downloading Images to your Computer

Connecting the Camera and Computer

Starting up EU

Batch Downloading Images to Your Computer

Exiting EU

Setting the Camera from Your Computer

Setting the Camera Owner’s Name, Copyright Notice and Date/Time

Setting up Camera Functions

Setting My Menu and Registering to the Camera

Specifying Settings for EOS M Camera Functions

Remote Shooting by Controlling the Camera from Your Computer

Remote Live View Shooting

HDR (High Dynamic Range) Shooting

Remote Live View Window Functions

Shooting by Operating the Camera

Shooting Movies

Timer-controlled Shooting

Flash Shooting

Registering Background Music to a Camera Memory Card

Preferences

Preferences

Reference

Troubleshooting

Monitor Folder Function (Function for Use with the WFT-E2, WFT-E2 II, WFT-E3, WFT-E4, WFT-E4 II, WFT-E5, WFT-E6, or WFT-E7)

Function for Use with the Accessories

Folder Structure and File Names in the Memory Card

Uninstalling the Software

Fixing the Plug to the Camera

List of Main Window Functions

List of Viewer Window Functions

List of Register Data Window Functions for Lens Aberration and Peripheral Illumination Correction

List of My Menu Settings Window Functions

List of Capture Window Functions

List of Flash Function Settings Window Functions

List of Remote Live View Window (Live View Tab) Functions
