Canon Digisuper 86 TELE, Digisuper 86 II XS, Digisuper 86 II Tele XS Specification

ULTRA HIGH ZOOM RATIO FIELD LENS
WITH IMAGE STABILIZER­A TECHNOLOGY BREAKTHROUGH

DIGISUPER 86

DIGISUPER 86 TELE

Image Stabilizer

How the Optical Shift Image Stabilizer (Shift-IS) Works

When the lens moves, the light rays from the subject are bent relative to the optical axis, resulting in an
unsteady image because the light rays are deflected. By shifting the IS lens group on a plane perpendicular to
the optical axis to counter the degree of image shake, the light rays reaching the image plane can be steadied.
Since image shake occurs in both horizontal and vertical directions, two shake-detecting sensors for yaw and
pitch, detect the angle and speed of movement and send this information to a high-speed 32-bit
microcomputer, which converts the information into drive signals for the IS lens group. Then the actuator
moves the IS lens group horizontally and vertically thus counteracting the image shake and maintaining the
stable picture. The Shift-IS component is located within the lens groups and is most effective for lower
frequency movements caused by platform vibration or wind effect without increasing the overall size and
weight of the master lens.

: The letters " " come from the word "Excess", an indication that the new generation of lenses exceeds
all conventional lens specifications and concepts by using breakthrough technologies. allows for higher
specification lenses in smaller and lighter packages.

TELE

XJ86x13.5B IE-II 13.5-1161mm 1:2.4

XJ86 x 9.3B IE-II 9.3-800mm 1:1.7

Optical Performance with an 86x

Zoom Ratio and improved Wide Angle

The DIGISUPER 86II xs & DIGISUPER
86II TELE xs are an extraordinary field
lens that utilizes Canon's new optical
design concept "POWER OPTICAL
SYSTEM" and " -Element".
By adopting this new technology and
concept, the DIGISUPER 86 xs realizes
the necessary optical performance for
HDTV, with increased zoom ratio of 86x,
improved wide angle of 9.3mm while still
maintaining the size equivalent to that of
current SDTV lenses.

-Element & POWER OPTICAL

SYSTEM

Canon has developed this breakthrough
optical design concept using a newly
developed optical element in the most
effective way.
We have named this design concept the
"Power Optical System" which achieves
higher specifications and quality using the
optical " -Element" which virtually
eliminates aberrations.

Image Stabilizer

The history of field lenses is a history of
zoom ratio/focal length extension. It came
to a point where the industry thought it

would be impossible to push the envelope
any further. The telephoto focal lengths of
the lens got so long that even the slightest
amount of wind or operator movement
would cause image shake and viewing the
picture became intolerable, this was before
Canon announced the incredible
magnification DIGISUPER 86 xs zoom
lens. Canon, renowned for its optical
image stabilization technologies,
developed another new stabilization
solution for the broadcast field lens, a
built-in Optical Shift Image Stabilizer
(Shift-IS) to overcome image shaking at
telephoto focal length. Now the Shift-IS is
employed in the DIGISUPER 86II xs &
DIGISUPER 86II TELE xs.

"CAFS" Constant Angle Focusing
System

The zooming effect of focus is the
phenomena where the picture size (angle
of view) changes when focusing
(breathing). However, a 32bit CPU
calculates and controls the zoom when
focusing in order to counteract these
phenomena. Thus the DIGISUPER 86II xs
& DIGISUPER 86II TELExs have zero
zooming effect of focus throughout the
whole zoom range.

CROSSOVER COMPATIBILITY

Available optionally is the dual aspect
ratio switching system, "CROSSOVER",
for switchable 16:9/4:3 cameras.

Latest Generation DIGITAL SERVO
SYSTEM

Canon's latest generation digital servo
system allows the use of many new
functions such as constant angle of view
while focusing "CAFS" and the selection
of different servo characteristics.
These functions are only possible with a
digital servo system. In addition to these
new functions, the upgrading of software
will be possible when new functions
become available in the future. This
means that the DIGISUPER 86II xs &
DIGISUPER 86II TELExs have
unlimited possibilities.

ZoomFocus

Digital
Sensor

Digital
Sensor

32Bit
CPU

Motor

Motor

CPU

CPU

Digital Servo System

1.Lens when still.

Image plane

To Subject

2.Lens when jerked downward.

Camera
shake

3.Counteraction by IS lens group.

Corrected light rays

Position of IS lens group
after shifting

INTERNAL
FOCUSING SYSTEM

(Advanced 3 group IF system)

●

Realization of wide-angle with

reduced distortion.

●

Minimized variation of chromatic

aberration while focusing.

●

Anti-Dust, Anti-Fog, thanks to a
perfectly airtight Internal Focusing
System.

●

Minimized variation of
the centre of gravity
through focus movement.

"CAFS"

-Constant Angle Focusing System-

●

When focus is operated, the angle of view is

maintained by synchronizing zoom movement.

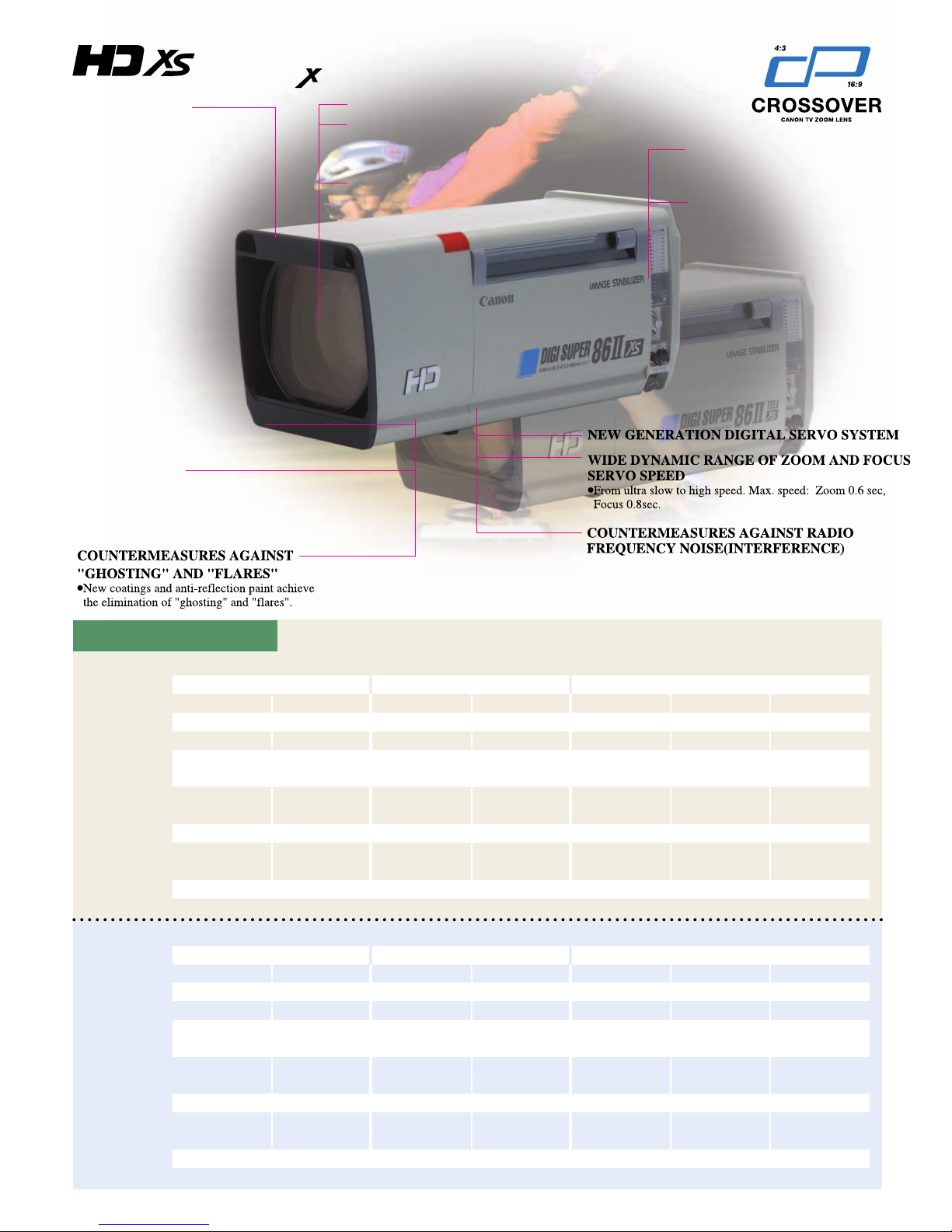

ZOOM RATIO:86X

CROSSOVER
COMPATIBILITY (Optional)

●

For use with 16:9/4:3 switchable cameras.

4 - POSITION TURRET

(built in extender, master lens, crossover unit).

●

Micro Computer Controlled Turret.

VERSATILE ZOOM/FOCUS
CONTROLLERS

(See figure on the next page)

●

New ergonomic design.

●

Countermeasures against dust, rain,

and radio interference.

POWER OPTICAL SYSTEM

Featuring -Element

Image Stabilizer (SHIFT-IS)

HD OPTICAL PERFORMANCE

●

Computer aided design in order to meet

the higher level demanded by HDTV

TELE ANGLE OF

●

DIGISUPER 86xs: 800mm, 1,600mm (2x Extender)

●

DIGISUPER 86TELExs: 1,161mm, 2,322mm (2x Extender)

WIDE ANGLE OF

●

DIGISUPER 86xs: 9.3mm

●

DIGISUPER 86TELExs: 13.5mm

NORMAL4:3 16:9

1.0X

13.5-1161mm

1:2.4 at 13.5〜480mm
1:5.8 at 1161mm

36.1°x27.5°

0.43°x0.33°

181.7x136.3cm at

13.5mm

2.1x1.6cm at 1161mm

2.0X

27-2322mm

1:4.8 at 27〜960mm
1:11.6 at 2322m

m

18.5°x13.9°

0.22°x0.16°

90.9x68.2cm at
27mm

1.1x0.7cm at 2322mm

1.0X

13.5-1161mm

1:2.4 at 13.5〜480mm
1:5.8 at 1161mm

39.1°x22.6°

0.47°x0.27°

198.2x111.5cm at

13.5mm

2.3x1.3cm at 1161mm

2.0X

86X

27-2322mm

1:4.8 at 27〜960mm
1:11.6 at 2322mm

20.2°x11.4°

0.24°x0.13°

99.1x55.7cm at
27mm

1.2x0.7cm at 2322mm

1.0X

11.1-955mm

1:2.4 at 11.1〜480mm
1:4.75 at 955mm

36.1°x27.5°

0.43°x0.33°

181.7x136.3cm at

11.1mm

2.1x1.6cm at 1161mm

1.2X

13.5-1161mm

1:2.4 at 13.5〜480mm
1:5.8 at 1161mm

29.9°x22.6°

0.36°x0.27°

148.7x111.5cm at

13.5mm

1.8x1.4cm at 1161mm

2.4X

27-2322mm

1:4.8 at 27〜960mm
1:11.6 at 2322mm

15.2°x11.4°

0.18°x0.13°

74.4x55.8cm at
27mm

0.9x0.7cm at 2322mm

Built-in
Extender

Zoom Ratio
Range of

Focal length

Maximum
Relative
Aperture

Angular Field
of View

Minimum object
Distance

(M.O.D.)

Object
Dimensions at
M.O.D.

size

mass(Approx)

250.6(W)x255.5(H)x618.4(L)mm

24.3kg (53.6Ibs

)

SWITCHABLE 4:3

3.0m from front lens vertex

NORMAL4:3 16:9

1.0X

9.3-800mm

1:1.7 at 9.3〜340mm
1:4.0 at 800mm

50.6°x39.1°

0.63°x0.47°

253.9x190.4cm at

9.3mm

2.8x2.1cm at 800mm

2.0X

18.6-1600mm

1:3.4 at 18.6〜680mm
1:8.0 at 1600m

m

26.6°x20.1°

0.32°x0.24°

127.0x95.2cm at

18.6mm

1.4x1.1cm at 1600mm

1.0X

9.3-800mm

1:1.7 at 9.3〜340mm
1:4.0 at 800mm

54.6°x32.4°

0.69°x0.39°

276.4x155.5cm at

9.3mm

3.1x1.7cm at 800mm

2.0X

86X

18.6-1600mm

1:3.4 at 18.6〜680mm
1:8.0 at 1600mm

28.9°x16.5°

0.34°x0.19°

138.2x77.8cm at

18.6mm

1.6x0.9cm at 1600mm

1.0X

7.65-660mm

1:1.7 at 7.65〜340mm
1:3.3 at 660mm

50.6°x39.1°

0.63°x0.47°

253.9x190.4cm at

7.65mm

2.8x2.1cm at 800mm

1.2X

9.3-800mm

1:1.7 at 9.3〜340mm
1:4.0 at 800mm

42.3°x32.4°

0.52°x0.39°

206.2x155.7cm at

9.3mm

2.5x1.9cm at 800mm

2.4X

18.6-1600mm

1:3.4 at 18.6〜680mm
1:8.0 at 1600m

m

21.9°x16.5°

0.26°x0.19°

103.8x77.9cm at

18.6mm

1.3x1.0cm at 1600mm

Built-in
Extender

Zoom Ratio
Range of

Focal length

Maximum
Relative
Aperture

Angular Field
of View

Minimum object
Distance

(M.O.D.)

Object
Dimensions at
M.O.D.

size

mass(Approx)

250.6(W)x255.5(H)x591.5(L)mm

23.5kg (51.8Ibs

)

SWITCHABLE 4:3

3.0m from front lens vertex

DIGISUPER 86II TELE XS

DIGISUPER 86II XS

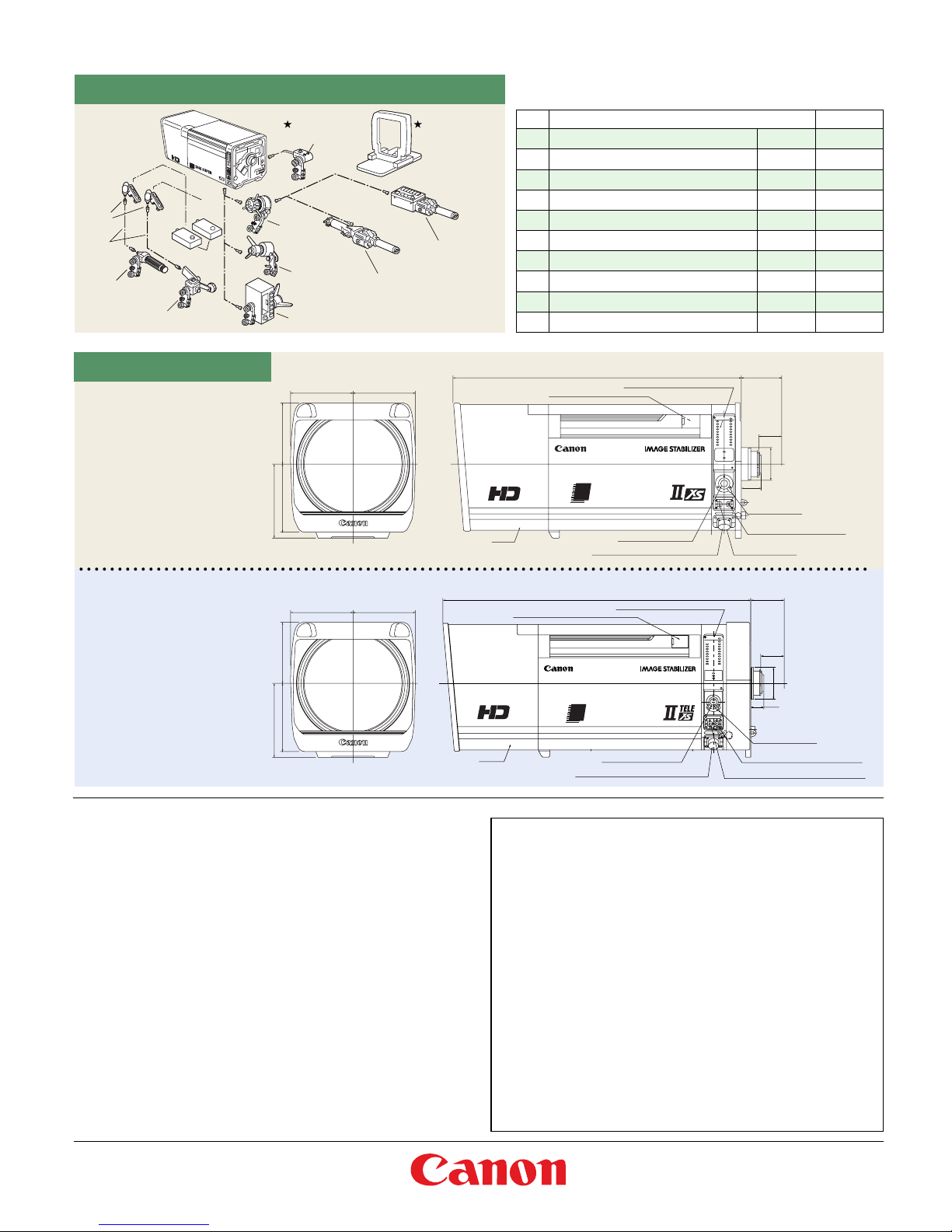

SPECIFICATIONS

DIMENSIONS

RECOMMENDED LENS SYSTEM

DIGISUPER 86II TELE XS

DIGISUPER 86II XS

5

6

86

Lens Supporter
(optional)

Switch Box
(optional)

1-b

2-b

2-c

1-a

3

6

7

5

4

2-a

POWERLOW

PUSH

INDICATOR

125.3

122

133.5

150

125.3

591.5

INDICATOR FOR IRIS/ZOOM/EXT

CONNECTOR TO SERVO CONTROLLER AUX. CONNECTOR

F. B. ADJUSTING KNOB

SHROUD FASTENER

CONNECTOR TO SWITCH BOX

F. B. LOCK KNOB

HOOD

40

F.B. =48

in air

F.B. =81.7

in air

φ65

125.3

122

133.5

150

125.3

DIGI SUPER

86

XJ86x9.3BIE-

Ⅱ

9.3-800m

m1:1.7

LOWPOWER

PUSH

F. B. ADJUSTING KNOB

HOOD

F. B. LOCK KNOB

INDICATOR FOR IRIS/ZOOM/EXT

SHROUD FASTENER

CONNECTOR TO SERVO CONTROLLER

AUX. CONNECTOR (FOR IS CONNECTOR)

CONNECTOR TO SWITCH BOX

618.4

F. B . = 69

in air

φ65

F. B . = 48

in air

27.3

XJ86X13.5BIE-Ⅱ13.5-1161mm1:2.4

DIGI SUPER

86

No. DESCRIPTION CODE
1-a Digital Zoom Demand ZDJ-D02 1822A066
1-b Digital Zoom Demand W/Pre-set Box ZPJ-D02
2-a Digital Focus Demand FDJ-D02 1822A065
2-b Digital Focus Demand Propeller Type FDJ-D12 0024T320
2-c Digital Focus Demand W/Pre-set-Box FPJ-D12
3 Digital Servo Module SMJ-D02 1822A070
4 Flexible Zoom Controller FZP-T61 1822A005
5 Flexible Focus Controller FFP-T61 1822A007
6 Flexible Module FMJ-702 0028T275
7 Flexible Cable 30" — 1822A018

■ Compatibility of Accesories for

DIGISUPER 86II XS & DIGISUPER 86II TELE XS

PRINTED IN JAPAN

Specifications subject to change without notice

Pub:0035W827      0301SZ3

Europe/Africa/Middle East

Canon Europa N.V.

Broadcast and Communications Div.
Bovenkerkerweg 59-61
1185 XB Amstelveen
Tel:[phone] Fax:[phone]
Email:[email protected]
http://www.canon-europe.com/tv-products

Australia

Canon Australia Pty. Ltd.

Optical Products Division
1 Thomas Holt Drive, North Ryde, NSW 2113, Australia
Tel:[phone] Fax:[phone]

China

Canon (China) Co., Ltd.

Optical Products Division 
15F South Tower, Beijing Kerry Center, 1 Guang Hua
Road,
Chao Yang District, 100020, Beijing, China
Tel:[phone] ex 133 Fax:[phone]­6606
http://www.canon.com.cn

Asia/Japan

Canon Inc.(Broadcast Equipment Group)

20-2, Kiyohara-Kogyo-Danchi, Utsunomiya-shi,
Tochigi-ken, 321-3292, Japan
Tel:[phone]

Fax:[phone]-

8672
http://www.canon.com/bctv/

North & South America

Canon U.S.A., Inc.

Broadcast and Communications Div. (Headquarters)
400 Sylvan Avenue Englewood Cliffs, NJ 07632
Tel:[phone]
Fax:[phone]
Email:[email protected]
http://www.canonbroadcast.com/

Chicago

100 Park Blvd. Itasca, IL 60143
Tel:[phone] Fax:[phone]

Atlanta

5625 Oakbrook Pkwy. Norcross, GA 30093
Tel:[phone] Fax:[phone]

Los Angeles

15955 Alton Parkway Irvine, CA 92618
Tel:[phone] Fax:[phone]

Dallas

3200 Regent Blvd. Irving, TX 75063
Tel:[phone] Fax:[phone]

Latin America

Tel:[phone] Fax:[phone]

Canada
Canon Canada, Inc.

Optics Division
6390 Dixie Road
Mississauga, Ontario, L5T 1P7, Canada
Tel:[phone] Fax:[phone]
