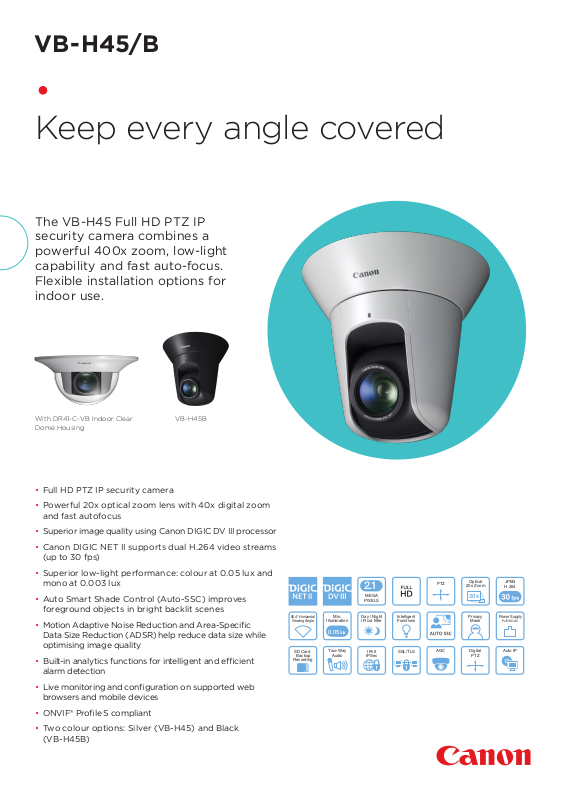

Canon 2541C002 Product Data Sheet

VB-H45/B

•

Keep every angle covered

The VB-H45 Full HD PTZ IP security camera combines a powerful 400x zoom, low-light capability and fast auto-focus. Flexible installation options for indoor use.

With DR41-C-VB Indoor Clear Dome Housing

VB-H45B

• Full HD PTZ IP security camera

• Powerful 20x optical zoom lens with 40x digital zoom

and fast autofocus

• Superior image quality using Canon DIGIC DV III processor

• Canon DIGIC NET II supports dual H.264 video streams

(up to 30 fps)

• Superior low-light performance: colour at 0.05 lux and

mono at 0.003 lux

• Auto Smart Shade Control (Auto-SSC) improves

foreground objects in bright backlit scenes

• Motion Adaptive Noise Reduction and Area-Speciﬁc

Data Size Reduction (ADSR) help reduce data size while optimising image quality

• Built-in analytics functions for intelligent and ecient

alarm detection

• Live monitoring and conﬁguration on supported web

browsers and mobile devices

• ONVIF® Proﬁle S compliant

• Two colour options: Silver (VB-H45) and Black

(VB-H45B)

60.4° Horizontal Viewing Angle

SD Card

Backup

Recording

Min.

Illumination

lux

0.05

Two-Way

Audio

2.1

MEGA

PIXELS

Day / Night IR cut filter

IPSec

Intelligent

Functions

SSL/TLSIPv6

PTZ

AGC

Optical

20x Zoom

20x

Privacy

Mask

Digital

PTZ

JPEG H.264

Power Supply

PoE/DC/AC

Auto IP

112.5(4.43)

(when lens is horizontal)

161 (6.34) (when lens is fully vertical)

•

Technical Speciﬁcations

VB-H45/B

CAMERA

Image Sensor 1/3 typ e CMOS (pr imary co lour ﬁlte r)

Numb er of Eec tive Pixel s Approx. 2 .1 million pixels Scanning Method Progressive Lens 20x optic al (20x digital zoo m) zoom lens wit h auto focus Focal Length 4.7 (W ) – 94 mm (T )

F-number F1. 6 (W) – F3 .5 (T) Viewing Angle For 16: 9 aspect r atios: Hor izontal: 60 .4° (W) – 3.2 ° (T)

Day / Nigh t Switch Auto / Day Mod e / Night Mode Min. Subject Illumination Day Mode (col our):

Focus Auto / One -shot AF / M anual / Fixe d at inﬁnit y Shooting Distance Day Mode: 0.3 m ( 12 in.) – inﬁnity ( W), 1.0 m (3. 3 ft.) – inﬁnity ( T)

Shutter Speed 1 , 1/2, 1/4, 1/8, 1/15 , 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500,

Exposure Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/ Auto

White Balance Auto/Manual

Metering Modes Center-Weighted / Average / Spot Exposure Compensation 9 levels Smart Shade Control Auto / Manual / Disable

Haze Compensation Auto / Manual / Disable

AGC Lim it 6 levels Image Stabilizer 2 l evels (digital) Pan Angle Range 340° (±170°) Tilt Angle Range 100° (ceiling- mounted p osition: -90° – +1 0°)

Moving Speed Pan: Max . 150°/sec., Tilt: M ax. 150 °/sec.

SERVER UNIT

Video Compression Method JPEG, H.264 Video Size JPEG , H.26 4: 1920 x 10 80, 960 x 540 , 480 x 270

Video Quality JPEG, H .264 : 10 levels Frame Rate JP EG: 0.1 – 30 fp s H.26 4: 1/2/3/5/6/1 0/15/3 0 fps

Max. Fra me Rate When strea ming JPEG, H. 264 (1920 x 1 080): 30 fps

I-Frame Int erval 0.5/1/ 1.5/2/3/4/5 sec. Simultaneous Client Access Ma x. 30 Clie nts + 1 Admin C lient

Bit Rate Control Target Bit Rate:

ADSR: Area-speciﬁc Data Size Reduction

Encrypted Communications SSL / TL S, IPse c (Auto Key Excha nge/Ma nual) IEEE 802.1X EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP Protocol IPv4, I Pv6, TCP/IP, UDP, HT TP, FTP, SNMPv1/v 2c/v3 (MIB2), DH CP,

ONVIF Proﬁle Proﬁ le-S Audio Compression Method G.711 μ- law (64 kbps)

(W): maxi mum wide angle, ( T): maximum tel ephoto

For 4:3 as pect rati os: Horizon tal: 46 .3° (W) – 2 .4° (T)

0.05 lux ( F1.6 , shutter spee d 1/30 sec ., when sm art sha de control i s o, 50IR E)

Night Mode (monochrome):

0.003 l ux (F1. 6, shut ter speed 1 /30 sec ., when sm art sha de control i s o, 50IR E)

Night Mo de: 1.0 m (3. 3 ft.) – inﬁnity ( W), 1.5 m (4.9 ft .) – inﬁnity (T)

When [Enable] is selected for [Dome]: Day Mode : 2.0 m (6.6 ft.) – in ﬁnity (W, T ) Night Mo de: 1.0 m (3. 3 ft.) – inﬁnity ( W), 2.2 m (7.2 f t.) – inﬁnity (T )

1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec.

(Aperture-priority AE) /Manual (Shutter Speed, Aperture, Gain)

Daylight Fluorescent/White Fluorescent /Warm Fluorescent/ Mercury Lamp/Sodium Lamp/Halogen Lamp Manua l: One- shot WB/R G ain/B Ga in

Auto: 3 levels Manua l: 7 levels

– When the h orizontal direc tion of the c amera is 0 °

– Values repre sent streaming p erformance fr om the camera. – The fr ame rate may be reduc ed due to Viewer PC’s s pecs, the numb er of clients acce ssing

at the same tim e, network load s, video qualit y setting, type o r movement of the sub ject or other reas ons.

When used i n the following comb inations: When strea ming H.264 (1) (1920 x 10 80) and H.26 4(2) (all sizes) simultan eously: 15 fps When strea ming H.264 (1) (all sizes) and H.2 64(2) (1920 x 1 080) simultan eously: 15 fps When strea ming H.264 (1) (1280 x 9 60) and H.264 (2) (1280 x 960) si multaneousl y: 15 fps When strea ming H.264 (1) (1280 x 72 0) and H.264(2 ) (1280 x 720) simu ltaneously: 1 5 fps

– H.2 64: Max. 1 0 Clients

64/128/2 56/384/5 12/768/1 024/1536/2 048/3072/409 6/6144/8 192/10240/12288/14336/16384 kbps

Numbe r of Speci ﬁed Area s: Max. 8 are as Data Size Re duction Level: 3 leve ls

DNS, Au toIP, mDNS, AR P, ICMP, POP3, NTP, SM TP, RTP/RTCP, RTSP, SSL/ TLS, IPs ec, ONVIF, WV- HTTP (Canon p roprietar y)

Vertica l: 35.1 ° (W) – 1. 8° (T)

1280 x 72 0, 640 x 36 0, 320 x 180 1280 x 9 60, 640 x 4 80, 320 x 240

Audio Communication Method

Audio File Playback Available (au dio ﬁles c an be played b ack when a n event is

Privacy Mask Number of reg istratio n: Max. 8 pl aces, N umber of ma sk colou rs: 1

View Restriction Available Preset Numbe r of registe rs: Max. 6 4 positions (+Home P osition)

Intelligent Function Video:

Event Trigger Type External Device Input, Intelligent Function (Video), Intelligent

Image Upload FTP / HTTP / SMTP (e-mail) Event Notiﬁcation HTTP / SMTP (e-mail) Enhanced Digital Zoom Available On-Screen Display Available Daylight Saving Time Available

APPLICATION

Viewer Camera Viewer

Included Software Camera Management Tool

Language German/English/Spanish/French/Italian/Polish/Russian/

INTERFACE

Network Terminal LAN x 1 (RJ 45, 100 Base-TX (auto / full- duplex / half-du plex)) Audio Input Terminal

(common f or LINE IN & MIC IN)

Audio O utput Term inal (LI NE OUT)

External Device I/O Terminal Input x 2, Out put x 2 Memor y Card SD Memo ry Card, SDH C Memor y Card, SDXC Memo ry Card

OTHER

Operating Environment Temperatu re: -10°C – + 50°C (+14°F – +12 2°F)

Power Supply Po E: PoE powe r supply vi a LAN con nector (I EEE802 .3at Type1

Power Consumption When us ing PoE: M ax. approx . 9.2 W*

Dimensions (Φx H) Φ132 x 155 m m (Φ5.20 x 6 .10 in.)

Weigh t Approx. 1 140 g (2.52 lb.) International Standard EN550 32 Class B , FCC part 15 subpa rt B Class B , ICES-00 3 Class

All data i s based on C anon sta ndard testing me thods excep t where ind icated. Subje ct to chang e without n otice. ™ and ®: All company and / or product names are trademarks and / or registered trademarks of their re specti ve manufa cturers i n their ma rkets and / o r countrie s.

Full-dup lex (two-way)/half-d uplex RTP,

Sound Transfe r Protocol by Canon

trigge red by the inte lligent f unctio n or externa l device in put.)

– A third-party ampliﬁer speaker is necessary

(select f rom 9 colou rs)

Numbe r of Preset Tour Ro ute: Max. 5

Moving Object Detection, Abandoned Object Detec tion, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection

Detecti on Setti ngs: Max . 15

Non- detectio n Area Set tings: Avai lable

Audio: Volume Detection, Scream Detection

Functio n (Audio), Timer, Day/Night M ode Switching

Numbe r of Linked Eve nts: 2

Linked Eve nt Conditi ons: OR , AND (wheth er or not the re is a sequence to events)

Mobile C amera Viewer

RM-Li te Record ed Video U tility On-Sc reen Disp lay Assis t Tool

Turkish/Thai/Korean/Chinese (Simpliﬁed) /Japanese

Φ3.5 mm (Φ0 .14 in.) mini-jac k connec tor (monaural) LINE I N (connect to an a mpliﬁer micro phone) or MI C IN (connec t to a microp hone w/o ampli ﬁer) – Switch LIN E IN/MIC IN in th e Setting P age.

Φ3.5 mm (Φ0 .14 in.) mini-jac k connec tor (monaural) LINE O UT x 1 (connect to a n ampliﬁer spe aker)

Compatible . Frame Rate : Max. 1 fps (J PEG) Max. 30 f ps (H. 264)

Humid ity: 5% – 85% (wi thout con densati on)

compliant) AC Adapter : PA-V18 (1 00 – 240 V AC) (sold s eparate ly) Exter nal power so urce: 24 V AC/ 12 V DC

When us ing AC Adapter PA-V 18: Max . approx. 9 .9 W (10 0 V AC)

When us ing DC: Ma x. approx . 8.6 W When us ing AC: Max . approx. 8 .8 W

* Class 0 power s ourcing equipm ent (requests 15 .4 W)

– Camera on ly (height when c amera is placed h orizontally, excludi ng Ceiling Brack et)

B, VCCI Cl ass B, RC M AS/NZS E N55032 C lass B, C NS134 38 Class B, KN2 2 Class B, EN55 024, KN24 , EN50581

------------------------------------

IEC/UL/EN60950-1

Max. ap prox. 9.4 W ( 240 V AC)

Dimensions

155 (6.10)

canon.com

Canon Europe canon-europe.com

Φ132 (Φ5.20)

R55 (R2.17)

(possible range of motion)

All dimension are in mm (in.)

Connectivity

1 3

Network Interface RJ45, 100Base-TX (Auto / Full-duplex / Half-duplex)

Power Connection Terminal 12V DC / 24V AC

Audio Input 3.5 mm mono mini-jack

Audio Output 3.5 mm mono mini-jack

External Device I/O 2 x Inputs / 2 x Outputs

Memory Card Slot SD, SDHC and SDXC Memory Card compatible
