Cannon Uni-Troll 10TS, Uni-Troll 5, Uni-Troll 10 User Manual

CAUTION: READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR NEW CANNON RETAIN FOR FUTURE REFERENCE.

DOWNRIGGER.

Uni-troll 10ts

Uni-troll 10

NOTE: Do not return your CANNON® Downrigger to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by:

• calling CANNON® at 1-800-227-6433;

• returning your downrigger to the Factory Service Center;

• sending or taking your downrigger to any CANNON®

Authorized Service Center on enclosed list.

Please include proof of purchase, serial number and purchase date for warranty service with any of the above options.

Uni-troll 5

OWNER’S MANUAL

Introduction to Downriggers pg. 2 Mounting Your Downrigger Attaching the Crank Handle Terminator & Line Release Cannon Uni-Release Attaching the Rod Holder Operating Your Downrigger

pg. 2-7 pg. 8 pg. 9 pg. 9 pg. 10 pg. 11

The Effects of Blowback Maintaining Your Downrigger Troubleshooting Trolling Tips Warranty Information Cannon Service Policy Authorized Service Centers pg. 16

pg. 12 pg. 13 pg. 13 pg. 14 pg. 15 pg. 15

Introduction to downriggers

Introduction to Controlled Depth Fishing

Undoubtedly there are many fishermen familiar with the methods and use of controlled depth fishing. During the mid 1960's the state of Michigan introduced Pacific salmon into the Great lakes in an attempt to revitalize its sport fishing industry. From this successful transplant, new fishing techniques and equipment were developed. One such method was controlled depth fishing which enabled fishermen to place a lure at a desired depth by utilizing downriggers. Because of the varying factors (water temperature, thermocline, weather, tides, time of day, or time of year) it is necessary for successful fishing to maintain specific water depths that coincide with fish movements and feeding patterns.

One essential feature of the downrigger is the depth meter or gauge that indicates lure depth. This allows the angler to control as well as return to specific depths where fish have been caught. Due to the success of controlled depth fishing, downriggers are now being used throughout the world to catch a wide variety of species in both fresh and salt water. Whether fishing for blues off Rhode Island, walleyes in Lake Erie, sailfish off the coast of Florida, or stripers in Tennessee, the use of downriggers will make your fishing more successful and more enjoyable.

Attach Line Release to Rear Hook on Weight

Parts Description

1. Reel This is used to spool the cable, available in lengths ranging from 150 to 400 feet.

2. Boom This is used to extend the weight out from the body of the downrigger and has a pulley fixed to its end. Boom lengths range from 24 to 53 inches.

3. Swivel Head This relays the cable at the end of the boom to lower the weight.

4. Weight This is used to maintain the depth at which you want to fish. Sizes of weights range from 4 to 20 lbs.

5. Cable This connects to the weight. Cable material is 150 lb. test stainless steel cable.

6. Depth Meter This determines how much cable you have run out, enabling you to choose your trolling depth.

7. Mounting Base This attaches to the boat, enabling you to place the downrigger where you choose.

8. Rod Holder This holds your fishing rods while trolling and may also be used for storing rods.

Downrigger Mounting on Boats

A downrigger should be mounted where ever it is easy to operate and observe. You want to be able to see your fishing rod and to react quickly. So, choosing a good spot to mount your downrigger on your boat is 99% of the job. Due to the great variety of boats available, mounting your downrigger can be a dilemma. Having proper mounting accessories is essential. Cannon has a complete line of mounting accessories to conveniently mount your downriggers on any boat.

MOUNTING & SETUP

Arrows Indicate Mounting Locations

Mounting Accessories

Deck Plates are necessary when extra strength must be added to the base material of the boat and for attaching the downrigger to other mounting accessories. Gimbal Mounts are designed to fit mediumsized flush mounted rod holders built into the gunwale of many larger fishing boats and cruisers. Only sturdy, high quality rod holders should be used for this temporary mounting system. Gimbal mounts are available in 9” or 12” post lengths.

Clamp Mounts can be mounted at the junction of two rail sections with the aid of two ¼" pieces of plywood. They will protect your rail from any marks from the clamp and provide a non-slip surface.

Deck Plate

Gimbal Mount

Clamp Mount

MOUNTING & SETUP

Side Rail Mounting

Side/Rail mounts can be mounted to a welded T-section. It can also be used at the two rail section butt joint. In both installations it is recommended to use a non-slip material, such as rubber or a thin wood sheet, between metal surfaces.

You can also use these for mounting to a very narrow side gunwale. There is a plate provided for back-up with bolts and washers. If the gunwale compartment is foamed in, then wellnuts should be used. It is also recommended to install two additional flat head screws through the top plate for stabilization (you will need to drill and countersink).

Side/Rail on T-Section

Side/Rail on Gunwale

NOTE: In no case should this mount be used on fiberglass ¼" thick or less unless it is foamed in. Pedestal Mounting

Pedestals are used wherever additional height is needed for ease of operation or to clear obstructions, such as handrails.

Caution: When using a pedestal mount or side/ rail mount, do not extend the telescopic boom on your Uni-Troll. The increased leverage will cause excessive strain and possible failure of the mount.

Pedestal for Additional Height

Installing the Base on Your Boat

Decks up to 7/16" thick

Where access to the underside of the deck is not available, the mounting base can be mounted using wellnuts. Use the base as a template to mark locations and drill four 1/2" holes. Mount the base using four 1/4"-20 x 1 1/2" truss head screws and four wellnuts. Tighten the screws so the wellnuts are firmly compressed as pictured.

Decks thicker than 7/16"

For decks thicker than 7/16", or where the underside of the deck is accessible, mount the base with screws, nuts, and washers. Use the base as a template to mark the locations and drill four 9/32" holes. Use four 1/4" -20 x 2 1/2" truss head screws and four each flat washers, lock washers, and nuts. Fasten the base to the deck as pictured. NOTE: Wellnuts cannot be used on decks thicker than 7/16".

Outboard Facing

Side or Gunwale

Note Locking Slots in Base

Decks up to 7/16" Thick

MOUNTING & SETUP

Stern Facing

Rear or Stern

Base

Wellnuts

Base

Decks Thicker Than 7/16"

Washer, Lock Washer,

and 1/4-20 Hex Nut

MOUNTING & SETUP

Decks thinner than 1/4"

Use a Cannon Deck Plate to prevent deflection and add stability to decks thinner than 1/4". Use the deck plate as a template to mark the hole locations. If access to the underside of the deck is not available, the deck plate can be mounted using screws and wellnuts. Drill 1/2" holes. Use four 1/4”-20 x 2" flat head screws and four wellnuts to mount deck plate as pictured. Tighten the screws so the wellnuts are firmly compressed.

Where the underside is accessible, mount the deck plate using screws, nuts, and washers. Drill 9/32" holes. Use four 1/4”-20 x 2" flat head screws, nuts and washers (flat and lock). Fasten plate to deck as pictured. To secure the low-profile base to the deckplate use four 1/4”-20 x 1 1/2" truss head screws.

Cannon Deck Plate

Deck Up to 7/16" Thick

Wellnut

Base

Deck Thicker Than 7/16"

Washers, Screws,

& Nuts

NOTE: When using the telescopic boom, we strongly recommend the use of a deck plate on all boats to provide adequate stability for the downrigger.

FOR Uni-Troll 10 and Uni-Troll 10 TS: The Low-Profile Swivel Base mounting follows

Low-Profile Swivel Base

the same procedure as for the deck plate except that four 1/4"-20 x 1 1/2" truss head screws are used to fasten the mounting base and four additional 1/4"-20 x 2 1/2" truss head screws fix the swivel base to the boat deck.

Mounting the Downrigger on the Base

Slide the bottom of the frame over the lip of the base, with the boom outboard or facing the stern. Move the frame over the base until the latch clicks into place. If properly seated, the frame should completely cover the base.

CAUTION: If not fully seated, your downrigger can be dislodged from the base.

Tip: Periodically check base to ensure integrity. The base should be replaced at least every 5 years.

Latch

Setting Up Your Downrigger

Attaching the Boom

Telescopic Boom

The intermediate section of the telescopic boom must be extended approximately 5" before the boom locking screw can engage the hole in the boom. Slip the boom end into the frame and align the holes. Secure with boom locking screw.

To adjust boom length, with the boom extending away from you, rotate clamps approximately 1/4 turn counter - clockwise to unlock, and slide boom section to desired position. To lock, rotate clamp clock-wise until tight.

TIP: Whenever downriggers with boom lengths beyond 24" are used, Cannon's Retro-Ease Weight Retriever will make bringing in the weight safe and easy. It attaches to the cable below the boom end allowing you to pull the weight to yourself without having to lean way out or collapse the boom to reach the weight.

The Standard 24 Inch Boom inserts into the downrigger frame (see bottom diagram on page

7). Be sure that the boom is held securely by seating it firmly against the shoulder inside the fame and fastening the boom locking screw such that it engages the hole in the boom.

Assemble Swivel Head To Boom

Insert the telescopic boom-end into the boomalign holes and fasten in place with a #8 x 5/8 screw. Spread the swivel head side plates and slip the assembly over the boom end axle. Snap the assembly together and install two #4 x 1/2" screws into the swivel head.

TIP: Adjusting the angle of the boom head can help control cable wrap on the reel.

MOUNTING & SETUP

The 3/4"-Long Phillips Screw Must Engage Hole in Boom

Clamps

Standard 24"

Boom

#8 x 5/8" Screw (1)

#4 x 1/2" Screws (2)

Attaching the crank handle

Attaching the Crank Handle Assembly

Make sure the thrust bearing is sandwiched between its two races. The thrust bearing spring should be oriented where the narrow end is toward the bearing. Slide the bearing with races and spring over the ratchet shaft. Then, carefully thread the crank handle onto the shaft and continue turning the handle clockwise until the clutch is fully tightened

NOTE: Place your fingertip on the edge of the bearing and races. This allows the crank to be threaded more easily until the spring puts resistance on the clutch pad.

Races

Thrust

Bearing

Spring

Crank

Handle

Terminating the Downrigger Cable

Rubber Cushion

Cable

Unwind about 2 feet of cable and thread the cable through the rubber cushion.

TERMINATOR & LINE RELEASE

Examine the top of the terminator and note the order shown in the detail to run cable.

CABLE IN

Tip: A set of pliers with wire cutters is recommended for this part of setup.

TIP: Use only straight cable, not kinked.

Lead cable into HOLE A. Pull six inches of cable through. Thread cable through swivel, then up into bottom of the terminator.

Lead cable out of HOLE B and into HOLE C. Push the cable until its end touches the inside of the terminator hook.

HOLE A

Attach to terminator.

Tighten cable by squeezing terminator until it snaps shut. Then pull at top and bottom until drawn tight. Make sure that the cable threads in groove of the hook.

Swivel

CABLE

OUT

Snap & Swivel

Slide the cushion over the top of the

terminator and give it a test pull.

The cable is set to attach a Cannon

Trolling Weight.

Cannon Uni-Release

The Cannon Uni-Release attaches directly to the downrigger weight. Attach fishing line to the clip at the end of the release, and then click through a series of increasing tension settings. The release can be used with any test line on salt or fresh water and may be adjusted from 2 to 22 pounds of grip tension on the line.

To change line release tension, turn tension knob to (+) to increase or (-) to decrease. Tension also may vary according to where the line is placed in the grips. Higher tension is on the line if it is set back toward the hinge, and lower if set closer to the opening. To open the release, spread the release arms with thumb and forefinger applying pressure to the sides.

Open

Tension Adjust

Fishing Line

Gripper

Pads

ATTACHING THE ROD HOLDER

Attaching the Rod Holder

The positive lock rod holder incorporates a locking disk that allows the rod holder to be aligned in 15 degree increments. Slide the rod holder tube into the clamp to the desired position within the recommended area (see below). Be sure the angled shoulders are facing up. Place the locking disk into the mating recess of the frame. Slip the clamp arms in place where the obround tab on the disk fits into the slot on the clamp. Slide the star washer between the arm of the clamp and the frame. Place the flat washer onto the bolt. Then insert the bolt with washer through the clamp by entering the disk, going through the frame, the star washer, and out the other side of the clamp. Tighten the nut to secure the rod holder. Reposition the rod holder by loosening the nut and adjusting the tilt.

CAUTION: This rod holder is intended for use of up to 30 lb. test line only, and is not recommended for use with any tackle IGFA rated higher than 30 lb. A safety strap (not included) is recommended for all applications.

The rod holder assembly is not warranted when used with tackle above 30 lbs. Equipment placed in the rod holders and the loss thereof is the responsibility of the user and is in no way warranted by JOHNSON OUTDOORS, INC. Mounting must be in accordance with the above instructions and diagram to be warranted.

Single Rod Holder Assembly

Recommended

Area to Clamp

Rod Holder

Angled Shoulder

Dual Rod Holder Assembly

Star Washer

Placement

Operating Your Downrigger

After mounting the Cannon downrigger to your boat, release some line from your rod and reel so that the lure is anywhere from 5 to 100 feet behind the boat. This is called drop back. Attach the fishing line firmly into the line release. Lower the weight to the desired depth as indicated on the depth meter. Place the fishing rod in the rod holder and reel up the slack so that your rod has a slight bend in it. When a fish strikes the lure, the line will separate from the release. Then you will be free to fight the fish and bring it in on your rod and reel.

Lowering the Weight

You can lower the trolling weight at a controlled rate by turning the crank handle gently counterclockwise (away from the boom). Depending on how far you turn, you can let your trolling weight descend as fast or as slowly as you wish. Turn the crank handle clockwise (toward the boom) until it you hear a click to stop the weight. This gives you control to let it plunge rapidly or sink slowly to a predetermined trolling depth. With multiple downriggers, you could start all your weights creeping down, one at a time, and then stop them each in turn.

Raising the Weight

Turn the crank handle clockwise (toward the boom) as rapidly as you desire to retrieve the trolling weight.

Adjusting the Clutch Tension

The clutch is built into the crank mechanism. Turn crank handle clockwise to increase the drag and counterclockwise to reduce it.

NOTE: In case your reel continues to slip no matter how hard you tighten the crank see the Troubleshooting section of this booklet.

CAUTION: Remove weight from downrigger before traveling either by water or transporting on trailer.

OPERATING YOUR DOWNRIGGER

To Lower Weight

To Raise Weight

Blowback

Simply stated, blowback is what happens to the downrigger weight when you pull it through the water behind your boat. As your speed increases, so does the horizontal distance between the weight and your downrigger. The faster you go, the farther the weight is behind you. The farther the weight is behind you, the shallower the weight is. The following charts provide you with blowback information for three sizes of Cannon downrigger weights pulled at three different speeds with no lures attached and with no current. Current drag, water salinity and the use of nonCannon products will affect your actual trolling depth. As an example, the first chart shows that if you are trolling at 4 MPH with an 8 pound weight and you have 100 FT. of cable in the water with no current; the downrigger ball is actually at a depth of about 80 FT.

Actual Depth of Weight (ft.)

ActualDepth of Weight (ft.)

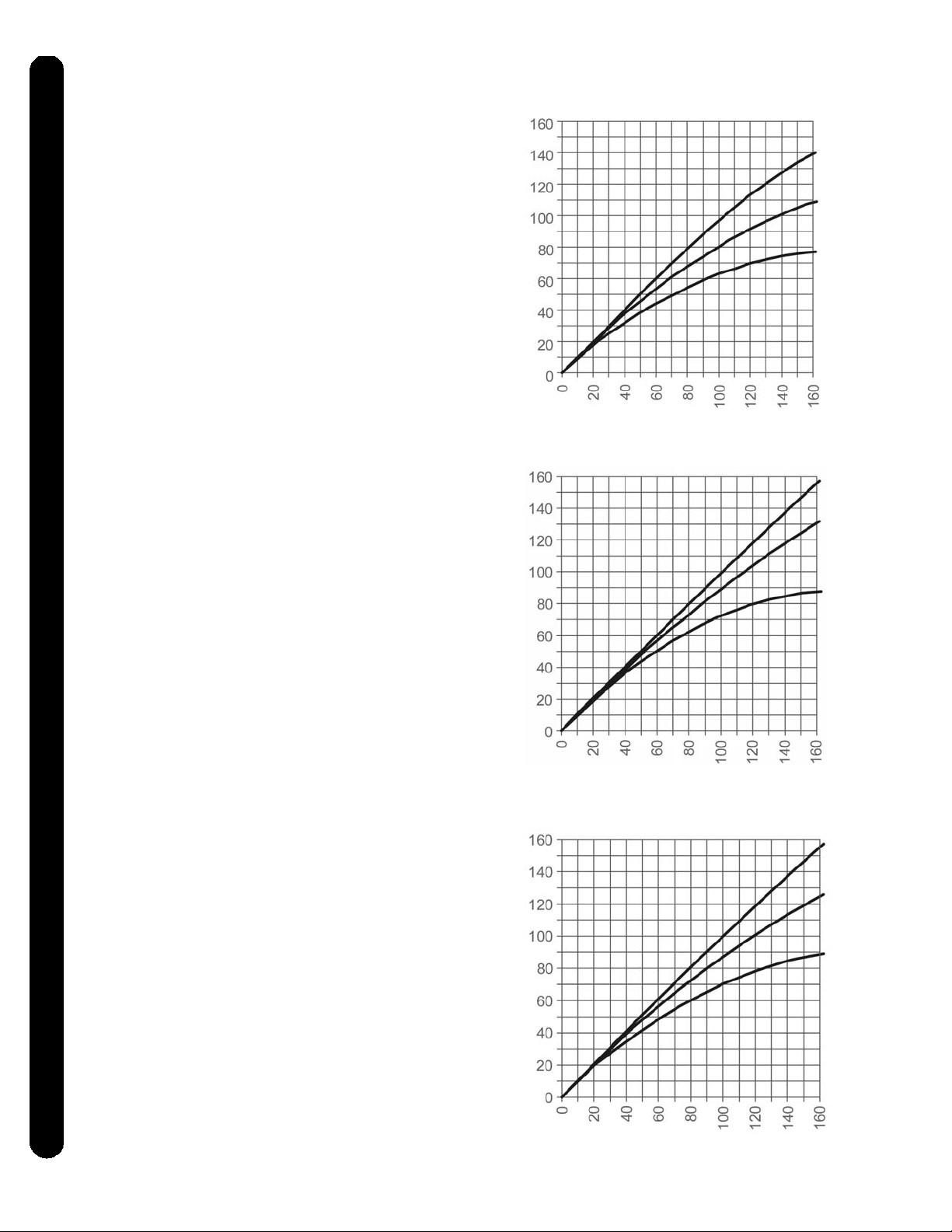

Blowback Charts

8-Lb. Weight at 2, 4, and 6 MPH

2 MPH

4 MPH

6 MPH

Amount of Cable in Water (ft.)

10-Lb. Weight at 2, 4, and 6 MPH

2 MPH

4 MPH

Actual Depth of Weight (ft.)

6 MPH

Amount of Cable in Water (ft.)

12-Lb. Weight at 2, 4, and 6 MPH

2 MPH

4 MPH

6 MPH

Amount of Cable in Water (ft.)

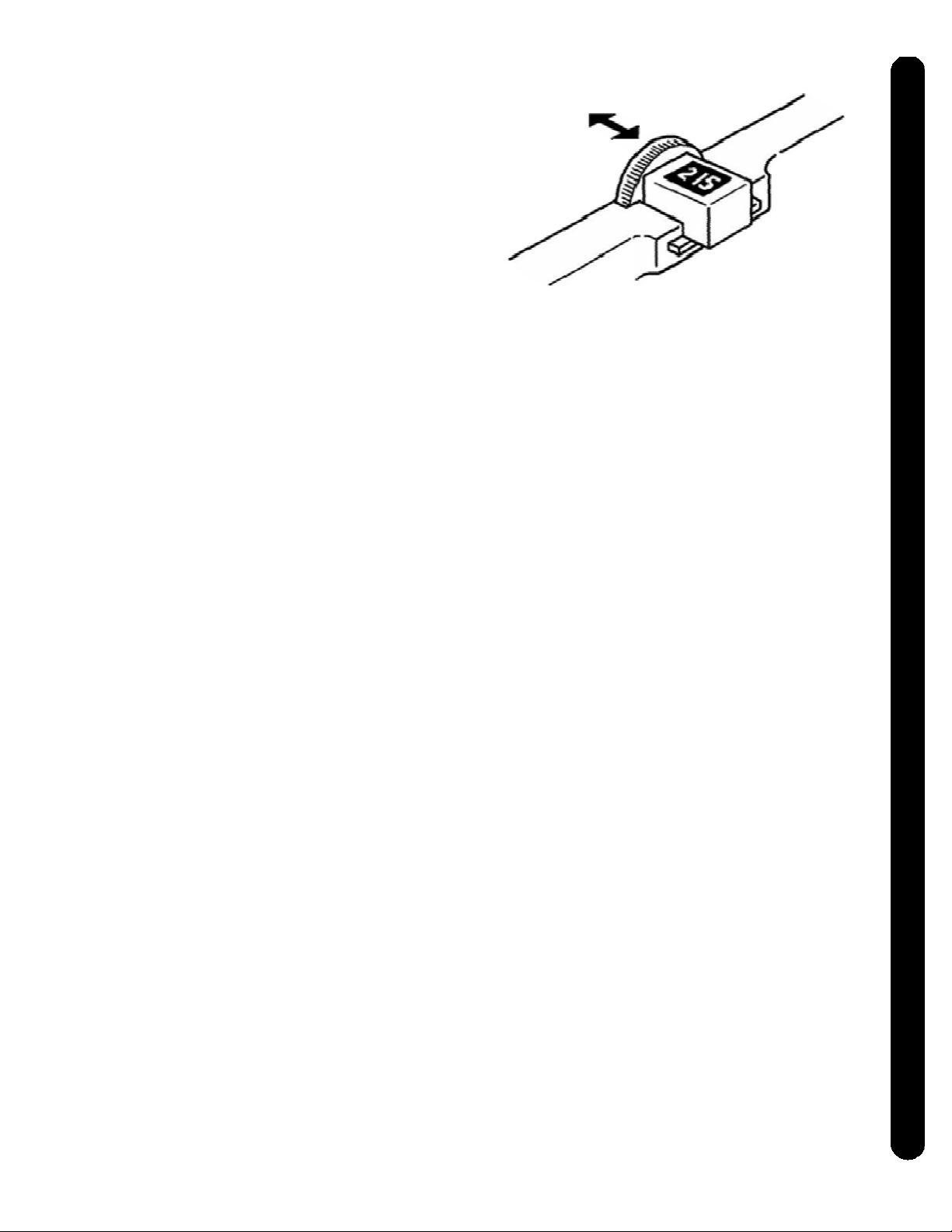

Adjusting the Depth Meter

The Cannon Depth Meter provides non-slip accuracy, plus easy resetting. To reset, just slide the meter away from the reel until the gears are disengaged. Spin meter gear to change setting.

NOTE: Actual fishing depth may vary from depth shown on meter due to trolling speed and weight of cannon ball. (See "Blowback")

Maintaining Your Downrigger

At the beginning of each fishing season and more often during periods of heavy usage, lightly grease the thrust bearing, reel shaft bearings, swivel head pulley, ratchet brake face, and ratchet dog. When using for saltwater fishing, thoroughly rinse the entire downrigger with fresh water after each trip and lubricate on a frequent basis. Replace the cable at least every two years.

For repairs or servicing your downrigger refer to the Warranty Information section of this booklet.

Trouble Shooting

PROBLEM:

Clutch slips

SOLUTION:

The set screw in the reel may have come loose off the shaft. Follow the instructions below:

1) Unwind the cable from the reel.

2) Remove the set screw.

3) Align the set screw hole in the reel with the hole in the reel shaft by inserting a 3/16" or smaller rod and rotating the reel until you feel it drop into the shaft hole.

4) Replace the set screw and tighten until you feel resistance.

5) By gently rocking the reel back and forth while tightening the set screw, you can feel it engage in the shaft hole. The half dog point on the set screw must enter the hole in the shaft; not just be tightened against the reel shaft.

maintaining & TROUBLE SHOOTING

TROLLING TIPS

Ten Good Trolling Tips

1) Test your lures over the boat side before

sending them down and back. Do this to make sure the lure wiggles and wobbles properly without going belly up or wandering off. Some lures can be adjusted, fine tuned actually, to impart maximum action. For example, a slight bend in the tail of a spoon or twist of the hook eye in the nose of a plug can make a noticeable difference in how the lure performs. Also, when running two or more lures, make sure the offerings are compatible. Lures that run out of harmony with each other are bound to tangle and that means wasted time to straighten out the mess. Testing them first will avoid the problem.

2) Consider different sizes, shapes, and colors of lures. No one has ever figured out with precision what makes a fish strike or snub a lure. There is no doubt, that matching the forage (minnows, crayfish, etc.) in color, shape, action, and size can help trigger those strikes from hungry fish. On the other hand, if fish such as bluegills, small mouth bass or Coho salmon are protecting spawning beds, they may attack whatever is threatening. So, bright colors in lures may out produce bland colors.

3) Vary trolling speeds. Goosing the engine now and then or slowing to a crawl every so often will change the action of the lures and may get fish to strike them.

4) Vary trolling patterns and lead lengths. The amount of line you let out often determines how deep the lure will run and, to some extent, what degree of action it will impart. For starters, consider running lures about ten feet behind downrigger weights. If flat line trolling, put them back about fifty feet, then experiment depending on what the fish do.

Trolling patterns affect lure action too, that is why some anglers like to wheel a lazy S course. On turns, outside lures will speed up momentarily while inside lures hang for a moment or two. Fish may nail lures that change speeds. Also, zigzag patterns allow for more water coverage, plus it keeps lures out of propeller boil, an important consideration for browns and other wary species.

5) Locate fish on a vertical plane. Place lures in areas where fish might be. Skilled fishermen call these areas the “strike zones”. They include the edges of the week beds, structure along bottom, drop-offs, preferred temperature of the target species, and the thermocline. Remember that fish occupy certain areas for certain reasons (sources of food, protective cover, preferred temperatures, etc.).

6) Consider special knots and swivels. A good ball bearing swivel will all but eliminate line twist and will aid in getting maximum performance from a lure. Many anglers add the tiny swivels to split rings already on the lure itself. On the other hand, a swivel may dampen the action of a sensitive lure, such as a Rapala. Some fisherman tie tiny improved cinch or loop knots. Loop knots in particular may enhance up and down and side to side action of lures. Any good fishing manual will explain how to tie these and other knots.

7) Consider releases for flatline trolling. A good tip is to secure a piece of downrigger cable or heavy monofilament to the water ski hook or handle below the transom of most boats. To the other end of the mono or cable, add a pinch-rrelease. After letting out your lure to the desire distance, put the rod in its holder, then bend the tip and secure the fishing line in the release.

8) Add a weed guard. Having trouble with weeds hanging up lures? Consider tying a three-inch piece of monofilament a foot above the lure. Leaves, smaller weeds and other debris may catch here momentarily then fall off to the side of the lure without tangling. Weedless lures are another smart consideration. Downrigger cables are effective weed catchers when trolling for pike, muskies, or bass in weed-infested lakes.

9) Add a stinger hook. When fish short strike, slap at lures without becoming hooked, adding a stinger hook can solve the problem. Simply tie a treble hook to one end of a four inch piece of monofilament and then tie the extra hook to the last gang of hooks on your lure. The stinger hook, which trails the lure, provides extra insurance.

10) Keep hooks sharp. Some of the best fishermen sharpen all hooks after every fish caught. Hooks get dull through both use and misuse, and probably more fish are lost to dull points than anything else.

CANNON® LIMITED WARRANTY

Johnson Outdoors Inc. warrants to the original purchaser that if the accompanying product (see exclusions below) proves to be defective in material or workmanship within the following warranty periods, Johnson Outdoors Inc. will, at its option, either repair or replace same without charge (but no cash refunds will be made):

1) The boom, motor, and reels, plus all Lexan®* parts, including but not limited to frames and bases, will be free from defects in materials and workmanship, subject to normal wear and tear, for the original purchaser's lifetime.

2) All other items will have 1-year limited warranties from the date of original retail purchase, except THE FOLLOWING ITEMS THAT HAVE NO WARRANTY WHATSOEVER: boot covers, clothing, Dacron line, rubber bands, swivel lock pin, weights, and wire cable.

This limited warranty may be enforced only by the original

purchaser; all subsequent purchasers acquire the product "as is" without any benefit of this limited warranty. Repair or replacement of the product as set forth in this limited warranty shall be the original purchaser’s sole and exclusive remedy and Johnson Outdoors Inc.’s sole and exclusive liability for breach of this warranty.

EXCLUSIONS

This warranty does not apply in the following circumstances:

• When the product has been connected, installed, combined,

altered, adjusted, serviced, repaired, or handled in a manner other than according to the instructions furnished with the product

• When a serial number has been effaced, altered, or removed

• When any defect, problem, loss, or damage has resulted from

any accident, misuse, negligence, carelessness, or abnormal use, or from any failure to provide reasonable and necessary maintenance in accordance with the instructions of the owner's manual

LIMITATION AND EXCLUSION OF IMPLIED WARRANTIES AND CERTAIN DAMAGES

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. JOHNSON OUTDOORS INC. DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES, AND IN NO EVENT SHALL ANY IMPLIED WARRANTIES (EXCEPT ON THE BOOM, MOTOR, REELS, AND ALL LEXAN®* PARTS), INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND ONE YEAR FROM THE DATE OF PURCHASE (AND IN THE CASE OF THE BOOT COVERS, CLOTHING, DACRON LINE, RUBBER BANDS, SWIVEL LOCK PIN, WEIGHTS, AND WIRE CABLE, JOHNSON OUTDOORS INC. DISCLAIMS ALL IMPLIED WARRANTIES). THIS WRITING CONSTITUTES THE ENTIRE AGREEMENT OF THE PARTIES WITH RESPECT TO THE SUBJECT MATTER HEREOF; NO WAIVER OR AMENDMENT SHALL BE VALID UNLESS IN WRITING SIGNED BY JOHNSON OUTDOORS INC.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

* Lexan is a registered trademark of General Electric.

CANNON® SERVICE POLICY

LIMITED WARRANTY & SERVICE POLICY

AFTER THE APPLICABLE WARRANTY PERIOD

After the applicable warranty period, or, if one of the above exclusions applies, Cannon® products will be repaired for a charge of parts plus labor. All factory repairs, after the applicable warranty period, carry a 90-Day Limited Warranty, subject to the exclusions and limitations stated above.

TO ENFORCE WARRANTY OR TO OBTAIN REPAIRS AFTER WARRANTY

To obtain warranty service in the U.S., the downrigger or part believed to be defective and the proof of original purchase (including the date of purchase) must be presented to a Cannon® Authorized Service Center or to Cannon®’s factory service center in Mankato, MN. Except as noted below, any charges incurred for service calls, transportation or shipping/freight to/from the Cannon® Authorized Service Center or Cannon®’s factory, labor to haul out, remove, reinstall or re-rig products for warranty service, or any similar items are the sole and exclusive responsibility of the purchaser. Downriggers purchased outside of the U.S. (or parts of such downriggers) must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Cannon® Service Center in the country of purchase. Warranty service can be arranged by contacting a Cannon® Authorized Service Center listed on the enclosed sheet, or by contacting the factory at 1-800-227-6433 or Fax 1-800-527-4464. If the necessary repairs are covered by the warranty, we will pay the return shipping charges to any destination within the United States.

DO NOT return your Cannon Your retailer is not authorized to repair or replace them.

Major parts, such as the motor and main frame, must be returned to Johnson Outdoors Inc. in Mankato, Minnesota, or a Cannon Authorized Service Center, for repair or replacement. To reduce shipping costs, we suggest removal of loose parts such as the boom and rod holders. Small parts that can be easily removed such as the handle and/or the counter, may be removed from the downrigger and returned for repair or replacement.

Retain your sales receipt! Proof of purchase must accompany product when returned.

Return Address: Johnson Outdoors Inc.

Cannon Division 121 Power Drive Mankato, MN 56001

FOR YOUR INFORMATION:

Serial No. Date Purchased Store Where Purchased

RETAIN THIS SECTION FOR YOUR RECORDS

downrigger or parts to your retailer.

Service Centers

Authorized Service Centers

Your new Cannon® Downrigger was built to exacting specifications under rigid quality control to provide you years of trouble-free

operation. If it should ever need adjustment or service, you may send it to any Cannon® Authorized Service Center near you.

ALASKA

Alaska Performance 6820 Arctic Blvd Anchorage 99518 907-522-8965

North Repair 172 Chandler Rd Ketchikan 99902 907-225-3690

CALIFORNIA

Fisherman’s Warehouse 9035 Folsom Blvd Sacramento 95826 916-362-1259

B & F Rod & Reel 1028 W. 4th St. Ontario 91762 909-988-9229

FLORIDA

Master Repair, Inc. 4446 SE Commerce Ave Stuart 34997 772-220-7777

Pace’s Minn Kota Service Center 3618-B Fowler St Ft Myers 33901 239-939-9851

Trolling Motor Service 4125 Blanding Blvd Jax 32210 904-573-0480

KENTUCKY

Wayne Co. Marine Rt 1 Box 290-A Monticello 42633 606-348-5483

MICHIGAN

Cannon Service Center 2080 Lakeshore Dr. Muskegon 49441 231-731-8352

MICHIGAN (continued)

Trolling Motor Repair 119 E Main St Box 77 Kingsley 49649 231-263-5998

Coastline Power & Lighting, LLC 8338 Anchor Bay Dr Algonac 48001 810-794-5951

MINNESOTA

Electrotech 1332 E. 4th St. Duluth 55805 218-727-8919

Lake of the Woods Marine 3208 Bur Oak Rd Baudette 56623 213-634-2289

NEVADA

Pyramid Lake Store 29555 Pyramid Hwy Sutcliff 89510 775-476-0555

NEW HAMPSHIRE

Paugus Bay Sporting Goods 135 Weirs Blvd Laconia 03246 603-524-4319

NEW JERSEY

Sportsman Center Rt. 130 Bordentown 08505 609-298-5300

NEW YORK

A & P Custom Tackle 155 Hidley Rd Wynantskill 12198 518-283-5920

Bill’s Hooks 5139 W Lake Rd Dunkirk 14048 716-366-0268

NEW YORK (continued)

Fish307.Com 1571 State Rt. 9 Lake George 12845 518-798-9203

Screwy Louie’s 596 Main St. PO Box 37 Fairhaven 13064 315-947-6348

Tony’s Reel Repair 7686 Michael Rd Orchard Park 14127 716-662-5692

NORTH CAROLINA

Fisherman’s Friend 1401 S Ridge Ave Kannapolis 28083 704-934-2122

OREGON

Ollie Damon’s 236 SE. Grand Ave. Portland 97214 503-232-3193

PENNSYLVANIA

Dave’s Sport Center 1127 N. Easton Rd. Doylestown 18902 215-766-8000

SOUTH CAROLINA

Port-Tronics 1904 Piedmont Hwy. Greenville 29605 864-299-1432

SOUTH DAKOTA

Pierre Sports Center 1440 N. Garfield Pierre 57501 605-224-5546

TEXAS

Bob Ridgway Repair 605 W. Mockingbird Dallas 75247 214-630-8161

UTAH

Swede R’s at Croft Power Equipment 596 W. 1500 St. Woods Cross 84087 801-397-1675

VERMONT

Vermont Home & Marine 323 Industrial Ave. Williston 05487 802-658-5427

VIRGINIA

Queen’s Creek Reel & Downrigger Intersection of Routes 3 & 198 PO Box 900 Cobbs Creek 23035 804-725-3889

WASHINGTON

Pacific NW Downrigger Repair 45795 Geo Star Rd. PO Box 238 Grand Coulee 99133 509-633-0708

Northern Sales 510 E. College Way Mount Vernon 98273 360-424-8522

DROP OFF LOCATIONS

The Duffle Bag 8207 S. Tacoma Way Lakewood, WA 98499

Jerry’s Surplus 2031 Broadway Everett, WA 98201

WISCONSIN

Howie’s Tackle 223 Greenbay Rd. Sturgeon Bay 54235 920-746-9916

For a current list of authorized Cannon Service Centers, including those outside of the US and Canada, please see our web page at

www.cannondownriggers.com.

EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264

WARNING: This product contains chemical(s) known to the state of California to cause cancer and/or reproductive toxicity.

Form No. 339-7103 Rev 07/07

Form No. 3394905 Rev 12/06

UNI-TROLL 10

1901100

Form No. 3394905 Rev 12/06

21 0467695 BRAKE PLATE - REEL 49 0269726 ►PULLY - SWIVEL HEAD 77 2267006 >INDEXING PLATE (TAPPED)

22 1264670 CLUTCH PAD 50 3397300 ►WASHER - .735 OD X .36 ID 78 2277001 >NUT - RETAINER RELEASE

23 0467694 BRAKE PLATE - RATCHET 51 9010070 ►HDW BEARING BRASS[2.EA] 79 2287002 >SPRING - RELEASE PIN

24 1000904 SHAFT - RATCHET - UNI-TROLL 52 2227820 BOOM END - TELESCOPIC (LEXAN) 80 2372100 >SCREW - #8 x 5/8" PPHMS [2.EA]

25 9010310 WASHER - THRUST [2.EA] 53 2372100 SCREW - #8 x 5/8" PPHMS 81 3392600 >RELEASE PIN

26 9010280 BEARING - THRUST 54 3307002 LOW PROFILE MOUNTING BASE (LEXAN) 82 9010004 >BEARING - SWIVEL BASE [2.EA]

27 9400040 SPRING - HAND CRANK 55 2994894 *BAG ASSEMBLY, MOUNTING (KIT #4)

28 0902000 CRANK HANDLE - UNI-TROLL 56 2263102 NUT - HEX 1/4"-20 [4.EA]

> PART OF ASSEMBLY ►ITEM CANNOT BE SOLD SEPARATELY * PARTS USED BUT NOT SHOWN

20 9100070 CABLE LEADER SLEEVE 48 0267002 ►SIDE PLATE (LH) 76 2267002 >SWIVEL PLATE (LEXAN)

16 3397904 ►REEL - ROUGH 5.75" 44 9430160 >WASHER - STAR 5/16" 72 2290830 ►BOOM END TUBE (BLACK)

13 3333003 GEAR - COUNTER, UNI-TROLL 41 3319005 >CLAMP - ROD HOLDER w/ SLOT 69 2222826 >BASE TUBE COLLET

14 3397913 REEL ASSEMBLY - UNI-TROLL HIGH SPEED 42 3325002 >DISK - ROD HOLDER 70 2290828 ►BOOM BASE TUBE (BLACK)

15 3333004 >GEAR - REEL, UNI-TROLL 43 9040310 >BOLT - HEX 5/16"-18 x 2" 71 2290829 ►BOOM MID TUBE (BLACK)

17 1080001 SHAFT - REEL, UNI-TROLL 45 2277002 >UNIVERSAL LINE RELEASE 73 2998905 SWIVEL BASE

18 3393412 SCREW - SET 5/16"-18 x 1" (REEL) 46 3992300 SWIVEL HEAD ASSEMBLY 74 2249001 >KNOB - RELEASE PIN (LEXAN)

19 3775396 SPOOL CABLE SS [200.FT] 47 0267001 ►SIDE PLATE (RH) 75 2267001 >BASE PLATE (LEXAN)

10 3356052 BASE LATCH TAB 38 0290796 >TUBE - ROD HOLDER 66 2219822 >BASE TUBE CLAMP

11 9370010 SCREW - #4 x 1/2" PPH [2.EA] 39 2151726 >WASHER - 5/16" FLAT 67 2219823 >MID TUBE CLAMP

12 0220477 DEPTH COUNTER - 3 DIGIT 40 2383106 >NUT - 5/16"-18 SS 68 2222825 >MID TUBE COLLET

7 9430003 WASHER - 5/8" ID (NYLON) [2.EA] 35 3395631 DECAL - CANNON SMALL 63 9370010 SCREW - #4 x 1/2" PPH [3.EA]

8 3356050 BASE LATCH 36 3395630 DECAL - CANNON LARGE 64 9950357 WASHER - LOCK 1/4" SPLIT [4.EA]

9 9400050 SPRING - BASE LATCH 37 2477001 BAG ASSY - SINGLE ROD HOLDER 65 2210821 TELESCOPIC BOOM

In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept., 121 Power Drive, Mankato, Minnesota 56001. In Canada, parts may be ordered from any of the Canadian Authorized Service Centers shown on the enclosed list. Be

sure to provide the MODEL and SERIAL numbers of your downrigger when ordering parts. Please use the correct part numbers from the parts list. Payment for any parts ordered from the CANNON parts department, may be by cash, personal check,

Discover Card, MasterCard or VISA. To order, call 1-800-227-6433 or FAX 1-800-527-4464.

1 3330002 FRAME - UNI-TROLL 29 3321001 COVER - CLUTCH, ROUND (LEXAN) 57 2371712 WASHER - 9/32" FLAT [4.EA]

2 3327004 DECAL - NOSE, UNI-TROLL 30 9250003 PIN - DOWEL 3/16" x 7/8" - RATCHET 58 9100100 TERMINATOR

3 9040040 HOOK - 1/4" - 20 ROLLED 31 9400070 SPRING - DOG RATCHET 59 9100101 TERMINATOR CUSHION

4 2263102 NUT - HEX 1/4"-20 32 9100160 DOG - RATCHET 60 9100620 TERMINATOR SNAP & SWIVEL

5 9280750 SCREW - 1/4" - 20 (RH) x 3/4" PPH 33 9370001 SCREW - #10 x 1-1/4" PPHSMS [4.EA] 61 9280713 BOLT - TRUSS 1/4" - 20 x 1-1/2" [4.EA]

6 9010001 BEARING - REEL SHAFT NYLINER [2.EA] 34 9100721 RED THREAD CAP 62 9280725 BOLT - TRUSS 1/4" - 20 x 2-1/2" [4.EA]

Form No. 3394913 Rev 12/06

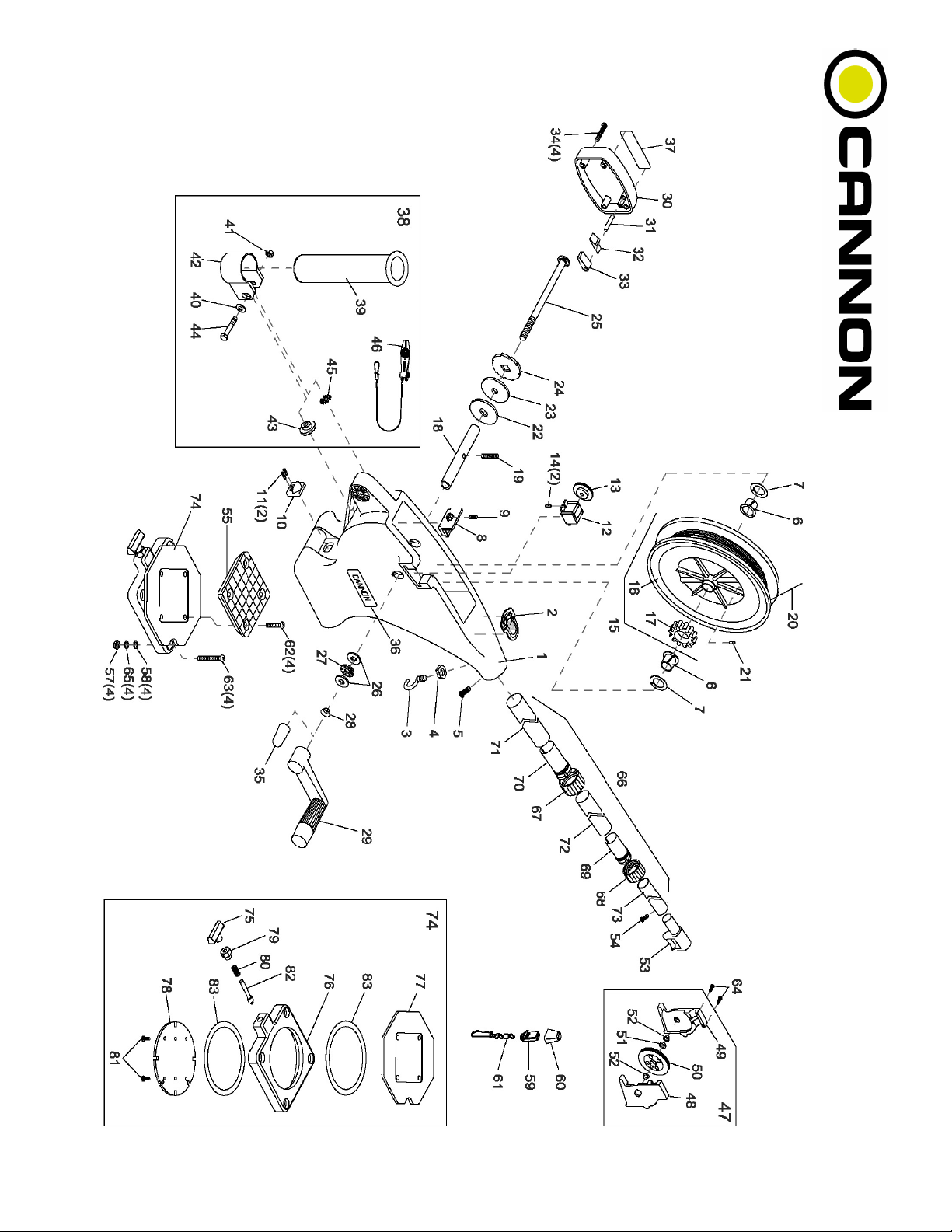

UNI-TROLL 10 METRIC

1901101

28 9400040 SPRING - HAND CRANK 56 2994894 *BAG ASSEMBLY, MOUNTING (KIT #4)

24 0467694 BRAKE PLATE - RATCHET 52 9010070 ►HDW BEARING BRASS[2.EA] 80 2287002 >SPRING - RELEASE PIN

23 1264670 CLUTCH PAD 51 3397300 ►WASHER - .735 OD X .36 ID 79 2277001 >NUT - RETAINER RELEASE

22 0467695 BRAKE PLATE - REEL 50 0269726 ►PULLY - SWIVEL HEAD 78 2267006 >INDEXING PLATE (TAPPED)

21 9100070 CABLE LEADER SLEEVE 49 0267002 ►SIDE PLATE (LH) 77 2267002 >SWIVEL PLATE (LEXAN)

25 1000904 SHAFT - RATCHET - UNI-TROLL 53 2227820 BOOM END - TELESCOPIC (LEXAN) 81 2372100 >SCREW - #8 x 5/8" PPHMS [2.EA]

26 9010310 WASHER - THRUST [2.EA] 54 2372100 SCREW - #8 x 5/8" PPHMS 82 3392600 >RELEASE PIN

27 9010280 BEARING - THRUST 55 3307002 LOW PROFILE MOUNTING BASE (LEXAN) 83 9010004 >BEARING - SWIVEL BASE [2.EA]

> PART OF ASSEMBLY ►ITEM CANNOT BE SOLD SEPARATELY * PARTS USED BUT NOT SHOWN

20 3775396 SPOOL CABLE SS [200.FT] 48 0267001 ►SIDE PLATE (RH) 76 2267001 >BASE PLATE (LEXAN)

15 3374010 REEL ASSY - HS ELECTRIC (METRIC) 43 3325002 >DISK - ROD HOLDER 71 2290828 ►BOOM BASE TUBE (BLACK)

16 0274732 ►REEL - ROUGH 3.75" 44 9040310 >BOLT - HEX 5/16"-18 x 2" 72 2290829 ►BOOM MID TUBE (BLACK)

12 3320011 DEPTH COUNTER - 3 DIGIT (METRIC) 40 2151726 >WASHER - 5/16" FLAT 68 2219823 >MID TUBE CLAMP

13 3333010 COUNTER GEAR (METRIC) 41 2383106 >NUT - 5/16"-18 SS 69 2222825 >MID TUBE COLLET

14 0854654 COUNTER CUSHION/STOPPER [2.EA] 42 3319005 >CLAMP - ROD HOLDER w/ SLOT 70 2222826 >BASE TUBE COLLET

17 3333011 >GEAR - REEL (METRIC) 45 9430160 >WASHER - STAR 5/16" 73 2290830 ►BOOM END TUBE (BLACK)

18 1080001 SHAFT - REEL, UNI-TROLL 46 2277002 >UNIVERSAL LINE RELEASE 74 2998905 SWIVEL BASE

19 3393412 SCREW - SET 5/16"-18 x 1" (REEL) 47 3992300 SWIVEL HEAD ASSEMBLY 75 2249001 >KNOB - RELEASE PIN (LEXAN)

10 3356052 BASE LATCH TAB 38 2477001 BAG ASSY - SINGLE ROD HOLDER 66 2210821 TELESCOPIC BOOM

11 9370010 SCREW - #4 x 1/2" PPH [2.EA] 39 0290796 >TUBE - ROD HOLDER 67 2219822 >BASE TUBE CLAMP

7 9430003 WASHER - 5/8" ID (NYLON) [2.EA] 35 9100721 RED THREAD CAP 63 9280725 BOLT - TRUSS 1/4" - 20 x 2-1/2" [4.EA]

8 3356050 BASE LATCH 36 3395631 DECAL - CANNON SMALL 64 9370010 SCREW - #4 x 1/2" PPH [3.EA]

9 9400050 SPRING - BASE LATCH 37 3395630 DECAL - CANNON LARGE 65 9950357 WASHER - LOCK 1/4" SPLIT [4.EA]

4 2263102 NUT - HEX 1/4"-20 32 9400070 SPRING - DOG RATCHET 60 9100101 TERMINATOR CUSHION

5 9280750 SCREW - 1/4" - 20 (RH) x 3/4" PPH 33 9100160 DOG - RATCHET 61 9100620 TERMINATOR SNAP & SWIVEL

6 9010001 BEARING - REEL SHAFT NYLINER [2.EA] 34 9370001 SCREW - #10 x 1-1/4" PPHSMS [4.EA] 62 9280713 BOLT - TRUSS 1/4" - 20 x 1-1/2" [4.EA]

provide the MODEL and SERIAL numbers of your downrigger when ordering parts. Please use the correct part numbers from the parts list. Payment for any parts ordered from the CANNON parts department, may be by cash, personal check, Discover Card,

MasterCard or VISA. To order, call 1-800-227-6433 or FAX 1-800-527-4464.

1 3330002 FRAME - UNI-TROLL 29 0902000 CRANK HANDLE - UNI-TROLL 57 2263102 NUT - HEX 1/4"-20 [4.EA]

2 3327004 DECAL - NOSE, UNI-TROLL 30 3321001 COVER - CLUTCH, ROUND (LEXAN) 58 2371712 WASHER - 9/32" FLAT [4.EA]

3 9040040 HOOK - 1/4" - 20 ROLLED 31 9250003 PIN - DOWEL 3/16" x 7/8" - RATCHET 59 9100100 TERMINATOR

Form No. 3394913 Rev 12/06

Form No. 3394914 Rev 12/06

UNI-TROLL 10 TS

1901110
