Cannon CANTFS-03-NG, CANTFS-03-LP User Manual
Cannon
FREESTANDING
MODELS
CANTFS-03-NG
CANTFS-03-LP
USER INSTRUCTIONS
INSTALLATION INSTRUCTIONS
SERVICE INSTRUCTIONS
This heater is approved for use with Natural and Propane gases.
Please leave instructions with the owner
Contents
Contents 2
Warranty 3
❍ Distributor
Safety warnings 4-5
❍ What to do if you smell gas
❍ Warnings
❍ Standards
User instructions 6-8
❍ Operating instructions
❍ Flame characteristics
❍ Cleaning
Heater specifications 9
Installation instructions 10-15
❍ Clearances
❍ Installation
❍ Gas connection
❍ Log installation
❍ Gas control
❍ Gas pressure point
❍ Installation tips

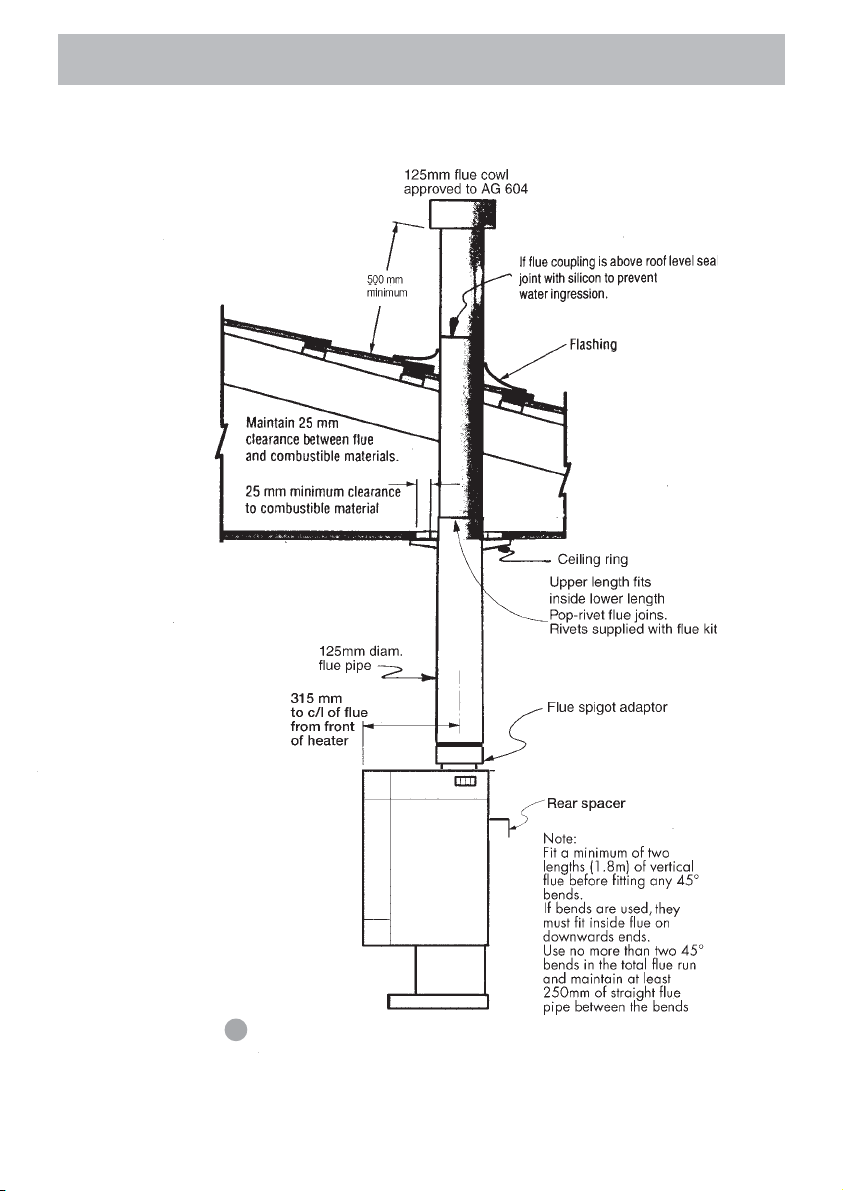

Flue installation - Standard flue kit 16-17
❍ Flue kit
Alternative double skin flue installation 18-19
❍ Alternative flue kit
Service instructions 20-21
❍ General
❍ Access to components
❍ To replace primary glass
❍ To replace the gas control
❍ To replace the fan
❍ To replace the electronic controller
❍ To remove the burner and electrodes
❍ Wiring diagram
❍ Data label
❍ For service to this appliance
Trouble shooting 22-23
❍ Connections
2
Warranty
The Cannon appliance is warranted against defects in materials and workmanship for a period of one, (1) year from its date of original purchase, for
residential use in Australia.
Warranty service, which includes parts and labour for the replacement or
repair of defective parts, is available through the CANNON distributor.
(Details below or on page 21).
Consumers are responsible for service person’s travel outside normal service areas (approximately seventy (70k) radius from the nearest Cannon
dealer’s location), local cartage, and normal maintenance as described in
this manual.
Any product subjected to misuse, abuse, negligence, accident or alteration
will have its warranty voided. The defacement of serial plate will have its
warranty voided.
If installation is not carried out in accordance with manufacturer’s instructions, this warranty may be void.
The customer must keep their “Tax Invoice” as proof of purchase of this
product, and compliance certificate as proof of required installation.
Model number: ______________________________________
Serial number: _______________________________________
Date of manufacture: _________________________________
Date installed: _______________________________________
Compliance Certificate No: ____________________________
Don’t risk your appliance warranty
Only a licensed person will give you a Compliance Certificate,
showing that the work complies with all the relevant standards.
And only a licensed person will have insurance protecting their
workmanship for 6 years.
So make sure you use a licensed person to install this appliance
and ask for your Compliance Certificate to ensure the manufacturers appliance warranty will be honoured.
Distributor
This appliance is designed, manufactured and distributed by:
Tel: 1300 727 421
3
Safety warnings
Please read this manual before installing and using the heater.
What to do if you smell gas
1. Turn OFF the main gas supply.
2. Extinguish any open flame.
3. Open windows.
4. Do not touch electrical switches.
5. Do not use your telephone.
6. Call your gas supplier immediately from a neighbour’s phone.
Warnings
1. Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to other sections of this
manual for correct procedures, or consult with place of purchase, a
licensed plumber, a gas supplier or the CANNON distributor listed
in this manual.
2. Do not build the heater into bookcases or walls. Install only in locations as referred to in these installation instructions.
3. Due to high temperatures the room heater should be located out of
traffic and away from:
• Furniture and draperies,
• Combustible materials,
• Gasoline and other flammable liquids,
Do not place clothing or other flammable material on or near the
heater.
4. Keep curtains*, clothing, furniture and other flammable materials at
least 900mm from front, rear and sides of the heater.
* At the owner’s discretion curtain clearance can be less than 900mm
as long as they are restrained from the front, top and sides of the
heater. The manufacturer takes no responsibility if curtain clearance is
less than 900mm and not restrained.
5. Children and adults should be alerted to the hazard of high surface
temperature and should take care to avoid burns or clothing ignition.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (IN-
CLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR
MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO
NOT PLAY WITH THE APPLIANCE.
6. Never attempt to burn paper or any other material in the heater.
4
7. Do not spray aerosols in the vicinity of this appliance while it is in
operation.
Do not place articles on or against this appliance.
Do not use or store flammable materials near this appliance.
8. This heater is not intended for use in a marine environment.
9. If removed, the glass window must be put back onto the unit prior to
operating the heater.
10. Installation and repairs should be performed by a licensed service
person only, refer to page 21 for service number.
11. The appliance should be inspected prior to use, with regular inspections (annually) to be made by a licensed service person. It is important
that circulating air passageways of the appliance be kept clean, dirt
and lint free, for a safe and efficient operation of the heater.
12. On first lighting your heater a smell may occur due to its new condition. This is quite normal and will disappear after a few hours use at
the maximum control position.
13. Testing the effectiveness of the flue.
Before testing the flue, confirm air vents are unobstructed. If an exhaust
fan or other heating appliances are present switch them on. This is to
test that there is no interaction between the Cannon heater and other
appliances.
Refer AS5601.
For ‘air movement not to affect appliance’ see clause 5.3.1.
For ‘air supply to appliance’ see clause 5.4.1.
For ‘ventilation requirements’ see clause 5.4.3.
Important:
WHEN THE HEATER IS OPERATING THE GLASS FRONT IS HOT. A safety
guard conforming to Australian Standards requirements is available for this
heater. It is an optional extra, which may be fitted to the heater to reduce
the risk of fire or injury from burns. Its fitting is recommended when there are
children present. For permanent protection of young children or the infirm,
an optional mesh guard is recommended. Call your retailer or CANNON
distributor for further details.
Standards
This appliance meets the following standards:
Standards Australia: AS 3100
AS 5601
AS 4553/AG 103
5
User instructions
Operating instructions
1. Plug the power cord into the wall socket and turn on the power to the
heater, see figure 1. Use of an extension cord is not recommended.
1
2. For control lay-out refer to figure 2
2
3. To turn heater on press switch to POWER ON position. There is a 5
second delay before the burner ignites. At this setting the burner is on
LOW and the fan speed is on LOW. Refer figure 3.
The burner will ignite on both HIGH and LOW settings.
3
4. To turn burner to HIGH setting, press switch for HIGH setting. Refer
figure 4.
4
6
5. To increase the fan speed to MED, press switch for MED setting. Refer
figure 5.
5
6. To increase the fan speed to HIGH, press switch for HIGH setting.
Refer figure 6.
6
7. To turn the burner to LOW setting, press switch for LOW setting. Refer
figure 7.
On low burner setting it is more efficient to operate the fan speed on
LOW.
7
8. If the burner fails to ignite, wait 20 seconds and repeat the ignition
procedure. See below.
To turn burner OFF To turn burner ON
9. In case of power failure return the switches to the OFF setting (refer
figure 2). When the power returns wait 20 seconds for any unburnt
gas to vent and start re-ignition as per point 3.
7
Flame characteristics
The heater flame should be stable, no lifting from the burner and the logs
should glow after approximately 15 minutes operation on HIGH setting.
The heater is a fuel effect unit and is designed to operate with luminous
flames and may exhibit slight carbon deposits on the logs. If there is any
excess carbon build-up on the logs, or the burner flame is unstable, contact
Sampford IXL in your state. (See phone contact on page 21.
For service to this appliance refer page 21 for contact details.
Cleaning.
All cleaning should be carried out when the heater is cold. Normally the
heater should only need wiping with a lint - free damp cloth. Any stubborn
stains can be removed with a non-abrasive spray on cleaner. If an abrasive
cleaner is used the paint finish will be damaged.
Internally the heater should only be cleaned by a licensed service person
listed in this manual.
If your heater requires attention contact your supplier or licensed service
person listed in this manual.
Important:
The appliance should be inspected before use and at least annually by an
authorised service person. More frequent cleaning may be required due to
excessive lint build-up from carpeting, bedding materials, pet hair, etc.
It is imperative that the control compartment and circulating air passage
ways of the appliance be kept clean.
Do not use this fire if the glass is cracked or with the glass safety screen
removed.
Do not use fire with broken or missing logs.
8
