Candy GV4 117D2 Operating Instructions

Thank-you for choosing a Candy washing machine. We are confident it will loyally assist you in safely washing your clothes, even delicates, day after day.

You can register your product at www.registercandy.com to gain faster access to supplementary services solely reserved to our most loyal customers.

Carefully read this manual for correct and safe appliance use and for helpful tips on efficient maintenance.

Only use the washing machine after carefully reading these instructions. We recommend you always keep this manual on hand and in good conditions for any future owners.

Please check that the appliance is delivered with this instruction manual, warranty certificate, service centre address and energy efficiency label. Also check that plugs, curve for drain hose and liquid detergent or bleach tray (only on some models) are included. We recommend you keep all these components.

Each product is identified by a unique 16character code, also called the “serial number”, printed on the sticker affixed to the appliance (porthole area) or in the document envelope found inside the product. This code is a sort of specific product ID card that you will need to register it and should you need to contact the Candy Customer Service Centre.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. GENERAL SAFETY RULES

2. INSTALLATION

3. PRACTICAL TIPS

4. MAINTENANCE AND CLEANING

5. QUICK USER GUIDE

6. CONTROLS AND PROGRAMS

7. CUSTOMER SERVICE CENTRE AND

WARRANTY

Environmental conditions

Contents

1. GENERAL SAFETY RULES

! This appliances is intended to be

used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

! This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

! Children should be supervised to

ensure that they do not play with the appliance.

! Children of less than 3 years

should be kept away unless continuously supervised.

! If the supply cord is damaged, it

must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

! Only use the hose-sets supplied

with the appliance for the water supply connection (do not reuse old hose-sets).

! Water pressure must be between

0,05 MPa and 0,8 MPa.

! Make sure that a carpet do not

obstruct the base of the machine and ventilation openings.

! The OFF condition is reached by

placing the reference mark on the programmes control/knob in the vertical position. Any other different position of such control sets the machine in ON condition.

! After installation, the appliance

must be positioned so that the plug is accessible.

! The maximum load capacity of

dry clothes depends on the model used (see control panel).

! To consult the product fiche please

refer to the manufacturer website.

! Before cleaning or maintaining the

washing machine, unplug the appliance and turn off the water faucet.

! Make sure the electrical system is

grounded. Otherwise, seek qualified professional assistance.

! Please do not use converters,

multiple sockets or extension cords.

! Make sure there is no water in the

drum before opening the porthole.

! Do not pull on the power cord or

appliance to unplug the machine.

! Do not expose the washing

machine to rain, direct sunlight or other weather elements.

! When moving, do not lift the

washing machine by the knobs or detergent drawer; during transport, never rest the porthole on the trolley. We recommend two people lift the washing machine.

! In the event of fault and/or

malfunction, turn off the washing machine, close the water faucet and do not tamper with the appliance. Immediately contact the Customer Service Centre and only use original spare parts. Failure to observe these instruction may jeopardise appliance safety.

Appliance complies with European Directives:

! 2006/95/EC (LVD); ! 2004/108/EC (EMC); ! 2009/125/EC (ErP); ! 2011/65/EU (RoHS)

and subsequent amendments.

Safety instructions

WARNING:

water may reach very high temperatures during the wash cycle.

2. INSTALLATION

! Cut the tube straps, being careful

not to damage the tube and power cord.

! Unscrew the 2 or 4 screws (A) on

the back and remove the 2 or 4 shims (B) as illustrated in figure

! Close the 2 or 4 holes using the

plugs included in the instruction envelope.

! If the washing machine is built-in,

after cutting the hose straps, unscrew the 3 or 4 screws (A) and remove the 3 or 4 shims (B).

! In some models, 1 or more

shims will fall inside the machine: tilt the washing machine forward to remove them. Close the holes using the plugs found in the envelope.

! Place the polionda sheet on the

bottom as shown in figure 2 (according to the model, consider version A, B or C).

WARNING: keep packaging materials away from children.

! Connect the water tube to the faucet, only

using the drain tube supplied with the washing machine (fig. 3).

DO NOT OPEN THE FAUCET.

! Some models may include one or more of

the following features:

! HOT&COLD (fig. 4):

water mains connection settings with hot and cold water for higher energy savings. Connect the grey tube to the cold water faucet

and the red one to the hot water faucet. The machine can be connected to the cold water faucet only: in this case, some programs may start a few minutes later.

! AQUASTOP (fig. 5):

a device located on the supply tube that stops water flow if the tube deteriorates; in this case, a red mark will appear in the window “A” and the tube must be replaced. To unscrew the nut, press the one-way lock device "B".

! AQUAPROTECT – SUPPLY TUBE WITH

GUARD (fig. 6):

Should water leak from the primary internal tube "A", the transparent containment sheath "B" will contain water to permit the washing cycle to complete. At the end of the cycle, contact the Customer Service Centre to replace the supply tube.

! Near the washing machine to the wall,

being careful that the tube is not bent or crushed, and place the drain tube in the tub or, preferably, connect it to a wall drain at least 50 cm high with diameter greater than the washing machine tube (fig. 7).

min 50 cm max 85 cm

+2,6 mt

max

max 100 cm

min 4 cm

Hydraulic connections

Setting

! Level the appliance using the feet as

illustrated in figure 8: a. turn the nut clockwise to release the

screw;

b. rotate the foot to raise or lower it until it

adheres to the floor;

c. lock the foot, screwing in the nut, until it

adheres to the bottom of the washing machine.

! Plug in the appliance.

The detergent draw is split into 3 compartments as illustrated in figure 9:

! compartment "1": for prewash detergent; ! compartment “ ”: for special additives,

softeners, starch fragrances, etc.;

! compartment "2": for washing detergent.

A liquid detergent cup is also included in some models (fig. 10). To use it, place it in compartment "2". This way, liquid detergent will only enter the drum at the right time. The cup can also be used for bleach when the “Rinse” program is selected.

WARNING: contact the Customer Service Centre should the power cord need replacement.

Detergent drawer

WARNING: only use liquid products; the washing machine is set to automatically dose additives at each cycle during the last rinse.

WARNING: some detergents are hard to remove. In this case we recommend using the specific container to be placed in the drum (example in figure 11).

3. PRACTICAL TIPS

WARNING: when sorting laundry, make sure:

- have eliminated metallic objects such as barrettes, pins, coins, from laundry;

- to have buttoned pillow cases, closed zips, tied loose belts and long robe ribbons;

- to have removed rollers from curtains;

- to have carefully read clothing washing labels;

- to have removed any persistent stains using specific detergents.

! When washing rugs, bedcovers or other

heavy clothing, we recommend you avoid centrifuging.

! To wash wool, make sure the item can be

machine washed and marked by the “Pure virgin wool” symbol with the “Does not mat” or “Machine washable” label.

A guide environmentally friendly and economic use of your appliance.

Maximise The Load Size

! Achieve the best use of energy, water,

detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads.

Do you need to pre-wash?

! For heavily soiled laundry only!

SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

Is a hot wash required?

! Pretreat stains with stain remover or soak

dried in stains in water before washing to reduce the necessity of a hot wash programme. Save up to 50% energy by using a 60°C wash programme.

Following is a quick guide with tips and recommendations on detergent use at the various temperatures. In any case, always read the instructions on the detergent for correct use and doses.

Load tips

Helpful suggestions for the user

When washing heavily soiled whites, we recommend using cotton programs of 60°C or above and a

normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results.

For washes between 40°C and 60°C the type of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal powders are suitable for “white” or colour fast fabrics with high soiling, while liquid detergents or “colour protecting” powders are suitable for coloured fabrics with light levels of soiling.

For washing at temperatures below 40°C we recommend the use of liquid

detergents or detergents specifically labeled as suitable for low temperature washing.

For washing wool or silk, only use detergents specifically formulated for these fabrics.

4. MAINTENANCE AND CLEANING

To clean the washing machine exterior, use a damp cloth, avoiding abrasives, alcohol and/or solvents. The washing machine does not require any special care for ordinary cleaning: clean drawer compartments and the filter; some tips on how to move the machine or on long periods of disuse are provided below.

! We recommend you clean the drawer to

avoid accumulating detergent and additive residue.

! To do this, extract the drawer using slight

force, clean it with running water and reinsert it in its housing.

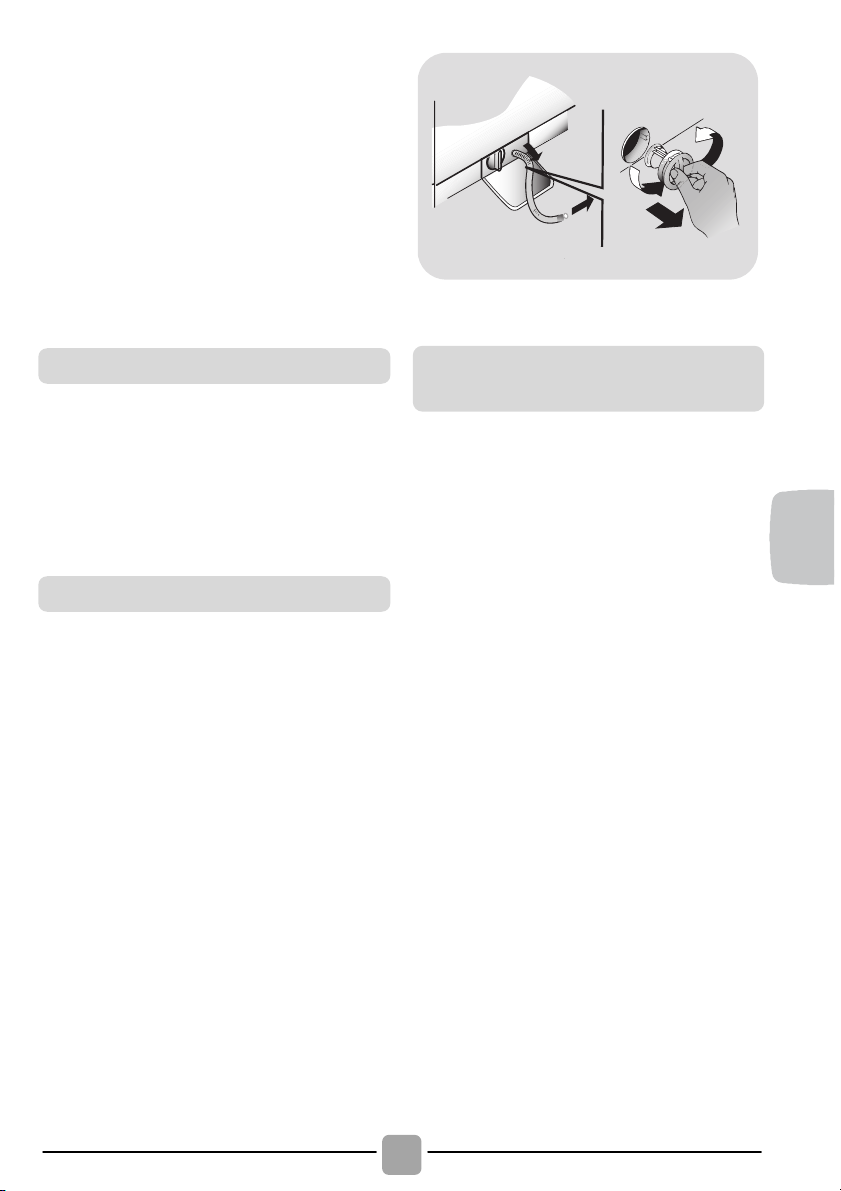

! The washing machine comes with a

special filter able to trap large residue, such as buttons or coins, which could clog the drain.

! Only available on certain models: pull out

the corrugated hose, remove the stopper and drain the water into a container.

! Before unscrewing the filter, we

recommend you place an absorbent cloth under it to keep the floor dry.

! Turn the filter counter-clockwise to the

limit stop in the vertical position.

! Remove and clean the filter; when

finished, replace it turning it clockwise.

! Repeat the previous steps in reverse

order to reassemble all parts.

! Should the washing machine be stored in

an unheated room for a long period of time, drain all water from tubes.

! Unplug the washing machine. ! Detach the tube from the strap and lower

it, fully draining water into a bowl.

! Secure the drain tube with the strap when

finished.

Drawer cleaning

Filter cleaning

Suggestions for moves or prolonged disuse

5. QUICK USER GUIDE

This washing machine automatically adapts the level of the water to the type and quantity of washing. This system gives a decrease in energy consumption and a sensible reduction in washing times.

! Turn on the washing machine and select

the required program.

! Adjust the washing temperature if

necessary and press the required "option" buttons.

! Press the START/PAUSE button to start

washing.

Should power go out when the washing machine is running, a special memory saves the settings and, when power returns, the machine resumes the cycle from where it left off.

! The message "end" will appear on the

display or the corresponding led will turn on at the end of the program.

! Turn off the washing machine.

For any type of wash, see the program table and follow the operating sequence as indicated.

Water pressure:

min 0,05 Mpa max 0,8 Mpa

Spin r.p.m.:

See rating plate.

Power input / Power current fuse amp / Supply voltage:

See rating plate.

6. CONTROLS AND PROGRAMS

DCEFGH

MNOP

Programme selector with OFF position

START/PAUSE button

DELAY START button

PREWASH button

EASY IRON button

SPIN SELECTION button

TEMPERATURE SELECTION button

RAPID button

Digital display

BUTTONS indicator lights

DOOR LOCKED indicator light

SPIN SELECTION indicator lights

TEMPERATURE SELECTION indicator lights

RAPID indicator lights

Program selection

Wait until the porthole locked light turns off: about 2 minutes after the program ends.

Technical data

! Press the START/PAUSE button to start

the selected cycle.

! Once a programme is selected the

programme selector remains stationary on the selected programme till cycle ends.

! Switch off the washing machine by

turning the selector to OFF.

! Press to start the selected cycle.

ADD OR REMOVE ITEMS AFTER THE PROGRAMMES HAS STARTED (PAUSE)

! Press and hold the START/PAUSE

button for about 2 seconds (some indicator light and the time remaining indicator will flash, showing that the machine has been paused).

! Wait 2 minutes until the safety device

unlocks the door.

! After you have added or removed items,

close the door and press the START/PAUSE button (the programme will start from where it left off).

CANCELLING THE PROGRAMME

! To cancel the programme, set the

selector to the OFF position.

! Select a different programme.

! Re-set the programme selector to the

OFF position.

! This button allows you to pre-programme

the wash cycle to delay the start of the cycle for up to 24 hours.

! To delay the start use the following

procedure:

- Set the required programme.

- Press the button once to activate it (h00

appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display). The pre-set delay increases by 1 hour each time the

Opening the door

A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the "Door Security" light has gone out before opening the door.

PROGRAMME selector with OFF position

When the programme selector is turned the display lights up to show the settings for the programme selected. For energy saving, at the end of the cycle or with an inactivity period, the display level contrast will decrease.

N.B.: To switch the machine off, turn the programme selector to the OFF position.

The programme selector must be returned to the OFF position at the end of each cycle or when starting a subsequent wash cycle prior to the next programme being selected and started.

START/PAUSE button

Close the door BEFORE selecting the button START/PAUSE.

When the START/PAUSE button has been pressed, the appliance can take few seconds before it starts working.

DELAY START button

button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

- Confirm by pressing the START/PAUSE

button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.

! It is possible to cancel the delay start by

turning the programme selector to OFF.

If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left OFF.

It allows you to do a preliminary wash at the beginning of the cycle. The temperature does not exceed 40°C and in any case it does not exceed the maximum temperatures of the selected washing program (ex. the temperature of HAND program will be 30°C.

This function minimizes creases as much as possible. It can be used on "mixed" "delicate" and "wool" programmes, it eliminates the intermediate spins. On the mixed programme the option reduces the duration of the last spin, on the delicate and wool one, the machine will not drain and spin until the button is switched off.

! By pressing this button, it is possible to

reduce the maximum speed, and if you wish, the spin cycle can be cancelled.

! To reactivate the spin cycle press the button

until you reach the spin speed you would like to set.

! It is possible to modify the spin speed

without pausing the machine.

When you select a program, the light illuminates the recommended temperature. It is also possible to change the temperature but not over the maximum in order to save the fabrics.

The button becomes active when you select the RAPID program on the knob; it allows you to select one of three durations indicated.

The option buttons should be selected before pressing the START/PAUSE button. If an option is selected that is not compatible with the selected programme then the option indicator first flashes and then goes off.

PREWASH button

EASY IRON button

During this last phase, the light flashes indicating that the machine is in pause. Deselecting the button, the washing cycle will be complete.

SPIN SELECTION button

To prevent damage to the fabrics, it is not possible to increase the speed over that which is automatically suitable during the selection of the program.

The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

TEMPERATURE SELECTION button

RAPID button

The display’s indicator system allows you to be constantly informed about the status of the machine.

333

1) DOOR LOCKED INDICATOR LIGHT

! The indicator light is illuminated when the

door is fully closed.

! When START/PAUSE is pressed on

the machine with the door closed, the indicator will flash momentarily and then illuminate.

! A special safety device prevents the door

from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the DOOR LOCKED light has gone out before opening the door. At the end of the cycle turn the programme selector to OFF.

2) CYCLE DURATION

! When a programme is selected the

display automatically shows the cycle duration, which can vary, depending on the options selected.

! Once the programme has started you will

be kept informed constantly of the time remaining to the end of the wash.

! The appliance calculates the time to the

end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

3) BUTTONS INDICATOR LIGHTS

! These light up when the relevant buttons

are pressed.

! If an option is selected that is not

compatible with the selected programme then the light on the button first flashes and then goes off.

Digital Display

Close the door BEFORE selecting the START/PAUSE button.

If the door is not properly closed, the light will continue to flash for about 7 seconds, after which the start command will be automatically delete. In this case, close the door in the proper way and press the START/PAUSE button.

PROGRAM

kg *

(MAX.)

TEMP.°C

DETERGENT

Recommended

Max.

2 1

1 1 1

1,5

30°

Rapid

(14’ – 30’ – 44’)

1,5 2 2,5

2,5

30°

3 3 3,5

3,5

30°

40°

Mix & Wash

5 6 7

40°

Whites

5 6 7

60°

90°

( )

Mixed

2,5 3 3,5

40°

60°

( )

Jeans

3 3 3

40°

Baby

3,5 4 4,5

5,5

60°

Hygiene

5 6 7

60°

Rinse

- - -

Drain + Spin

- - -

- - Silk

1 2 2

30°

Hand

1 2 2

30°

Wool

1 2 2

40°

Delicates

2 2 2,5

2,5

40°

EcoMix 20°

5 6 7

20°

Cottons

5 6 7

40°

60°

( )

Table of programmes

Please read these notes:

* Maximum load capacity of dry clothes,

according to the model used (see control panel).

The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button. This function can be activated with the button SPIN SELECTION. If the label does not indicate specific information, it is possible to use the maximum spin expected in the program.

An over dosing of detergent can cause excessive foaming. If the appliance detects the presence of excessive foam, it may exclude the spinning phase or extend the duration of the program and increase water consumption.

( )

Only with PREWASH option selected (programmes with PREWASH option available).

(Only for models with liquid detergent compartment)

When only a limited number of articles have stains which require treatment with liquid bleaching agents, preliminary removal of stain can be carried out in the washing machine. Pour the bleach into the liquid bleach container, inserted into the compartment marked "2" in the detergent drawer, and set the special programme RINSE. When this phase has terminated, turn the programme selector on the OFF position, add the rest of the fabrics and proceed with a normal wash on the most suitable programme.

Selecting the RAPID program on the knob, it will be possible to select with the RAPID button, one of the three rapid programs available among 14’, 30’ and 44’.

** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and No 1061/2010.

COTTON PROGRAMME WITH A TEMPERATURE OF 60°C.

COTTON PROGRAMME WITH A TEMPERATURE OF 40°C.

These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing cotton laundry. These programmes have been developed to be compliant with the temperature on the wash label on the garments and the actual water temperature may slightly differ from the declared temperature of the cycle.

To clean different types of fabrics and various levels of dirt, the washing machine has specific programs to meet every need of washing (see table).

Rapid

Washing cycle suggested for low loads and slightly dirty. With this program it is recommended to reduce the quantity of detergent normally used, in order to avoid unnecessary waste. Selecting the RAPID program and acting on the button you can choose one of three programs available.

Mix & Wash

The program allow you to mix different fabrics (ex: cotton + synthetic, etc. ..) and wash them with low energy consumption, because the temperature in the wash step does not exceed 40°C.

Whites

Made to have a perfect washing. The final spin at maximum speed gives more efficient removal.

Mixed

The washing and rinsing are optimized in the rhythms of rotation of the drum and to the water levels. The gentle spin, ensures a reduced formation of creases in the fabric.

Jeans

This program has been designed to have the highest quality cleaning of fabrics such as jeans resistant: ideal for removing dirt without affecting the elasticity of the fibers.

Baby

This program allows you to wash all baby clothes getting a perfect clean and sanitizing effect, setting the temperature at 60°C minimum. To optimize the result of the sanitizing effect we recommend the use of powder detergent.

Hygiene

Program for durable fabrics, it allows you to sanitize the laundry. We recommend the use of powder detergents to increase the effectiveness of sanitizing.

Rinse

This program performs 3 rinses with an intermediate spin (which can be reduced or excluded by using the appropriate button) . It is used for rinsing any type of fabric, for example after a wash carried out by hand.

Drain + Spin

The program completes the drain and a maximum spin. It is possible to delete or reduce the spin with the SPIN SELECTION button.

Silk

Dedicated program for silk fabrics that can be wash with a washing machine washable. The rotations of the drum are delicate, the temperature does not exceed 30°C and the program ends with a gentle spin.

Hand

Program for hand wash only clothes, the program ends with 3 rinses and a slow spin.

Wool

This program performs a wash cycle dedicated to the wool fabrics that can be washed in a washing machine, or the articles to be washed by hand.

Delicates

This program alternates among moments of work during breaks and is particularly suitable for washing delicate fabrics . The wash cycle and rinses are carried out with a high level of water to ensure the best performance.

EcoMix 20°

This innovative programme, allows you to wash different fabrics and colours together, such as cottons, synthetics and mixed fabrics at only 20°C and provides an excellent cleaning performance. Consumption on this program is about 40% of a conventional 40°C. cottons wash.

Cottons 40°C - 60°C

This program is suitable to clean normally soiled cotton laundry and it is the most efficient program in terms of combined energy and water consumptions for washing cotton laundry.

Programs selection

7. CUSTOMER SERVICE CENTRE AND WARRANTY

If you believe the washing machine is not working correctly, consult the quick guide provided below with some practical tips on how to fix the most common problems.

Problem

Possible causes and practical solutions

The washing machine does not work/start

Make sure it is correctly plugged in.

Make sure power is on.

Check whether the required program was correctly selected and to have correctly started the machine.

Make sure the fuse has not blown and that the wall socket is working, testing it with another appliance such as a lamp.

The porthole may not be correctly closed: open and close it again.

The washing machine does not fill with water

Make sure the water faucet is open.

Make sure the timer is correct set.

The washing machine does not drain water

Make sure the filter is not clogged.

Make sure the drain hose is not bent.

Make sure there are no foreign objects in the filter.

Water leaked on the floor near the washing machine

This may be due to a leak in the gasket between the faucet and supply tube; in this case, replace it and tighten the tube and faucet.

The washing machine does not centrifuge

This could be due to the fact that water has not been completely drained: wait a few minutes. Some models include a "no centrifuge" function: make sure it is not on.

An excessive amount of detergent could prevent centrifuge: reduce the amount at the next wash.

Strong vibrations are heard during centrifuge

The washing machine may not be fully levelled: if necessary, adjust the feet as indicated in the specific section.

Make sure transport brackets were removed.

Make sure the load is evenly distributed.

If a specific ERROR appears of blinks

If error no. 0, 1, 5, 7 or 8 appears or blinks, contact the Customer Service Centre directly.

If error no. 2 appears or blinks, the machine does not load water. Make sure the water faucet is open.

If error no. 3 appears or blinks, the machine does not correctly drain. Make sure the drain is free and that the drain hose is not bent.

If error no. 4 appears or blinks, the machine is too full. Close the water faucet and contact the Customer Service Centre.

If error no. 9 appears or blinks, turn off the washing machine, wait 10 – 15 seconds and restart the program.

The use of ecological detergents without phosphates may cause the following effects:

- cloudier rinse drain water: This effect is

tied to the suspended zeolites which do not have negative effects on rinse efficiency.

- white powder (zeolites) on laundry at the end of the wash: this is normal, the powder is not absorbed by fabric and does not change its colour.

- foam in the water at last rinse: this does not necessary indicate poor rinsing.

- abundant foam: This is often due to the anionic surfactants found in the detergents which are hard to eliminate from laundry.

In this case, do not re-rinse to eliminate

these effects: it will not help at all.

If the problem persists or if you suspect a malfunction, immediately contact the Candy Customer Service Centre.

You can also register for the Candy service plan to receive free home service after the warranty expires.

Attention: the call is not toll-free. The cost will be communicated in a voice message by your telephone operator's customer service.

Candy recommends you always use original spare parts available at our Customer Service Centre.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The warranty certificate must be duly filled in and stored, so as to be shown to the Authorised Candy Service Centre in case of need.

Don’t waste time. Register your washing machine at once, and discover the benefits to which you are entitled. Discover how at www.registercandy.com or by calling the number stated on the related material.

Muchas gracias por elegir una lavadora Candy. Sin ninguna duda, le ayudará a lavar toda su ropa de manera segura, incluso la ropa más delicada, todos los días.

Registre su producto en www.registercandy.com y acceda fácilmente a los servicios complementarios exclusivos para nuestros clientes más fieles.

Lea atentamente este manual de instrucciones para aprender a usar la lavadora de manera correcta y segura y para obtener consejos útiles acerca de su mantenimiento.

Antes de usar su nueva lavadora, lea atentamente este manual de instrucciones para optimizar su funcionamiento. Guarde el manual en buen estado para otros usuarios que pudieran necesitarlo más adelante.

Compruebe que además del manual de instrucciones le hayan entregado el certificado de garantía, la información sobre centros de servicio técnico y la etiqueta de eficiencia energética. Compruebe también que le hayan entregado la clavija, el codo para la manguera de desagüe y la cubeta para detergente (o lejía en algunos modelos). Conserve todos estos accesorios.

Todos los productos están identificados con un único código o número de serie de 16 caracteres, que figura en una etiqueta adherida al aparato (puerta de carga) o en el sobre que se encuentra dentro de la lavadora. El código es una especie de documento de identidad, necesario para registrar el producto y para solicitar la asistencia del Servicio de Atención al Cliente de Candy.

Este electrodoméstico cumple con la Directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y electrónicos (RAEE).

En el momento de desechar este producto cuando éste llegue al final de su vida útil, asegurarse de hacerlo de manera correcta para evitar las potenciales consecuencias negativas para el medio ambiente y la salud de la gestión inadecuada de residuos. Este símbolo indica que el producto no debe tratarse como residuo doméstico sino que debe trasladarse al punto más cercano de recolección de equipamiento eléctrico y electrónico para su reciclado. Respete las normas ambientales sobre eliminación de residuos en vigor. Para obtener más información sobre el tratamiento, recuperación y reciclado de este producto, consulte con la entidad pública correspondiente, el servicio de recolección de residuos correspondiente a su domicilio o la tienda donde lo ha adquirido.

1. NORMAS DE SEGURIDAD

2. INSTALACIÓN

3. CONSEJOS PRÁCTICOS

4. LIMPIEZA Y MANTENIMIENTO

5. GUÍA RÁPIDA

6. CONTROLES Y PROGRAMAS

7. SERVICIO TÉCNICO Y GARANTÍA

Normas ambientales

Índice

1. NORMAS DE SEGURIDAD

! Este producto es exclusivamente

para uso doméstico o similar:

− zona de cocina para el personal de tiendas, oficinas y otros entornos laborales;

− granjas;

− pasajeros de hoteles, moteles u

otros entornos residenciales;

− hostales (B&B).

No se recomienda el uso de este producto con fines diferentes del doméstico o similar, por ejemplo, con fines comerciales o profesionales. El empleo de la lavadora con fines no recomendados puede reducir la vida útil del artefacto e invalidar la garantía. Todos los daños, averías o pérdidas ocasionados por un uso diferente del doméstico o similar (aunque ese uso se realice en un entorno doméstico) no serán reconocidos por el fabricante en la medida en que lo permita la ley.

! Este electrodoméstico puede ser

utilizado por niños mayores de 8 años y por personas con capacidades físicas, sensoriales o mentales limitadas o que carezcan de la experiencia y el conocimiento necesarios, siempre y cuando estén supervisadas por una persona encargada de velar por su seguridad o hayan sido instruidas en su utilización de manera segura. Los niños no deben jugar con el electrodoméstico. Los niños no deben ocuparse del mantenimiento ni de la limpieza del electrodoméstico,

salvo que estén supervisados una persona encargada de velar por su seguridad.

! Vigile a los niños de manera que

se asegure que no juegan con el aparato.

Los niños menores de 3 años se deben mantener lejos a menos que estén supervisados de forma continua.

! Si el cable de alimentación

está dañado, por seguridad debe reemplazarlo el fabricante, un técnico del Servicio de Atención al Cliente o una persona debidamente cualificada.

Sólo deben emplearse las mangueras de suministro de agua proporcionadas con el electrodoméstico. No reutilizar mangueras de lavadoras antiguas

! La presión de agua debe estar

entre 0,05 MPa y 0,8 MPa.

! Ninguna alfombrilla debe obstruir

las rejillas de ventilación situadas en la base de la lavadora.

Para apagar la lavadora, se debe la marca de referencia del selector de programas a la posición vertical. Si la marca no se encuentra en posición vertical, la lavadora está encendida

! Una vez instalado el electrodoméstico,

se debe poder acceder fácilmente al enchufe.

! La capacidad máxima de colada

seca depende del modelo usado (ver panel de control).

Para consultar la ficha del producto, visitar la web del fabricante.

! Desenchufar la lavadora y cerrar el

grifo del agua antes de proceder a su limpieza o a cualquier operación de mantenimiento.

! Asegurarse de que la toma de

corriente tenga conexión a tierra. Si no se dispone de toma con conexión a tierra, llamar a un técnico especializado.

! No utilizar adaptadores, regletas

ni alargues.

! Asegurarse de que no quede

agua residual en el tambor antes de abrir la puerta de carga.

! No desenchufar la lavadora

tirando del cable de alimentación ni del aparato.

! No instalar la lavadora en el

exterior, ni exponerla a la lluvia, a los rayos del sol, o a otros factores ambientales.

! Para transportar la lavadora, no

levantarla sosteniéndola de los mandos ni de la cubeta del detergente y no apoyarla sobre la puerta de carga. Para levantar la lavadora, se recomienda la colaboración de al menos dos personas.

! En caso de fallo o mal funcionamiento,

apagar la lavadora, cerrar el grifo del agua y no intentar repararla. Llamar de inmediato al Servicio de Atención al Cliente y utilizar sólo piezas de recambio originales. El incumplimiento de estas instrucciones puede afectar la seguridad del aparato.

El producto cumple con las siguientes Directivas Europeas:

! 2006/95/EC (LVD); ! 2004/108/EC (EMC); ! 2009/125/EC (ErP); ! 2011/65/EU (RoHS);

y enmiendas posteriores.

Instrucciones de seguridad

ATENCIÓN:

el agua puede alcanzar temperaturas muy elevadas durante el ciclo de lavado.

2. INSTALACIÓN

! Retirar las cintas que sostienen el

tubo, cuidando de no dañar ni el tubo ni el cable de alimentación.

! Extraer los 2 o 4 tornillos (A) que

se encuentran en la parte posterior de la lavadora y quitar los dos 2 o 4 seguros de transporte (B), tal y como se muestra en la figura 1.

! Obstruir los 2 o 4 orificios que

quedan tras retirar los tornillos con los tapones que se encuentran en el sobre que contiene las instrucciones.

! Para lavadoras de encastre,

después de cortar las cintas de la manguera, extraer los 3 o 4 tornillos (A) y los 3 o 4 seguros de transporte (B).

! En ciertos modelos, 1 o más

seguros de transporte pueden caer dentro de la lavadora. Para quitarlos, inclinar el aparato hacia delante de modo de poder cogerlos. Obstruir los orificios que quedan tras retirar los tornillos con los tapones que se encuentran en el sobre.

! Colocar la lámina sintética en la

parte inferior, tal y como se muestra en la figura 2 (A, B o C, según el modelo).

ATENCIÓN: los niños no deben jugar con los materiales de embalaje.

Conectar el tubo de alimentación de agua al grifo, utilizando únicamente el tubo de alimentación suministrado (fig. 3).

NO ABRIR EL GRIFO.

! Algunos modelos tienen una o más de las

siguientes características:

! Conexiones HOT&COLD para agua fría

y caliente (fig. 4): Favorecen el ahorro de energía. Conectar el tubo gris al grifo del agua fría

y el rojo, al del agua caliente. El electrodoméstico se puede conectar sólo al grifo del agua fría, en cuyo caso se retrasará el inicio de algunos programas.

! AQUASTOP (fig.

5):

Un dispositivo situado en el tubo de alimentación impide la entrada de agua si el tubo está deteriorado. En caso de avería, aparece una marca de color rojo en la ventana "A", que indica que debe reemplazarse el tubo. Para extraer la tuerca, presionar el dispositivo de bloqueo unidireccional "B".

AQUAPROTECT – TUBO DE ALIMENTACIÓN CON PROTECCIÓN (fig. 6): Si el tubo

principal "A" pierde agua, el depósito transparente "B" contiene agua que permite que se complete el ciclo de lavado. Al finalizar el ciclo, solicitar al Servicio de Atención al Cliente el reemplazo del tubo de entrada de agua.

! La lavadora debe quedar cerca de la

pared en su parte posterior, evitando que el tubo quede doblado o deformado. Ubicar el tubo de descarga en el fregadero o, preferentemente, conectarlo al desagüe de la pared a 50 cm de altura como mínimo, con un diámetro mayor que el tubo de la lavadora (fig. 7).

min 50 cm max 85 cm

+2,6 mt

max

max 100 cm

min 4 cm

Conexión a la red de agua

Instalación

! Nivelar el electrodoméstico ajustando las

patas fig. 8:

a. girar la tuerca en el sentido de las

agujas del reloj para extraer el tornillo;

b. girar la pata regulable hasta que toque

el suelo;

c. bloquear el movimiento de la pata

insertando la tuerca hasta que toque la parte inferior de la lavadora.

! Enchufar el aparato.

La cubeta se divide en tres compartimentos (fig. 9)::

! compartimento "1": detergente para el

prelavado;

! compartimento “ ”: otros productos líquidos

como suavizantes, almidón, fragancias, etc;

! compartimento "2": detergente para el lavado.

Con algunos modelos se suministra una pieza especial para el detergente líquido (fig. 10). Si se desea usar detergente líquido, ubicar la pieza especial en el compartimento "2". De ese modo, el detergente líquido pasará al tambor en el momento adecuado del ciclo de lavado. La pieza especial puede emplearse para la lejía cuando se selecciona el programa de aclarado.

ATENCIÓN: si es necesario reemplazar el cable de alimentación, solicitar la asistencia del Servicio de Atención al Cliente.

Cubeta para detergente

ATENCIÓN: sólo deben emplearse productos líquidos. La lavadora está configurada para dosificar automáticamente los productos durante el último aclarado.

ATENCIÓN: algunos detergentes no son fáciles de limpiar. Si se utilizan detergentes de este tipo, emplear el contenedor especial y ubicarlo dentro del tambor (fig. 11).

3. CONSEJOS PRÁCTICOS

ATENCIÓN: Al clasificar las prendas, asegurarse de:

- quitar objetos metálicos como broches, ganchos, monedas, etc.;

- abotonar fundas, cerrar cremalleras, ajustar cinturones y cintas;

- retirar enganches de las cortinas;

- leer las instrucciones de lavado de cada prenda;

- tratar previamente las manchas difíciles con productos especiales.

! Al lavar alfombras, mantas o prendas

pesadas, se recomienda desactivar la función de centrifugado.

! Al lavar prendas de lana, comprobar que

sean aptas para lavarlas en la lavadora y que contengan el símbolo de "Pura lana virgen" con la indicación de "No se apelmaza " o "Lavable en lavadora".

Cómo usar su lavadora de forma respetuosa con el medio ambiente y con el máximo ahorro.

Cargar al máximo la lavadora

! Para ahorrar energía, detergente y tiempo,

se recomienda cargar al máximo la lavadora. Es posible ahorrar hasta un 50% de energía con una única colada de carga llena, en lugar de dos coladas a media carga.

¿Cuándo es necesario el prelavado?

! ¡Sólo cuando las prendas están muy

sucias! Cuando la ropa tiene una suciedad normal, es posible ahorrar entre un 5% y un 15% de energía si no se utiliza la función de prelavado.

¿Qué temperatura de lavado se debe seleccionar?

! Si se emplea un quitamanchas o se

sumergen las prendas manchadas antes de lavarlas en la lavadora, se reduce la necesidad de seleccionar un programa de lavado de alta temperatura. Seleccionando el programa de lavado a 60ºC se puede ahorrar hasta un 50% de energía.

A continuación se proporciona una guía rápida con consejos y recomendaciones sobre el uso de detergente a distintas temperaturas. Se recomienda leer siempre las instrucciones de cada detergente para utilizarlo correctamente y en las cantidades adecuadas.

Consejos para colocar la ropa en la lavadora

Sugerencias útiles para el usuario

Para lavar ropa blanca muy sucia y obtener excelentes resultados, emplear programas para algodón con temperaturas de 60°C o superiores y

un detergente en polvo normal con agentes blanqueadores.

Para temperaturas de lavado de 40°C a 60°C, se debe elegir un detergente

apropiado para el tipo de género y el nivel de suciedad. Los detergentes en polvo normales dan excelentes resultados en el lavado de ropa muy sucia "blanca" o de colores resistentes, mientras que los detergentes en polvo para prendas de color son recomendables para el lavado de ropa de color con bajo nivel de suciedad.

Para temperaturas de lavado inferiores a 40°C, se recomienda emplear

detergentes líquidos o adecuados para el lavado a bajas temperaturas.

Para el lavado de prendas de lana o seda, emplear sólo detergentes formulados especialmente para ese tipo de géneros.

4. LIMPIEZA Y MANTENIMIENTO

Para limpiar el exterior de la lavadora no usar productos abrasivos ni alcohol ni solventes; basta con pasar un paño húmedo. La lavadora no requiere cuidados especiales para mantenerla limpia. Mantener limpios los compartimentos de detergente y suavizante y el filtro. A continuación ofrecemos algunos consejos para el traslado o para largos períodos de inactividad de la lavadora.

! Es conveniente limpiar la cubeta para

que no se acumulen restos de detergente y otros productos.

! Retirar la cubeta haciendo un poco de

fuerza, dejarla bajo el agua hasta que esté limpia y volver a colocarla en su sitio.

! La lavadora está provista de un filtro

especial que retiene los objetos de tamaño relativamente grande, como monedas o botones, que podrían obstruir el desagüe.

! Sólo algunos modelos: extraiga el tubo,

saque el tapón y recoja el agua en un contenedor.

! Antes de extraer el filtro, se recomienda

colocar un paño absorbente en el suelo para evitar que se moje.

! Girar el filtro en sentido contrario al de las

agujas del reloj hasta que se detenga en la posición vertical.

! Extraer el filtro, limpiarlo y volver a colocarlo

girándolo en el sentido de las agujas del reloj.

! Para volver a colocar todo en su sitio, repetir

los pasos previos siguiendo las instrucciones en sentido contrario.

! En el caso de que la lavadora estuviese

inactiva durante un largo período de tiempo en lugares a bajas temperaturas, se recomienda vaciar por completo los restos de agua que hayan quedado en el interior de los tubos.

! Desenchufar la lavadora. ! Soltar el tubo de la abrazadera y colocar

el extremo en un recipiente en el suelo para recoger toda el agua.

! Volver a asegurar el tubo de desagüe con

la abrazadera una vez concluida la operación.

Limpieza de la cubeta para el detergente

Limpieza del filtro

Recomendaciones para el traslado o para largos períodos de inactividad de la lavadora

5. GUÍA RÁPIDA

La lavadora regula automáticamente el nivel de agua según el tipo de ropa y la carga. Este sistema reduce el consumo energético y el tiempo de lavado.

! Encender la lavadora y seleccionar el

programa de lavado.

! Regular la temperatura de lavado si es

necesario y configurar las opciones necesarias.

! Pulsar la tecla INICIO/PAUSA para iniciar el

lavado.

En caso de que se interrumpa el suministro eléctrico cuando la lavadora está funcionando, una memoria especial guarda la configuración elegida y, cuando se restablece el suministro, la máquina reinicia el ciclo donde éste se ha interrumpido.

! Al finalizar el programa aparece el

mensaje "End" (fin) en la pantalla o se enciende el LED de fin de programa.

! Apagar la lavadora.

Para distintos tipos de lavado, consultar la tabla de programas y seguir los pasos indicados.

Presión en el circuito hidráulico:

min 0,05 Mpa max 0,8 Mpa

Revoluciones de centrifugado:

ver tarjeta de datos.

Potencia absorbida/ Amperios del fusible de la red/ Tension:

ver tarjeta de datos.

6. CONTROLES Y PROGRAMAS

DCEFGH

MNOP

Selector de programas con posición OFF

Tecla INICIO/PAUSA

Tecla INICIO DIFERIDO

Tecla PRELAVADO

Tecla PLANCHADO FÁCIL

Tecla SELECCIÓN CENTRIFUGADO

Tecla SELECCIÓN TEMPERATURA

Tecla PROGRAMAS RÁPIDOS

Display digital

Indicadores de las TECLAS

Indicador SEGURIDAD PUERTA

Indicadores SELECCIÓN CENTRIFUGADO

Indicadores SELECCIÓN TEMPERATURA

Indicadores PROGRAMAS RÁPIDOS

Selección de programas

Esperar unos 2 minutos después de finalizado el programa hasta que se apague la luz que indica que se ha desbloqueado la puerta.

Datos técnicos

+ 64 hidden pages
