Candy CDI 1022 User Manual

User instructions

EN

CDI 1012
CDI 1022

DISHWASHER

Congratulations!

Thank you for choosing a Candy
appliance; quality dishwashers which
guarantee high performance and
reliability.
Candy manufacture a vast range
of domestic appliances: washing
machines, washer/dryers, cookers,
microwave ovens, ovens and hobs,
refrigerators and freezers.
Ask your dealer for the catalogue with
the complete range of Candy products.
Please read this booklet carefully as
it provides important information
regarding the safe installation, use,
and maintenance of the machine,
together with some useful advice on
how to achieve the best results from
your dishwasher.
For future reference please keep this
instruction booklet in a safe place.

CUSTOMER SERVICE AND
GUARANTEE

Your new appliance is fully guaranteed
by the manufacturer for 12 months
against electrical/mechanical break­down excluding:

A. Any faults which occur due to bad

installation or misuse of the machine.

B. Any faults which occur due to repair

of, or interference with, the machine
by any person not authorised by the
manufacturer to carry out service.

C. Any faults which occur due to

any parts which are fitted to the
machine which are not the original
manufacturers parts.

D. Any faults arising from non-domestic

use or unusual or abnormal use of
the machine.

E. Any faults arising from operation at

incorrect voltage.

F. Any faults arising from incorrect

operation of the machine.
The guarantee applies to Gt Britain
and Northern Ireland only, and is an
addition to your statutory rights.

CONTENTS

Safety advice
Setting up, installation
Technical notes for cabinet fitters
Water softener unit

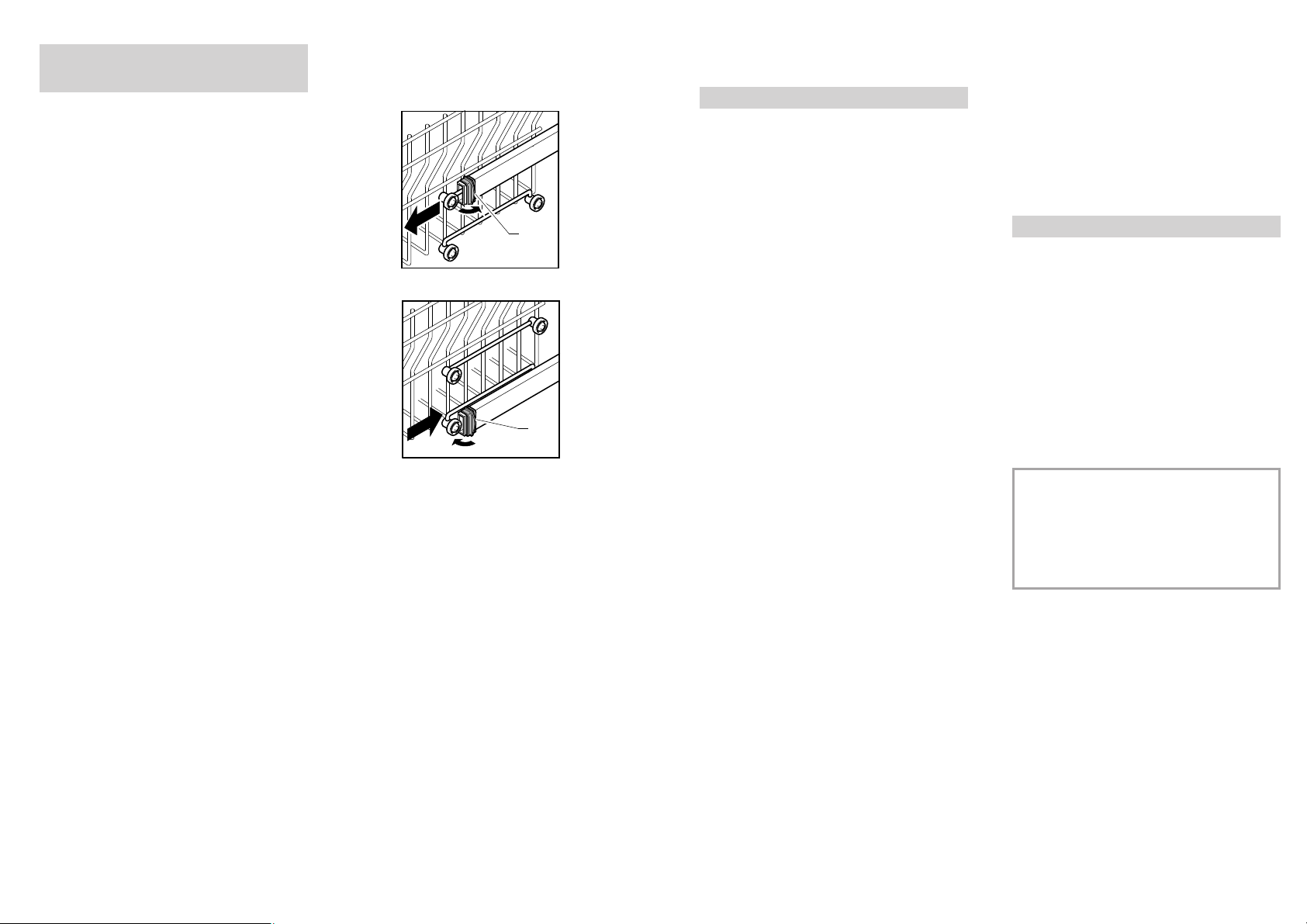

Adjusting the upper basket
Loading the dishes
Information for test laboratories

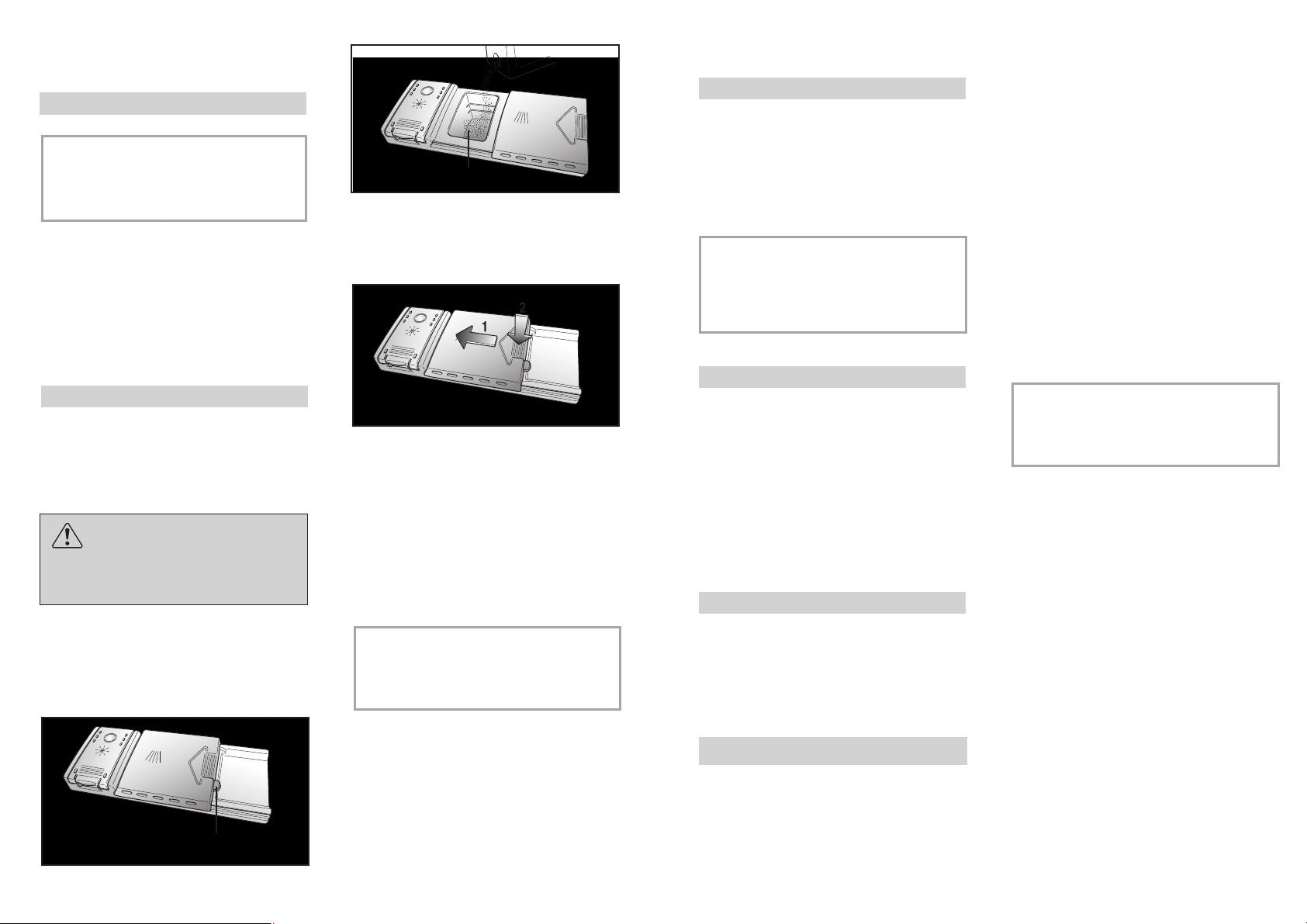

Loading the detergent
Types of detergent

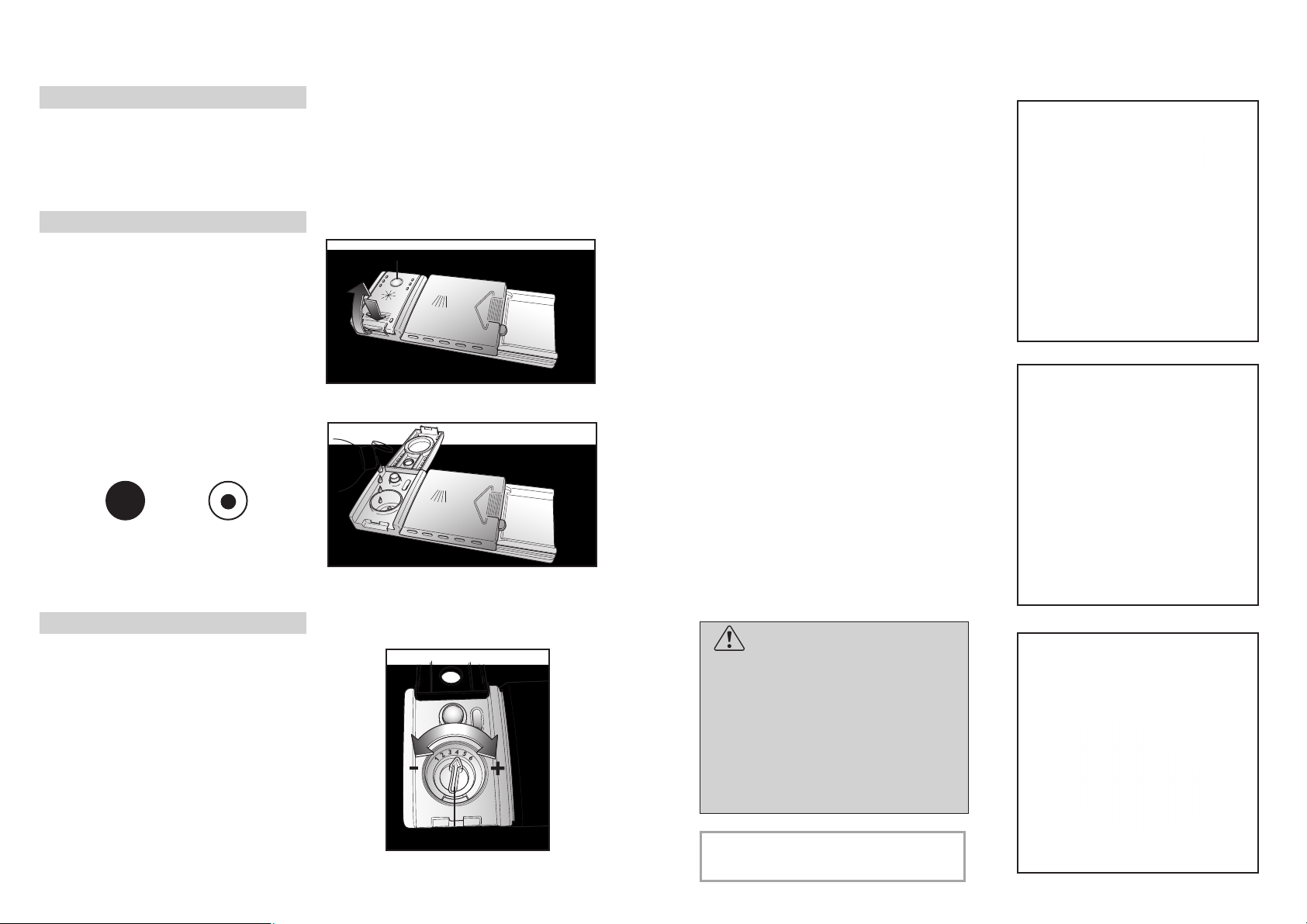

Loading the rinse aid
Cleaning the filters
Some practical hints
Routine cleaning and maintenance

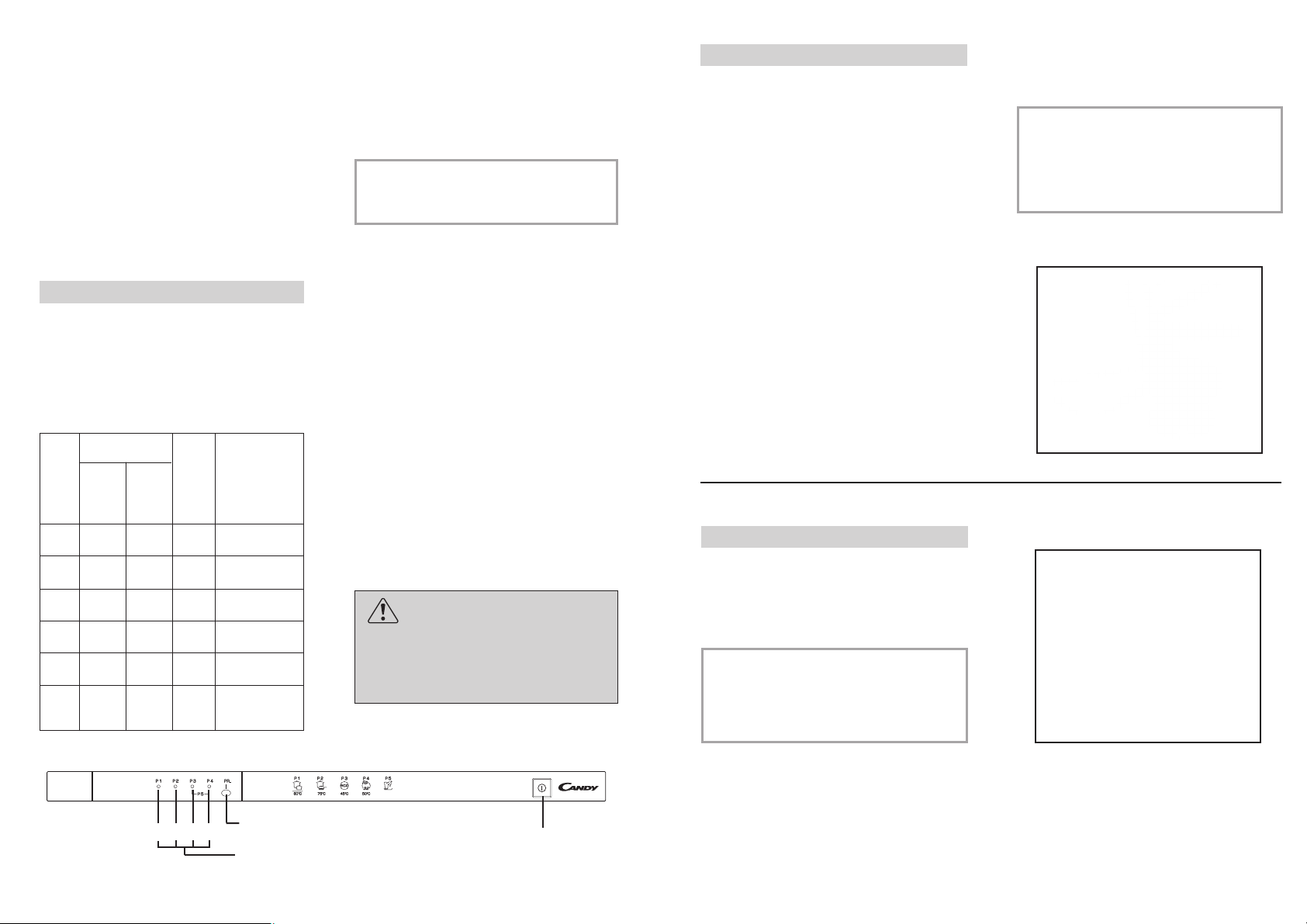

Description of the control panel
Technical data
Programme selection and special functions
Programme guide
Identifying minor faults

5

pag. 4
pag. 5
pag. 8
pag. 12
pag. 14
pag. 15
pag. 17
pag. 18
pag. 19
pag. 20
pag. 21
pag. 22
pag. 23
pag. 25
pag. 25
pag. 26
pag. 28
pag. 30

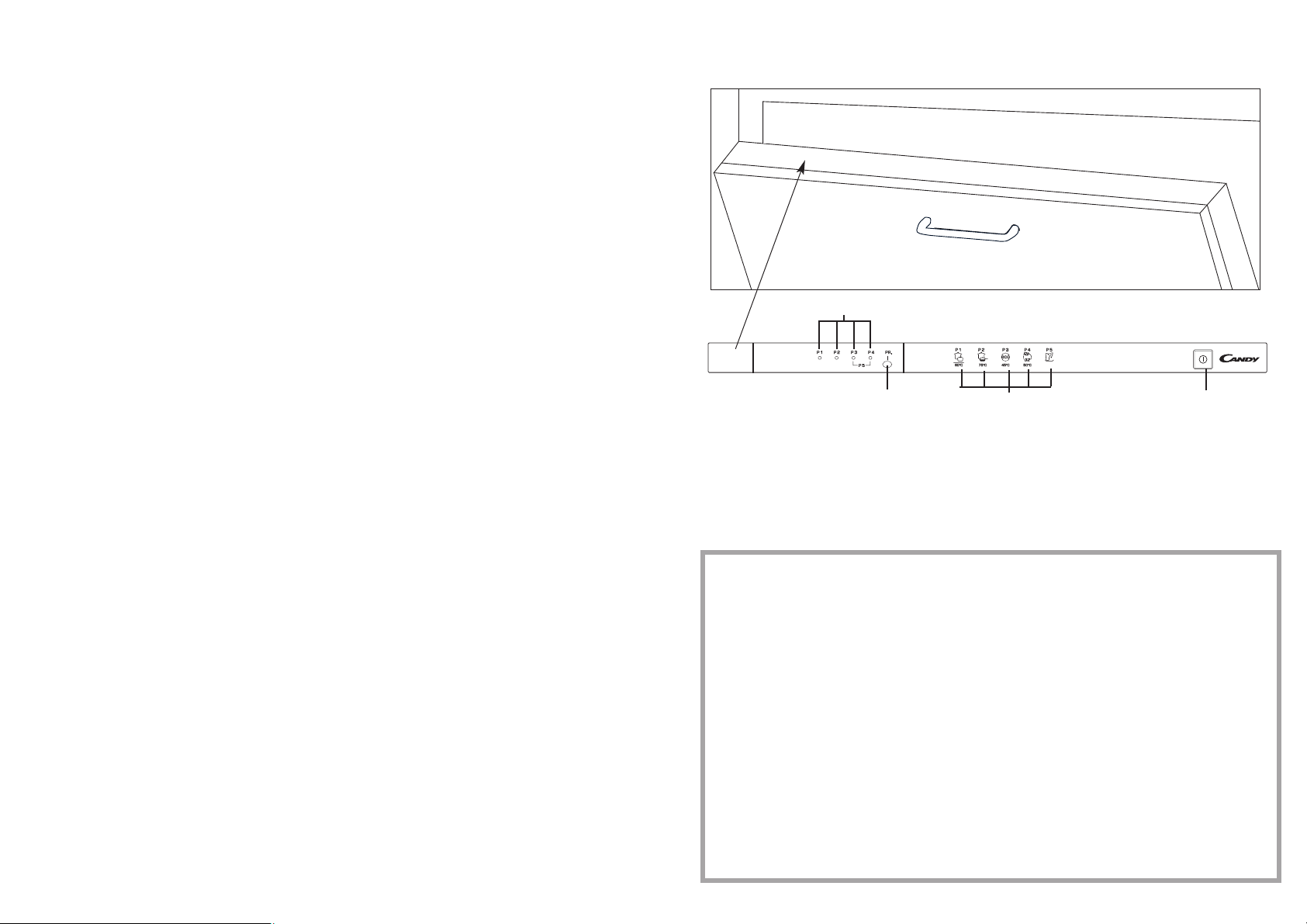

Fig. A

1

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number:

GIAS Service Tel: [phone]
Support Service (Eire 018301 666)

2

4

3

Please read the instructions in this booklet carefully because they contain important
information on how to install, use and maintain your dishwasher safely as well as
containing useful tips on how to make the most of it.

Keep this booklet safe for future reference.

3

2

SAFETY INSTRUCTIONS

There are certain basic safety rules
which are valid for any domestic
appliance.

Installation

■ Make sure that the plug fitted to the
machine is compatible with the power
supply socket. If it is not, get a suitably
qualified person to fit the correct type,
and to make sure that the cables to the
mains socket are able to cope with the
power rating of the appliance.

■ Ensure that the dishwasher does not
crush power cables.

■ In general it is not advisable to use
adaptors, multiple plugs and/or extension
cables.

■ Should it be necessary to replace the
supply cord, call the After Sales Service
Centre.

Safety

■ Never touch the appliance when your
hands or feet are wet or damp.

■ Do not use when your feet are bare.

■ Do not remove the plug from the mains

supply socket by pulling the mains cable
or the machine itself.

■ Do not leave the appliance exposed to
the elements (rain, sun etc).

■ This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.

Children should be supervised to ensure
that they do not play with the appliance.

■ Water left in the machine or on the
dishes at the end of the wash programme
should not be swallowed.

■ The door should not be left in the open
position since this could present a potential
hazard ( es. tripping ).

■ Leaning or sitting on the open door of
the dishwasher could cause it to tip over.

WARNING !
Knives and other utensils with sharp
points must be loaded in the basket
with their points down or placed in a
horizontal position.

Daily use

■ This appliance is be designed for domestic
use only.

■ The dishwasher is designed for normal
kitchen utensils.
Objects that have been contamined by
petrol, paint, traces of steel or iron,
corrosive chemicals, acids or alkalis
must not be washed in the dishwasher.

■ If there is a water softening device installed
in the home there is no need to add
salt to the water softener fitted in the
dishwasher.

■ Cutlery is washed best if it is placed in
the basket with the handles downwards.

■ If the appliance breaks down or stops
working properly, switch it off, turn off the
water supply and do not tamper with it.
Repair work should only be carried out
by an approved service agent and only
genuine spare parts should be fitted. Any
failure to follow the above advice may
have serious consequences for the safety
of the appliance.

Disposal

■ The dishwasher has been made from
materials which can be recycled so that it
can be disposed of in an environmentally
friendly way.

■ If you wish to dispose of an old dishwasher
be careful to remove the door to
eliminate the risk of children becoming
trapped inside it.

4

INSTALLATION

(Technical notes)

IMPORTANT
When the appliance is located on a
carpet floor, attention must be paid to
ensure that there is no obstruction to
the bottom vents.

Make sure that the plug on the
appliance remains accessible after
installation.

Electrical connection

Plug your dishwasher into the power
socket.

If the plug we supply does not fit :

■ CUT IT OFF AND DESTROY IT!

You can't use it on other appliances, and
the exposed wires could be dangerous if
anyone plugged it in.

■ Fit a suitable plug, as follows:

Connect to the terminal in the plug

Marked with the letter E,
OR marked with the Earth

Green and

yellow wire

Blue wire

Brown wire

THIS APPLIANCE MUST BE EARTHED.

symbol,

OR coloured green,
OR coloured green and

yellow.
Marked N,

OR coloured black.

Marked L,

OR coloured red.

WARNING!

Fuses and plugs

This appliance should be used only on a
socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped
with a 13 amp fuse which is BS 1362 ASTA
approved.

Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug
until it is replaced.

A correct replacement fuse cover (obtaina­ble from your dealer or Electricity board)
must be the same colour as shown or
named on the insert on the base of the
plug.

Manufacturer declines all responsibility
for any damage due to non-earthing of
the machine.

Appliance complies with
European Directives 73/23/EEC
and 89/336/EEC, replaced by
2006/95/EC and 2004/108/EC,
and subsequent amendments.

5

Water connection

IMPORTANT
The appliance must be connected to
the water mains using new hose-sets.
The old hose-sets should not be reused.

■ The inlet and drain hoses can be directed
to left or right.

IMPORTANT
The dishwasher can be connected to
either cold or hot water, as long as it
is no hotter than 60 °C.

■ Water pressure must be between
0,08 MPa and 0,8 MPa. If the pressure is
below the minimum consult our service
department for advice.

■ The inlet hose must be connected to a
tap so that the water supply can be cut
off when the machine is not in use

(fig. 1 B).

■ The dishwasher is fitted with 3/4" threaded
connector (fig. 2).

1

2

Connecting the outlet hose

■ The outlet hose should disharge into a
standpipe, making sure that there are no
kinks (fig. 4).

■ The standpipe must be at least 40 cm
above floor level and it must have an
internal diameter of at least 4 cm.

■ It is advisable to fit an anti-odour air trap
(fig. 4X).

■ If necessary the outlet hose can be
extended up to 2,5 m, provided that it is
kept at a maximum height of 85 cm
above floor level. The extension pipe is
available from the After Sales Service
Centre.

4

■ The hose can be hooked over the side of
the sink, but it must not be immersed in
water, in order to prevent water from
being syphoned back to the machine
when this is in operation (fig. 4Y).

■ When installing the appliance under a
worktop the hose pipe clamp must be
attached to the wall in the highest possible
position under the worktop (fig. 4Z).

■ Check that there are no kinks in the inlet
and outlet hoses.

■ Connect inlet hose “A” to water tap “B”

with a 3/4" attachment making sure that
it has been properly tightened.

■ If it is necessary, the inlet pipe can be
lengthened up to 2,5 m. The extension
pipe is available from the After Sales
Service Centre.

■ If limescale deposits or sand are present
in the water, it is advisable to obtain the
appropriate filter, art. 9226085, from the
After Sales Service Centre (fig. 3). The
filter “D” must be inserted between the tap
“B” and the inlet hose “A”, remembering
to fit the washer “C”.

■ If the dishwasher is connected to new
pipes or to pipes which have not been in
use for a long time run water through for
a few minutes before connecting the
inlet hose. In this way no deposits of
sand or rust will clog up the water inflow
filter.

3

Opening the door

Put your hand into the recess and pull.
If the machine comes open while it is working,
an electrical safety device automatically
switches everything off.

IMPORTANT
For the machine to work properly,
the door should not be opened while
it is in operation.

6

Closing the door

Place the baskets in the machine.
Make sure that both the spray arms are
free to rotate and are not obstructed by
cutlery, crockery or pans. Close the door,
pressing on it to make sure it is firmly shut.

7

715 max.

645 min.

350 178

596,5 max.

=

=

572

TECHNICAL NOTES FOR

600

570

550

550

597

100

40

820+(80)

100

170

+(80)

820+(80)

160

598

CABINET FITTERS

This dishwasher model can be embedded
in modular furniture, under a counter top, a
continuous counter top or a sink.

■ The housing dimensions must be the

same as those indicated in the figure 1.

■ The adjustable feet allow the height of
the machine to be varied from 820 to
900 mm.

Installation under the counter top

1

2

Wooden panel installation

This dishwasher model is equipped with an
auto-balancing system in the door and
comes ready to mount a wooden panel of
the following size:

Width 596,5 mm max

Height from 645 to 715 mm max

Thickness from 18 to 22 mm max

This allows the use of a regular wing taken
from a drawer furniture weighing from 3 to
7 kg; for coverings weighing more, ask for
information to the Assistance Service.

■ Fasten the two supplied frames with 4 of
the 4 x 16 mm diameter screws, setting
them at the center of the eyelets (fig. 6).

■ Hang the panel on the dishwasher door
and align it by adjusting the frames with
the eyelets.

■ Fix the frames with the other 6 screws
4x16 mm in the specif holes (fig. 6).

■ Fasten the panel to the dishwasher door
with the screws 3.5 x 13 mm (fig. 7).

■ Adjust the dishwasher height to adapt it

to the housing “A” dimensions, level it
by means of the adjustable feet (fig. 2-3).

■ Insert the dishwasher in the housing and
connect the dishwasher to water and
power following the instruction booklet;
if necessary, re-adjust the front and rear
feet.

■ Fasten the dishwasher with the supplied
16 mm long screws “A”, as indicated in
the figure 4.

Drilling arrangements

■ Drill 12 mm deep holes in the panel
using a 2 mm diameter drill according to
the measures indicated in the figure 5.

3

5

4

8

N.B.:
If you wish to fit a wooden panel with
false drawer, ask for special kit to the
Assistance Service.

6

7

9

620 min.

Important

If, after mounting the wooden panel, it is
necessary to ship the machine for final
installation, we recommend leaving it in its
original packaging materials.
For this reason the package was design to
allow the panel to be mounted without
having to unpack the machine completely.
Follow figures 8a-f sequentially.

A) Cut the polythene with a Knife (fig. 8a).

B) Lift the cardboard flap up and remove

the wooden slat (fig. 8b).

C) To open the dishwasher remove the

polystyrene from the sides (fig. 8c).

D) Fix the décor panel to the matching

kitchen door (fig. 5-6), then while the
dishwasher door is in the open
position attach it to the machine using
the 6 screw 3.5 x 13 mm (fig. 8d).

E) Replace the cardboard and film in its

original position (fig. 8e).

F) Re–seal the packaging (fig. 8f).

Adaptation of the base

Sometime, in order to allow the door
rotation, a space must be cut out in the
base as indicated in the figure 9.

Proceed as follows:

■ Open slightly the dishwasher door, let
the covering touch the base and mark its
lower edge on the base with a pencil; cut
out the interfering part.

8a

8b

8c

8e

9

8f

10

8d

11
