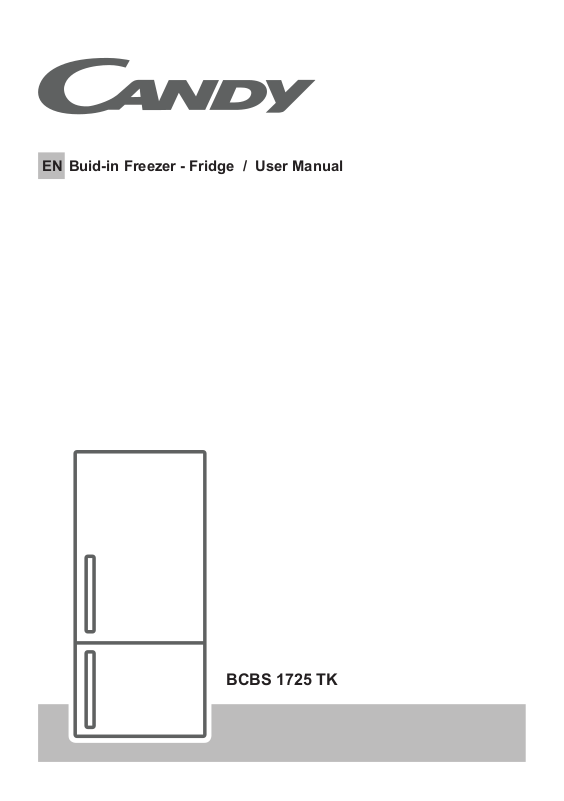

Buid-in Freezer - Fridge / User ManualEN
BCBS 1725 TK
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:
- the kitchen area for personnel in shops, ofces and other working environments
- on farms, by clientele of hotels, motels and other environments of a residential type
- at bed and breakfasts (B & B)
- for catering services and similar applications not for retail sale.
This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
EN - 2
CONTENTS
1 SAFETY INSTRUCTIONS ................................................................................. 4
1.1 General Safety Warnings ...............................................................................................4
1.2 Safety Information ..........................................................................................................6
1.3 Installation warnings .......................................................................................................9
1.4 Electrical information (For UK type plug) ......................................................................10
1.5 During Usage................................................................................................................10
2 DESCRIPTION OF THE APPLIANCE .............................................................12
3 USING THE APPLIANCE ................................................................................12
3.1 Thermostat Setting .......................................................................................................12
3.2 Temperature Settings Warnings ...................................................................................12
3.3 Accessories ..................................................................................................................13
3.3.1 Ice Tray ......................................................................................................................13
3.3.2 The Plastic Scraper ...................................................................................................13
4 FOOD STORAGE ............................................................................................ 14
4.1 Refrigerator Compartment ............................................................................................14
4.2 Freezer Compartment ..................................................................................................14
5 CLEANING AND MAINTENANCE ..................................................................17
5.1 Defrosting .....................................................................................................................18
5.2 Replacing the Light Bulb...............................................................................................19
6 SHIPMENT AND REPOSITIONING ................................................................. 19
6.1 Transportation and Changing Positioning ....................................................................19
7 BEFORE CALLING AFTER-SALES SERVICE ............................................... 20
8 ENERGY SAVING ............................................................................................ 21
EN - 3
1 SAFETY INSTRUCTIONS
1.1 General Safety Warnings
Read this user manual carefully.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket­outlets or portable power supplies at the
rear of the appliance..
WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be xed in accordance with the following instructions:
If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being
EN - 4
damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
• This appliance is intended to be used in household
and domestic applications such as:
– staff kitchen areas in shops, ofces and other
working environments.
– farm houses and by clients in hotels, motels and
other residential type environments.
bed and breakfast type environments; catering and similar non-retail applications.
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected
to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 13 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
EN - 5
• This appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced
by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.
1.2 Safety Information
The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, in ammable.
We recommend that you follow the following regulations so as to avoid situations dangerous to you:
• Before performing any operation, unplug the power
cord from the power socket.
• The refrigeration system positioned behind and
inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not
touch the wall outlet and do not use open ames.
EN - 6
Open the window and let air into the room. Then call a service centre to ask for repair.
• Do not scrape with a knife or sharp object to remove
frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a re or damage your eyes.
• Do not install the appliance in humid, oily or dusty
places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or
inammable materials.
• Do not use extension cords or adapters.
• Do not excessively pull or fold the power cord or
touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this
could cause electrical shocks or res.
• It is recommended to keep the plug clean, any
excessive dust residues on the plug can be the cause re.
• Do not use mechanical devices or other equipment
to hasten the defrosting process.
• Absolutely avoid the use of open ame or electrical
equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Do not use or store inammable sprays, such as
spray paint, near the Wine Coolers. It could cause an explosion or re.
• Do not use electrical appliances inside the food
storage compartments, unless they are of the type recommended by the manufacturer.
EN - 7
• Do not place or store inammable and highly volatile
materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not store medicine or research materials in the
Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
• Maintain the ventilation openings in the appliance
enclosure or in the built-in structure, free of obstruction.
• Do not place objects and/or containers lled with
water on the top of the appliance.
• Do not perform repairs on this Wine Coolers. All
interventions must be performed solely by qualied personnel.
• This appliance can be used by children aged from
8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.
• Children should not play with the appliance.
Cleaning and user maintenance should not be made by children without supervision.
EN - 8
1.3 Installation warnings
Before using your fridge freezer for the rst time, please pay attention to the following points:
The operating voltage for your fridge
freezer is 220-240 V at 50Hz.
• The plug must be accessible after
installation.
• Your fridge freezer may have an odour
when it is operated for the rst time. This is normal and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer,
ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.
• Insert the plug into a socket with an
efcient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualied electrician for assistance.
• The appliance must be connected
with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any
damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not
be exposed to direct sunlight.
• Your fridge freezer must never be used
outdoors or exposed to rain.
• Your appliance must be at least 50 cm
away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a
deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.
• The installation procedure into a kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.
• Install the two plastic distance guides (the parts on the black vanes
-condenser- at the rear) by turning it 90° (as shown in the gure) to prevent the condenser from touching the wall.
• The distance between the appliance and back wall must be a maximum of 75 mm.
EN - 9
1.4 Electrical information (For UK type plug)
Warning! This appliance must be
earthed. The mains lead of this appliance has been
tted with a specially earthed plug.
Important: Do not use the
appliance without the fuse cover in position. Should the fuse need to be replaced, it must be replaced with a 13A fuse, ASTA approved to BS1362.
The plug must be used with a specially earthed socket of 13 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
The mains lead of this appliance has been tted with a BS 1363A 13A fused plug. To change a fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA
approved to BS 1362 type, into the fuse
cover.
3. Replace fuse cover.
1.5 During Usage
• Do not connect your fridge freezer to
the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by
adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.
• Do not place explosive or ammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.
Old and Out-of-order Fridges
• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.
CE Declaration of conformity
By placing the mark on this product, we are conrming compliance to all
relevant European safety, health and
environmental requirements which are applicable in legislation for this product.
SCRAPPING OLD APPLIANCES
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
EN - 10
WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specic treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE should not be treated as household waste;
- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
Packaging and the Environment
Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.
Notes:
• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.
EN - 11
2 DESCRIPTION OF THE
APPLIANCE
A
1
2
3
3 USING THE APPLIANCE
11
3.1 Thermostat Setting
The thermostat automatically regulates the temperature inside the refrigerator and freezer compartments. Cooler temperatures
10
can be obtained by rotating the knob to higher numbers, 1 to 5.
Important note: Do not try to rotate
9
the knob beyond position 1, it will stop
your appliance from working.
4
5
6 7
B
8
This presentation is only for
information about the parts of the appliance. Parts may vary according to the appliance model.
A) Refrigerator compartment B) Freezer compartment
1) Refrigerator shelves
2) Crisper cover
3) Crisper
4) Freezer upper ap / Drawer
5) Freezer drawers
6) Ice box tray
7) Plastic ice scraper *
8) Freezer glass shelves *
9) Bottle shelf
10) Door sheves
11) Egg holder
* In some models
Lamp cover
Thermostat knob
Thermostat settings: 1 – 2 : For short-term storage of food in the
freezer compartment.
3 – 4 : For long-term storage of food in the
freezer compartment.
5: For freezing fresh food. The
appliance will work longer. Once the food is fully frozen, reset the thermostat to its original position.
3.2 Temperature Settings Warnings
• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.
• When setting the thermostat, take into consideration how often the appliance doors are opened and closed, how much
food is stored in the refrigerator, and the
EN - 12
environment in which the refrigerator is located.
• When the appliance is rst switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efciency of the appliance.
• Your appliance is designed to operate in the ambient temperature (ST/N = 16°C
- 38°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.
Climate
Class
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)
Ambient Temperature oC
3.3 Accessories
3.3.1 Ice Tray
• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.
3.3.2 The Plastic Scraper
After some time, frost will build up in certain areas of the freezer. The frost accumulated in the freezer should be removed regularly. Use the plastic scraper provided, if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit.
Visual and text descriptions in
the accessories section may vary
according to the model of your
appliance.
EN - 13
4 FOOD STORAGE
4.1 Refrigerator Compartment
• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean sh are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately
helps prevent ethylene-sensitive
vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene­releaser fruits (banana, peach, apricot, g etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat
products and clean any leakages on the shelves.
• Do not put food in front of the air ow passage.
• Consume packaged foods before the recommended expiry date.
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
The table below is a quick guide to show you the most efcient way to store the major food groups in your refrigerator compartment.
Food
Vegetables and fruits
Meat and
sh
Fresh cheese
Butter and margarine
Bottled products e.g. milk and yoghurt
Eggs 1 month
Cooked food
Maximum
storage time
1 week Vegetable bin
2 - 3 Days
3 - 4 Days
1 week
Until the expiry date recommended by the producer
All shelves
How and where to
store
Wrap in plastic foil, bags, or in a meat container and store
on the glass shelf
On the designated door shelf
On the designated door shelf
On the designated door shelf
On the designated egg shelf
4.2 Freezer Compartment
• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
EN - 14
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf’s greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.
NOTE: If you attempt to open the freezer door immediately after closing it, you will nd that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.
Important note:
• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.
EN - 15
The table below is a quick guide to show you the most efcient way to store the major food groups in your freezer compartment.
Meat and sh Preparation
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild boar In 2.5 kg portions or as llets 6 - 8
Freshwater sh
(Salmon, Carp, Crane,
Catsh)
Lean sh (Bass, Turbot,
Flounder)
Fatty shes (Tuna, Mackerel, Bluesh,
Anchovy)
Shellsh Clean and in a bag 4 - 6
Caviar
Snails In salty water, or in an aluminium or plastic container 3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it
must not be re-frozen.
After cleaning the bowels and scales of the sh, wash and dry it. If necessary, remove the tail and head.
In its packaging, or in an aluminium or plastic container
Maximum storage time
(months)
2
4
2 - 4
2 - 3
Vegetables and Fruits Preparation
String beans and beans Wash, cut into small pieces and boil in water 10 - 13
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6 - 8
Carrot Clean, cut into slices and boil in water 12
Pepper
Spinach Wash and boil in water 6 - 9
Cauliower
Eggplant Cut into pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Cut the stem, cut into two pieces, remove the core and boil in water
Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while
Maximum storage time
(months)
8 - 10
10 - 12
EN - 16
Vegetables and Fruits Preparation
Strawberry and Blackberry
Wash and hull 8 - 12
Maximum storage time
(months)
Vegetables and Fruits Preparation
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12
Maximum storage time
(months)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)
Dairy products Preparation
Packet (Homogenized) Milk
Cheese - excluding white cheese
Butter, margarine In its packaging 6
In its own packet 2 - 3 Pure Milk – in its own packet
In slices 6 - 8
5 CLEANING AND
MAINTENANCE
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products,
Thawing time at room
temperature (hours)
Maximum storage time
(months)
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.
The power supply must be disconnected during cleaning.
Maximum storage time
(months)
Thawing time in oven
(minutes)
Storage conditions
Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods.
detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plug to the mains supply with dry hands.
• Make sure that no water enters the lamp
housing and other electrical components.
• The appliance should be cleaned
regularly using a solution of bicarbonate of soda and lukewarm water.
EN - 17
5.1 Defrosting
Defrosting the Refrigerator Compartment
• Defrosting occurs automatically in
the refrigerator compartment during operation. The water is collected by
the evaporation tray and evaporates
automatically.
• The evaporation tray and the water drain
hole should be cleaned periodically with
the defrost drain plug to prevent the
water from collecting at the bottom of the refrigerator instead of owing out.
• You can also clean the drain hole by
pouring half a glass of water down it.
Freezer defrosting process
• Small amounts of frost will accumulate
inside the freezer, depending on the length of time the door may be left open or the amount of moisture introduced.
It is essential to ensure that no frost or
ice is allowed to form in places where it will affect the close tting of the door seal. This might allow air to penetrate the cabinet, encouraging continuous running of the compressor. Thin frost formation is quite soft and can be removed with a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting
process. Remove all dislodged frost from the cabinet oor. It is not necessary to switch off the appliance for the removal of thin frost.
• For the removal of heavy ice deposits, disconnect the appliance from the mains supply, empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep cool. Defrosting will be most effective if carried out when the freezer is nearly empty and should be carried out as quickly as possible to prevent an unnecessary increase in the temperature of the contents.
• Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. An increase in temperature of frozen food during defrosting will shorten the storage life. Keep contents well wrapped and cool while defrosting is taking place.
• Dry the inside of the compartment with a sponge or a clean cloth.
• To accelerate the defrosting process, place one or more bowls of warm water in the freezer compartment.
• Examine the contents when replacing them in the freezer and if some of the packages have thawed out, they should be eaten within 24hours, or be cooked and re-frozen.
• After defrosting is complete, clean the inside of the appliance with a solution of warm water and a little bicarbonate of soda, then dry thoroughly. Wash all removable parts in the same way and reassemble. Reconnect the appliance
EN - 18
to the mains supply and leave for 2 to 3 hours on setting number '5' before introducing the food back into the freezer.
6 SHIPMENT AND
REPOSITIONING
5.2 Replacing the Light Bulb
Important note: Unplug the unit from
the power supply before start the
process.
2
1
4
3
1. Press the hooks on light cover. (Fig. 1)
2. Open the light cover towards arrow when top hooks pull out from housing. (Fig. 2)
3. Pull out the cover towards arrow remove it. (Fig. 3)
4. Turn the light bulb counter clockwise and remove it. (Fig. 4)
5. Change the present light bulb with a new one of not more than 15 W. (Fig. 4)
6. Implement the steps in reverse order.
7. After waiting 5 minutes, plug the unit.
Replacing LED Lighting
If your appliance has LED lighting contact the help desk as this should
be changed by authorized personnel only.
6.1 Transportation and Changing Positioning
• The original packaging and foam may be
kept for re-transportation (optional).
• Fasten your appliance with thick
packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (shelves,
accessories, vegetable bins, and so on) or x them into the appliance against shocks using bands when re-positioning or transporting.
Always carry your appliance in the upright position.
EN - 19
7 BEFORE CALLING AFTER-
SALES SERVICE
If your refrigerator is not working properly, there may be a minor problem. Check the following.
The appliance does not operate Check if:
• There is power
• The mains is connected
• The thermostat setting is on the “•”
position
• The socket is defective. To check this, plug another working appliance into the same socket.
The appliance performs poorly Check if:
• The appliance is overloaded
• The doors are closed properly
• There is any dust on the condenser
• There is enough space near the rear and side walls.
The appliance is noisy
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is normal. If you hear a different sound, check whether:
• The appliance is level
• Anything is touching the rear of the appliance
• Objects in the appliance are vibrating.
There is water in the lower part of the refrigerator
Check if:
The drain hole for the water is not clogged (use defrost drain plug to clean the drain hole).
Recommendations
• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• The cooling unit of your refrigerator is located at the rear of the appliance.
Therefore, water droplets or ice may form on the rear surface of your fridge due to the operation of the compressor at specied intervals. This is normal, there is no need to perform a defrosting operation unless there is excessive ice.
If you do not intend to use your fridge for a long period of time (such as during the summer holidays), set the thermostat to “•” position, defrost and clean your fridge,
leaving the door open to prevent the
formation of mildew and odour.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.
EN - 20
8 ENERGY SAVING
For better energy saving we suggest :
1. Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.
2. Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
3. Do not excessively stuff foods so as to ensure proper air circulation.
4. Defrost the appliance in case there is ice to facilitate the transfer of cold.
5. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
6. Open or keep the doors of the appliance open as little as possible.
7. Avoid adjusting the setting to temperatures too cold.
8. Remove dust present on the rear of the appliance.
EN - 21
EN - 22
EN - 23
52275031
Loading...
