Calix 8X4G-2V2, 8X4G 2, 8X4G 1 User Manual

8x4G-x

Quick Installation Guide

WiFi Dual Band 4 Gigabit LAN Port GPON HGU

Version 1.0

Date 2014.07.25

Copyright@2014 Mitrastar Network Technology Incorporation

Model List:

Product Description

Product

Name

POTS

USB

WiFi

2.4

WiFi

5.0

RF

UPS

Wall

Adapter

844G Service Gateway, UPS

Power Interface

844G-1

2 1 1 1 0 1 0

844G Service Gateway, Std

Power Interface

844G-2

2 1 1 1 0 0 1

854G Service Gateway, RF

and UPS Power Interface

854G-1

2 1 1 1 1 1 0

854G Service Gateway, RF

and Std Power Interface

854G-2

2 1 1 1 1 0 1

1. How to Use the Devices?

The device can be used in two types: Standing type and Wall mount type:

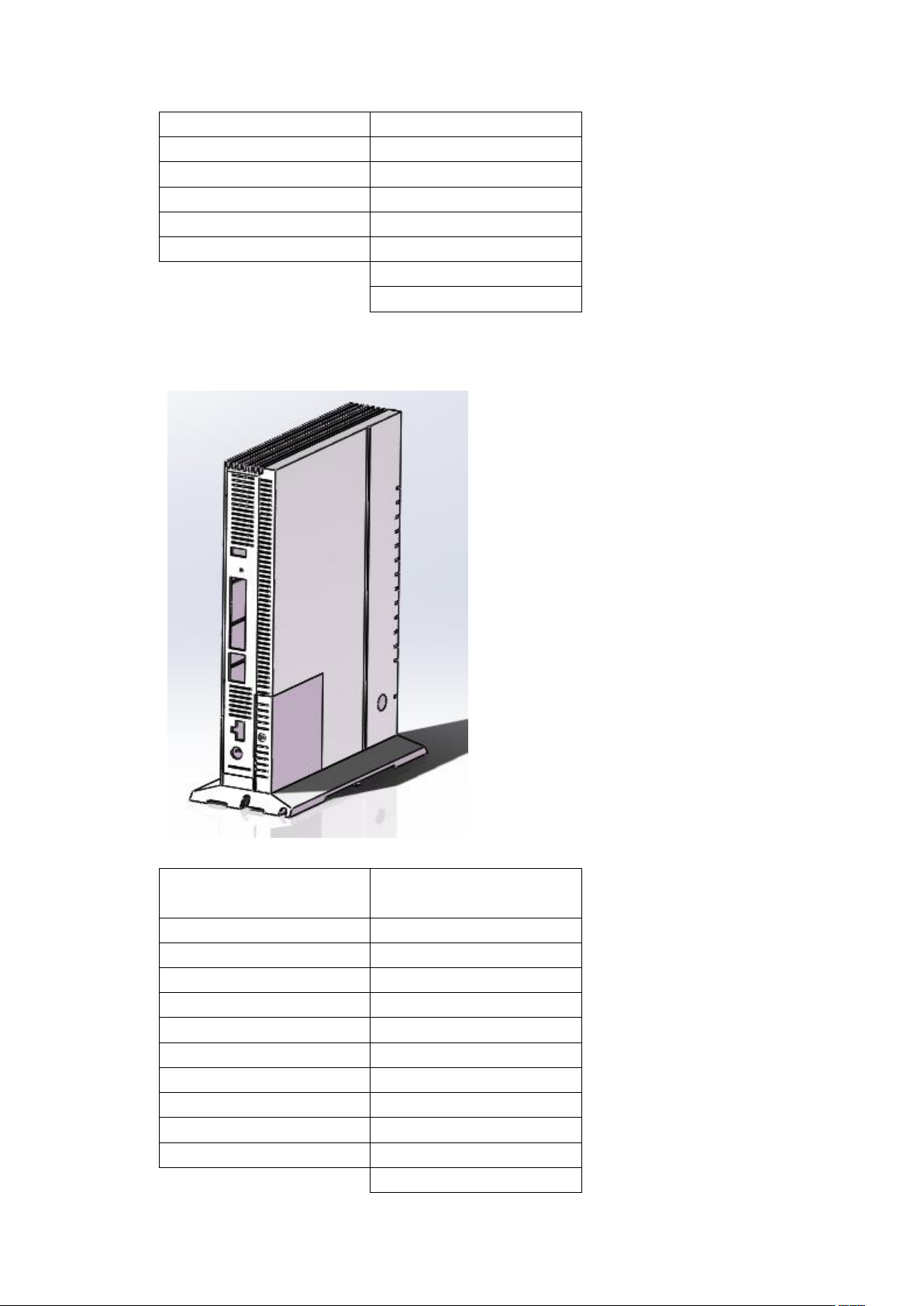

a) Standing type (Vertically stand as below)

b) Wall mount type ( Connectors upside and LED downside direction, there is a fiber

tray for the Wall Mount)

2. Hardware Connections for the 4 models

a. Open the PON Cover, connect the fiber cable to the Fiber SC connector of the device.

b. Use a Gigabit Ethernet Cable to connect a computer to an Ethernet port for initial

configuration and/or internet connection.

C. Use the provided UPS or Power Adaptor source to the POWER Socket. Need to push the

ON/OFF button to the ON position if Power Adaptor is used.

d. Connect the USB dongle to the USB port if USB wants to be used

Model 1: 844G-1 (Power on via UPS)

Rear Panel (From Up to Down)

Front Panel LED printing

(From Up to Down)

USB

POWER

RESET

BROADBAND

ETHERNET 4

SERVICE

ETHERNET 3

WiFi 2.4GHz

ETHERNET 2

WiFi 5GHz

ETHERNET 1

ETHERNET 4

PHONE 1

ETHERNET 3

PHONE 2

ETHERNET 2

POWER

ETHERNET 1

PHONE 1

PHONE 2

USB

Rear Panel (From Up to Down)

Front Panel LED printing

(From Up to Down)

USB

POWER

RESET

BROADBAND

ETHERNET 4

SERVICE

ETHERNET 3

WiFi 2.4GHz

Model 2: 844G-2 (Power on via Power Adaptor)
