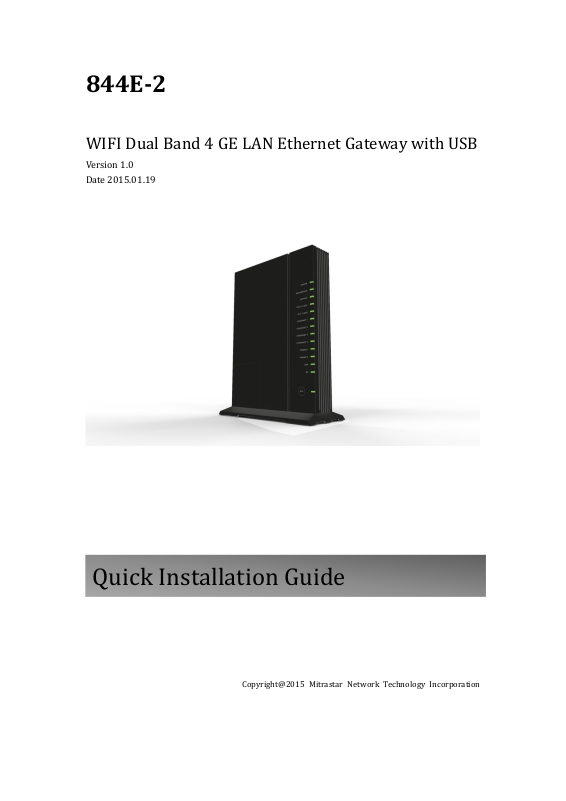

Quick Installation Guide
WIFI Dual Band 4 GE LAN Ethernet Gateway with USB
Version 1.0
Date 2015.01.19
Copyright@2015 Mitrastar Network Technology Incorporation
Model List:
Product Description
Product
Name
POTS
USB
WiFi
2.4
WiFi
5.0
UPS
Wall
Adapter
844E-1 Service Gateway
844E-1
2 1 1 1 1 1 844E-2 Service Gateway
844E-2
2 1 1
1 1 1
1. How to Use the Devices?
The device can be used in two types: Standing type and Wall mount type:
a) Standing type (Vertically stand as below)
b) Wall mount type (LED up and Cables down)
2. Hardware Connections for the 4 models
Rear Panel (From Up to Down)
Front Panel LED printing
(From Up to Down)
USB
POWER
RESET
BROADBAND
ETHERNET 4
SERVICE
ETHERNET 3
WiFi 2.4GHz
ETHERNET 2
WiFi 5GHz
ETHERNET 1
ETHERNET 4
PHONE 1
ETHERNET 3
PHONE 2
ETHERNET 2
POWER
ETHERNET 1
PHONE 1
PHONE 2
USB
a.Use a Gigabit Ethernet Cable to connect a computer to an ETHERNET port for initial
configuration and/or internet connection.
b. Use the provided UPS or Power Adaptor source to the POWER Socket. Need to push the
ON/OFF button to the ON position if Power Adaptor is used.
d. Connect the USB dongle to the USB port if USB wants to be used.
Model: 844E-2 (Refer to the Pic.)
3. Configurations
Step1: In your browser, go to http://192.168.1.1, the following screen appears, enter
the default username and password: admin/admin and click Login.
