Calix 844FX-X Users Manual
Avertissement:
(i) les dispositifs fonctionnant dans la bande de 5150 à 5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afi n de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis pour les dispositifs utilisant les bandes de 5250 à
5350 MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e;
(iii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis (pour les dispositifs utilisant la bande de 5725 à
5850 MHz) doit être conforme à la limite de la p.i.r.e. spécifi ée pour l’exploitation point à point et l’exploitation non point à point, selon le
cas;
Les opérations dans la bande de 5.25-5.35GHz sont limités à un usage intérieur seulement.
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme Canada limites d’exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être
installé et utilisé à distance minimum de 20cm entre le radiateur et votre corps.
Europe – EU Declaration of Conformity
Hereby, Calix Inc. declares that the Radio Equipment Model 844FB is in compliance with Directive 2014 / 53 / EU. A full text Declaration
of Conformity is available on the Calix Documentation portal.
User Manual Information Agreement
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is
a label that contains, among other information, a product identifi er in the format US:AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
USOC Jack: RJ-14
REN: 0.1
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part
68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed
to be connected to a compatible modular jack that is also compliant. See installation instructions for details.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line
may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed
fi ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local
telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifi er that has the format
US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (for example, 03 is a REN of 0.3). For earlier
products, the REN is separately shown on the label.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance
of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also,
you will be advised of your right to fi le a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the
equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifi cations to
maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please contact:
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until
the problem is resolved.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not
disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a
qualifi ed installer.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This is to avoid
damaging the equipment caused by local lightening strikes and other electrical surges.
Name: Calix, Inc.
Address: 1035 N. McDowell Blvd. Petaluma, CA 94954, USA
Telephone: 707-766-3155
Website: https://www.calix.com
844FB GigaCenter Quick Start Guide
This document provides general installation practices for the GigaCenter
model 844FB. The 844FB’s primary features include:
• Broadband Forum G.fast G.9700/1 and G.997.2 extension standard compliant
• Supports bonding in compliance with ITU G998.2, G999.1, and G994.1
• Four Gigabit Ethernet (GE) interfaces
• Carrier grade SIP, H.248, MGCP VoIP
• Aggregate bandwidth up to 2 Gbps
• Supports multiple data service profi les (symmetric and asymmetric bandwidth)
• IPTV, IGMPv2, IGMPv3
• Traffi c Management and Quality of Service (QoS)
• OAM&P support via Calix Consumer Connect Plus
• Indoor wall, Structured Wiring Enclosure (SWE), or tabletop mount
• Optional UPS with in-home battery back-up
This document also provides guidance for site preparation, installation, and basic
troubleshooting.
Scan the QR code at left to access the installation instructions
for this product. All product documentation is available online
from the Calix Resource Center (support.calix.com).
— 12 —
www.calix.com
P/N 220-00978, Rev 11
Package Contents
GigaCenter Model 844FB
Power Adapter (Optional - may ship separately or with UPS*)
Wall Mount Bracket
Tabletop Mounting Stand
GigaCenter 844FB Quick Start Guide (this document)
* Note: For instructions on installing the optional UPS, refer to the 800
GigaFamily Hardware Installation Guide.

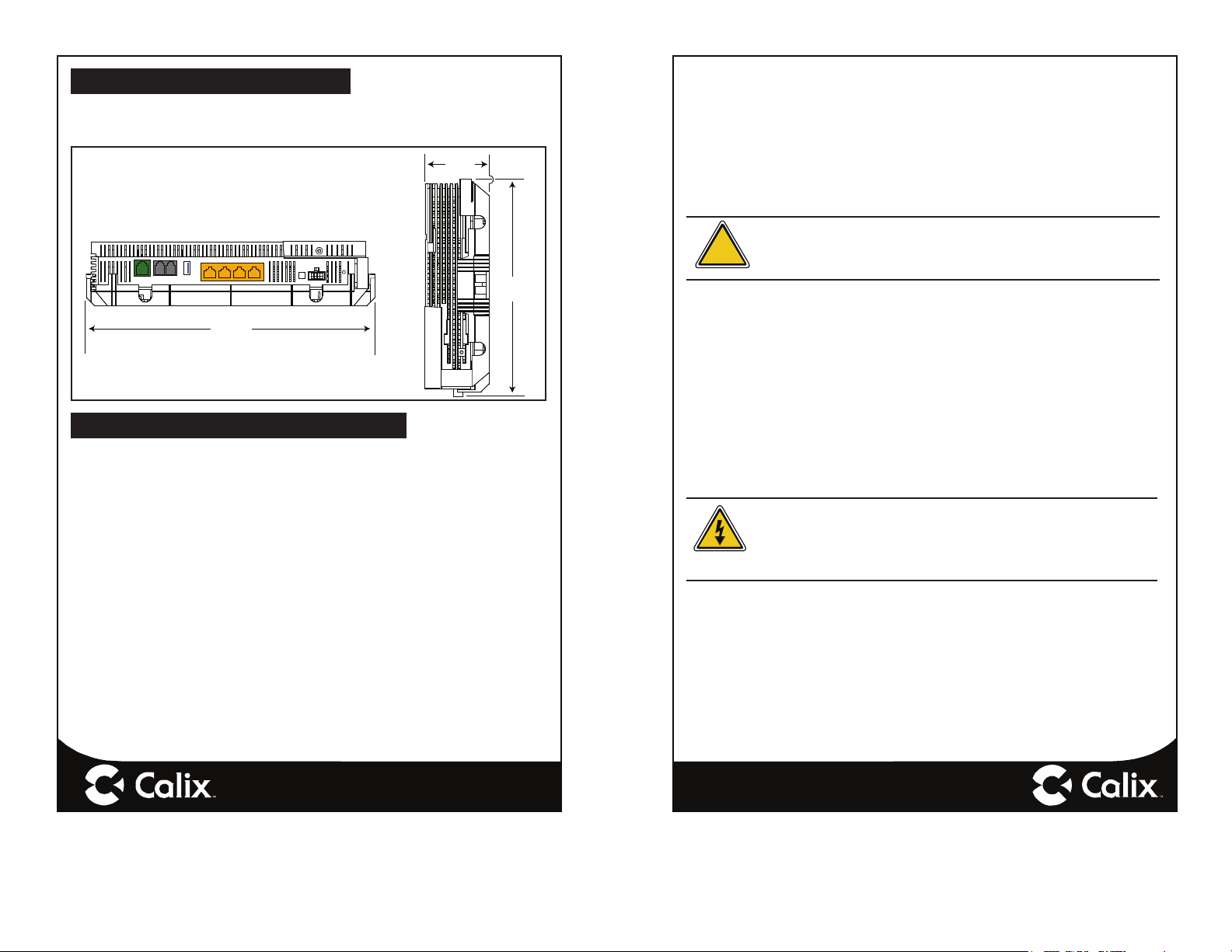

A Quick Look
Model 844FB Shown
BROADBAND
BROADBAND 1
BROADBAND 2
WiFi 2.4 GHz
WPS
WiFi 5 GHz
ETHERNET 1
ETHERNET 2
ETHERNET 3
ETHERNET 4
POWER
SERVICE
PHONE 1
PHONE 2
USB
Power LED
Broadband LEDs
Service LED
2.4 GHz LED
5 GHz LED
Ethernet LEDs
Phone LEDs
USB LED
7509
Broadband Interface (RJ-14)
PHONE
Phone Interface (2 x RJ-11)
USB
USB Port (USB 3.0 Type A)
ETHERNET
Ethernet Port (4 x RJ-45)
ON/OFF POWER
On/Off Switch, spring loaded
Power Interface (8-pin)
RST
Reset Button
Installation Variables
Before installing the GigaCenter, consider the following:
• Will the unit will be mounted on the wall or on a tabletop?
• Four Ethernet (RJ-45) ports, two phone ports, and (1) G.fast (RJ-14) port are
connected on the back of the unit which must be planned for from a cable routing
perspective.
• A power supply and/or signal cable/UPS power cord combination may be needed.
• Determine what type of building material is used in the home. Make sure you
have the appropriate drills, drill bits and fasteners for mounting the GigaCenter,
or routing subscriber services and power cables as they pass through walls and
the like.
Make sure you account for all variables prior to determining the unit’s fi nal location.
WEEE Directive
Requirements according to WEEE directive (2002/96/EC)
Disposal of old electrical and electronic equipment (Applicable in the European countries with separate collection
systems).
This symbol on the product indicates that this product shall not be treated as household waste. Instead it shall be
6312
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling
of materials will help to conserve natural resources. Calix offers take-back and recycling services for products in
many locations around the world.
Customers are advised to contact their local Calix representative for further information.
License Information
Open Source Software Utilization Notice
The 844FB GigaCenter uses Open Source Software Programs. Such software programs are made available subject to certain third party
terms and conditions.
The fact that you are about to begin using or have purchased this product requires that you be informed of the use of these software
packages and or libraries and in some cases, the third party terms and conditions applicable to such software. This information can be
found on the manufacturer’s support portal. Refer to the appropriate software release notes for additional information on Open Source
Software Programs used by this product.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
Operation of this device is restricted to indoor use only.
Industry Canada statement:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
Caution:
(i) the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to cochannel mobile satellite systems;
(ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725
MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(iii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such
that the equipment still complies with the e.i.r.p. limits specifi ed for point-to-point and non-point-to-point operation as appropriate; and
operations in the 5.25-5.35 GHz band are restricted to indoor usage only.
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Type Connector 2.4G Gain 5G B1 Gain 5G B2 Gain 5G B3 Gain 5G B4 Gain
Dipole IPEX 0 dBi -0.8 dBi -0.8 dBi -0.5 dBi -1.2 dBi
— 2 —
— 11 —
