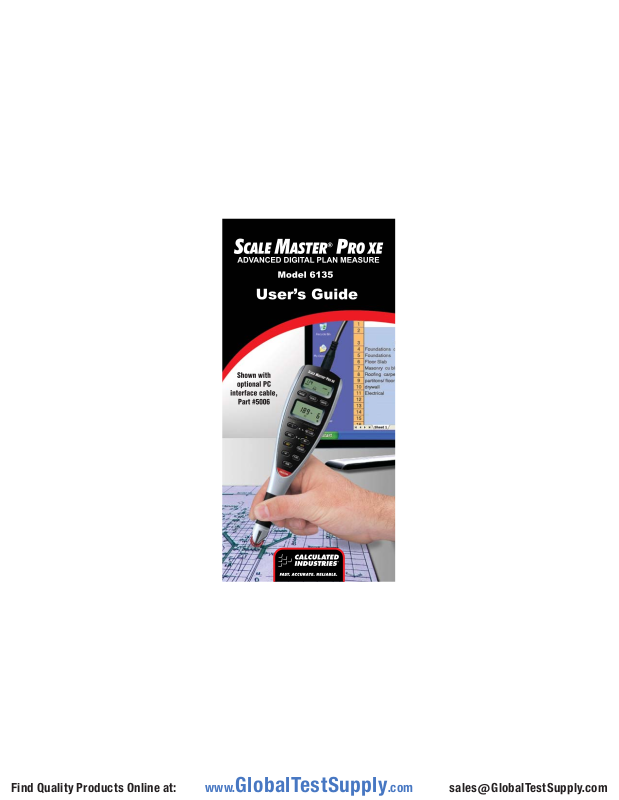

SCALE MASTER® PRO XE

Introduction

The Scale Master Pro XE Multi-Scale Digital
Plan Measure has been specifically designed
to simplify takeoffs from architectural and
engineering drawings.

• Finds linear measurements of any

shape

• Finds rectangular areas and volumes

• Converts between scales and

dimensions

• Built-in push button counter

• Auto-Count function

• Constant (+K) function

• Subtract function

• Ten Custom Scales that let you define

and roll in any scale

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

TABLE OF CONTENTS

Getting Started

Key Definitions ................................................1

Operation Keys .............................................1

Setup Keys .....................................................3

Measuring Keys .............................................5

Function Keys ...............................................7

Using the Scale Master Pro XE

Adjusting the Wheel.........................................9

Preferences ..................................................... 10

Imperial/Metric Modes ................................ 12

Built-In Scales ................................................ 13

Imperial (Standard) Units ......................... 13

Metric Units ................................................ 14

Changing Modes ............................................15

Changing Scales ............................................. 15

Changing Units .............................................. 15

Locking Modes, Scales and Units ............... 15

Operation ....................................................... 16

Rolling a Measurement ................................. 17

Using the Memory Function ...................... 18

Additional Memory Functions .................19

Using Ruler Mode ......................................... 19

Programming Mode ...................................... 20

Setting Custom Scales ...................................21

Rolling a Custom Scale .............................. 21

Entering a Custom Scale ........................... 22

Setting an Auto-Count .................................. 24

Setting a Constant (+K) ............................... 25

Additional Constant Functions ................ 26

Setting a Height ............................................. 27

Finding Area and Volume ............................ 27

Finding Area ............................................... 28

Finding Volume .......................................... 28

Additional Area/Volume Functions ....... 29

Connecting to a PC (optional)..................... 29

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Appendix

Error/Auto-Range Function ....................... 30

Interference .................................................... 30

Battery/Automatic Shut-Off ...................... 31

Battery Replacement ..................................... 31

Default Settings .............................................32

Specifications ................................................. 33

Repair and Return ......................................... 34

Warranty.......................................................... 35

FCC Class B ................................................... 37

Looking for New Ideas ................................37

Contact Us ...................................................... 38

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

GETTING STARTED

Key Definitions

Operation Keys

[ON/CLEAR] – On/Clear

Turns power on. Press once to clear the

display. This will not clear the last rolled
measurement as it is a permanent value
and can be recalled to the main display at
any time by pressing

[SET] [ON/CLEAR] – Off

Turns power off. Turning power off clears

the display and semi-permanent values
(length, width, count). All permanent
values and settings, such as modes, scales
and units, remain intact. Holding down

[ON/CLEAR] key for 2 seconds also

the
powers the unit off.

[ON/CLEAR] + [MODE] – Clear All

Clears all values, including memory.

Resets all permanent settings except
Preferences.

[SET] [ON/CLEAR] to turn the device off,

[MODE] + [ON/CLEAR] –

then

Software Reset

Clears all values, including memory.

Resets all permanent settings, including
Preferences.

[RCL] [RCL].

1 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

[RESET] – Hardware Reset

If your Scale Master Pro XE should ever

“lock up,” use a paperclip or similar size
object to press the RESET hole. Clears all
values, including memory. All permanent
settings, including Preferences, remain
intact.

[SET] – Set Key

Used with other keys to access second

functions and place the Scale Master
Pro XE into programming mode. If in
programming mode already, pressing

[SET] will store the displayed value and

exit programming mode. A press of

[SET] after rolling locks the measurement.

While locked, the displayed value will not
be affected by rolling the Scale Master Pro
XE. A second press of [SET] will unlock
the measurement.

[RCL] – Recall Key

Used to recall stored values. When you

press [RCL] [RCL], the last value rolled
is displayed, allowing roll to continue
from this value. Recalling any other value
disables measuring until the recalled value
is cleared with a press of [ON/CLEAR].

[IMP/MET] – Imperial/Metric Switch

Toggles between Imperial and Metric

modes.

User’s Guide – 2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

[LOCK] – Lock Switch

The Lock Switch is located on the side

of the unit. When the lock is activated, a
lock symbol will be displayed in the LCD.
While active you cannot alter Scales,
Modes, Units, Preferences or the IMP/

(Imperial/Metric) switch. You also

MET

cannot perform a Clear All or a Software
Reset. It is advised to use the Scale Master
Pro XE in the locked position unless
you are specifically setting or changing
a setting.

Setup Keys

[MODE] – Mode Selection

Repeated presses of [MODE] will

scroll through the available modes. See
“Changing Modes” section.

[SUB] + [MODE] – Scrolls Back Modes

Holding [SUB] and repeated presses of

[MODE] will scroll backward through the

available modes.

[SCALE] – Scale Selection

Repeated presses of [SCALE] will

scroll through the available scales. See
“Changing Scales” section.

3 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

[SUB] + [SCALE] – Scrolls Back Scales

Holding [SUB] and repeated presses of

[SCALE] will scroll backward through the

available scales.

[UNITS] – Unit Selection

Repeated presses of [UNITS] will

scroll through the available units of
measurement. See “Imperial Units” and
“Metric Units” sections.

[SUB] + [UNITS] – Scrolls Back Units

Holding [SUB] and repeated presses of

[UNITS] will scroll backward through the

available units.

[SET] [MODE] – Preferences

Accesses the preference settings. See

“Preferences” section.

[W] ([L]) – Left Arrow

Moves to the left when setting values for

custom scales, auto-count, constant, and
height. Will scroll back through available
settings within the preferences.

[X] ([W/LxW]) – Right Arrow

Moves to the right when setting values

for custom scales, auto-count, constant,
and height. Will scroll forward through
available settings within the preferences.

User’s Guide – 4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

[T] ([RCL]) – Down Arrow

Decreases the number when setting values

for custom scales, auto-count, constant,
and height. Will scroll down through the
preferences.

[S] ([M+]) – Up Arrow

Increases the number when setting values

for custom scales, auto-count, constant,
and height. Will scroll up through the
preferences.

Measuring Keys

[L] – Length

Enters the displayed measurement into

length.

[RCL] [L] – Length Recall

Displays the stored length value. On a

clear display, [L] can be pressed without

[RCL].

[ON/CLEAR] + [L] – Length Clear

Clears the length value.

[W/LxW] – Width/Area

Enters the displayed measurement into

width. The total area will be displayed
when the width is entered. Repeated
presses will scroll through the following
results:

5 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

1) Area

2) Perimeter

3) Volume (if Height is entered)

4) Wall Area (if Height is entered)

5) Stored Height (if Height is entered)

6) Stored Length

7) Stored Width

[RCL] [W/LxW] – Width Recall

Displays the stored width value. On a clear

display, [W/LxW] can be pressed without

[RCL].

[ON/CLEAR] + [W/LxW] – Width Clear

Clears the width value.

[SET] [L] (H) – Height Set

Enters the height setting mode. See the

“Setting a Height” section.

[RCL] [SET] [L] – Height Recall

Displays the stored height value.

[SET] [W/LxW] (LxWxH) – Volume

After pressing [SET], repeated presses

of [W/LxW] will scroll through the
following results:

1) Volume (if Height entered)

2) Wall Area (if Height entered)

3) Stored Height (if Height entered)

4) Stored Length

5) Stored Width

6) Area

7) Perimeter

User’s Guide – 6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Function Keys

[M+] – Memory Plus

Adds the displayed value to the

accumulative value.

[RCL] [M+] – Memory Recall

Displays the value stored in accumulative

memory.

[ON/CLEAR] + [M+] – Memory Clear

Clears the accumulative memory value.

[SET] [M+] (M-) – Memory Minus

Subtracts the displayed value from the

accumulative memory. [SUB] + [M+] will
perform the same function.

[COUNT] – Count

Increases the count value by one.

[SUB] + [COUNT] – Count Subtract

Decreases the count value by one.

[RCL] [COUNT] – Count Recall

Displays the count value in the main

display.

[ON/CLEAR] + [COUNT] – Count Clear

Clears the count value.

[SET] [COUNT] – Auto-Count

Enters auto-count setting mode. See the

“Setting an Auto-Count” section.

7 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

[RCL] [SET] [COUNT] – Auto-Count Recall

Displays the stored Auto-Count value.

[XPC] – PC Send

When connected to a PC, sends the value

from the main display of the Scale Master
Pro XE to the PC. All values are sent in
decimal format.

[+K] – Constant Add

Adds the constant value to the displayed

measurement value.

[SET] [+K] – Constant Set

Enters constant setting mode. See the

“Setting a Constant (+K)” section.

[SUB] + [+K] – Constant Subtract

Subtracts the constant value from the

displayed measurement value.

[RCL] [+K] – Constant Recall

Displays the stored constant value.

[ON/CLEAR] + [+K] – Constant Clear

Clears the constant value.

[SUB] – Subtract Mode

Toggles subtract mode on and off. When

subtract mode is on, rolling forward or
backward will subtract from the displayed
measurement. Press [SUB] a second time
or press [ON/CLEAR] to turn subtract
mode off.

User’s Guide – 8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Rotate to Adjust Wheel

USING THE SCALE MASTER PRO XE

Adjusting the Wheel

The Celcon® polymer wheel can be adjusted
for each user’s preference. To adjust the
wheel, take a small, flat-head jeweler’s
screwdriver and slightly rotate the screw
located near the wheel tip. Rotating the
screw about 1/4 to 1/3 turn should be
sufficient. Rotating the screw within those
two values should adjust the wheel between
free spinning (which is too loose) to skidding
(which is too tight).

9 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Preferences

Preferences allow customization of how the
Scale Master Pro XE functions during certain
operations. The following preferences are
available:

Button Beep (butn) – Toggles on or off
the beep sound that occurs at the press of a
button or during auto-count.

Beep, On – Button beep on
Beep, Off – Button beep off

Rolling Click (roll) – Toggles on or off the
clicking sound that occurs while rolling.

Clic, On – Rolling click on
Clic, Off – Rolling click off

Stored Value Display (Stor) – Toggles
whether the value remains displayed or is
cleared after being stored.

Clr Lcd – Display cleared
No Clr – Display not cleared

(cont’d)

User’s Guide – 10

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

(cont’d)

PC Terminate (End PC) – Determines
where the “cursor” moves after a value is
sent to the PC. The settings represent the
key being pressed on the PC keyboard:

Enter – PC Enter
Tab – PC Tab
Left – PC Left Arrow
Right – PC Right Arrow
Up – PC Up Arrow
Dn – PC Down Arrow
None – No Terminate

PC Send Display (SEnd PC) – Toggles
whether the value remains displayed or is
cleared after being sent to the PC.

Clr Lcd – Display cleared
No Clr – Display not cleared

PC Send Beep (SEnd PC) - Toggles
whether or not a beep sounds when a value
is sent to the PC. It is a single beep for a
successful send and a double beep for an
unsuccessful send or error.
Beep, On – Button beep on
Beep, Off – Button beep off

11 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setting Preferences:

1) Press

2) Press the

3) When the preference to be changed is

4) Once the desired setting is displayed,

[SET] [MODE] to access the

preferences.

[M+] (S) key to move up

or the [RCL] (T) key to move down
through the list of preferences.

displayed, press the [W/LxW] (X) key to
move forward or the [L] (W) key to move
backward through the settings for the
selected preference.

press the
to move to another preference or press

[SET] to save and exit.

[M+] (S) or [RCL] (T) key

Imperial/Metric Modes

The Scale Master Pro XE is set up to use
Imperial (Standard) dimensional units
by default. The Scale Master Pro X E can
be set to Metric Mode by switching the

IMP/MET switch to MET.

While in Metric mode, MET will remain lit
in the display.

User’s Guide – 12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Built-In Scales

Imperial (Standard) Units

Architect Engineer-I Engineer-II Map

ARCH ENGI ENGII MAP

1 foot= 1 inch= 1 inch= 1 inch=

1/4” 10.0’ 300.0’ 1.0 Mi
3/8” 20.0’ 333.3’ 1.5 Mi
1/2” 30.0’ 400.0’ 2.0 Mi
3/4” 40.0’ 416.6’ 3.0 Mi
1/1 (1”) 50.0’ 500.0’ 4.0 Mi

1

/

3/2 (1

2”) 60.0’ 583.3’ 5.0 Mi

2/1 (2”) 83.3’ 600.0’ 6.0 Mi
3/1 (3”) 100.0’ 625.0’ 10.0 Mi
4/1 (4”) 166.6’ 666.6’ 20.0 Mi
1/32” 200.0’ 750.0’ 24.0 Mi
1/16” 250.0’ 1,000.0’ 25.0 Mi
3/32” 1,200.0’
1/8” 2,000.0’
3/16” 3,000.0’

13 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Metric Units

Architect Engineer-I Engineer-II Map

ARCH ENGI ENGII MAP
1:50 1:100.0 1:1,000 1:100k

1:75 1:125.0 1:1,250 1:125k
1:1 1:150.0 1:1,500 1:200k
1:2 1:200.0 1:1,625 1:250k
1:3 1:250.0 1:2,000 1:500k
1:4 1:300.0 1:2,500 1:1,000k
1:5 1:400.0 1:5,000 1:2,000k
1:10 1:500.0 1:6,000 1:2,500k
1:20 1:10k
1:25 1:12.5k
1:30 1:20k
1:40 1:25k
1:50k

User’s Guide – 14

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Changing Modes

Repeated presses of the [MODE] key will
scroll through the list of available modes.
Holding [SUB] when pressing [MODE] will
scroll backward through the list of available
modes.

Changing Scales

Repeated presses of the [SCALE] key will
scroll through the list of available scales.
Holding [SUB] when pressing [SCALE] will
scroll backward through the list of available
scales.

Changing Units

Repeated presses of the [UNITS] key will
scroll through the list of available units.
Holding [SUB] when pressing [UNITS] will
scroll backward through the list of available
units.

Locking Modes, Scales and Units

Your Scale Master Pro XE comes equipped
with a lock switch that prevents inadvertently
changing drawing scales. When the lock is
activated, a lock symbol will be displayed in the
LCD. While active, the Mode, Scale and Units
cannot be revised.

15 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Operation

User’s Guide – 16

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Rolling a Measurement

To take a measurement with the Scale Master
Pro XE:

1) Turn the unit on. If the display does not

show zero (0), press the
key to clear the display.

2) Select your type of scale by pressing the

[MODE] key. Then press the [SCALE]

key to select your scale.

3) Begin rolling. The display will register

your measurements. When you roll the
unit, be sure to hold the unit upright
(see the first picture in the "Operation"
section).

Also make sure you start and stop at

the exact points you are measuring.
Otherwise your roll may not be
accurate (see the second picture in the
"Operation" section).

4) Press the [ON/CLEAR] key to clear the

display and begin a new measurement.

[ON/CLEAR]

17 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Using the Memory Function

The Memory function allows you to add
rolled or counted values. However, you
cannot add dimensioned (rolled) and non­dimensioned (counted) values together.

To add rolled values:

1) Roll the first value.* Press

Memory indicator “M” appears and the
value is added to Memory.

2) Roll the next value. Press
value is added to your previous value
stored in Memory.

3) You can continue to add values using

[M+] key. Press [RCL] [M+] to

the
review the total in Memory.

*Note: For count values, you must press the

[COUNT] key to count your value. Then press
[RCL] [COUNT] to move the count value to the main

display. Press [M+] to add this value to Memory.

See the "Function Keys" section for
additional memory functions.

[M+]. The

[M+]. This

User’s Guide – 18

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Additional Memory Functions

[SET] [M+]

Subtracts the value in the main display
from the value stored in Memory.

[RCL] [M+]

Displays the total accumulated value in
Memory. Repeated presses of
toggle between total accumulated value,
number of entries in Memory, and
average value of all entries in Memory.

[ON/CLEAR] + [M+]

Clears the Memory register.

[M+] will

Using Ruler Mode

Your Scale Master Pro XE can be used as a
rolling ruler, which is especially useful for
measuring irregular shapes.

To change to Ruler Mode, press the
key until the Ruler Mode is indicated in the
upper display as “TAPE.” Begin rolling.

[MODE]

19 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Programming Mode

The Scale Master Pro XE allows you to pre-set
frequently used values, including:

● Custom Scales (5 Imp/5 Met)

● Auto-Count distance

● +K (Constant) value

● Height value

To begin setting values, press the
and then the desired key to be programmed.
The following keys are used in programming
mode:

[UNITS] Toggles through available units.

[W/LxW] (X) Advances the cursor to the

next place to the right.

[L] (W) Moves the cursor back to the next

place to the left.

[M+] (S) Increases the selected value.

[RCL] (T) Decreases the selected value.

[ON/CLEAR] Exits without saving any

changes.

[SET] Exits and saves changes.

[SET] key

User’s Guide – 20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setting Custom Scales

You can store ten Custom Scales: five in
Imperial Mode and five in Metric Mode.

You can set a custom scale two ways: by
“rolling in” a known distance or by entering
the exact distance.

Rolling a Custom Scale

1) Press [MODE] until # OPEN (# being

a number 1-5) appears in the scale box
display.

2) Press

3) Roll desired distance. “

4) Press

5) To change the units of measurement,

[SET] [SCALE]. “ROLL” will appear

in the main display.

ROLLING” now

appears in the main display.

[SCALE]. The annunciator will

begin flashing “FT IN” for Imperial
Mode, “M” for Metric Mode.

press

[UNITS] until your desired units

appear. Press the [W/LxW] (X) or the

[L] (W) key to begin setting the distance.

The selected digit will start flashing.

21 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6) Press [M+] (S) to increase or [RCL] (T)

to decrease the selected digit. Press the

[W/LxW] (X) key to move to the next

digit to the right or the [L] (W) key to
move back to the left.

7) Once the desired value has been entered,

Note:

programming mode without saving any value as
the Custom Scale.

[SET] to store value and exit the

press
programming mode.

Pressing [ON/CLEAR] will exit the

Entering a Custom Scale

1) Press [MODE] until # OPEN (# being

a number 1-5) appears in the scale box
display.

2) Press

3) Press

Note:

[SET] [SCALE]. “ROLL” will appear

in the main display.

[SCALE] again. The annunciator

will begin flashing “FT IN” for Imperial
Mode. The left-most digit flashes for
Metric Mode.

If in Metric Mode, skip to Step 5.

(cont’d)

22 – User’s Guide

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

(cont’d)

4) To change the units of measurement,

press [UNITS] until your desired units
appear. Press the [W/LxW] (X) or the

[L] (W) key to begin setting the distance.

The selected digit will start flashing.

5) In Imperial mode, the scale will be one
inch equals the distance you entered. In
Metric mode, entered scales are direct
ratios.

6) Press

7) Once the desired value has been entered,

Press

[M+] (S) to increase or [RCL] (T)

to decrease the selected digit. Press the

[W/LxW] (X) key to move to the next

digit to the right or the [L] (W) key to
move back to the left.

press

[SET] to store value and exit the

programming mode.

[RCL] [SCALE] while in custom

mode to display the current custom
scale.

23 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setting an Auto-Count

The Scale Master Pro XE has an Auto-Count
function that allows you to count how many
times you’ve rolled a certain distance. You
will hear a beep each time you roll that
distance.

To set an Auto-Count:

1) Press

2) To change the units of measurement,

3) Press

[SET] [COUNT] to access the

Auto-Count function. The appropriate
annunciator will begin flashing “FT IN”
for Imperial mode or “M” for Metric
mode. “AUTO COUNT” will appear in
the display.

press

[UNITS] until your desired units

appear. Press the [W/LxW] (X) or the

[L] (W) key to begin setting the distance.

The selected digit will start flashing.

[M+] (S) to increase or [RCL] (T)

to decrease the selected digit. Press the

[W/LxW] (X) key to move to the next

digit to the right or the [L] (W) key to
move back to the left.

(cont’d)

User’s Guide – 24

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

(cont’d)

4) Once the desired value has been entered,
press [SET] to save changes and put the
unit into Auto-Count mode.

5) Roll a distance. The unit will beep each
time you roll the programmed distance.
The count number in the display will
increase.

6) Press

[SET] [COUNT] to exit Auto-Count

mode.

Setting a Constant (+K)

This function is used to store a constant
value. Once a constant value has been
stored, pressing [+K] will add that value to
the displayed measurement.

To set a constant:

1) Press [SET] [+K] to access the constant
function. The appropriate annunciator
will begin flashing “FT IN” for Imperial
Mode or “M” for Metric Mode. “PLUSk”
will appear in the display.

25 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2) To change the units of measurement,

press [UNITS] until your desired units
appear. Press the [W/LxW] (X) or the

[L] (W) key to begin setting the distance.

The selected digit will start flashing.

3) Press

4) Once the desired value has been entered,

[M+] (S) to increase or [RCL] (T)

to decrease the selected digit. Press the

[W/LxW] (X) key to move to the next

digit to the right or the [L] (W) key to
move back to the left.

press the

[SET] key to save and exit.

Additional Constant Functions

[RCL] [+K]

Allows you to verify the current
constant value.

[SUB] + [+K]

Subtracts the constant value from the
displayed measurement value.

[ON/CLEAR] + [+K]

Resets the constant value to zero.

User’s Guide – 26

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setting a Height

The height function is used to enter a height
value for finding volume.

To set a Height:

1) Press

2) To change the units of measurement,

3) Press

4) Once the desired value has been entered,

[SET] [L] to access the height

function. The appropriate annunciator
will begin flashing “
mode or “M” for Metric mode. An “H”
will appear in the display.

press

[UNITS] until your desired units

appear. Press the [W/LxW] (X) or the

[L] (W) key to begin setting the distance.

The selected digit will start flashing.

[M+] (S) to increase or [RCL] (T)

to decrease the selected digit. Press the

[W/LxW] (X) key to move to the next

digit to the right or the [L] (W) key to
move back to the left.

[SET] key to save and exit.

press the

FT IN” for Imperial

Finding Area and Volume

The Scale Master Pro XE can calculate Area
and Volume once you have your values
set for Length, Width, and (for Volume)
Height.

27 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Finding Area

1) Roll the first side and press the [L] key

to store as Length.

2) Roll the second side and press
to store as Width. The main display will
show the calculated Area.

[W/LxW]

Finding Volume

To access Volume after you have your
values set for Length, Width, and Height,
press [SET] [W/LxW]. Continued presses of
the [W/LxW] key will display the following
results:

1) Volume*

2) Wall Area**

3) Height**

4) Stored Length

5) Stored Width

6) Area

7) Perimeter

* If Height is not entered, a 0 will be displayed
and continued presses of [W/LxW] will not
redisplay the zero volume.

** Wall Area and Height do not display if a
Height has not been set.

User’s Guide – 28

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Additional Area/Volume Functions

[RCL] [L]

Displays the value stored in the Length
register.

[RCL] [W/LxW]

Displays the value stored in the Width
register.

[ON/CLEAR] + [L]

Clears the value stored as Length.

[ON/CLEAR] + [W/LxW]

Clears the value stored as Width.

Connecting to a PC (optional)

The Scale Master Pro XE has a computer
interface connection so that you can use it
with estimating and spreadsheet software
programs. Like your keyboard, it sends a
single value from the Scale Master Pro XE to
the selected cell in your program.

Only the value currently on the main display
will be sent to the PC. To send the displayed
value to your PC, press the [XPC] key.

Note: When connected to a PC, a small PC-shaped
icon ( ) will appear in the upper display, indicating
a valid connection has been established. This icon
will be displayed only when the USB cable is securely
connected to the Scale Master Pro XE and the PC.

29 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

APPENDIX

Error/Auto-Range Function

Error Message – If you make an incorrect
entry (such as trying to add dimensioned
and non-dimensioned values together), the
Scale Master Pro XE will display the word
“

ERROR.” Press [ON/CLEAR] to clear.

Auto Range Function – If the value is too
large to display in the selected units of
measurement, the answer will be displayed
in the next larger measurement units
instead of showing an error (for example:
“10,000,000 MM” cannot be displayed, so
“10,000 M” will be displayed instead).

Interference

Exposure to direct light or close proximity
to cell phones and other electronic devices
may cause interference with the Scale Master
Pro XE device and result in erroneous
measurements.

User’s Guide – 30

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Battery/Automatic Shut-Off

The Scale Master Pro XE is powered by two
3-Volt CR-2032 Lithium batteries (6 volts
total). To conserve battery power, the unit
will shut itself off if it is not used for 4-6
minutes. Press the [ON/CLEAR] to restore
power. All registers and settings remain
intact, including all temporary registers.

Battery Replacement

To replace the batteries:

(1) To remove battery
door, release snap lock in
slot and lift;

(2) Remove batteries and
replace with new batteries
positive side up.

(3) To replace the door,
slide it at an angle and
push down.

31 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Default Settings

The following are the factory defaults of the
Scale Master Pro XE:

Default Default
Settings Imperial Metric

Mode ARCH ARCH
Scale 1/4" 1:50
Custom Scales 1”:1” 1:1
Linear FT IN MM
Area SQ FT SQ M
Volume CU YD CU M
Length 0-0 0.00
Width 0-0 0.00
Height 0-0 0.00
+K constant 0-0 0.00
Auto-Count 0-0 0.00
Count 0 0
Subtract Mode Off Off

Preferences Default

Button Beep On
Rolling Click On
Stored Value Display Clear LCD
PC T erminate Enter
PC Send Display Clear LCD
PC Send Beep On

User’s Guide – 32

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Specifications

Power Source:

Two 3-Volt CR-2032 lithium batteries.
Approximately 400 hours normal use.

Display Method:

LCD with commas, annunciators and zero
suppression.

Display Capacity (Main Display):

9,999,999 (7 digits)

Resolution/Accuracy:

.025 Inch/99.75%

Note: Based on start/stop point and scale
magnitude, users typically experience ± 2% - 3%

rolling error.

Dimensions:

7.2” x 1.8” x 0.4”
182mm x 45mm x 10mm

33 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Repair and Return

Repair and Return Information

Return Guidelines:

1. Please read the Warranty in this User's

Guide to determine if your Calculated
Industries product remains under
warranty before calling or returning any
device for evaluation or repairs.

2. If your product won't turn on, check the

batteries as outlined in the User's Guide.

3. If you need more assistance, please go to

our website listed below

4. If you believe you need to return

your product, please call a Calculated
Industries representative between the
hours of 7:00am to 4:30pm Pacific Time
for additional information and a Return
Merchandise Authorization (RMA).

User’s Guide – 34

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Warranty

Warranty Repair Service — USA

Calculated Industries (“CI”) warrants this product against
defect s in mater ials a nd work mansh ip for a period of one
(1) year fr om the dat e of origina l consumer pu rchase i n the
U.S. If a d efect ex ists dur ing the war ranty p eriod , CI, at its
discretion , will either repa ir (using new or remanufact ured
part s) or replace (w ith a new o r remanu factu red un it) the
product at no charg e.

THE WAR RA NTY W IL L NOT APPLY TO THE
PRODUCT I F IT HAS BEEN DA MAGED BY MI SUSE,
ALTE RATION , ACCIDEN T, IMPROPE R HAN DLING
OR OPERAT ION, OR IF UNAUTHORIZE D REPAIRS
AR E ATTE MPT ED OR M ADE. S OME EX AM PLES
OF DAM AGES NOT COV ERED BY WARR ANT Y
INCLUDE, BU T ARE NOT LIM ITE D TO, BATT ERY
LEA KAGE , BENDI NG, A “BL ACK IN K SPO T” OR
VISI BLE CR ACK ING OF TH E LCD, W HICH ARE
PRESUME D TO BE DAM AGES RE SULTI NG FROM
MISUSE OR ABUSE.

To obtain wa rran ty ser vice in t he U.S. , please go to the
website . A repai red or repl acement p roduct as sumes t he
remainin g warr anty of t he orig inal product or 9 0 days,
which ever is lon ger.

Non-warranty Repair Service — USA

Non-warrant y repai r covers se rvic e beyond t he warranty
perio d, or ser vice req uested du e to dama ge resu ltin g from
misuse or abuse.

Contac t Calcu lated I ndustries at th e number l isted ab ove
to obta in cur rent prod uct repa ir informat ion and cha rges.
Repa irs are g uarantee d for 90 days .

35 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Repair Service — Outside the USA

To obtain warranty or non-warranty repair service for
goods pu rchas ed outside the U.S ., contac t the dea ler
through which you initial ly purchased t he produc t. If
you can not reason ably have t he produc t repai red in you r
area , you may conta ct CI to obt ain cu rrent pr oduct rep air
infor mation and ch arges , includ ing freigh t and duti es.

Disclaimer

CI M A KE S NO WA RR A N T Y O R R E PR E SE N TA TI ON ,
EITHER EXPRESS OR IMPLIED, WITH RESPECT
TO THE P RODUCT’ S QUALI TY, PER FORM ANC E,
MERC HAN TABIL ITY, OR F ITN ESS FOR A
PARTICULA R PURP OSE. A S A RESU LT, THIS
PRODUCT, IN CLUDI NG BUT NOT L IMI TED T O,
KEY STROK E PROCED URE S, MAT HEM ATICA L
ACCUR ACY AN D PREP ROGRA MM ED MAT ERI AL ,
IS SOL D “AS IS,” AN D YOU THE PU RCHA SER
ASSU ME TH E ENT IRE R ISK AS T O ITS QUA LIT Y
AND PE RFOR MA NCE. I N NO EVE NT WI LL CI
BE LIA BLE FOR DI REC T, INDIR ECT, SPEC IAL ,
INCI DENTA L, OR CON SEQUENTIAL DAM AGES
RES ULTIN G FROM AN Y DEFEC T IN TH E
PRODUCT OR I TS DOCUME NTATION.

The warrant y, discl aimer, and reme dies set f orth ab ove are
exclusive and replace al l other s, oral or w ritte n, expressed
or implied. No CI dealer, agent, or employee is authorized
to make any modifi cation, extension, or addition to
thi s warra nty. Some st ates do not a llow t he exclusi on or
lim itati on of impl ied warr antie s or liabilit y for inci dental
or conseq uenti al damages, so t he above l imit ation or
exclusion may not appl y to you. Th is war ranty g ives you
specifi c rights, and you may also have othe r right s, whic h
vary f rom state to state.

User’s Guide – 36

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

FCC Class B

Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.

However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between equipment and
receiver.

• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV
technician for help.

Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority
to operate the equipment.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including inteference that may cause
undesired operation.

Looking for New Ideas

Calculated Indust ries, a le adin g manuf actu rer of special­func tion ca lcul ators and d igit al meas urin g instrument s, is
always interested in new p roduct ide as in the se areas .

37 – Scale Master® Pro XE

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Software copyrighted and licensed to

Calculated Industries by

Scale Master Technologies, LLC, 2009.

User’s Guide copyrighted by
Calculated Industries, 2009.

®

Scale Master

and Calculated Industries®

are registered trademarks of

Calculated Industries, Inc.

ALL RIGHTS RESERVED

CALCULATED INDUSTRIES

Designed in the U.S.A.

Printed in China

10/08

UG6135E-A

®

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
