Calculated Industries 6025 User Manual

SCALE MASTER® PRO

Introduction

The Scale Master Pro Multi-Scale Digital Plan Measure has been specifically designed to simplify takeoffs from architectural and engineering drawings.

• Finds linear measurements of any

shape

• Finds rectangular areas and volumes

• Converts between scales and

dimensions

• Built-in push button counter

• Subtract function

• Six Custom Scales that let you define

and roll in any scale

ABLE OF CONTENTS

Getting Started

Key Definitions ................................................1

Operation Keys .............................................1

Setup Keys .....................................................3

Measuring Keys .............................................5

Function Keys ...............................................6

Using the Scale Master Pro

Adjusting the Wheel.........................................7

Preferences ........................................................8

Imperial/Metric Modes ................................ 10

Built-In Scales ................................................ 10

Imperial (Standard) Units ......................... 10

Metric Units ................................................ 11

Changing Modes ............................................ 11

Changing Scales ............................................. 12

Changing Units .............................................. 12

Locking Modes, Scales and Units ............... 12

Operation ....................................................... 13

Rolling a Measurement ................................. 14

Using the Memory Function ...................... 15

Additional Memory Functions ................. 16

Programming Mode ...................................... 17

Setting Custom Scales ................................... 18

Rolling a Custom Scale .............................. 18

Entering a Custom Scale ........................... 19

Setting a Height ............................................. 21

Finding Area and Volume ............................ 22

Finding Area ............................................... 22

Finding Volume ..........................................22

Additional Area/Volume Functions ....... 23

Appendix

Error/Auto-Range Function ....................... 24

Interference .................................................... 24

Battery/Automatic Shut-Off ...................... 25

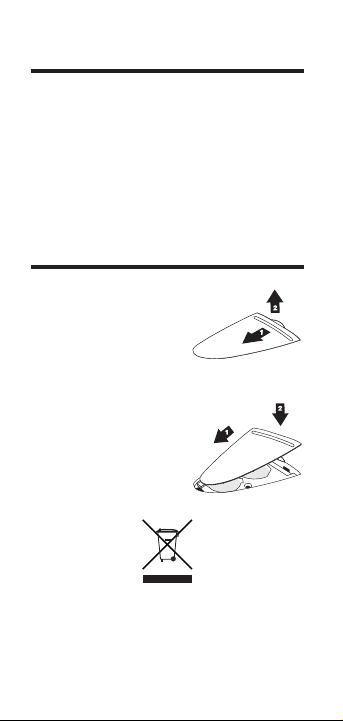

Battery Replacement ..................................... 25

Default Settings .............................................26

Specifications ................................................. 27

Repair and Return ......................................... 28

Warranty.......................................................... 29

FCC Class B ................................................... 30

Looking for New Ideas ................................30

GETTING STARTED

Key Definitions

Operation Keys

[ON/CLEAR] – On/Clear

Turns power on. Press once to clear the

display. This will not clear the last rolled measurement as it is a permanent value and can be recalled to the main display at any time by pressing

[SET] [ON/CLEAR] – Off

Turns power off. Turning power off clears

the display and semi-permanent values (length, width, count). All permanent values and settings, such as modes, scales and units, remain intact. Holding down

[ON/CLEAR] key for 2 seconds also

the powers the unit off.

[ON/CLEAR] + [MODE] – Clear All

Clears all values, including memory.

Resets all permanent settings except Preferences.

[SET] [ON/CLEAR] to turn the device off,

[MODE] + [ON/CLEAR] –

then

Software Reset

Clears all values, including memory.

Resets all permanent settings, including Preferences.

[RCL] [RCL].

1 – Scale Master® Pro

[RESET] – Hardware Reset

If your Scale Master Pro should ever “lock

up,” use a paperclip or similar size object to press the RESET hole. Clears all values, including memory. All permanent settings, including Preferences, remain intact.

[SET] – Set Key

Used with other keys to access second

functions and place the Scale Master Pro into programming mode. If in programming mode already, pressing [SET] will store the displayed value and exit programming mode. A press of [SET] after rolling locks the measurement. While locked, the displayed value will not be affected by rolling the Scale Master Pro. A second press of [SET] will unlock the measurement.

[RCL] – Recall Key

Used to recall stored values. When you

press [RCL] [RCL], the last value rolled is displayed, allowing roll to continue from this value. Recalling any other value disables measuring until the recalled value is cleared with a press of [ON/CLEAR].

[IMP/MET] – Imperial/Metric Switch

Toggles between Imperial and Metric

modes.

User’s Guide – 2

[LOCK] – Lock Switch

The Lock Switch is located on the side

of the unit. When the lock is activated, a lock symbol will be displayed in the LCD. While active you cannot alter Scales, Modes, Units, Preferences or the IMP/

MET

(Imperial/Metric) switch. You also cannot perform a Clear All or a Software Reset. It is advised to use the Scale Master Pro in the locked position unless you are specifically setting or changing a setting.

Setup Keys

[MODE] – Mode Selection

Repeated presses of [MODE] will

scroll through the available modes. See “Changing Modes” section.

[SUB] + [MODE] – Scroll Back Modes

Holding [SUB] and repeated presses of

[MODE] will scroll backward through the

available modes.

[SCALE] – Scale Selection

Repeated presses of [SCALE] will

scroll through the available scales. See “Changing Scales” section.

[SUB] + [SCALE] – Scroll Back Scales

Holding [SUB] and repeated presses of

[SCALE] will scroll backward through the

available scales.

3 – Scale Master® Pro

[UNITS] – Unit Selection

Repeated presses of [UNITS] will

scroll through the available units of measurement. See “Imperial Units” and “Metric Units” sections.

[SUB] + [UNITS] – Scroll Back Units

Holding [SUB] and repeated presses of

[UNITS] will scroll backward through the

available units.

[SET] [MODE] – Preferences

Accesses the preference settings. See

“Preferences” section.

[W] ([LxW]) – Left Arrow

Moves to the left when setting values

for custom scales and height. Will scroll back through available settings within the preferences.

[X] ([M+]) – Right Arrow

Moves to the right when setting values

for custom scales and height. Will scroll forward through available settings within the preferences.

[T] ([RCL]) – Down Arrow

Decreases the number when setting values

for custom scales and height. Will scroll down through the preferences.

[S] ([COUNT]) – Up Arrow

Increases the number when setting values

for custom scales and height. Will scroll up through the preferences.

User’s Guide – 4

Measuring Keys

[LxW] – Length/Width/Area

Enters the displayed measurement as

length. Once a length is entered, enters a second measurement as width and displays the total area. Repeated presses will scroll through the following results:

1) Area

2) Volume (if Height is entered)

3) Stored Height (if Height is entered)

4) Stored length

5) Stored width

[RCL] [LxW] – Length/Width Recall

Displays the length value. Additional

presses of [LxW] will display the width, area, and volume values. On a clear display,

[LxW] can be pressed without [RCL].

[ON/CLEAR] + [LxW] – Length/Width Clear

Clears the length and width.

[SET] [LxW] (H) – Height Set

Enters the height setting mode. See the

“Setting a Height” section.

[RCL] [SET] [LxW] – Height Recall

Displays the stored height value.

5 – Scale Master® Pro

Function Keys

[M+] – Memory Plus

Adds the displayed value to the

accumulative value.

[RCL] [M+] – Memory Recall

Displays the value stored in accumulative

memory.

[ON/CLEAR] + [M+] – Memory Clear

Clears the accumulative memory value.

[SET] [M+] (M-) – Memory Minus

Subtracts the displayed value from the

accumulative memory. [SUB] + [M+] will perform the same function.

[COUNT] – Count

Increases the count value by one.

[SUB] + [COUNT] – Count Subtract

Decreases the count value by one.

[RCL] [COUNT] – Count Recall

Displays the count value in the main

display.

[ON/CLEAR] + [COUNT] – Count Clear

Clears the count value.

[SUB] – Subtract Mode

Toggles subtract mode on and off. When

subtract mode is on, rolling forward or backward will subtract from the displayed measurement. Press [SUB] a second time or press [ON/CLEAR] to turn subtract mode off.

User’s Guide – 6

Rotate to Adjust Wheel

USING THE SCALE MASTER PRO

Adjusting the Wheel

The Celcon® polymer wheel can be adjusted for each user’s preference. To adjust the wheel, take a small, flat-head jeweler’s screwdriver and slightly rotate the screw located near the wheel tip. Rotating the screw about 1/4 to 1/3 turn should be sufficient. Rotating the screw within those two values should adjust the wheel between free spinning (which is too loose) to skidding (which is too tight).

7 – Scale Master® Pro
