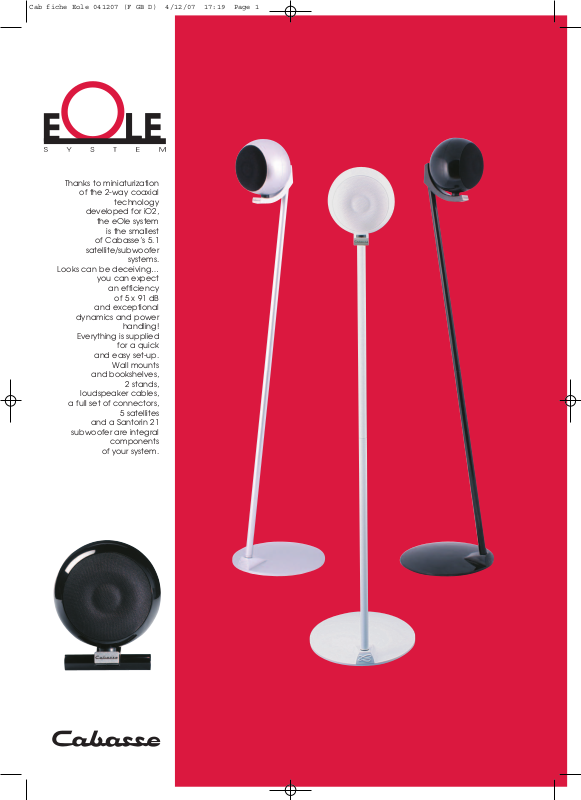

Cabasse EOLE 5-1 BROCHURE

Thanks to miniaturization

of the 2-way coaxial

technology

developed for iO2,

the eOle system

is the smallest

of Cabasse’s 5.1

satellite/subwoofer

systems.

Looks can be deceiving…

you can expect

an efficiency

of 5 x 91 dB

and exceptional

dynamics and power

handling!

Everything is supplied

for a quick

and easy set-up.

Wall mounts

and bookshelves,

2 stands,

loudspeaker cables,

a full set of connectors,

5 satellites

and a Santorin 21

subwoofer are integral

components

of your system.

eOle eOle SANTORIN 21

on stand on base subwoofer

Utilisation floorstanding on bookshelf / on wall floorstanding

Ways 2 1

2-way coaxial driver including
high efficiency dome tweeter

and midrange-woofer

assembled according

to the Cabasse principles

for Spatially Coherent Systems.

Drivers 1 x 10 cm (4") coaxial midrange-tweeter 1 x 21 cm

DOM18 / 10T15/2 21MT31
Softdome / P2C Fibre cellulose

Efficiency 1 W/1 m 91 dB active

Filter 4000 Hz 20-200 Hz

Phase - 0°-180°

Frequency bandwidth 170-22000 Hz 35-200 Hz

Nominal impedance 8 ohms active

Minimum impedance 4 ohms active

Power handling 70 W 250 W

Peak power handling 490 W 750 W

Magnetic shielding yes -

Dimensions H x W x D Ø 13 cm - 5.1" 33 x 33 x 36 cm

(13" x 13" x 14.2")
eOle on base : 16 x 13 x 15 cm (6.3 "x 5.1" x 5.9")
eOle on wall : 15 x 13 x 15 cm (5.9" x 5.1" x 5.9")
eOle on stand : 101 x 23.5 x 23.5 cm (39.8" x 9.3" x 9.3")

Weight 1.7 kg 11.5 kg

Finish glossy black glossy black

glossy white glossy white
silver silver
