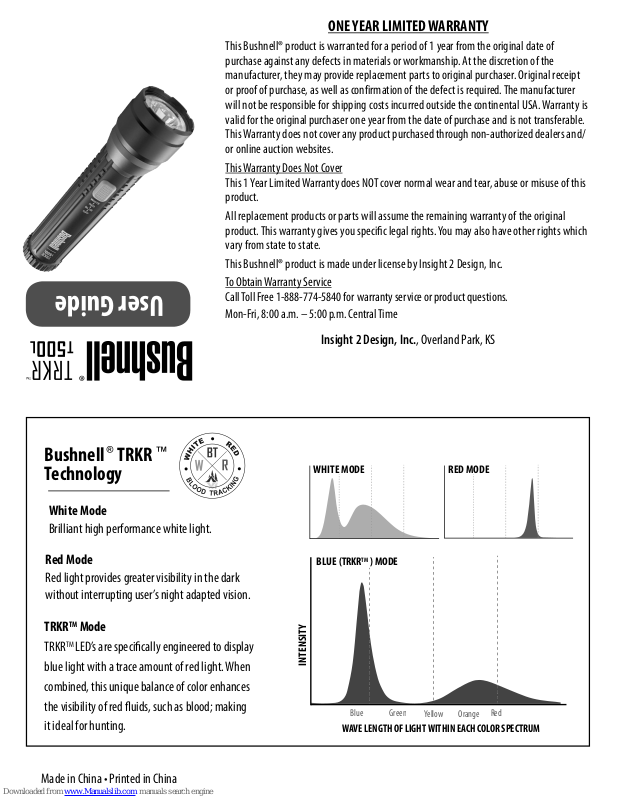

Bushnell TRKR T500L User Manual
User Guide
Made in China • Printed in China
ONE YEAR LIMITED WARRANTY
This Bushnell® product is warranted for a period of 1 year from the original date of
purchase against any defects in materials or workmanship. At the discretion of the
manufacturer, they may provide replacement parts to original purchaser. Original receipt
or proof of purchase, as well as confirmation of the defect is required. The manufacturer
will not be responsible for shipping costs incurred outside the continental USA. Warranty is
valid for the original purchaser one year from the date of purchase and is not transferable.
This Warranty does not cover any product purchased through non-authorized dealers and/
or online auction websites.
This Warranty Does Not Cover
This 1 Year Limited Warranty does NOT cover normal wear and tear, abuse or misuse of this
product.
All replacement products or parts will assume the remaining warranty of the original
product. This warranty gives you speci c legal rights. You may also have other rights which
vary from state to state.
This Bushnell® product is made under license by Insight 2 Design, Inc.
To Obtain Warranty Service
Call Toll Free 1-888-774-5840 for warranty service or product questions.
Mon-Fri, 8:00 a.m. – 5:00 p.m. Central Time
Insight 2 Design, Inc., Overland Park, KS
TM
White Mode
Brilliant high performance white light.
Red Mode
Red light provides greater visibility in the dark
without interrupting user’s night adapted vision.
TRKR
TM
Mode
TRKR
TM
LED’s are specically engineered to display
blue light with a trace amount of red light. When
combined, this unique balance of color enhances
the visibility of red uids, such as blood; making
it ideal for hunting.
Bushnell TRKR
Technology
Re
dBl
ue
Yello
w
Green
O
range
INTENSITY
WAVE LENGTH OF LIGHT WITHIN EACH COLOR SPECTRUM
WHITE MODE
RED MODE
BLUE (
TRKRTM )
MODE
Carefully read all instructions before use and save for future reference.
TO INSTALL OR REPLACE BATTERIES
Your Bushnell® TRKRTM T500L Flashlight operates on 4 AA batteries.
1. Rotate Tail-Cap counterclockwise to loosen and remove. (Fig. 1)
2. Install AA batteries in the correct orientation as shown (Fig. 1). Make certain batteries are installed correctly.
3. Replace Tail-Cap and rotate clockwise until tightened. Do not over-tighten.
+
+
–
–
+
+
–
–
FIG. 1
Tail-Cap
Your Bushnell® TRKRTM T500L Flashlight provides Momentary-On or Constant-On operation with the Button Switch located
on the body of the ashlight for the following lighting modes: White Spotlight mode, Red Light mode to preserve your night
adapted vision, and Blue Light TRKRTM mode for tracking blood trails at night or in low light situations.
OPERATION
To access Momentary-On settings:
1. Depress Button Switch half-way once and hold for White Spotlight mode; twice
and hold for Red Light mode; and a third time and hold for Blue Light “TRKRTM”
mode. (Fig. 2)
2. Release Button Switch to turn o .
To access Constant-On settings:
1. Press Button Switch down fully once to “click” the White Spotlight mode “On”;
twice and “click” for Red Light mode; and a third time and “click” for Blue Light
“TRKRTM” mode. (Fig. 2)
2. Depress Fully again to “click” o .
NOTE: This intelligent switch will always default to the White Spotlight mode unless it is cycled quickly to the other settings.
FIG. 2
Button Switch
(continued on back panel)
IMPORTANT INFORMATION
1. Operating time for your Bushnell® TRKRTM T500L Flashlight depends on continuous or
intermittent use. Intermittent operation extends the run time of a set of batteries.
2. The LED is a lifetime light source. It will never need to be replaced.
3. Do not leave discharged batteries in the Bushnell® TRKRTM T500L Flashlight. This could lead to
permanent damage to the ashlight.
4. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (NiCad or NiMH) batteries.
5. It is normal for the ashlight’s aluminum body to get very warm during continuous use.
