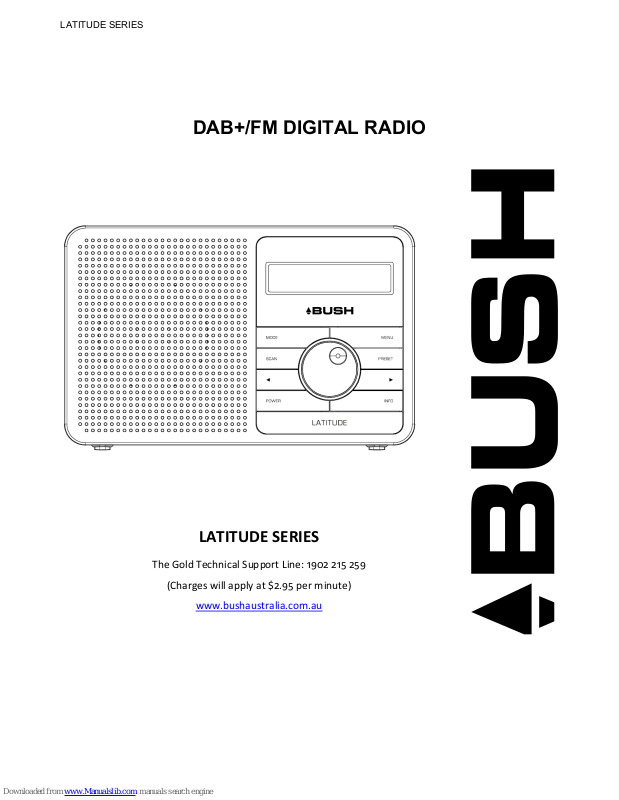

Bush LATITUDE SERIES User Manual
LATITUDE SERIES
DAB+/FM DIGITAL RADIO
LATITUDE SERIES
The Gold Technical Support Line: 1902 215 259
(Charges will apply at $2.95 per minute)
www.bushaustralia.com.au
LATITUDE SERIES
2
Thank you for buying this Bush product, which is designed to give you many years of trouble-free service.
You may already be familiar with using a similar unit, but please take time to read these instructions.
They are designed to familiarise you with the unit’s many features and to ensure you get the very best from your
purchase.
Safety is important
Your safety and the safety of others are important.
Please therefore, ensure you read the “Safety Instructions” before you operate this unit.
Warranty
In the unlikely event that your product fails to work normally, please call the below free phone number to discuss the
problem with one of our qualified service engineers.
Australia
Bush Warranty: 1800 509 394
New Zealand
Bush Warranty: 0800 450 259
Contents
Introduction and Contents …………………….………………………………………………….……………....
2
Safety Instructions …………………………………………………………………………………………………
3
DAB+ Radio and Battery Operation ...…………………………………………………….………………….....
4
What is DAB+..………………………………………………………………………..…………….……………...
5
Getting Started …………………………………………………………………….……………...…………….…
6-7
Using DAB+ Radio...……………………..…………………………………………….……………...….……….
8
Using Presets…………………………………………………………………………………………….…………
9
Using FM Radio …………………………………………………………………….……………....……………..
10
System Settings………………………………………………………………….……………...…..……………..
11-12
Troubleshooting and Technical Specification……………………………….……………...……...……………
13
Warranty…………………………………………………………………….……………...…………..……………
14
Introduction and Contents
LATITUDE SERIES
3
Ensure that you read all of the safety instructions before using this unit.
Safety Considerations
Position the power cable and other connected cables so that they are not likely to be walked on, pinched or
where items can be placed on or against them.
Do not use the unit in humid or damp conditions.
Do not allow the unit to get wet.
Never allow children to insert foreign objects into holes or slots on the unit.
Do not cover the ventilation with items such as tablecloths, curtains, etc. This may cause overheating.
No naked flame sources, such as lit candles, should be placed on or near the unit.
Do not expose the unit to dripping or splashing water, and no objects filled with liquids, such as vases, should be
placed on or near the apparatus.
Do not place the unit in a closed cabinet without proper ventilation.
Cleaning
Disconnect the unit from the mains supply before cleaning.
Do not use any liquids or aerosol cleaners, as this may damage the unit. Use a soft, dust free cloth.
Servicing
There are no user serviceable parts in the unit. When servicing, refer to qualified service professional.
Consult your retailer if you are ever in doubt about the installation / operation / safety of the product.
Safety Instructions
LATITUDE SERIES
4
1.
POWER Button
5.
SCAN Button
10.
Headphone Jack
2.
Button
6.
MODE Button
11.
DC Jack
3.
Button
7.
MENU Button
12.
Aerial
4.
INFO Button
8.
PRESET Button
13.
Battery Compartment
a.
LCD Display
9.
SELECT Dial
Control
DAB+ and FM
POWER
Press the POWER Button to turn the radio on or off.
(when the alarm sounds, press this button to turn the alarm off)
SELECT
Normal Operation: Turn this dial to adjust the volume level
When in the menu: Turn this dial to browse options, and press to confirm
or
When in the menu Press the or Button to move between different options.
When in DAB+ mode: Press the or Button to move between stations.
In FM mode, when the Frequency is displayed:
Press the or Button to manually search for FM Stations.
Press and hold the or Button to auto search for FM Stations.
INFO
When a station is being listened to, press the INFO button to view various station information.
SCAN
Press the SCAN button to automatically search for stations.
MODE
Press the MODE button to switch between DAB+ and FM modes.
MENU
Press the MENU button to enter the Main menu.
PRESET
Press and hold the PRESET button to enter the preset options.
Battery Operation
1. Remove the battery door at the back of the radio via pushing the two triangles on battery door downwards.
2. Fit 4 new alkaline batteries, referring to the markings inside the battery compartment.
Note: To avoid damage to the radio, do not mix old and new batteries.
3. Cover the battery door.
Note: If the radio will be unused for an extended period, please remove the batteries to avoid damage.
DAB+ Radio and Battery Operation
LATITUDE SERIES
5
DAB+ was developed in Europe by a consortium of broadcasters and manufacturers. DAB+ uses digital compression
techniques to transform the source material, i.e. music and speech, into better quality audio.
Interference free reception
Analogue systems suffer from an effect called “multipath distortion”. This is caused because waves do not behave in
an orderly fashion, but bounce and reflect off buildings etc. DAB+ sees this as an advantage and uses the direct and
reflected signals to actually reinforce the end result, allowing for better service more of the time.
No need to re-tune
A single DAB+ frequency can be used to cover the whole of the Australia, so solving many of the problems
experienced with the earlier analogue system. DAB+ scans automatically and tunes-in all of the available stations in
your area.
Scolling text
Broadcasters can transmit text to your radio. This way you can read the name of the DJ, artist, song title or any other
information they choose.
DAB+ coverage
Check your local coverage at www.digitalradioplus.com.au, or alternatively send a text message to 0409-DRPLUS to
receive an SMS confirming whether you reside in a DAB+ broadcast area.
What is DAB+
