Bush AE6BFB, AE6BFS, AE6BFW Instruction manual

BUILT-IN OVEN
Operating and Installation Instructions
AE6BFS
AE6BFW
Important - Please read these instructions fully before installing or using
These instructions contain important information which will help you get the best from your appliance and help to ensure safe and correct installation, use and maintanence.
If you need help or have damaged or missing parts, call the
Customer Helpline: 0345 257 7271
CONTENTS
AE6BFB
DESCRIPTION OF THE HOB
PRESENTATION OF THE PRODUCT WARNINGS INSTALLATION OF BUILT_IN OVEN
USING THE OVEN CLEANING AND MAINTENANCE SERVICE AND TRANSPORT
1 2 3 5 8 14 15
Dear Customer,
Offering quality products that meet your expectations is our goal. Our products are tested carefully to ensure their quality.
This manual is prepared in order to help you to use your appliance confidently and efficiently.
Before using your appliance carefully read this guide as it includes basic information for correct and safe installation, maintenance and use.
Contact your nearest authorised service agent for installation of your appliance.
DESCRIPTION OF THE HOB
Product codes
AE6BFW AE6BFS
1
PRESENTATION OF THE PRODUCT
Control panel
Handle
Oven Door
Racks
Lower Heating Element
(behind the plate)
Grid
Upper Heating Element
(behind the plate)
Oven Light
Fan (behind the plate)
Air Outlet Shutters
2
WARNINGS
3
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY
BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A
CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN
COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE
FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY
ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE
YOU ARE READING THE OPERATING MANUAL.
General Safety Warnings
-This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
-WARNING: Danger of fire: do not store items on the cooking surfaces.
-WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
-The appliance is not intended to be operated by means of an external timer or separate remote-control system.
-During use, the appliance
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
-WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
becomes hot. Care should be taken to avoid touching heating elements inside the oven.
-During use, handles held for short periods in normal use can get hot.
-Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or damage to the surface.
-Do not use steam cleaners for cleaning the appliance.
-WARNING: Ensure that the
4
appliance is switched off before
immediately. As the materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children, they should be collected and removed immediately.
replacing the lamp to avoid the possibility of electric shock.
-CAUTION: Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away.
-Your appliance is produced in accordance with all applicable local and international standards and regulations.
- Manintenance and repair work must be made only by authorized service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you. It is dangerous to alter or modify the specifications of the appliance in any way.
-Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure or electricity
voltage and frequency) and the requirements of the appliance are compatible. The requirements for thi
are stated on the label.
s appliance
t your appliance against atmospheric effects. Do not
-Protec expose it to effects such as sun, rain, snow etc.
-The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min 100°C.
ng usage
Duri
-When you first run your oven a certain smell will emanate from the insulation materials and the heater elements. For this reason, before using your oven, run it empty at maximum temperature for 45 minutes. At the same time you need to properly ventilate the environment in which the product is installed.
g usage, the outer and inner surfaces of the oven get hot.
-Durin While opening the oven door, step back to avoid the hot steam coming out of the oven. There may be a risk of burns.
-Do not put flammable or combustible materials, in or near the appliance when it is operating.
ays use oven gloves to remove and replace food in the
-Alw oven.
ot leave the cooker while cooking with solid or liquid oils.
-Do n They may catch fire on condition of extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan with its cover in order to choke the flame that has occured in this case and turn the cooker off.
-CAUTION: T is intended for indoor domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.
-Do n handle.
possible security measures have been taken to ensure your
-All safety. Since the glass may break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with accessories.
ure that the supply cord is not wedged during the
-Ens installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
-Whi door or sit on it.
Installati
-Do not operate the appliance before it is fully installed.
appliance must be installed by an authorized technician
-The and put into use. The producer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.
-When you unpack the appliance, make sure that it is not
damaged during transportation. In case of any defect; do not use the appliance and contact a qualified service agent
his appliance is designed only for cooking food and
ot try to lift or move the appliance by pulling the door
le the oven door is open, do not let children climb on the
on Warnings
will not use the appliance for a long time, plug it off.
-If you Keep the main control switch off. Also when you do not use the appliance, keep the gas valve off.
ure the appliance control knobs are always in the "0"
-Make s (stop) position when it is not used.
trays incline when pulled out. Be careful not to let hot
-The liquid spill over.
n the door or drawer of the oven is open, do not leave
-Whe anything on it. You may unbalance your appliance or break the cover.
ot put heavy things or flammable or ignitable goods
-Do n (nylon, plastic bag, paper, cloth...etc) into the drawer. This includes cookware with plastic accessories (e.g. handles).
ot hang towels, dishcloths or clothes from the appliance
-Do n or its handles.
ng cleaning and maintenance
Duri
-Always turn the appliance off before operations such as cleaning or maintenance. You can do it after plugging the appliance off or turning the main switches off.
t remove the control knobs to clean the control panel.
-Do no
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR
APPLIANCE, WE RECOMMEND YOU ALWAYS USE ORIGINAL
SPARE PARTS AND TO CALL ONLY OUR
AUTHORIZED SERVICE AGENTS IN CASE OF NEED.
INSTALLATION OF BUILT_IN OVEN
We hope that this modern , functional oven , which is made with quality parts and materials will meet your cooking needs. Make sure you read the manual to help to ensure successful results and also to help prevent problems with the appliance in important the future. The information given below contains important exception that are necessary for correct positioning and service operations. They should be read without exception especially by the technician who will position the appliance.
CONTACT AN AUTHORISED SERVICE AGENT FOR INSTALLATION OF YOUR OVEN!
CHOOSING A PLACE FOR THE OVEN
There are several points to pay attention to when choosing a place for your oven. Make sure to take into account our recommendations below in order to prevent any problems and dangerous situations, which might occur later!
When choosing a place for the oven, attention should be paid tı ensure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which quickly catch fire.
Furniture materials resistant to temperatures above 50 C°.
Required changes to wall cabinets and exhaust fans above the built-in combined product as well as minimum heights from the oven board are shown in Figure 1. Accordingly, the exhaust fan should be at a minimum height of 65 cm from the hob board. If there is no exhaust fan the height should not be less than 70 cm.
surrounding the oven must be made of
Figure 1
5
INSTALLATION OF BUILT_IN OVEN
Cabinet cut-out sizes
OPTION 1: Regular Installation
OPTION 2: Flash Installation
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of cabinet, tighten the screws.
6
INSTALLATION OF BUILT_IN OVEN
The dimensions and material of the cabinet in which the oven will be installed must be appropriate and resistant to increases in temperature. In a correct installation, contact with electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to ensure that they cannot be removed by using any kind of tool. Installing the appliance in the close vicinity of a refrigerator or a deep­freezer is not recommended. Otherwise, the performance of the above-mentioned appliances will be negatively affected due to emanating heat. After removing your oven from its packaging, be sure that the oven is not damaged. If you suspect of any damage to the appliance, do not use it; immediately contact the Authorised Service agent.
WIRING AND SAFETY OF BUILT_IN OVEN
The instructions given below must be followed without fail during wiring :
The earthing cable must be connected via the screw with the earthing mark. Feeder cable connection must be as shown in Figure 6. If there is no earthed outlet conforming to regulations in the installation environment, call the Authorised Service immediately.
The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.
The feeder cable should not contact the products hot surface.
Authorized Service immediately.
The Manucaturer declares that it bears no responsibility whatsover for any kind of damage and loss arising from not complying with these safety instructions.
NBROW
EBLU
YEL O +GREENL W
Figure
2
GENERAL WARNING AND PRECAUTIONS
Your appliance is produced in conformity with the relevant safety regulations relating to electrical appliances. Maintanance and repair works must be performed only by Authorised Service technicians or suitably qualified. Installation and repair works, performed without observing the rules may be dangerous.
The outer surfaces while your
are heated appliance is operating. The elements heating the inner surface of the oven and the steam out are extremely hot. These sections will continue to preserve their heat for certain while even if the appliance is switched off. Never touch the hot surfaces. Keep children away.
In case of any damage to the feeder cable, please call the Authorised Service agent. The cable must be replaced by the Authorised Service agent.
Wiring of the appliance must be performed by the Authorized Service agent. H05VV-F type feeder cable must be used.
Faulty wiring may damage the appliance. Such damage will not be covered under the warranty.
The appliance is designed to connect to 220­240V~ electricty supply if your household supply is different than the value given above, call the
Do not move away from the hob while cooking with fat or oil. Flaring may occur in case of overheating. Never pour water into flaring oil.
In order to cook in your oven, the oven function and temperature setting butttons need to be adjusted and the oven timer, if avaible, needs to be programmed. Otherwise, the oven will not operate.
While the oven door or drawer is open, do not place anything on it. You may disturb the balance of the appliance or break the door.
Protect your appliance from atmospheric effects. Do not leave it under the effects of the sun,rain, snow, dust etc.
7
USING THE OVEN
BUILT IN OVEN CONTROL PANEL
00
00
50°50°
MaxMax
250°250°
100°100°
150°150°
200°200°
8
USING THE OVEN
Figure 3.
USING THE OVEN PART OF THE APPLIANCE
00
Figure

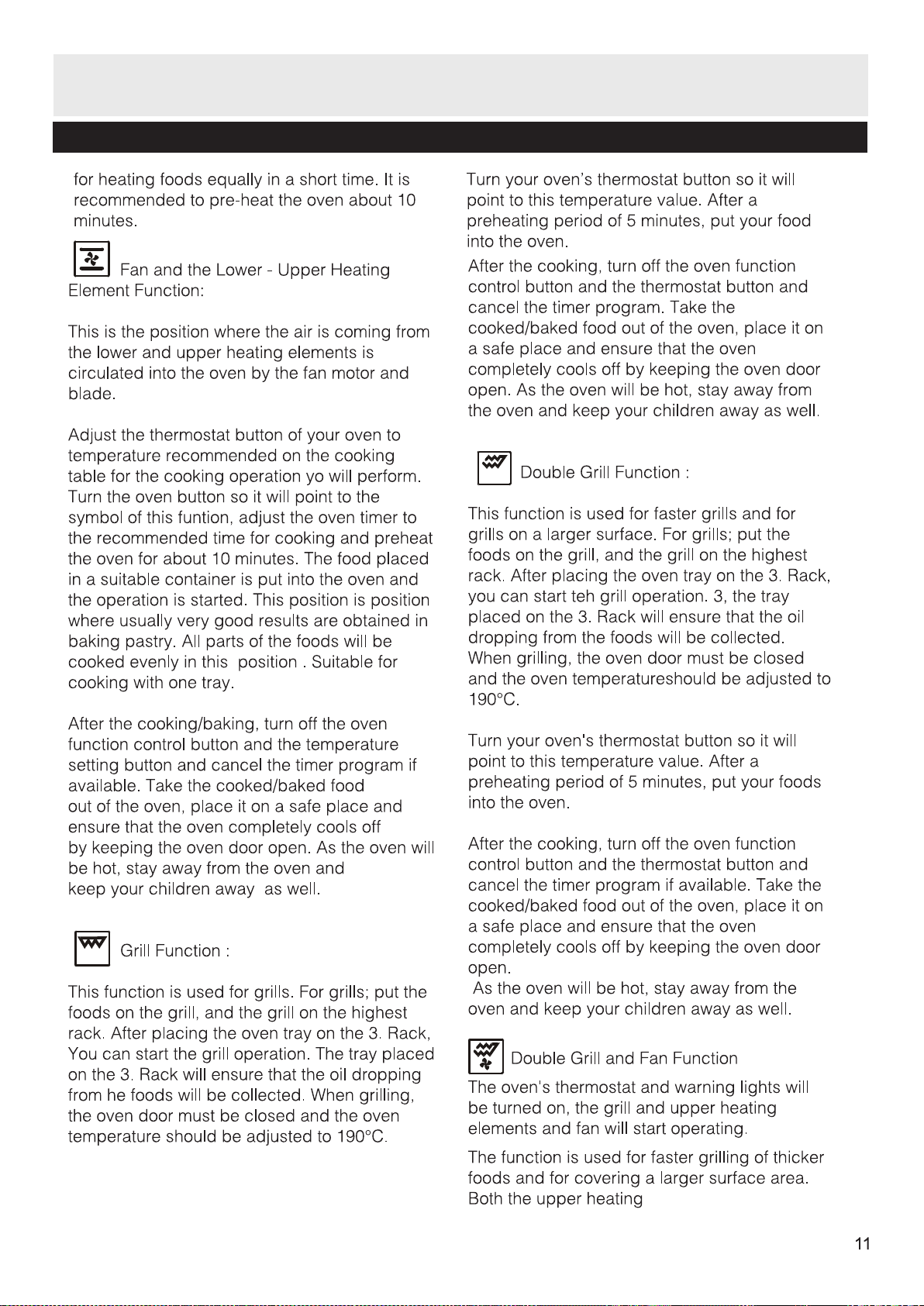

Oven Function Control Knob:
For you to select the oven functions (Figure 11). Explained in the next part and in Table 1. You need to adjust the function selection button and the oven thermostat knob together to a temperature value you wish to select-Otherwise the function stage you selected will not operate.
0
50
Max
250
200
100
150
Figure
Oven Thermostat Knob:
For you to select the oven function control knob. When the temperature inside your oven reaches the value you set, the thermostat will cut the circuit and the thermostat light will go off. When the temperature falls below the set value, the thermostat will again be turned on and the thermostat light will be on.
9
USING THE OVEN
ACCESSORIES USED IN THE OVEN

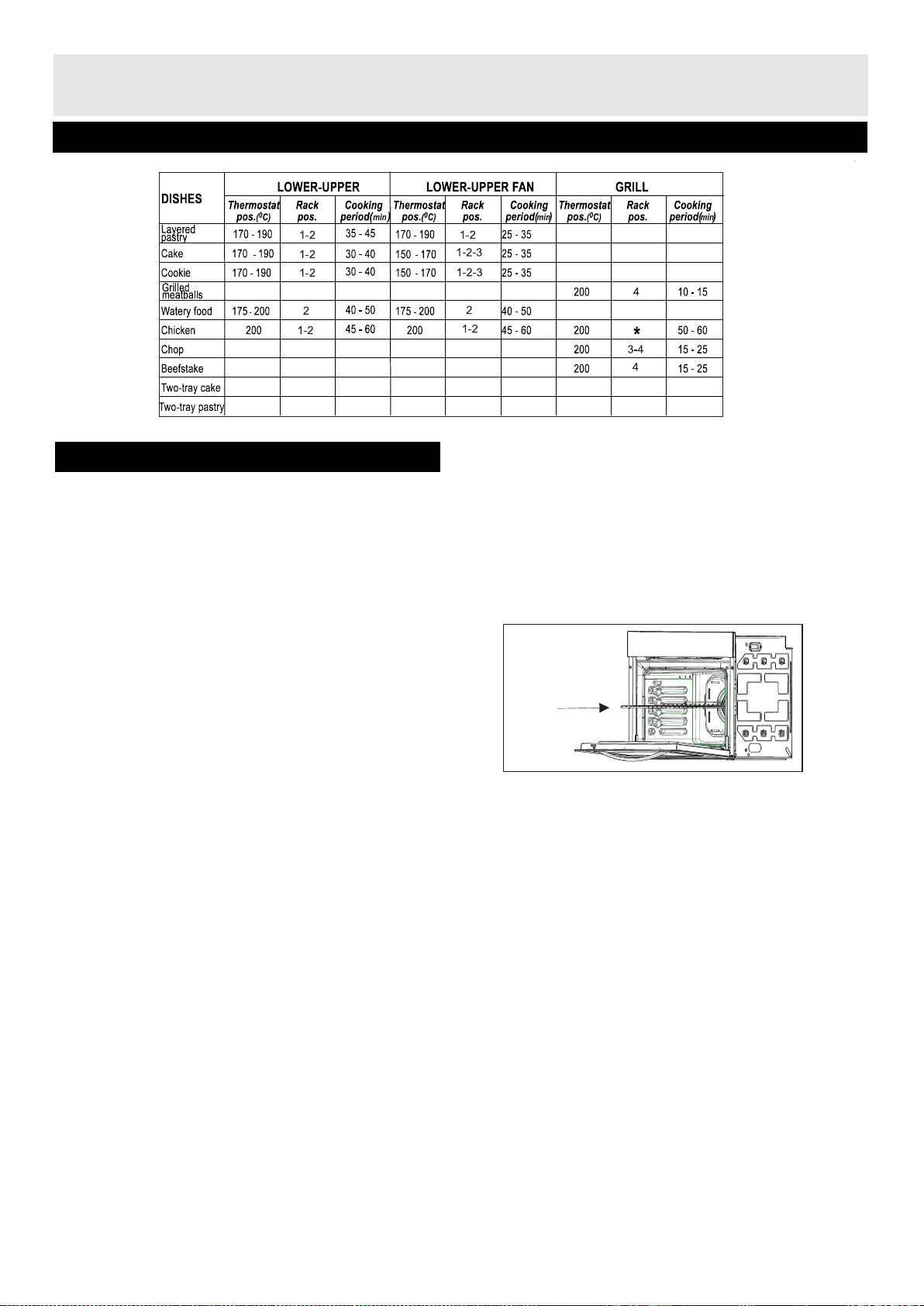

It is recommended that you use the containers indicated on the table depending on the food you will cook in your oven, you can also use glass containers, cake cutters, special oven trays suiatble for use in your oven, available in the market. Pay attention to the information given by the mufacturer firm concerning this issue. If small sized containers are used, place this container on the inner grill wire so it will be precisely on the middle of the wire. The information given below should be implemented for enamelled containers.
If the food to be cooked does not completely cover the oven tray, if the food is taken out of the deep-freezer or if the tray is used to collect the dripping juices of the foods during the grill operation; deformation might be observed on the tray due to high temperatures forming during the cooking/frying operation. This is normal, physical state thay results during the heat transfer. Do not leave a glass tray or container in a cold environment immediately after cooking in them. Do not place them on cold and wet surfaces. Ensure that they slowly cool off placing them on a dry piece of cloth. Otherwise, the glass tray or container might break. If you are going to perform a grill operation in your oven, we recommend that use use the grill on tray, supplied together with your product (if your product includes this equipment). This way, splattering and dripping oils will not make the oven interior dirty. If you are going to use the
large wire grill, insert a tray into one of the lower racks to avoid accumulation of the oils. To make cleaning easier, add some water into it as well. In a grilling operation, use the 4. Or the 5.rack and ail the grill to prevent the food to be grilled from sticking to the grill.
WARNING- Fit the grid correctly into any correspondent rack in the oven cavity and push it to the end.
13
CLEANING AND MAINTENANCE
CLEANING
Before starting to clean your oven, be sure that all control buttons are off and your appliance has cooled off. Unplug the appliance.
Do not use cleaning materials containing particles that might scratch the enamelled and painted parts of your oven. Use cream cleaners or liquid cleaners, which do not contain particles. As they might harm the surfaces, do not use caustic creams, abrasive cleaning powders, rough wire wool or hard tools. In the event the excess liquids spilling over your oven should burn, it may cause a damage to the enamel. Immediately clean up the split liquids. Do not use steam cleaners for cleaning the oven.
Cleaning the interior of the oven
Make sure to unplug the oven before starting to clean it. You will obtain best results if you clean the oven interior while the oven is slightly warm. Wipe your oven with a soft piece of cloth dampened with soap water after each use. Then wipe it again, this time with a wetted cloth, and wipe it dry. A complete cleaning using dry and powder type cleaners. For product with catalytic enamel frames, the rear and side walls of the inner frame do not require cleaning. However; depending on usage, it is recommended that you replace them after a certain period of time.
MAINTENANCE
Replacing the Oven Light
It is recommended that you leave this operation to the Authorized Service. Unplug the oven first and make sure that is cold. After removing the lid in front of the light, take also the bulb of its place. Insert the new bulb resistant to 100ºC, which you will find at Authorized Services, into the place of the bulb you have removed. Then fit the light protecting glass back into its place. After that, your oven will be ready for use.
14
SERVICE AND TRANSPORT
TROUBLE SHOOTING
If the oven does not operate : The oven may be switched off, there has been a black out. On models fitted with a timer, time may not be regulated.
If the oven does not heat : The heat may be not adjusted with ovens heater control switch.
If the interior lighting lamp does not light : Check the electricity supply if it is ok, change the lamp.
Cooking (if lower-upper part does not cook equally) : Control the shelf locations, cooking period and heat values according to the manual.
Except these, if you still have any problem with your product, please call to the <Authorized Service>.
SERVICE AND TRANSPORT
INFORMATION RELATED TO TRANSPORT
If you need any transport :
Follow the transport signs on case. Tape the cooker on upper parts, hats and heads and saucepan carriers to the cooking panels.
Place a paper between the upper cover and cooking panel, cover the upper cover, than tape to the side surfaces of oven.
Tape carboard or paper onto the front cover on interior glass of oven as it will be suitable to the trays, for the wire grill and trays in your oven not damage to the ovens cover during transport. Also tape the ovens covers to the side walls.
15
Technical Specifications
2600 W
32 kg.
2600 W
32 kg.
Model/Item
Power supply
Maximum power
Size(H x W x D)
Cut-Out Dimensions(H xW x D)
Net weight
Oven Volume
Electric Cooker energy rating
Energy Comsumption according to the EN50304
AE6BFW-AE6BFS-AE6BFB
(230)V~/50 Hz (230)V~/50 Hz
3200 W 3200 W
595x595x570 mm 595x595x570 mm
600x600x580 mm 600x600x580 mm
29 kg.
56 lt. 56 lt.
A
30 kg.
A
0.89 / 0.79 0.89 / 0.79
We apologise for any inconvenience caused by any minor inconsistencies in these instructions , which may occur as a result of product improvemenst and development.
Disposal information
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
52098134 R004 05/15
Customer Helpline: 0345 257 7271.
