Key switch breaking
circuit, 1-pole
Functions at a glance
• For profile semi-cylindrical l ock.
• In switched-on and switched-off status the key can be pull ed out in the central positi on,
respectively.
• With labelling field.
• Labelling field 57.8 x 9.8 mm
• IP 44 only in combinati on with appropriate cylindrical locks.
• Rated voltage: 250 V~
• Rated current: 10 AX
• Protection class (device): IP 4 4
• See semi-cylindrical lock.
• For compatible lettering sof tware, visit www.BUSCH-JAEGER -labelingtool.com.
• Labelling strip non-illuminable.
Order details
Article No.: 2733 SLW-53
Order No.: 2CKA001101A0917
EAN: 4011395992708
Customs tariff num ber: 85365080
Preisgruppe: 19
Preis: 99,00 EUR plus VAT
Info sheet:
Downloads
Instruction manual
Certificates
Films on application
Download PDF»
DE»
EU-declaration of conformi ty»
Application film on assembling the key swit ch.»
Application film on assembling the key swit ch.»

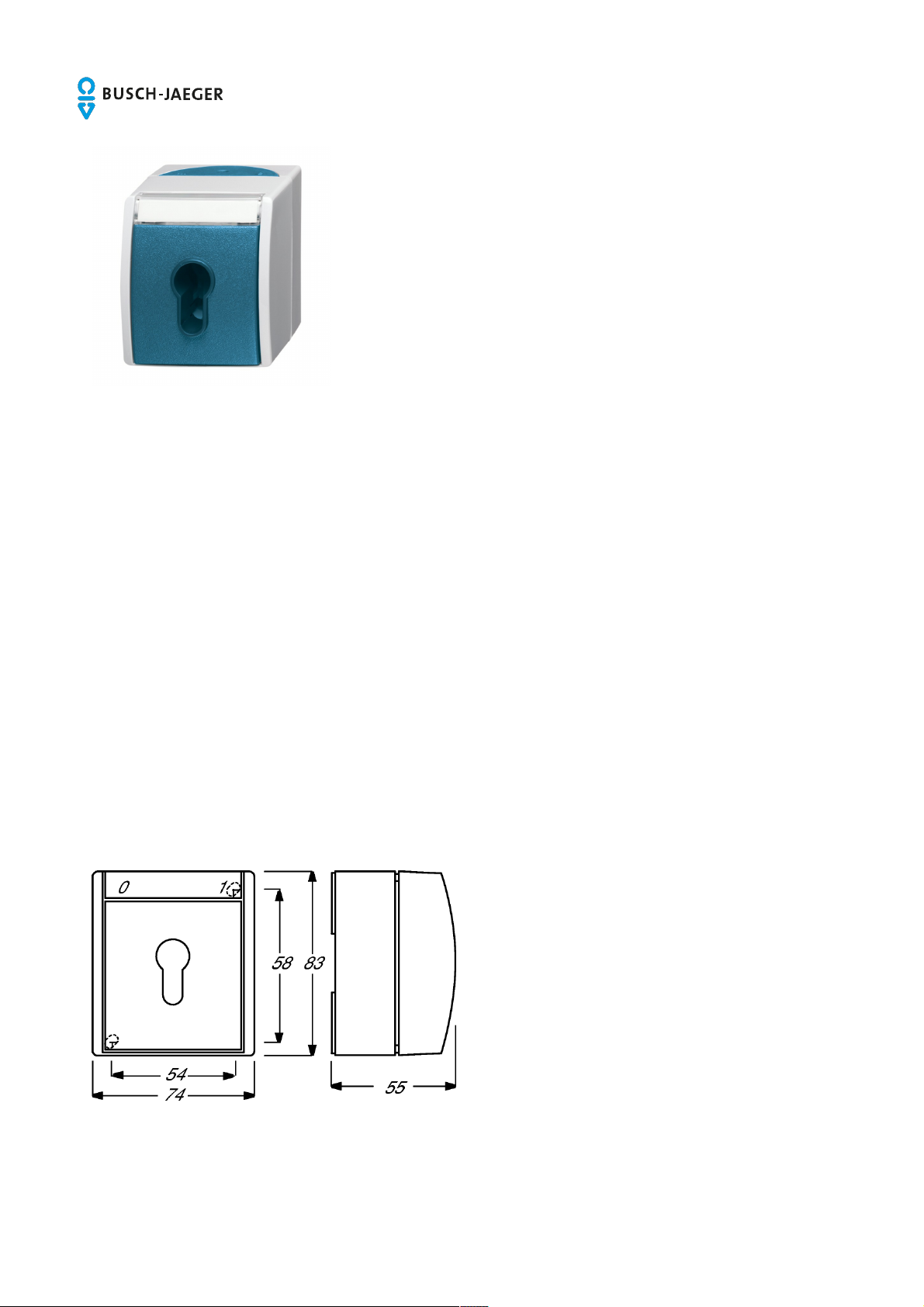

Dimensions
Wiring diagram
Blind switch-push switch, 1 P+N+PE, r otary switch or key 2713-.. and 2733-..
Possible lock bit position of the DIN profile semi-cylinder lock for 1-pole on-off switches
