ITE M#

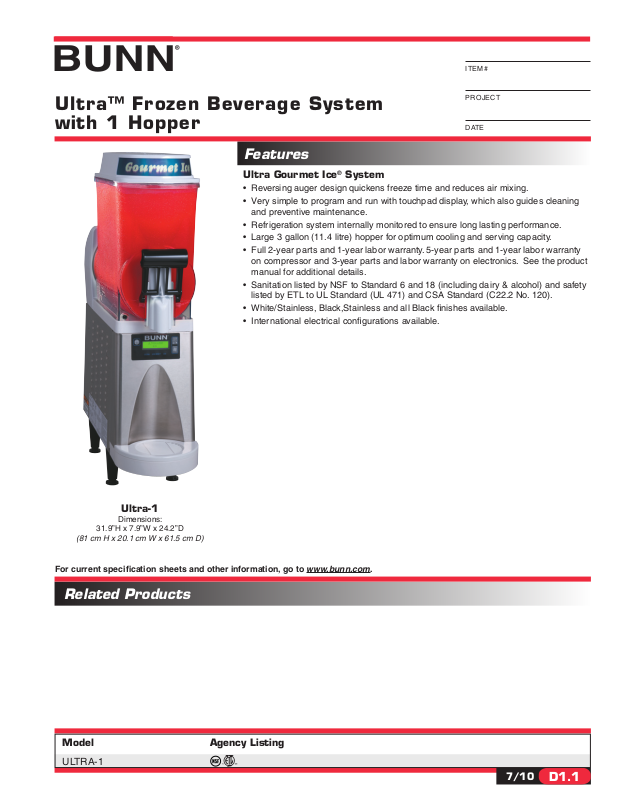

Ultra™ Frozen Beverage System
with 1 Hopper
Features
Ultra Gourmet Ice® System
• Reversing auger design quickens freeze time and reduces air mixing.
• Very simple to program and run with touchpad display, which also guides cleaning
and preventive maintenance.
• Refrigeration system internally monitored to ensure long lasting performance.
• Large 3 gallon (11.4 litre) hopper for optimum cooling and serving capacity.
• Full 2-year parts and 1-year labor warranty. 5-year parts and 1-year labor warranty
on compressor and 3-year parts and labor warranty on electronics. See the product
manual for additional details.
• Sanitation listed by NSF to Standard 6 and 18 (including dairy & alcohol) and safety
listed by ETL to UL Standard (UL 471) and CSA Standard (C22.2 No. 120).
• White/Stainless, Black,Stainless and all Black finishes available.
• International electrical configurations available.
PROJECT
DATE
Ultra-1
Dimensions:
31.9”H x 7.9”W x 24.2”D
(81 cm H x 20.1 cm W x 61.5 cm D)
For current specification sheets and other information, go to www.bunn.com.
Related Products
Model Agency Listing
ULTRA-1
7/10
D1.1
Dimensions & Specifications
Model Product # Volts Amps Capacity Cubic Shipping Cord
Measure Weight Attached
ULTRA-1 (Stainless/White) 39800.0000 120 7.5 1 Hopper@3.0 gal 8.4 ft3 76.4 lbs. Yes*
ULTRA-1
ULTRA-1
(Stainless/Black) 39800.0002 120 7.5 1 Hopper@3.0 gal 8.4 ft
(All Black) 39800.0004 120 7.5 1 Hopper@3.0 gal 8.4 ft
*Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Electrical: Models require 2-wires plus ground service rated 120V, single phase, 60 Hz.
3
76.4 lbs. Yes*
3
76.4 lbs. Yes*
7.92
6.0
31.9
23.1
16.4
24.2
24.5
5.7
10.6 3.0
6.6
17.6
ADJUSTABLE LEGS
4.0
to 5.75
4.0 CLEARANCE
FROM WALL
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
7/10 © Bunn-O-Matic Corporation
