ENRICH YOUR VISUAL WORLD...

Sunlight Readable LCD!

LITEMAX TO1226

Sunlight Readable 12.1” LCD Display

(1st Edition 7/21/06 )

All information is subject to change without notice.

LITEMAX Electronics Inc.

4F, No.131-3, Lane 235, Bau-chiau Rd., Shin-dian City, Taipei County, Taiwan R.O.C. Tel : 886-2-8919-1858

Fax: 886-2-8919-1300

Homepage: http://www.litemax.com.tw

FEATURES

(1)12.1”XGA(1024x768 pixels) display size for notebook PC

(2)Light weight, High Brightness(1250cd/m2) design

(3)LVDS interface system (H-Sync, V-Sync)

MECHANICAL SPECIFICATIONS

Item

Specifications

Dimensional Outline (typ.)

292.9(W) x 220 (H) x 27.58 max(D) mm

Number of Pixels

1024(W) x 768(H) pixels

Active Area

245.76(W) x 184.32(H) mm

Pixel Pitch

0.24(W) x 0.24(H)

Weight (approximately)

(275) g

Backlight

8 CCFL, Sidelight type

ABSOLUTE MAXIMUM RATINGS

Item



Min.

Max.

Unit

Supply Voltage

(VDD)

-0.3

4.0

V



(VFL)



0

2.0

kV(rms)

FL Driving Frequency

(fFL)

-

100

kHz

Input Signal Voltage

(VIN)

-0.3

VDD+0.3

V

Operating Temperature

0

50

°C

Storage Temperature



-20

60

°C

Storage Humidity



10

90

%(RH)

ELECTRICAL SPECIFICATION

Item



Min.

Typ.

Max.

Unit

Remarks

Supply Voltage

(VDD)

3.0

3.3

3.6

V





(VFL)

---

(625)

---

V(rms)

IFL=6.0 mA(rms)

FL Start Voltage (Ta=0°C)



1200

---

(1400)

V(rms)



Differential Input Voltage

(VID)

100

---

600

mV



Common Mode Input Voltage

(VCM)

1.0

---

2.4-(VID)/2

V



Current Consumption

*1 (IDD)

---

(210)

---

mA





*2 (IFL)

---

6.0

---

mA(rms)



*2 *3 Power Consumption



---

(4.44)

---

W

IFL=6.0 mA(rms)

*1 : 8 color bars pattern

*2 : Excepting the efficiency FL inverter

OPTICAL SPECIFICATION (Ta=25°C)

Item





Min.

Typ.

Max.

Unit

Remarks

Contrast Ratio

(CR)

100

250

---

---



Response Time



(tON)

---

---

25

ms







(tOFF)

---

---

25

ms



Luminance (L)





---

1250

---

cd/m2

IFL=6.0 mA(rms)

Page 2

Page 3

BLOCK DIAGRAM







X-driver





con verter

driver





driver-



D C/DC













-





Y





Y













Liquid

C rystal

Panel



Gray scale



10 24

x 768 pixels



Manipulation











Voltage











Generation









C N 1

Circuit

















2NC

Connector

P anel



Backlight









Controller







LVDS include









1, 1

2, 1



X2n-1, 1

X2n, 1



1024, 1













1, 2



































1, Y





X2n-1, Y

X2n, Y







768 pixels



































1, 768











1024,768





Page 4

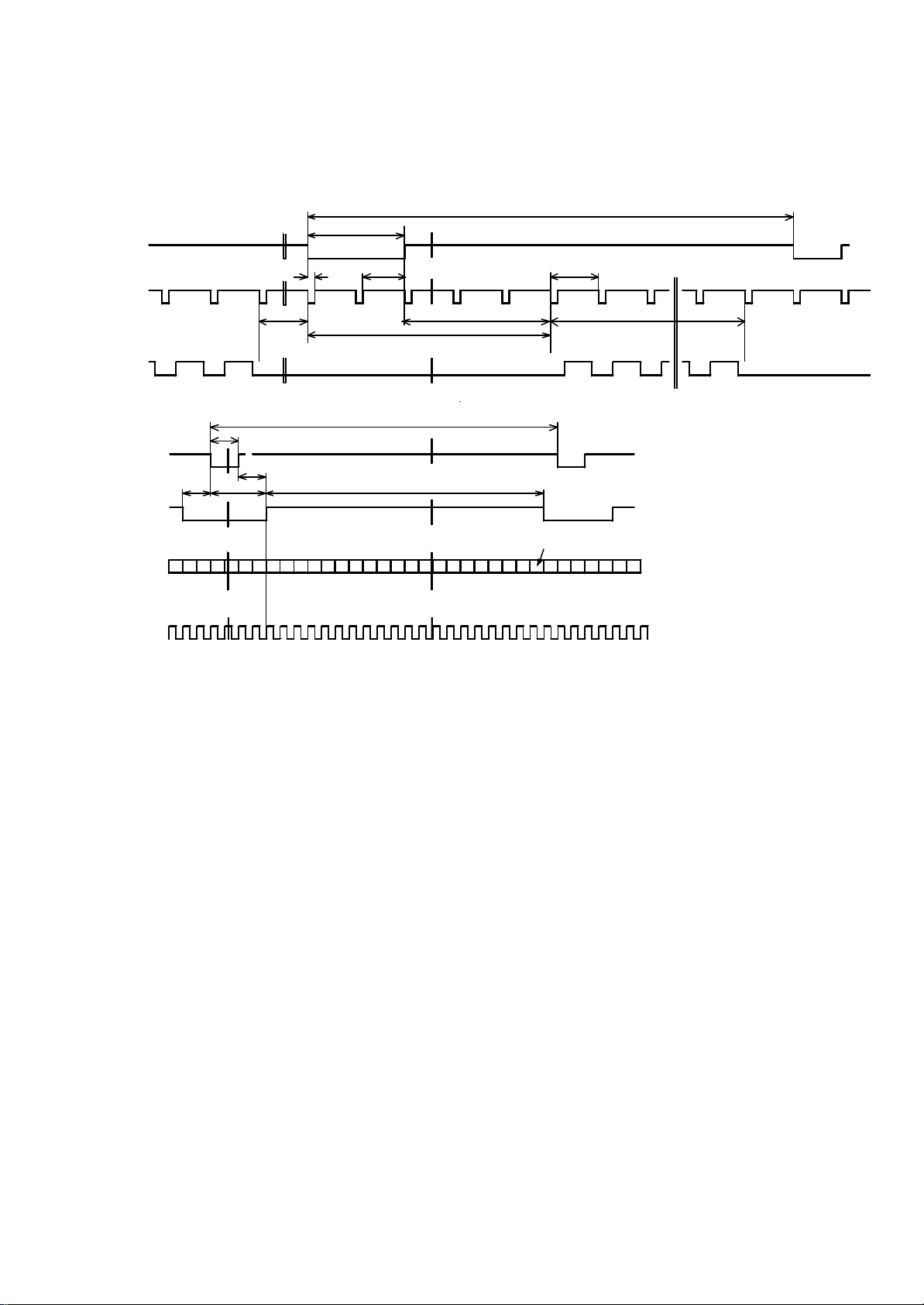

TIMING CHART











tv















tvw





VSYNC





















tvsu

tvhd

th



HSYNC



















tvfp



tvbp



tvd











tvds





DE

1023

1024







1

2





thw





th



















HSYNC



thbp













thfp

thds





thd





DE



























1024



pixel



1

2

3

4





CLK















Page 5

TIMING SPECIFICATION 1) 2) 3) 4) 5) 6) 7)

Item

Symbol

min.

typ.

max.

unit

Horizontal Scanning Term

th

1334 x tc

1344 x tc

-

clock

H-sync Pulse Width

thw

4 x tc

136 x tc

-

clock

Horizontal Front Porch

thfp

4 x tc

24 x tc

-

clock

Horizontal Back Porch

thbp

24 x tc

160 x tc

-

clock

Horizontal Data Sync Period

thds

32 x tc

296 x tc

-

clock

Horizontal Display Term

thd

1024 x tc

1024 x tc

1024 x tc

clock

Frame Period

tv

778 x th

806 x th

860 x th

line

V-sync Pulse Width

tvw

2 x th

6 x th

-

line

V-sync Set Up Time (to H-sync)

tvsu

8 x tc

-

-

clock

V-sync Hold Time

tvhd

(thbp+16) x tc

-

-

clock

Vertical Front Porch

tvfp

1 x th

3 x th

-

line

Vertical Back Porch

tvbp

2 x th

29 x th

-

line

Vertical Data Sync Period

tvds

8 x th

35 x th

-

line

Vertical Display Term

tvd

768 x th

768 x th

768 x th

line

Clock Period

tc

15.0

15.38

-

ns

Note 1) Refer to “Timing Chart” and LVDS (THC63LVDF84A-85) specifications by THine Electronics, Inc. corporation.

Note 2) If DE is fixed to "H" or "L" level for certain period while NCLK is supplied, the panel displays black with some flicker.

Note 3) If NCLK is fixed to "H" or "L" level for certain period while DE is supplied, the panel may be damaged.

Note 4) Please adjust LCD operating signal timing and FL driving frequency, to optimize the display quality.

There is a possibility that flicker is observed by the interference of LCD operating signal timing and FL driving condition (especially driving frequency), even if the condition satisfies above timing specifications and recommended operating conditions shown in 3.

Note5 ) Do not make tv, tvhd and tvds fluctuate.

If tv, tvhd, and tvds are fluctuate, the panel displays black.

Note6) In case of using the long frame period, the deterioration of display quality, noise etc. may be occurred.

Note7) NCLK count of each Horizontal Scanning Time should be always the same.

V-Blanking period should be “n” X “Horizontal Scanning Time”. (n: integer)

Frame period should be always the same.

Page 6

CONNECTOR PIN ASSIGNMENT FOR INTERFACE

CN1 INPUT SIGNAL

Connector : DF19L-20P-1H / HIROSE

Mating Connector : DF19G-20S-1F (FPC), DF19G-20S-1C (Cable)

Terminal No.

Symbol

Function

1

VSS

GND

2VDD Power Supply : +3.3V

3VDD Power Supply : +3.3V

4VEDID DDC 3.3V power

5

NC

Non-Connection

6

CLKEDID

DDC clock

7

DATAEDIE

DDC data

8

RxIN0-

Negative LVDS differential data input (R0-R5,G0)

9

RxIN0+

Positive LVDS differential data input (R0-R5,G0)

10

VSS

GND

11

RxIN1-

Negative LVDS differential data input (G1-G5, B0-B1)

12

RxIN1+

Positive LVDS differential data input (G1-G5, B0-B1)

13

VSS

GND

14

RxIN2-

Negative LVDS differential data input (B2-B5, HS, VS, DE)

15

RxIN2+

Positive LVDS differential data input (B2-B5, HS, VS, DE)

16

VSS

GND

17

CLK-

Clock Signal(-)

18

CLK+

Clock Signal(+)

19

VSS

GND

20

VSS

GND

Note 1) Please connect GND pin to ground. Don't use it as no-connect nor connection with high impedance.

CN2 CCFL POWER SOURCE

Connector : BHSR-02VS-1 / JAPAN SOLDERLESS TERMINAL MFG CO., LTD.

Mating Connector : SM02B-BHS-1 / JAPAN SOLDERLESS TERMINAL MFG CO., LTD.

Terminal No. Symbol

Function

1VFLH CCFL Power Supply ( high voltage)

2VFLL CCFL Power Supply (low voltage)

Page 7

RECOMMENDED TRANSMITTER (THC63LVDF63A,THC63LVDM63A,THC63LVDM63A-85) TO LTD121EC5S INTERFACE ASSIGNMENT

Case1: 6bit Transmitter



THC63LVDF63A,THC63LVDM63A,THC63LVDM63A-85



LTD121EC5S

Input Terminal No.



Input Signal

Output

Interface



(Graphics controller output signal)

Signal

(CN1)







Symbol

Terminal

Symbol

Function

Symbol

Terminal

Symbol

TIN0

44

R0

Red Pixels Display Data (LSB)







TIN1

45

R1

Red Pixels Display Data







TIN2

47

R2

Red Pixels Display Data

TOUT0-

No.8

IN0-

TIN3

48

R3

Red Pixels Display Data

TOUT0+

No.9

IN0+

TIN4

1

R4

Red Pixels Display Data







TIN5

3

R5

Red Pixels Display Data (MSB)







TIN6

4

G0

Green Pixels Display Data (LSB)







TIN7

6

G1

Green Pixels Display Data







TIN8

7

G2

Green Pixels Display Data







TIN9

9

G3

Green Pixels Display Data

TOUT1-

No.11

IN1-

TIN10

10

G4

Green Pixels Display Data

TOUT1+

No.12

IN1+

TIN11

12

G5

Green Pixels Display Data (MSB)







TIN12

13

B0

Blue Pixels Display Data (LSB)







TIN13

15

B1

Blue Pixels Display Data







TIN14

16

B2

Blue Pixels Display Data







TIN15

18

B3

Blue Pixels Display Data







TIN16

19

B4

Blue Pixels Display Data

TOUT2-

No.14

IN2-

TIN17

20

B5

Blue Pixels Display Data (MSB)

TOUT2+

No.15

IN2+

TIN18

22

HSYNC

H-Sync







TIN19

23

VSYNC

V-Sync







TIN20

25

DE

Compound Synchronization Signal







CLK IN

26

CLK

Data Sampling Clock

TCLK OUT-

No.17

CLK-

TCLK OUT+

No.18

CLK+









Note 1) Please connect NC pin to nothing. Don't connect it to ground nor to other signal input.

IN0

T IN 6

TI N5

T IN 4

T I N3

TI N2

T IN 1

T IN 0































G0

R5

R4

R3

R2

R1

R0





























IN1

T IN 13

TI N1 2

T IN 11

TI N1 0

TI N 9

T IN 8

T IN 7































B1

B0

G5

G4

G3

G2

G1





























IN2

T IN 20

TI N1 9

T IN 18

TI N1 7

T IN 16

TI N1 5

T IN 14































DE

VSYNC

HSYNC

B5

B4

B3

B2

Page 8

RECOMMENDED TRANSMITTER (THC63LVDF63A,THC63LVDM63A,THC63LVDM63A-85) TO LTD121EC5S INTERFACE ASSIGNMENT

Case2: 8bit Transmitter



THC63LVDF63A,THC63LVDM63A,THC63LVDM63A-85





LTD121EC5S

Input Terminal No.



Input Signal

Output



Interface



(Graphics controller output signal)

Signal



(CN1)









Symbol

Terminal

Symbol

Function

Symbol



Terminal



Symbol

TIN0

51

R0

Red Pixels Display Data (LSB)















TIN1

52

R1

Red Pixels Display Data















TIN2

54

R2

Red Pixels Display Data

TOUT0-



No.8



IN0-

TIN3

55

R3

Red Pixels Display Data





TOUT0+



No.9



IN0+

TIN4

56

R4

Red Pixels Display Data















TIN6

3

R5

Red Pixels Display Data (MSB)















TIN7

4

G0

Green Pixels Display Data(LSB)















TIN8

6

G1

Green Pixels Display Data















TIN9

7

G2

Green Pixels Display Data















TIN12

11

G3

Green Pixels Display Data

TOUT1-



No.11



IN1-

TIN13

12

G4

Green Pixels Display Data





TOUT1+



No.12



IN1+

TIN14

14

G5

Green Pixels Display Data(MSB)



















TIN15

15

B0

Blue Pixels Display Data (LSB)















TIN18

19

B1

Blue Pixels Display Data















TIN19

20

B2

Blue Pixels Display Data















TIN20

22

B3

Blue Pixels Display Data















TIN21

23

B4

Blue Pixels Display Data

TOUT2-



No.14



IN2-

TIN22

24

B5

Blue Pixels Display Data (MSB)





TOUT2+



No.15



IN2+

TIN24

27

HSYNC

H-Sync



















TIN25

28

VSYNC

V-Sync















TIN26

30

DE

Compound Synchronization Signal















TIN27

50

NC

Non Connection (open)















TIN5

2

NC

Non Connection (open)















TIN10

8

NC

Non Connection (open)

TOUT3-













TIN11

10

NC

Non Connection (open)













TOUT3+

























TIN16

16

NC

Non Connection (open)



























TIN17

18

NC

Non Connection (open)















TIN23

25

NC

Non Connection (open)















CLK IN

31

CLK

Data Sampling Clock

TCLK OUT-



No.17



CLK-

TCLK OUT+



No.18



CLK+













Note 1) Please connect NC pin to nothing. Don't connect it to ground nor to other signal input.

IN0

T I N 7

T I N 6

T I N 4

T I N 3

T I N 2

T I N 1

T I N 0































G0

R5

R4

R3

R2

R1

R0





























IN1

T I N 1 8



T I N 1 5



T I N 1 4



T I N 1 3



T I N 1 2



T I N 9



T I N 8



B1

B0

G5

G4

G3

G2

G1





























IN2

T I N 2 6

T I N 2 5

T I N 2 4

T I N 2 2

T I N 2 1

T I N 2 0

T I N 1 9































DE

VSYNC

HSYNC

B5

B4

B3

B2

IN3



























T I N 2 3

T I N 1 7

T I N 1 6

T I N 1 1

T I N 1 0

T I N 5

T I N 2 7































NC

NC

NC

NC

NC

NC

NC

Page 9

256k (k=1024) COLORS COMBINATION TABLE



Display

R5 R4 R3 R2 R1 R0

G5 G4 G3 G2 G1 G0

B5 B4 B3 B2 B1 B0

Gray Scale



Level











































Black

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

-





Blue

L

L

L

L

L

L

L

L

L

L

L

L

H

H

H

H

H

H

-





Green

L

L

L

L

L

L

H

H

H

H

H

H

L

L

L

L

L

L

-



Basic

Light Blue

L

L

L

L

L

L

H

H

H

H

H

H

H

H

H

H

H

H

-



Color











































Red

H

H

H

H

H

H

L

L

L

L

L

L

L

L

L

L

L

L

-





Purple

H

H

H

H

H

H

L

L

L

L

L

L

H

H

H

H

H

H

-





Yellow

H

H

H

H

H

H

H

H

H

H

H

H

L

L

L

L

L

L

-





White

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

-





Black

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L 0







L L L L L H

L L L L L L

L L L L L L

L 1



Gray

Dark

L

L

L

L

H

L

L

L

L

L

L

L

L

L

L

L

L

L

L 2



-







:











:











:





L3¼

Scale of































¯







:











:











:





L60



Red

































Light











































H

H

H

H

L

H

L

L

L

L

L

L

L

L

L

L

L

L

L61













H

H

H

H

H

L

L

L

L

L

L

L

L

L

L

L

L

L

L62





Red

H

H

H

H

H

H

L

L

L

L

L

L

L

L

L

L

L

L

Red

L63



Black

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L 0







L L L L L L

L L L L L H

L L L L L L

L 1



Gray

Dark

L

L

L

L

L

L

L

L

L

L

H

L

L

L

L

L

L

L

L 2



-







:











:











:





L3¼

Scale of































¯







:











:











:





L60



Green

































Light











































L

L

L

L

L

L

H

H

H

H

L

H

L

L

L

L

L

L

L61













L L L L L L

H

H

H

H

H

L

L

L

L

L

L

L

L62





Green

L

L

L

L

L

L

H

H

H

H

H

H

L

L

L

L

L

L

Green

L63



Black

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L 0







L L L L L L

L L L L L L

L L L L L H

L 1



Gray

Dark

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

H

L

L 2



-







:











:











:





L3¼

Scale of































¯







:











:











:





L60



Blue

































Light











































L

L

L

L

L

L

L

L

L

L

L

L

H

H

H

H

L

H

L61













L

L

L

L

L

L

L

L

L

L

L

L

H

H

H

H

H

L

L62





Blue

L

L

L

L

L

L

L

L

L

L

L

L

H

H

H

H

H

H

Blue

L63



Black

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L

L 0







L L L L L H

L L L L L H

L L L L L H

L 1



Gray

Dark

L

L

L

L

H

L

L

L

L

L

H

L

L

L

L

L

H

L

L 2



Scale of

-







:











:











:





L3¼

White &

¯







:











:











:





L60



Black

Light









































H

H

H

H

L

H

H

H

H

H

L

H

H

H

H

H

L

H

L61













H H H H H L

H

H

H

H

H

L

H

H

H

H

H

L

L62





White

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

White

L63

Page 10

!FOR SAFETY

LCD module is generally designed with precise parts to achieve light weighted thin mechanical dimensions.

In using our Modules, make certain that you fully understand and put into practice the warnings and safety precautions detailed in Engineering Information No.EE-N001,"CAUTIONS AND INSTRUCTIONS FOR TOSHIBA MATSUSHITA DISPLAY TECHNOLOGY LCD MODULES".

Refer to individual specifications and TECHNICAL DATA sheets (hereinafter called "TD") for more detailed technical information.

1)SPECIAL PURPOSES

A)Toshiba Matsushita Display technology's Standard LCD Modules have not been customized for operation in extreme environments or for use in applications where performance failures could be life-threatening or otherwise catastrophic.

B)Since Toshiba Matsushita Display technology's Standard LCD Modules have not been designed for operation in extreme environments, they must never be used in devices that will be exposed to abnormally high levels of vibration or shock which exceed Toshiba Matsushita Display technology's published specification limits.

C)In addition, since Toshiba Matsushita Display technology Standard LCD Modules have not been designed for use in

applications where performance failures could be life-threatening or catastrophic, they must never be installed in aircraft navigation control systems (such as, but not limited to Traffic Collision Avoidance System and Air Traffic Indicator), in military defense or weapons systems, in critical industrial process-control systems (e.g., those involved in the production of nuclear energy), or in critical medical device or patient life-support systems.

2) DISASSEMBLING OR MODIFICATION

DO NOT DISASSEMBLE OR MODIFY the module. It may damage sensitive parts inside LCD module, and may cause scratches or dust on the display.

Toshiba Matsushita Display technology doses not warrant the module, if customer disassembled or modified it.

3) BREAKAGE OF LCD PANEL

DO NOT INGEST liquid crystal material, DO NOT INHALE this material, and DO NOT CONTACT the material with skin, if LCD panel is broken and liquid crystal material spills out.

If liquid crystal material comes into mouth or eyes, rinse mouth or eyes out with water immediately.

If this material contact with skin or cloths, wash it off immediately with alcohol and rinse thoroughly with water.

4) GLASS OF LCD PANEL

BE CAREFUL WITH CHIPS OF GLASS that may cause injuring fingers or skin, when the glass is broken.

5) ELECTRIC SHOCK

DISCONNECT POWER SUPPLY before handling LCD module.

DO NOT TOUCH the parts inside LCD module and the fluorescent lamp's connector or cables in order to prevent electric shock, because high voltage is supplied to these parts from the inverter unit while power supply is turned on.

6) ABSOLUTE MAXIMUM RATINGS AND POWER PROTECTION CIRCUIT

DO NOT EXCEED the absolute maximum rating values under the worst probable conditions caused by the supply voltage variation, input voltage variation, variation in parts' constants, environmental temperature, etc., otherwise LCD module may be damaged.

Employ protection circuit for power supply, whenever the specification or TD specifies it. Suitable protection circuit should be applied for each system design.

7) DISPOSAL

When dispose LCD module, obey to the applicable environmental regulations.

Page 11
