Bunn ULTRA-2 User Manual

ULTRA-1

ULTRA-2

PROGRAMMING MANUAL

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227

PHONE: [phone] FAX: [phone]

41047.0000G 10/13 ©2008 Bunn-O-Matic Corporation

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1)Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCP/MCA pod brewers thermal servers and Thermofresh servers (mechanical and digital)- 1 year parts and 1 year labor.

2)All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:

a)Electronic circuit and/or control boards - parts and labor for 3 years.

b)Compressors on refrigeration equipment - 5 years parts and 1 year labor.

c)Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts and labor for 4 years or 40,000 pounds of coffee, whichever comes first.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality, damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at [phone] or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.

If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

392, A Partner You Can Count On, Air Infusion, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, Titan, trifecta, Velocity Brew, Air Brew, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Daypart, Digital Brewer Control, Element, Milk Texturing Fusion, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Sure Tamp, Tea At Its Best, The Horizontal Red Line, Ultra are either trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta® brewer housing configuration is a trademark of Bunn-O-Matic Corporation.

2	41047 070913

INTRODUCTION

This equipment dispenses granita-type and cold liquid drinks on demand from separate hoppers. Operating controls are accessible only through password protection.

CONTENTS
Introduction..........................................................................................................................	3
Operating Controls................................................................................................................	4
Programming.......................................................................................................................	6
Switches.........................................................................................................................	6
Programming the Dispenser...........................................................................................	7
Function Index................................................................................................................	7
Cleaning Guide...............................................................................................................	9
Set Consistency............................................................................................................	10
Test Augers..................................................................................................................	11
Set Time & Date...........................................................................................................	11
Password.....................................................................................................................	12
Set Language................................................................................................................	12
Set Night/Day Time.......................................................................................................	13
Preventive Maintenance................................................................................................	14
Days to Clean...............................................................................................................	15
Consistency Adjust Lock..............................................................................................	16
Switches Enabled.........................................................................................................	16
Delayed Refill................................................................................................................	17
Refill Threshold............................................................................................................	18
Ad Message Enabled....................................................................................................	19
Service Phone #...........................................................................................................	20
Enter Asset Number.....................................................................................................	21
Set Password...............................................................................................................	21
Service Tools................................................................................................................	22
Restore Defaults...........................................................................................................	23
Install Date...................................................................................................................	23
Temperature & Torque..................................................................................................	24

3	41047 102813

OPERATING CONTROLS

ULTRA-1

There are three of these switches that will be used for the operation of the dispenser.

1	2

3

P3932

1. switch (upper left corner of the control pad)

This switch is the ON/OFF toggle switch which powers up the dispenser and the LCD display. When ON

the Date and Time toggle back and forth continously except during programming.

2. (upper right corner)

This is used to turn the auger motor to AUGER ON, AUGER OFF or AUGER REFILL ON. (Refill only applicable when installed) (See *NOTE)

3. (lower right corner)

This is used to turn the ice control to OFF, ICE or CHILL. (In ICE or CHILL mode, Auger will turn ON)

*NOTE: Refill system includes a “Maximum Fill Time” in the software. If the time to fill the hopper exceeds this limit, the hopper lights will flash and a “Refill Fault” will be displayed on the screen. If this accurs, check the product supply to ensure the BIB is not empty. (Change BIB if empty). Then press the “ULTRA” button for 3 seconds to clear the fault and restart the refill system.

4	41047 031609

OPERATING CONTROLS

ULTRA-2

There are five of these switches that will be used for the operation of the dispenser.

1

P3677

2

3

4

5

1. switch (upper left corner of the control pad)

This switch is the ON/OFF toggle switch which powers up the dispenser and the LCD display. When ON the Date and Time toggle back and forth continously except during programming.

2. (bottom left corner)

This is used to turn the left side auger motor to AUGER ON, AUGER OFF or AUGER REFILL ON. (Refill only applicable when installed) (See *NOTE)

3. (bottom left corner)

This is used to turn the left side ice control to OFF, ICE or CHILL. (In ICE or CHILL mode, Auger will turn ON)

4. (bottom right corner)

This is used to turn the right side auger motor AUGER ON, AUGER OFF or AUGER REFILL ON. (Refill only applicable when installed) (See *NOTE)

5. (bottom right corner)

This is used to turn the right side ice control to OFF, ICE or CHILL. (In ICE or CHILL mode, Auger will turn ON)

5	41047 031609

PROGRAMMING

Using the menu-driven display on the front of the dispenser, the operator has the ability to alter or modify various parameters such as beverage consistency and set day/night “ON/OFF” times. The operator is also prompted to check a variety of periodic service functions or even a step-by-step cleaning routine. There is also the opportunity to return all changes back to factory default settings.

Access to most controls can be password protected to allow only qualified personnel to make changes.

1 1

2 4

							P3931
	2		3		4
							P3677
							3
			ULTRA-1				ULTRA-2

PROGRAMMING SWITCHES

To access the programming mode, and to scroll through the different function screens, hidden programming switches are used. There are three of these switches that will be used for the setup of the dispenser.

1. I/O switch (upper left corner of the control pad)

This switch is the ON/OFF toggle switch which powers up the dispenser and the LCD display. This switch is also used as back up switch in menu mode.

2. “ULTRA” (left under display)

When prompted by a selection from the menu to answer yes or no, the “ULTRA” switch is used to answer “NO” or (-) minus.

3. “GOURMET” (center under display)

Press and hold this switch 5 seconds to access the Menu Function Index. This switch is also used as “NEXT” to scroll through the functions.

4. “ICE” (right under display)

When prompted by a selection from the menu to answer yes or no, the “ICE” switch is used to answer “YES” or (+) plus.

6	41047 011910

PROGRAMMING THE DISPENSER

During normal operations, the Date, the Time, and the Serial Number toggle back and forth continuously. The following function screens are in the order they appear from the menu display. Each screen will have instructions and procedures to program the various functions of the dispenser.

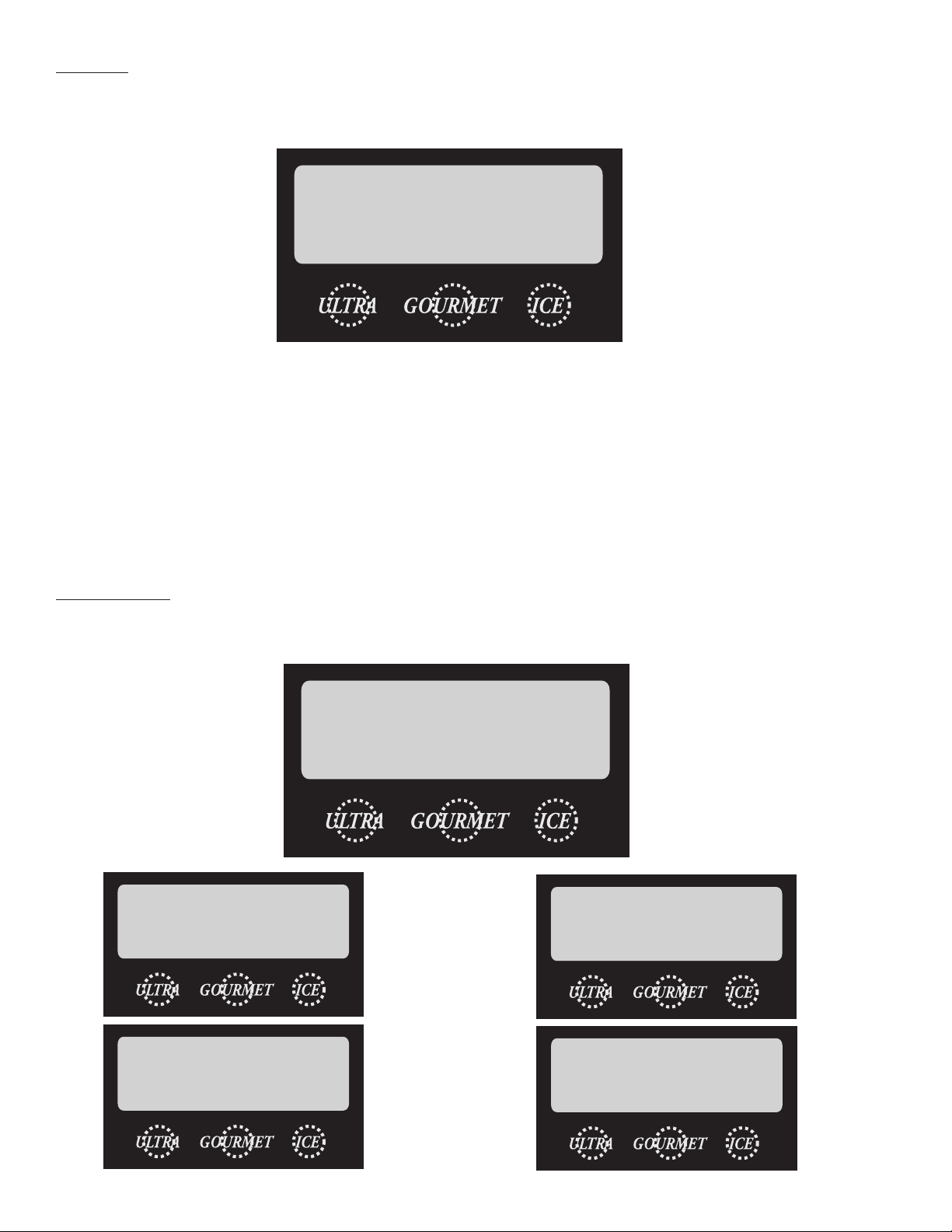

HOME SCREEN

Displays the TIME, DATE, SERIAL NUMBER and ASSET NUMBER which toggle back and forth continuously.

			JAN.	25, 2005
	10:45:30 AM
off	off		off	off

	ULTR027930			AN000001
off	off		off	off

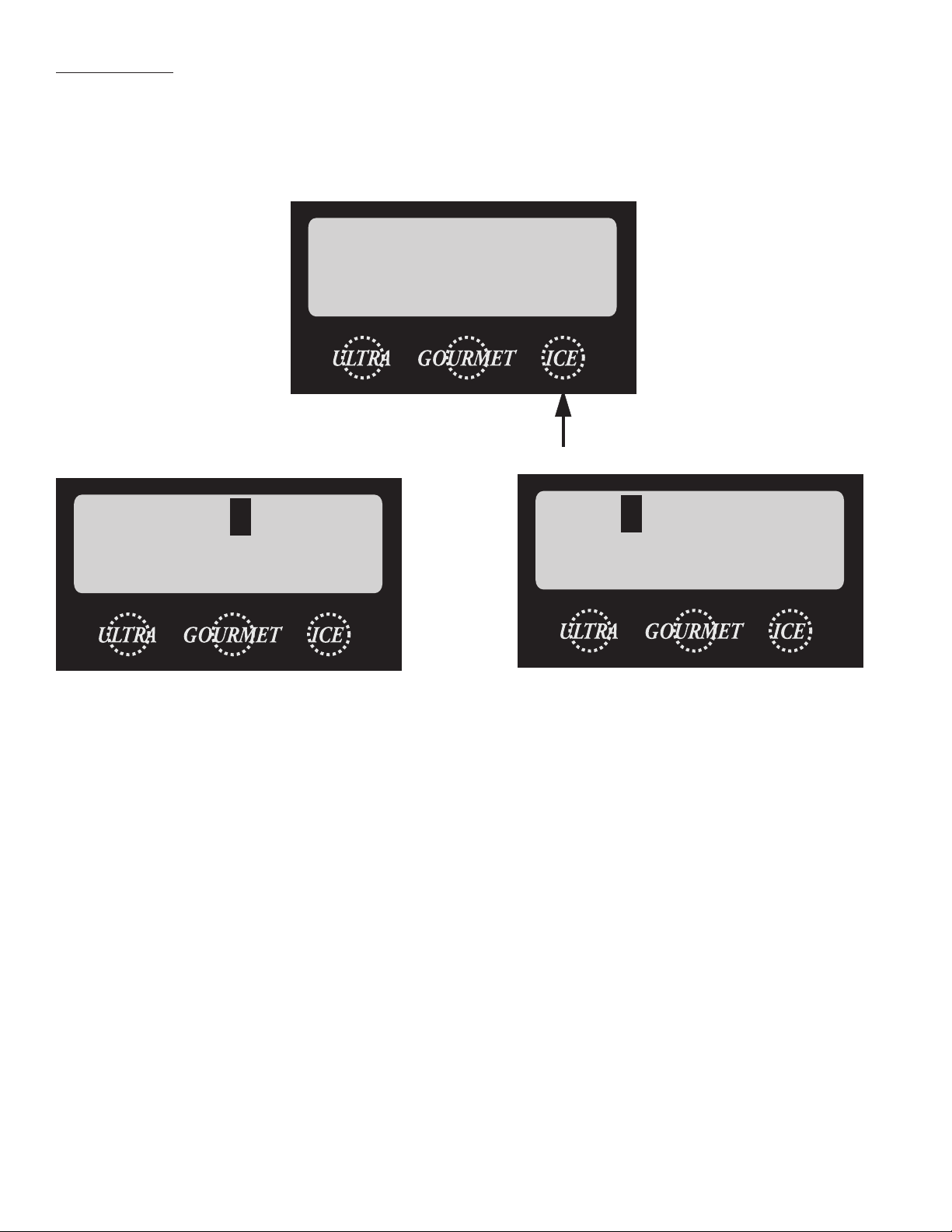

MENU FUNCTION INDEX

Press and hold for five seconds the GOURMET hidden switch to enter into the Menu Function Index. The screens on the following page are in order that they appear from the menu display. Pressing NO (“ULTRA”) or NEXT (GOURMET”) will advance to the next function. Press ON/OFF (“I/O”) will back up to the previous screen. A one minute time out will return to the Home Screen.

JAN.	25, 2005
off	off

P3678

7	41047 040108

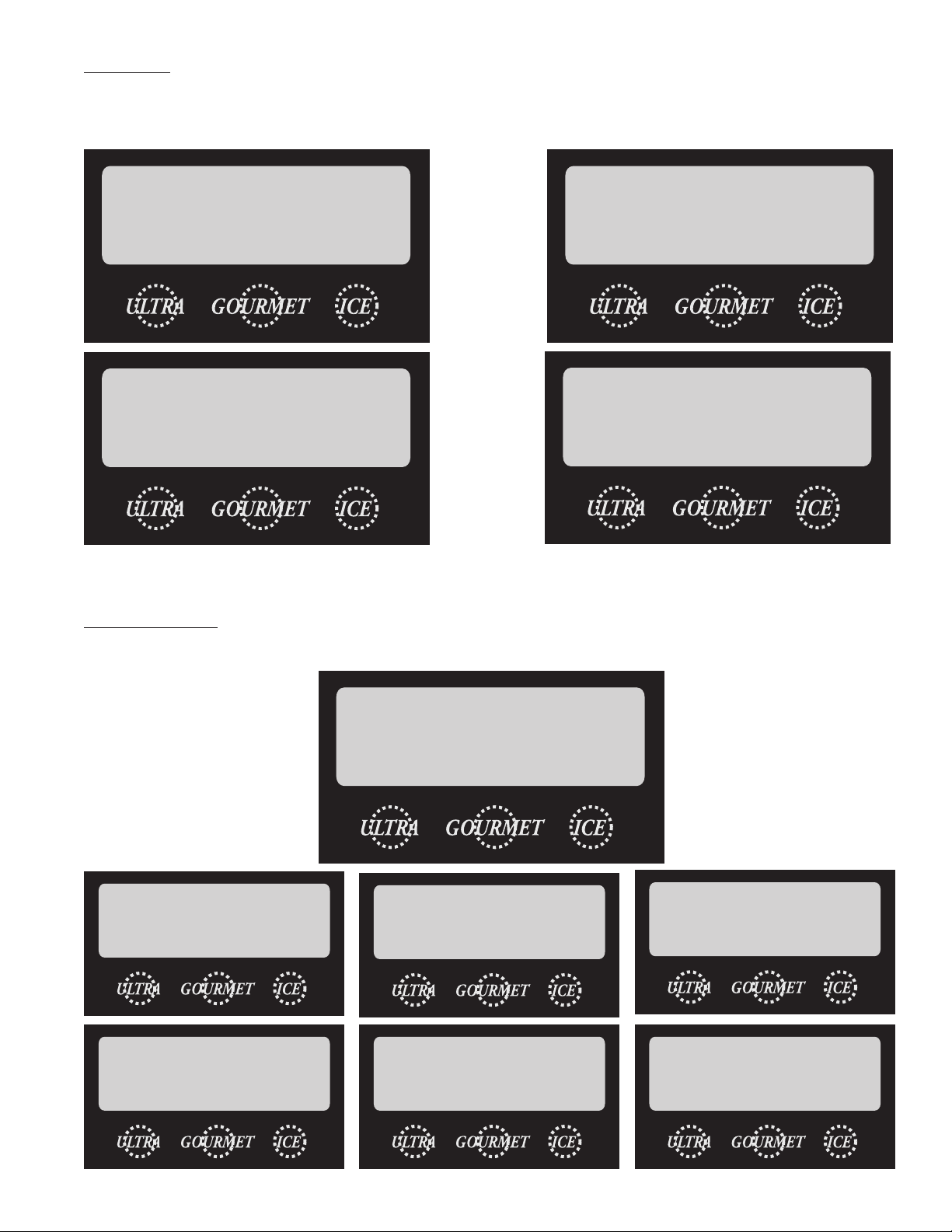

MENU FUNCTION INDEX (Continued)

CLEANING GUIDE ?			SET THICKNESS ?
NO	YES		NO	YES

SET DATE TIME ?			PASSWORD	0
NO	YES		(-) NEXT	(+)

SET NIGHT TIME (-) OFF (+)

6 MONTH PM (-) OFF (+)

SWITCHES

(-) ON (+)

250 R REFILL 155 (-) THRESHOLD (+)

SERVICE PHONE # (-) DISABLED (+)

SERVICE TOOLS NO YES

DEFROST MINUTES (-) OFF (+)

DAY TO CLEAN OFF (-) NEXT (+)

DELAYED REFILL (-) OFF (+)

TEST REFILL ? NO YES

ENTER ASSET #

AN000000

RESTORE DEFAULT? NO YES

TEST AUGERS ? NO YES

SET LANGUAGE ? NO YES

PM COMPLETE ? NO YES

YES THICK ADJUST (-) NEXT (+)

250 L REFILL 155 (-) THRESHOLD (+)

AD MESSAGE (-) DISABLED (+)

SET PASS WR 0 (-) NEXT (+)

These screens apply to Liquid Autofill models only!

8	41047 040108
