SINGLE® GPR DBC-DV
WITH SMART FUNNEL
Dual Voltage Model
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
37981.0001A 7/12 ©2012 Bunn-O-Matic Corporation
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCP/MCA pod brewers thermal servers
and Thermofresh servers (mechanical and digital)- 1 year parts and 1 year labor.
2) All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards - parts and labor for 3 years.
b) Compressors on refrigeration equipment - 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts
and labor for 4 years or 40,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be
commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the
applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured
by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality,
damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but
not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN
prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office
Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an
authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under
warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make
modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such
individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the
applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair
is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for
the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS
EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities
or services, or any other special, incidental or consequential damages.
392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN
Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic,
Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design,
Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with
the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel,
Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh,
Titan, trifecta, Velocity Brew, A Partner You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit
Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Daypart, Digital Brewer
Control, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, The Horizontal Red Line, Ultra are
either trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
37981.1 030912
TABLE OF CONTENTS
Base - Trunk - Hood - Covers & Panels ....................................................................................................................................... 4
Dispense Valve and Sprayhead ..................................................................................................................................................18
Electrical Controls ..................................................................................................................................................................... 22
Faucet ........................................................................................................................................................................................ 20

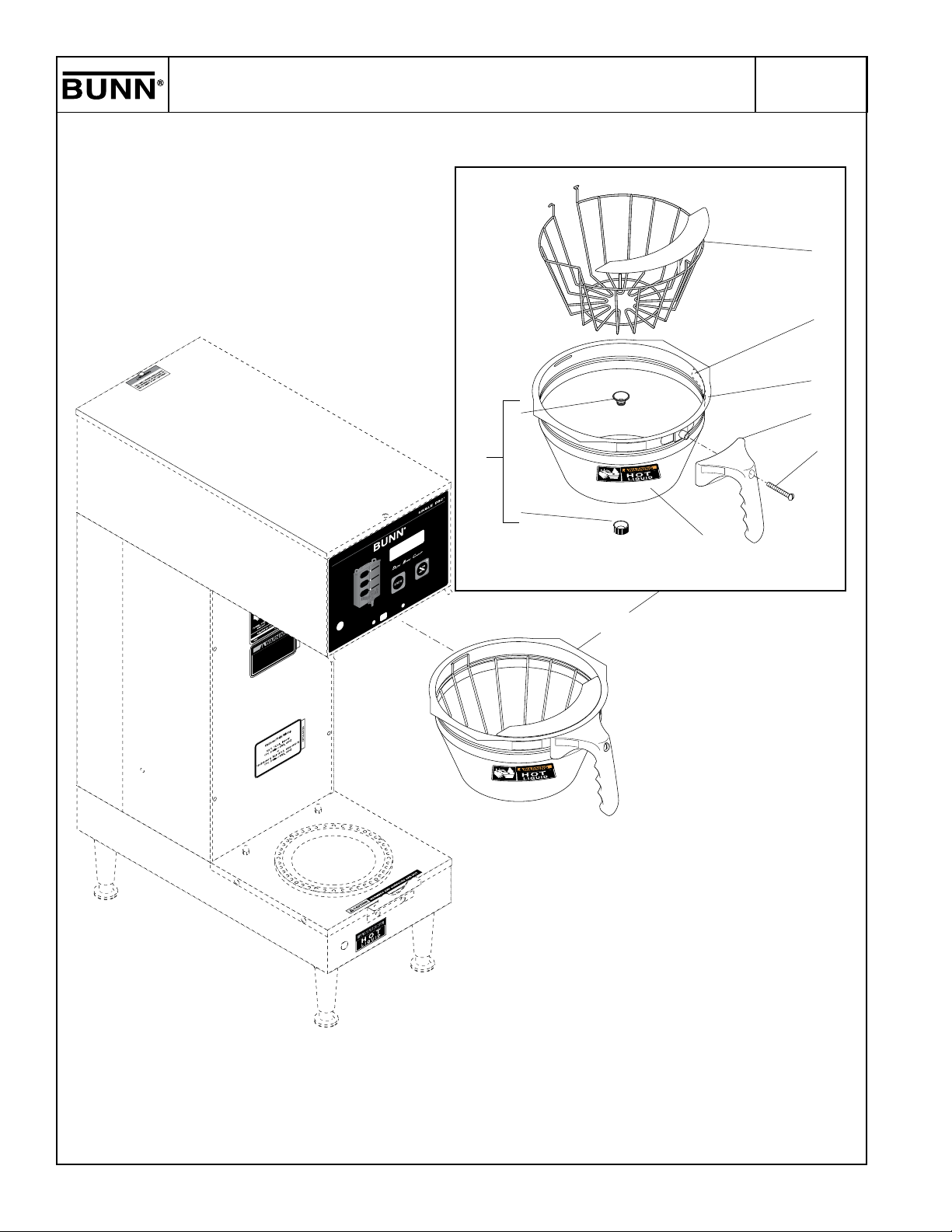

Funnel........................................................................................................................................................................................26
Inlet Valve & Lines .....................................................................................................................................................................14
Numerical Index ........................................................................................................................................................................ 28
Strainer/Flow Control - Solenoid & Lines .................................................................................................................................. 12
Tank and Mounting Brackets ..................................................................................................................................................... 10
Tank Heater & Overflow Protection Devices ................................................................................................................................ 8
Warmer Assemblies ..................................................................................................................................................................24
Water By-Pass ........................................................................................................................................................................... 16
3
37981.1 070312
27
24
BASE - TRUNK - HOOD - COVERS & PANELS
3
9
SINGLE / GPR
DBC-DV
2
1
22
4
5
6
7
21
15
13
14
16
32
18
8
10
11
12
30
29
17
26
19
20
31
28
23
4
Early Models
P3428.40
37981.1 070312
BASE - TRUNK - HOOD - COVERS & PANELS
ITEM PART NO. QTY. DESCRIPTION
1 25766.0001 1 Cover W/Decals, Top (Includes items 2 & 3)
02336.0000 1 Screw, Truss Head #4 - 40 x .375"
2 25151.0000 1 Shield, Insulator
3 37881.0000 1 Decal, Warning - “No Serviceable Parts”
4 00916.0000 1 Clip, J-Type #4 - 40
5 36404.1005 1 Hood W/Decals (Includes item 6)
02308.0000 7 Screw, Pan Head #8 - 32 x .375"
6 29973.0003 1 Membrane Switch
7 37426.1000 1 Trunk W/Decals (17.75")
37426.1001 1 Trunk W/Decals (16.0")
8 00656.0001 1 Decal, Comply to Plumbing Code
9 00986.0000 1 Decal, Warning - Electrical
10 27744.1005 1 Panel W/Decals, 120/240V (17.66") (Includes items 11, 12, 29 & 30)
22987.1000 1 Panel W/Decals, 120/240V (15.92") (Includes items 11, 12, 29 & 30)
01382.0003 8 Screw, Truss Head Locking #6 - 32 x .375"
11 32043.0003 1 Schematic, Electrical 120/240V
12 00658.0000 1 Decal, Caution - Decanter/Funnel
13 21511.1004 1 Warmer Panel Assy W/Decals (Includes items 14 & 15)
01311.0000 4 Screw, Truss Head SST #8 - 32 x .25"
14 12364.0000 1 Decal, Caution-Warmers Are Hot
15 02324.0000 2 Nut, Acorn #8 - 32
16 28592.1004 1 Base Housing W/Decals, 120/240V (Includes item 17)
28592.0008 1 Base Housing, 120/240V
02308.0000 7 Screw, Pan Head #8 - 32 x .375"
17 20201.5600 1 Decal, Warning - Hot Water
Includes items 8, 9 & 24
18 22979.0003 1 Cover, Bottom 120/240V
22979.0004 1 Cover, Bottom 120/240V (Models with Main Power Switch)
22979.0007 1 Cover, Bottom 120/240V (Models with Main Power Switch)
02308.0000 12 Screw, Pan Head #8 - 32 x .375"
19 26528.0000 4 Leg, 4.0" Plastic
See item 25
20 03996.0000 4 Pad, Anti Skid
21 34020.0000 1 Plate, Decal Mounting (Models without Main Power Switch)
02308.0000 2 Screw, Pan Head #8 - 32 x .375"
22 32649.0000 1 Plate, Cover
00970.0000 2 Nut, Keps #8 - 32
23 00619.0007 1 Plug, .50" Dia.
24 00985.0000 1 Decal, Individual Circuit Info
(Continued)
5
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
BASE - TRUNK - HOOD - COVERS & PANELS
SINGLE / GPR
DBC-DV
27
24
(Continued)
3
9
8
2
1
22
4
5
6
7
21
15
13
14
16
32
18
19
10
11
12
30
29
17
26
20
31
28
23
6
Early Models
P3428.40
37981.1 070312
BASE - TRUNK - HOOD - COVERS & PANELS
ITEM PART NO. QTY. DESCRIPTION
25 13255.0003 - Leg Kit (Includes 4 each of items 19 & 20) (Not Illustrated)
26 21104.0003 2 Server Stop, Bolt-On (Used in Product # 36100.0000)
21104.0007 2 Server Stop, Bolt-On (Used in Product # 36100.0010)
01347.0000 4 Screw, #6 - 32 x .38"
27 36398.0000 1 Hole Plug, DB-9 (Early models)
28 03011.0000 2 Plug, Vent BLK 1.0" Dia. (Early models only)
29 29710.0012 1 Decal, Optional Field Wiring
30 37881.0000 1 Decal, Warning - “No Serviceable Parts”
31 37766.0000 1 Cover, Access
02308.0000 2 Screw, Pan Head #8 - 32 x .375"
32 39803.0000 1 Decal, Main Switch (Models with Main Power Switch only)
Used in Product # 36100.0000 only
7
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
TANK HEATER & OVERFLOW PROTECTION DEVICES
SINGLE / GPR
DBC-DV
23
1
6
5
4
3
2
7 8 9
26
10
14
11
2
2
20
16
15
17
13
12
22
21
16
25
18
19
11
15
16
17
2
Brewers W/Copper
Overflow Cup
P3429.
8
37981.1 070312
TANK HEATER & OVERFLOW PROTECTION DEVICES
ITEM PART NO. QTY. DESCRIPTION
1 23717.0003 1 Thermostat, Limit
00908.0000 2 Nut, Hex #8 - 32
2 02536.0000 4 Grommet, Probe (1 less used on brewers with Copper Overflow Cup)
3 20936.1000 1 Probe Kit (Includes items 4, 5 & 6)
4 01501.0000 1 Washer .164" I.D. x .375" O.D.
5 20203.0100 1 Lockwasher, Internal Tooth #8
6 00908.0000 1 Nut, Hex #8 - 32
7 20922.1001 1 Tank Heater 1650W @ 120V (Includes Item 8)
20922.1004 1 Tank Heater 3235W @ 120V (Includes Item 8)
00908.0000 4 Nut, Hex #8 - 32
8 12398.0002 1 Gasket, Tank Heater
9 26622.0001 1 Tube Assy, Vent
10 37844.0000 1 Bracket, Vent Tube
11 03803.0000 1 Switch Assy, Liquid Level, 120/240V (Includes Items 12, 13 & 14)
04797.0000 1 Washer, Celcon .520" I.D. x 1.0" O.D.
00946.0000 1 Nut, Hex .125" FPT
12 03633.0000 2 Gasket, Float Switch (Only 1 used in this application)
13 - - - - - - - - 3 Washer, Adjusting (DO NOT USE IN THIS APPLICATION)
14 03807.0000 1 Clip, Spring
15 22728.0000 1 Overflow Cup Assy Copper (Also replaces aluminum cup)
41259.1003 1 Kit, Overflow Cup (Aluminum) (Includes items 2,18, 20 & 21)
00971.0000 2 Nut, Keps #10-32
16 12422.0000 2 Clamp, Hose .47"/.54" I.D.
17 28526.0009* 1 Tube, Silicone .313" I.D. x 24" (Order Item 27) (Cut As Required)
18 04797.0000 1 Washer, Celcon .520” I.D. x 1.0” O.D.
19 00946.0000 1 Nut, Hex .125” FPT
20 41280.0001 1 Elbow,.375” Multi Barb
21 41266.0000 1 Film, Insulating
22 12565.0011 1 Triac Assy, 40 Amp (120/240V)
02328.0003 1 Screw, Pan Head #6 - 32 x .312"
01520.0000 1 Lockwasher #6
23 20541.0001 1 Heat Sink, Aluminum
24 M2522.1000 - Heat Sink Compound (Not Illustrated)
25 21801.0002 1 Tube, .375" O.D. x 1.50" LG
26 02434.0013* 1 U-Channel 1.0" (Order item 28)
27 28526.1000 - Tube, Silicone .313" I.D. x 12.0"
28526.1001 - Tube, Silicone .313" I.D. x 36.0"
28526.1002 - Tube, Silicone .313" I.D. x 60.0"
28526.1003 - Tube, Silicone .313" I.D. x 120.0"
28 02434.1000 - U-Channel 18.0" (Use as required)
9
Not illustrated
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
TANK AND MOUNTING BRACKETS
SINGLE / GPR
DBC-DV
1
2
3
4
6
5
Used in Product # 36100.0010
5
10
P34 30.70
37981.1 070312
TANK AND MOUNTING BRACKETS
ITEM PART NO. QTY. DESCRIPTION
1 28909.0000 1 Bracket, Tank Support (Top)
02308.0000 1 Screw, Pan Head #8 - 32 x .375"
00908.0000 2 Nut, Hex #8 - 32
2 22976.0003 1 Lid, Tank
00908.0000 10 Nut, Hex #8 - 32
3 22978.0000 1 Gasket, Tank
4 22960.1008 1 Tank Assy (Includes Item 6)
5 37517.0000 1 Bracket, Tank Mounting (Bottom) (Used in Product # 36100.0000)
37541.0000 1 Bracket, Tank Mounting (Bottom) (Used in Product # 36100.0010)
00971.0000 2 Nut, Keps #10 - 32
02308.0000 4 Screw, Pan Head #8 - 32 x .375"
6 - - - - - - - - 1 Bracket, Vent Tube (See TANK HEATER & OVERFLOW PROTECTION)
11
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
STRAINER, SOLENOID AND LINES
SINGLE / GPR
DBC-DV
4
1 2 13 3 5
7
19
12
11 10 9 8 6
15
16
18
17
12
14
P3431.50
37981.1 070312
STRAINER, SOLENOID & LINES
ITEM PART NO. QTY. DESCRIPTION
1 20937.0004 1 Tube, Tank Fill
2 36089.0000 1 Tube, Assembly, Solenoid to Tank
3 35094.0001 1 Solenoid Valve 120V
4 36088.0002 1 Solenoid Valve Assy, 120V (Includes Items 3 & 5)
01315.0000 2 Screw, Truss Head #8-32 x .375"
5 34768.0001 2 Elbow, .38" Male Flare x .37"
6 37892.0000 1 Tube Assy, Bulkhead Refill Tube .38" O.D. Rear
7 02536.0000 1 Grommet, .375" I.D.
8 12757.0000 1 Nut, Hex .625" - 18 Brass
9 01514.0000 1 Lockwasher, Internal Tooth .625" I.D.
10 12756.0000 1 Bulkhead Fitting .38" Flare
11 37761.0000 1 90° Swivel Elbow
12 00976.0000 1 Cap Nut, .375" Flare-45
13 37127.0001 1 Bracket, Solenoid Mounting
02308.0000 2 Screw, Pan Head #8-32 x .375”
01522.0000 2 Washer, Flat .203” ID x .50” OD
14 29421.0000 1 Clamp, Hose-Worm Drive .625”/.75”
15 32591.1002 1 Tube, Silicone .50" I.D. x 36" LG
16 11630.0001 1 Clamp, Tubing Shut Off .75" O.D.
17 35086.0000 1 Plug, .50" I.D. Hose
18 12422.0009 1 Clamp, Hose .71"/.80" I.D.
19 32359.0000 2 Gasket, .375" Flare Copper
13
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
INLET VALVE AND LINE
3 4 5 6
2
1
SINGLE / GPR
DBC-DV
7
8
10
14
9
P3940
37981.1 070312
INLET VALVE AND LINE
ITEM PART NO. QTY. DESCRIPTION
1 02536.0000 1 Grommet, Fill Tube
2 20937.0004 1 Tube, Tank Fill
3 32359.0000 1 Gasket, .375" Flare Copper
4 12418.0001 1 Fitting, Swivel .375" Barb
5 12422.0001 2 Clamp, Hose .59"/.66" I.D
6 20976.0000* 1 Tube, Silicone .375" I.D. x .625" O.D. x 30.0" (Order item 11)
7 36378.0001 1 Check Valve (Installed in item 6)
8 36233.1000 1 Valve, Water Inlet (Refer to item 12)
32283.0000 2 Screw, Pan Head M4 x 6MM
9 37297.0001 1 Elbow, .25" FLR x .75" FTHR
10 41640.0000 1 Gasket, .75" Hose Fitting
11 20976.1001 - Tube .375" ID x .625" OD x 36.0" (Use as required)
20976.1002 - Tube .375" ID x .625" OD x 120.0" (Use as required)
12 43644.0000 - Kit, Valve Rebuild)
15
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
WATER BY-PASS
4
1
SINGLE / GPR
DBC-DV
3
5
3
6
2
7
16
P3432
37981.1 070312
WATER BY-PASS
ITEM PART NO. QTY. DESCRIPTION
1 32591.0014* 1 Tube, Silicone .50" I.D. x 3.60" (Order item 8) (Cut As Required)
2 12422.0001 1 Clamp, Hose .59"/.66" I.D.
3 12422.0005 2 Clamp, Hose .62"/.71" I.D.
4 12422.0009 1 Clamp, Hose .71"/.80" I.D.
5 27370.0003 1 Valve Assy, By-Pass 120/240V
00970.0000 2 Nut, Keps #8 - 32
6 20976.0064* 1 Tube, Silicone .38" I.D. x .62" O.D. x 4.50" (Order item 9) (Cut As Required)
7 32648.0000 1 Elbow Assy
8 32591.1001 - Tube, Silicone .50" I.D. x 12.0"
32591.1002 - Tube, Silicone .375" I.D. x 36.0"
9 20976.1000 1 Tube, Silicone .38" I.D. x .62" O.D. x 12.0"
20976.1001 1 Tube, Silicone .38" I.D. x .62" O.D. x 36.0"
20976.1002 1 Tube, Silicone .38" I.D. x .62" O.D. x 120.0"
Not illustrated
17
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
DISPENSE VALVE AND SPRAYHEAD
2
3
4
5
SINGLE / GPR
DBC-DV
10
17
6
7
8
9
11
1
12
16
Used in Product
# 36100.0010
18
12
13
14
15
P3433.60
37981.1 070312
DISPENSE VALVE & SPRAYHEAD
ITEM PART NO. QTY. DESCRIPTION
1 26846.0000 2 Valve Assy, Sprayhead (Includes Items 2 thru 8)
2 23254.0000 4 Screw, #8 - 32
3 22305.0000 1 Coil Assy, Dispensing Valve
4 23256.0000 1 Spacer Plate
5 - - - - - - - - 1 Spring (Not available order item 18)
6 - - - - - - - - 1 Plunger (Not available order item 18)
7 23255.0000 1 Diaphragm
8 - - - - - - - - 1 Body (Not available order item 1)
9 35052.0000* 1 Tube, Silicone .75" I.D. x 6.25" LG (Order item 17) (Cut as required)
10 12422.0008 2 Clamp, Hose Snap-Type.93"/1.1" I.D.
11 34956.0000 1 Fitting, .250" NPTF Hose .750" NPS
12 01075.0000 1 Nut, Hex .438" - 20
13 34868.0000 1 Seal, Sprayhead
14 35070.0001 1 Sprayhead Back
15 34867.0000 1 Sprayhead
16 01082.0002 1 Sprayhead (6-098) (Used in Product # 36100.0010)
17 35052.1000 1 Tube, Silicone .75" I.D. x 1.0" O.D. x 12.0"
18 11517.0008 - Repair Kit, Bypass & Dispense Valve
(Includes one each of spring, plunger and diaphragm)
19 35308.1004 - Sprayhead Assy (Includes one each of items 13, 14 & 15)
(Used in Product # 36100.0000)
Refer to Item 19
Not illustrated
19
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
FAUCET
11 10 11
SINGLE / GPR
DBC-DV
14 11
12
15
1
7
9
8
1
2
3
4
5
6
13
20
P3434.80
37981.1 070312
FAUCET
ITEM PART NO. QTY. DESCRIPTION
1 29075.0000 1 Faucet Assy (Includes Items 2 Thru 9)
2 02861.0000 1 Handle, Faucet
3 02854.0000 1 Bonnet, Faucet
4 02595.0000 1 Spring, Faucet
5 02766.0000 1 Seat Cup, Faucet
6 02856.0002 1 Body, Faucet
7 13054.0000 1 Stem, Faucet
8 02858.0000 1 Pin, Spring .125" Dia. x .50"
9 02594.0000 1 Faucet Stem W/Pin (Includes Items 7 & 8)
10 20976.0065* 1 Tube, Silicone .38" I.D. x .62" O.D. x 12" (Order Item 16) (Cut As Required)
11 12422.0001 2 Clamp, Hose .59" x .66" I.D.
12 29264.0000 1 Nut, Faucet Retaining
13 01544.0000 1 Washer, .50" I.D. x .75" O.D.
14 20976.0036* 1 Tube, Silicone .38" I.D. x .62" O.D. x 36" (Order Item 16) (Optional Lower Faucet)
(Cut As Required)
15 41184.0000 1 Washer, .57" I.D. x .72" O.D. x .048" (Late models)
16 20976.1000 1 Tube, Silicone .38" I.D. x .62" O.D. x 12.0"
20976.1001 1 Tube, Silicone .38" I.D. x .62" O.D. x 36.0"
20976.1002 1 Tube, Silicone .38" I.D. x .62" O.D. x 120.0"
Not Illustrated
17 28706.0002 - Faucet Kit (Includes Items 2, 4, 5, 7 & 8)
18 M2517.0000 - Sealant, Pipe 6 ml.
21
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
ELECTRICAL CONTROLS
SINGLE / GPR
DBC-DV
13
11
10
16
15
0/208V
12
0/240V
12
120V
14
1
2
3
1
3
Early Models
12
4
5
18
9
17
6
7
8
7
8
Models with Main
Power Switch
22
P3435.50
37981.1 070312
ELECTRICAL CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 29969.1014 1 Circuit Board, Main control (Used in Product # 36100.0000)
29969.1000 1 Circuit Board, Main control (Used in Product # 36100.0010)
00973.0000 2 Nut, Keps #6 - 32
2 01533.0010 2 Spacer (Early models)
3 29970.0000 1 Mount, Circuit Board (Early models)
40726.0000 1 Mount, Circuit Board (Late models)
00973.0000 2 Nut, Keps #6 - 32
4 - - - - - - - - 1 Sensing Coil WO/Leads (Early models) (Not available order item 23)
32572.1001 1 Sensing Coil W/Violet Leads (Includes plug below) (Late models)
20621.0000 1 Plug, hole .203" Dia. (Not illustrated)
5 32573.0000 1 Cover, Sensing Coil
01382.0007 2 Screw, Truss Head #6 - 32 x .38"
6 01309.0000 1 Ground Screw W/Terminal Washer #10 - 32 x .50"
7 23004.0000 1 Bracket, Terminal Block Mounting
39248.0001 1 Bracket, Terminal Block Mounting (Models with Main Power Switch)
02308.0000 2 Screw, Pan Head #8 - 32 x .38"
8 07038.0000 1 Terminal Block, 3 Pole (BLK/RED/WHI)
01106.0001 1 Terminal Block, 2 Pole (BLK/RED)
01317.0000 2 Screw, Truss Head #8 - 32 x .50"
9 01590.0000 1 Connector, Cable
10 12570.0000 1 Grommet, Temperature Sensor
11 29327.0001 1 Probe, Temperature & Dry Plug
12 32018.0000 1 Bumper (Early models)
13 37754.1000 1 Bracket W Decal, Switch (Includes item 15)
00970.0000 2 Nut, Keps #8 - 32
14 23522.0001 1 Switch, Toggle
15 34056.0001 1 Decal, Switch
16 04831.0000 1 Clamp, SST Rubber Coating (Used To Hold Electrical Wires In Place)
17 38894.0001 1 Switch, Main Power (Not used on all models)
01308.0002 2 Screw, Truss Head #6-32 x .25" (Switch Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .375"
01512.0000 4 Lockwasher, External Tooth #10
18 00824.0002 1 Decal, Ground
Note: The following parts are not illustrated
19 32647.0000 1 Wiring Harness, Main
20 37917.0000 1 Wiring Harness, Voltage Select
21 37859.0002 1 Wiring Harness, Main Power Switch
22 20630.0005 1 Cord Assy, Power
23 38338.0000 - Kit, Funnel Sensors (Includes Funnel Sensor Coils W/Leads)
23
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
WARMER ASSEMBLIES
SINGLE / GPR
DBC-DV
2
3
1
4
5
24
P3436
37981.1 070312
WARMER ASSEMBLIES
ITEM PART NO. QTY. DESCRIPTION
1 03652.0000 1 Warmer Assy, BLK 100W 120V (Includes Items 2 Thru 5)
01303.0000 3 Screw, Pan Head #4 - 40 x .50"
2 03656.0000 1 Warmer Dish, BLK - 45 Hole
3 13042.0001 1 Spacer, .174" I.D. x .188"
4 01227.0000 1 Warmer Element, 100W 120V
5 05212.0000 1 Plate, Warmer Retainer
00970.0000 2 Nut, Keps #8 - 32
25
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
FUNNEL
SINGLE / GPR
DBC-DV
7
3
2
8
5
6
10
M
S
A
R
T
U
F
N
N
E
L
9
4
k,
oc
h
s
tric
37881.0000A 11/04
de.
over.
y.
c
k of elec
nsi
n
.
s i
ris
pe
g
el onl
r o
n
the
cin
e part
e o
l
son
ervi
uce
ov
ab
er
e
p
m
red
re s
o
re
ce
t
To
ef
ervic
b
no
ervi
r-s
er
s
do
d
use
pow
ize
r
No
ho
ect
t
n
Au
con
Dis
S
1
M
A
R
T
U
F
N
N
E
L
26
P3437.55
37981.1 070312
FUNNEL
ITEM PART NO. QTY. DESCRIPTION
1 32643.0000 1 Funnel Assy, SST (Includes Items 2 Thru 9)
2 24462.0002 1 Funnel W/Decals (Includes Items 3 & 4)
3 03408.0004 1 Decal, Caution-Remove Funnel
4 03409.0004 1 Decal, Caution-Hot Liquid
5 32595.0000 1 Handle, Funnel - Black (Includes Item 6)
6 12499.0002 1 Screw, Round Head .25" - 20 x 1.50"
7 33089.0000 1 Filter Basket W/Splash Guard
8 32139.0000 1 Insert, Funnel Tip - Male (Refer To Item 10)
9 32140.0000 1 Insert, Funnel Tip - Female (Refer To Item 10)
10 01031.0001 - Funnel Tip Kit (Includes Items 8 & 9)
27
37981.1 070312
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00619.0007......................... 5
00656.0001......................... 5
00658.0000......................... 5
00824.0002....................... 23
00908.0000.................... 9,11
00916.0000......................... 5
00946.0000......................... 9
00970.0000.......... 5,17,23,25
00971.0000.................... 9,11
00973.0000....................... 23
00976.0000....................... 13
00985.0000......................... 5
00986.0000......................... 5
01031.0001....................... 27
01075.0000....................... 19
01082.0002....................... 19
01106.0001....................... 23
01227.0000....................... 25
01303.0000....................... 25
01308.0002....................... 23
01309.0000....................... 23
01311.0000......................... 5
01315.0000....................... 13
01317.0000....................... 23
01327.0000....................... 23
01347.0000......................... 7
01382.0003......................... 5
01382.0007....................... 23
01501.0000......................... 9
01512.0000....................... 23
01514.0000....................... 13
01520.0000......................... 9
01522.0000....................... 13
01533.0010....................... 23
01544.0000....................... 21
01590.0000....................... 23
02308.0000....... 5,7,11,13,23
02324.0000......................... 5
02328.0003......................... 9
02336.0000......................... 5
02434.0013......................... 9
02434.1000......................... 9
02536.0000............... 9,13,15
02594.0000....................... 21
02595.0000....................... 21
02766.0000....................... 21
02854.0000....................... 21
02856.0002....................... 21
02858.0000....................... 21
02861.0000....................... 21
03011.0000......................... 7
03408.0004....................... 27
03409.0004....................... 27
03633.0000......................... 9
03652.0000....................... 25
03656.0000....................... 25
03803.0000......................... 9
03807.0000......................... 9
03996.0000......................... 5
04797.0000......................... 9
04831.0000....................... 23
05212.0000....................... 25
07038.0000....................... 23
11517.0008....................... 19
11630.0001....................... 13
12364.0000......................... 5
12398.0002......................... 9
12418.0001....................... 15
12422.0000......................... 9
12422.0001............. 15,17,21
12422.0005....................... 17
12422.0008....................... 19
12422.0009.................. 13,17
12499.0002....................... 27
12565.0011......................... 9
12570.0000....................... 23
12756.0000....................... 13
12757.0000....................... 13
13042.0001....................... 25
13054.0000....................... 21
13255.0003......................... 7
20201.5600......................... 5
20203.0100......................... 9
20541.0001......................... 9
20621.0000....................... 23
20630.0005....................... 23
20922.1001......................... 9
20922.1004......................... 9
20936.1000......................... 9
20937.0004.................. 13,15
20976.0000....................... 15
20976.0036....................... 21
20976.0064....................... 17
20976.0065....................... 21
20976.1000.................. 17,21
20976.1001............. 15,17,21
20976.1002............. 15,17,21
21104.0003......................... 7
21104.0007......................... 7
21511.1004......................... 5
21801.0002......................... 9
22305.0000....................... 19
22728.0000......................... 9
22960.1008....................... 11
22976.0003....................... 11
22978.0000....................... 11
22979.0003......................... 5
22979.0004......................... 5
22979.0007......................... 5
22987.1000......................... 5
23004.0000....................... 23
23254.0000....................... 19
23255.0000....................... 19
23256.0000....................... 19
23522.0001....................... 23
23717.0003......................... 9
24462.0002....................... 27
25151.0000......................... 5
25766.0001......................... 5
26528.0000......................... 5
26622.0001......................... 9
26846.0000....................... 19
27370.0003....................... 17
27744.1005......................... 5
28526.0009......................... 9
28526.1000......................... 9
28526.1001......................... 9
28526.1002......................... 9
28526.1003......................... 9
28592.0008......................... 5
28592.1004......................... 5
28706.0002....................... 21
28909.0000....................... 11
29075.0000....................... 21
29264.0000....................... 21
29327.0001....................... 23
29421.0000....................... 13
29710.0012......................... 7
29969.1000....................... 23
29969.1014....................... 23
29970.0000....................... 23
29973.0003......................... 5
32018.0000....................... 23
32043.0003......................... 5
32139.0000....................... 27
32140.0000....................... 27
32283.0000....................... 15
32359.0000.................. 13,15
32572.1001....................... 23
32573.0000....................... 23
32591.0014....................... 17
32591.1001....................... 17
32591.1002.................. 13,17
32595.0000....................... 27
32643.0000....................... 27
32647.0000....................... 23
32648.0000....................... 17
32649.0000......................... 5
33089.0000....................... 27
34020.0000......................... 5
34056.0001....................... 23
34768.0001....................... 13
34867.0000....................... 19
34868.0000....................... 19
34956.0000....................... 19
35052.0000....................... 19
35052.1000....................... 19
35070.0001....................... 19
35086.0000....................... 13
35094.0001....................... 13
35308.1004....................... 19
36088.0002....................... 13
36089.0000....................... 13
36233.1000....................... 15
36378.0001....................... 15
36398.0000......................... 7
36404.1005......................... 5
37127.0001....................... 13
37297.0001....................... 15
37426.1000......................... 5
37426.1001......................... 5
37517.0000....................... 11
37541.0000....................... 11
37754.1000....................... 23
37761.0000....................... 13
37766.0000......................... 7
37844.0000......................... 9
37859.0002....................... 23
37881.0000...................... 5,7
37892.0000....................... 13
37917.0000....................... 23
38338.0000....................... 23
38894.0001....................... 23
39248.0001....................... 23
39803.0000......................... 7
40726.0000....................... 23
41184.0000....................... 21
41259.1003......................... 9
41266.0000......................... 9
41280.0001......................... 9
41640.0000....................... 15
43644.0000....................... 15
M2517.0000 ..................... 21
M2522.1000 ....................... 9
28
37981.1 070312
Loading...
