Bunn FMD-3 Parts List

FMD-3

FMD DBC-3

FMDA DBC-3

S/N FMD0013000 - UP

ILLUSTRATED PARTS CATALOG

Designs, materials, weights, specifications, and dimensions for equipment or replacement parts

are subject to change without notice.

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: [phone] FAX: [phone]

29171.0001B 01/13 ©2012 Bunn-O-Matic Corporation

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1) Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCP/MCA pod brewers thermal servers
and Thermofresh servers (mechanical and digital)- 1 year parts and 1 year labor.

2) All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards - parts and labor for 3 years.
b) Compressors on refrigeration equipment - 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts

and labor for 4 years or 40,000 pounds of coffee, whichever comes first.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be
commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the
applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured
by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality,
damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but
not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN
prompt notice of any claim to be made under this warranty by telephone at [phone] or by writing to Post Office
Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an
authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under
warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EX­PRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make

modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such
individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive op­tion while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the
applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair
is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for
the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS
EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities
or services, or any other special, incidental or consequential damages.

392, A Partner You Can Count On, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, Brew­WIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized
red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth,
DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High
Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment Worldwide,
Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro,
Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage
Equipment Worldwide, ThermoFresh, Titan, trifecta, Velocity Brew, Air Brew, Air Infusion, Beverage Bar Creator, Bever­age Profit Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Daypart, Digital
Brewer Control, Element, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, The Horizontal
Red Line, Ultra are either trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta®
brewer housing configuration is a trademark of Bunn-O-Matic Corporation.

2

29171.1 080112

TABLE OF CONTENTS

TITLE PAGE NO.

Auger Drive and Hopper Assembly .............................................................................................................12

Covers, Panels and Drip Tray ........................................................................................................................4

Dispense Valves and Lines ..........................................................................................................................22

Door, Lamp, Dispense Switches and Panels .................................................................................................8

Electrical Controls .......................................................................................................................................24

Mixing/Whipper Chambers and Drive Motor ...............................................................................................14

Numerical Index ..........................................................................................................................................28

Strainer, Solenoid, Fill Valve and Lines ........................................................................................................18

Tank, Heater and Overflow Protection .........................................................................................................16

3

29171.1 062912

COVERS, PANELS AND DRIP TRAY

2 1 3

37

FMD-3

FMD DBC-3

FMDA DBC-3

26

23 24 35

22 21 20

37

Stainless Steel Covers

31

32

10

4 25 5

36

29

26

27 9

1

6

7

13

12

DISPENSERS W/HOT

WATER VALVE

19 17 18 16

13

12

EARLY MODEL DISPENSERS

W/OUT DIGITAL TOUCH

CONTROL

8

10

28

30

11 13 12 14 15

P1627.28

4

29171.1 062912

COVERS, PANELS AND DRIP TRAY

ITEM PART NO. QTY. DESCRIPTION

1 26504.0000 4 Hinge

02308.0000 12 Screw, Pan Head #8-32 x .375”

2 28671.0000 1 Cover, Top Rear - SST

02308.0000 2 Screw, Pan Head #8-32 x .375”

3 28670.0000 1 Cover, Top Front - SST

4 28209.1000 1 Housing W/Decals - BLK (Includes items 23 & 24)(Models w/ Horton Inlet Valve)

28209.1001 1 Housing W/Decals - BLK (Includes items 23 & 24)(Models w/ Eltek Inlet Valve)

28661.1000 1 Housing W/Decals - SST (Includes items 23 & 24) (Models w/ Horton Inlet Valve)

28661.1002 1 Housing W/Decals - SST (Includes items 23 & 24) (Models w/ Eltek Inlet Valve)

28661.0006* 1 Housing - SST 230V (Models w/ Horton Inlet Valve)

5 33886.0001 1 Panel, Right

01311.0001 4 Screw, Truss Head - Locking #8-32 x .25”

6 28270.0000 1 Panel, Whipper Motor Mounting (Also order items 7, 8, one of item 9 & 28 -
dispensers w/out cold water option, 7, 8, one of item 9, 27 & 28 - dispenser w/cold
water option and 7, 8, 9 - dispensers w/digital touch control)

28270.0001 1 Panel, Whipper Motor Mounting (Also order items 7, 8 & 9) (Used on dispensers
with Hot water Valve)

00991.0000 6 Nut, Elastic Lock #8-32

7 26524.0000 1 Decal, Tank Heater Switch

8 26523.0000 1 Decal, Rinse/Run Switch

9 00619.0010 2 Plug, Hole .437” Dia (Not used on soup dispensers or dispensers w/cold water
option) (One less used on dispensers w/out digital touch control)

10 28366.0000* 2 Gasket, Foam W/Adhesive 10.1” LG (Order item 33)

11 29243.0000 1 Panel W/Decal, Lower Front Access (Includes item 30)
(Dispensers w/out digital touch control)

29243.0001 1 Panel W/Decal, Lower Front Access (Includes item 30)
(Dispensers w/digital touch control)

29243.0002 1 Panel W/Decal, Lower Front Access (Includes item 30)
(Dispensers w/digital touch control and hot water valve)

01311.0000 2 Screw, Truss Head #8-32 x .25”

12 28436.0000 1 Panel W/Decal, Splash (Includes item 13) (Dispensers w/out digital touch control)

28436.0003 1 Panel W/Decal, Splash (Includes item 13) (Dispensers w/digital touch control)

28436.0004 1 Panel W/Decal, Splash (Includes item 13) (Dispensers w/hot water valve)

01311.0001 2 Screw, Truss Head - Locking #8-32 x .25”

13 - - - - - - - - 1 Decal, Caution-Hot Liquid & Cup Placement (Early models, order
late model decal)

29216.0002 1 Decal, Caution-Hot Liquid & Cup Placement (Late models)

29216.0000 1 Decal, Caution-Hot Liquid & Cup Placement (Dispensers w/digital touch control)

29216.0001 1 Decal, Caution-Hot Liquid & Cup Placement (Dispensers w/digital touch control and
w/hot water valve)

Dispensers
w/out digital
touch control

14 28267.0000 1 Cover, Drip Tray

15 28268.0000 1 Drip Tray

16 33886.0000 1 Panel, Left

01311.0001 4 Screw, Truss Head - Locking #8-32 x .25”

(Continued)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

5

29171.1 010413

COVERS, PANELS AND DRIP TRAY

(Continued)

2 1 3

37

FMD-3

FMD DBC-3

FMDA DBC-3

26

23 24 35

22 21 20

37

Stainless Steel Covers

31

32

10

4 25 5

36

29

26

27 9

1

6

7

13

12

DISPENSERS W/HOT

WATER VALVE

19 17 18 16

13

12

EARLY MODEL DISPENSERS

W/OUT DIGITAL TOUCH

CONTROL

6

8

10

28

30

11 13 12 14 15

P1627.28

29171.1 062912

COVERS, PANELS AND DRIP TRAY

ITEM PART NO. QTY. DESCRIPTION

17 26528.0000 4 Leg, 4.0” Adjustable (Also see item 34)

18 03996.0000 4 Pad, Rubber 1.25” Dia. (Also see item 34)

19 23164.0002 1 Plug, Hole 1.50” Dia. - BLK

00619.0011 1 Plug, Hole 1.50” Dia. - SST

20 28206.0000 1 Cover, Left Side Access - BLK (Also order item 21)

28668.0000 1 Cover, Left Side Access - SST (Also order item 21)

01311.0003 2 Screw, Truss Head - BLK #8-32 x .25”

01311.0000 2 Screw, Truss Head - SST #8-32 x .25”

21 28368.0000 1 Decal, Thermostat Adjustment (Dispensers with Invensys mechanical thermostat)

28368.0004 1 Decal, Thermostat Adjustment (Dispensers with Cotherm mechanical thermostat)

22 28206.0000 1 Cover, Rear Access - BLK

28684.0000 1 Cover, Rear Access - SST

01311.0003 2 Screw, Truss Head - BLK #8-32 x .25”

01311.0000 2 Screw, Truss Head - SST #8-32 x .25”

23 00831.0000 1 Decal, Warning-Electrical

24 00656.0001 1 Decal, Comply to Plumbing Code

25 21436.0000 2 Catch, Magnetic

26 01311.0001 4 Screw, Truss Head - Locking #8-32 x .375”

27 26522.0000 1 Decal - HOT/COLD (Models w/cold water option)

28 28872.0000 1 Decal - INCREASE/DECREASE (Dispensers w/out digital touch control)

26523.0000 1 Decal - RINSE/RUN (Dispensers w/digital touch control and hot water valve)

Early Models

29 28910.0000 2 Bracket Kit, Cover Retainer (Includes two brackets) (Optional)

30 28874.0000 1 Schematic, 120V, 120/208V & 120/240V (Dispensers w/out digital touch control)

29218.0000 1 Schematic, 120V, 120/208V & 120/240V (Dispensers w/digital touch control)

29218.0002 1 Schematic, 120V (Dispensers w/digital touch control & hot water valve)

29218.0007 - Schematic, 230V (230V “A” Model dispensers)

31 37724.1001 1 Cover, Top - BLK (Includes item 32)

32 38053.0000 2 Bracket

01311.0003 4 Screw, Truss Head #8-32 x .38”

33 28366.1000 - Gasket, Foam W/Adhesive - 12” LG

28366.1001 - Gasket, Foam W/Adhesive - 36” LG

28366.1002 - Gasket, Foam W/Adhesive - 120” LG

34 13255.0003 - Kit, Leg 4.0” Adjustable (Includes 4 each of items 17 & 18)

35 -------------- - Label, CE Conformity (230V “A” Model dispensers only)

36 39803.0000 1 Decal, Main ON/OFF Arrow (Models with Master ON/OFF Switch)

37 37881.0000 1 Decal, No Serviceable Parts

Not Illustrated

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

7

29171.1 010413

DOOR, LAMP, DISPENSE SWITCHES AND PANELS

22

15

25

FMD-3

FMD DBC-3

FMDA DBC-3

16
8

21
11

7

23

12

24

9 6

12

26

10

1 2 3 4 5

18

19

1

17

DISPENSERS W/DIGITAL

TOUCH CONTROL

20

20

READY

HOT

WATER

DISPENSERS W/ HOT

WATER VALVE

8

14

13

15

13

11

Early Models

P1628.40

29171.1 062912

DOOR, LAMP, DISPENSE SWITCHES AND PANELS

ITEM PART NO. QTY. DESCRIPTION

1 28147.1000 1 Door W/Decal (Includes items 2 and 18) (Dispensers w/out digital touch control)

28147.1002 1 Door (Includes item 18) (Dispensers w/digital touch control)

01390.0000 4 Screw, Round Head #8-32 x .625”

01522.0000 4 Washer, Flat .203 I.D. x .50 O.D.”

00991.0000 4 Nut, Elastic Stop #8-32

2 28301.0003 1 Decal, Door Front (Dispensers w/out digital touch control)

3 38031.0001 1 Window, Door - Inside

02336.0000 2 Screw, Truss Head #4-40 x .375”

4 28362.0000 1 Display, Graphics (Cafe Scene)

28682.0000 1 Display, Graphics (Soup)

5 38031.0000 1 Window, Door - Outside

6 -------------- 1 Hinge, Door (See Covers, Panels and Drip Tray)

7 26892.0000 1 Plate, Strain Relief

8 26444.0000 2 Bushing, Strain Relief

9 28325.0000 2 Socket W/Terminals, Starter 120V

40782.0000 2 Socket W/Terminals, Starter 230V

10 27619.0000 2 Starter, Lamp

11 28261.0000 1 Panel, Door - Lower 120V (Also order item 21)(Models w/ 1 light only)

40768.0000 1 Panel, Door - Lower 230V (Also order item 21)(Models w/ 1 light only)

28261.0001 1 Panel, Door - Lower (Also order item 21)(Models w/ 2 lights only)

01383.0001 5 Screw, Pan Head #6-32 x .375”

12 26239.0000 2 Lamp, Fluorescent - 8 Watts

13 28322.0000 2 Lamp Holder, Fluorescent (Early Models)

02328.0002 2 Screw, Pan Head #6 - 32 x .188”

14 28332.1000 1 Panel W/Decal, Door - Upper (Includes item 15)(Early Models)

01383.0001 5 Screw, Truss Head #6 - 32 x .25”

15 28870.0000 1 Decal, Cleaning

16 28335.0000 2 Clip, Ground

17 28296.1000 3 Switch Assembly, Dispense (Dispensers w/out digital touch control)

18 27298.0500 1 Strike, Self Adhesive (Prior to S/N FMD0017786)

29448.0000 1 Strike, Door

21716.0000 2 Screw, Flat Head #6 - 32 x .25”

19 12517.0001 1 LED W/Terminals (Dispensers w/out digital touch control)

25292.0000 1 Lockwasher M6

34130.0000 1 Nut M6

S/N FMD0017786 and up

20 28543.0000 1 Switch, Digital Touch Control

28543.0003 1 Switch, Digital Touch Control (Used in dispensers with Hot Water Valve)

21 29308.0000 1 Decal, Hopper Installation

(Continued)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

9

29171.1 062912

DOOR, LAMP, DISPENSE SWITCHES AND PANELS

(Continued)

22

15

25

FMD-3

FMD DBC-3

FMDA DBC-3

16
8

21
11

7

23

12

24

9 6

12

26

10

1 2 3 4 5

18

19

1

17

DISPENSERS W/DIGITAL

TOUCH CONTROL

20

20

READY

HOT

WATER

DISPENSERS W/ HOT

WATER VALVE

10

14

13

15

13

11

Early Models

P1628.40

29171.1 062912

DOOR, LAMP, DISPENSE SWITCHES AND PANELS

ITEM PART NO. QTY. DESCRIPTION

22 28332.0004* 1 Panel, Upper w/ 2 lights (Late Models)

28332.0003* 1 Panel, Upper w/ 1 light (Late Models)

01383.0001 5 Screw, Truss Head #6 - 32 x .25”

23 27543.1005 1 Lampholder Assy, Upper Left (Late Models w/ 1 or 2 lights)

01308.0000 1 Screw, Truss Head #6-32 x .25"

24 27543.1006 1 Lampholder Assy, Lower Left (Late Models w/ 1 or 2 lights)

01308.0000 1 Screw, Truss Head #6-32 x .25"

25 27543.1001 1 Lampholder Assy, Upper Right (Late Models w/ 2 lights only)

01308.0000 1 Screw, Truss Head #6-32 x .25"

26 27543.1002 1 Lampholder Assy, Lower Right (Late Models w/ 2 lights only)

01308.0000 1 Screw, Truss Head #6-32 x .25"

NOTE: The following items are not illustrated

27 28549.0000 1 Wiring Harness, Door Interconnect 120V (Includes item 7 & 1 of item 8)
(Dispensers w/out digital touch control)

29066.0000 1 Wiring Harness, Door Interconnect 120V (Includes item 7 & 1 of item 8)
(Dispensers w/digital touch control)

29066.0001 1 Wiring Harness, Door Interconnect 120V (Dispenser /Hot water valve)

28 28336.0000 2 Wiring Harness, Door 120V (120V & 230V “A” Model dispensers)

29 26537.0000 1 Decal, Flavors (Almond Amaretto, Cappuccino, French Vanilla, Hazelnut, Chocolate
Raspberry, Cappuccino Supreme, Hot Chocolate and Raspberry Mocha)

26537.0001 1 Decal, Flavors (Swiss Mocha, Mocha, Raspberry Vanilla, Irish Creme, Coffee,
Original, Chocolate French Vanilla and Butter Pecan)

26537.0003 1 Decal, Flavors (White Chocolate, Cinnamon Vanilla Nut, Decaf, Regular,
Apple Cider, Fat Free French Vanilla and Cinnamon Vanilla)

28833.0000 1 Decal, Soup Flavors (Cream of Chicken, Mushroom, Tomato,
Broccoli, Potato and Cheddar Cheese)

28833.0001 1 Decal, Soup Flavors (Chicken Consomme, French Onion, Chicken
Noddle, Beef Noddle, Seafood Bisque and Clam Chowder)

30 21004.0338* 1 Lead 18AWG, GRN, 6.0" (Door Grounding)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

11

29171.1 062912

AUGER DRIVE AND HOPPER ASSEMBLY

FMD-3

FMD DBC-3

FMDA DBC-3

1

15

11

12

16

17

10

3

13

14

2

15

4

5

9 10

9

7

3

4

5

6

7

8

Early Models

25

18

19

20

23

21

22

24

12

P1629.40

29171.1 062912

AUGER DRIVE AND HOPPER ASSEMBLY

ITEM PART NO. QTY. DESCRIPTION

- 28424.1003 3 Hopper Assy (22 Tooth Agitator Disk) (Includes items 1 thru 10)

- 28424.1004 3 Hopper Assy (30 Tooth Agitator Disk) (Includes items 1 thru 10)

1 28061.0000 1 Lid, Hopper

2 32337.0000 2 Mixing Blade (Late models)

3 26435.0000 1 Disk, Agitator (22 Tooth)

26435.0001 1 Disk, Agitator (30 Tooth)

32386.0000 1 Disk, Agitator (22 Tooth)

32386.0001 1 Disk, Agitator (30 Tooth)

4 28067.0000 1 Bushing, Auger Drive Shaft

5 - - - - - - - - 1 Shaft, Auger Drive (Early models order item 27)

26940.0002 1 Shaft, Auger Drive (Late models)

6 28425.0000 1 Hopper

7 26112.0001 1 Auger, Wire (use w/22-tooth Disk)

21355.0001 1 Auger, Wire (use w/30-tooth Disk)

8 25903.0000 1 Elbow, Ejector

9 - - - - - - - - 1 Bracket, Auger Drive (Early models order item 27)

32383.0000 1 Bracket, Auger Drive (Late models)

10 25743.0000 1 Locknut

11 21358.0000 4 Clip, Retainer

12 21357.0000 4 Shaft, Wiper

13 26436.0000 1 Rod, Agitator Support

14 26449.0000 1 Spring

15 26441.0000 4 Wire, Agitator

Early models

Late models

Early models

16 21358.0000 1 Clip, Retainer

17 21365.0000 1 Washer, .31” I.D. x .56” O.D.

18 20960.0000 3 Screw, Shoulder #6-32 x .375”

00991.0002 3 Nut, Elastic Lock #6-32

19 29933.1000 1 Panel, Hopper Support

01311.0000 4 Screw, Truss Head #8-32 x .25”

20 25794.0001 3 Bracket, Motor Mounting

01311.0001 12 Screw, Truss Head #8-32 x .25” Locking

21 29642.1001 3 Gearmotor W/Pin, Auger (Includes item 20 & 23)

01311.0000 12 Screw, Truss Head #8-32 x .25”

01511.0000 3 Lock Washer, External Tooth #8

22 26401.0000 3 Dust Seal, Hopper Motor

23 26247.0000 3 Pin, Spring .094” Dia. x 1.0”

26247.1000 - Kit, Spring Pin (Includes 6 Pins)

24 28286.0000 1 Panel, Hopper Motor Mounting

01311.0001 2 Screw, Truss Head - Locking #8-32 x .25”

25 29713.0000 1 Bracket, Hopper Locator

26 11685.0000 1 Brush, Hopper Cleaning (Not Illustrated)

27 32394.0000 - Kit, Auger Drive Shaft (Converts early model Drive Shaft to late model Drive Shaft)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

13

29171.1 062912

MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR

FMD-3

FMD DBC-3

FMDA DBC-3

2

16 12 15 14 7 10 13 9 8

15

1

3

11

4

5

6

7

DISPENSE TIP

14

SOUP

P1630.75

29171.1 062912

MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR

ITEM PART NO. QTY. DESCRIPTION

1 28208.1000 1 Baffle Assembly, Fan (Includes item 15)

02336.0000 2 Screw, Truss Head #4-40 x .25”

2 28295.0000 1 Fan & Bracket Assembly 120V

28295.0001 1 Fan & Bracket Assembly 230V (240V & 230V “A” Model dispensers)

01311.0001 2 Screw, Truss Head - Locking #8-32 x .25”

3 28297.0000 1 Hose, Vacuum

4 25732.0000 3 Steam Collector

5 25733.0000 3 Mixing Chamber

6 25734.1000 3 Whipper Chamber

25734.7002 3 Whipper Chamber (FMD-3C)

7 25736.0000 3 Dispense Tip - Beverages

28864.0000 3 Dispense Tip - Soup

8 24733.0010 3 O-Ring

9 25902.0000 3 Frother

10 28866.0000 3 Receptacle, Whipper Chamber

11 26356.0000 3 Seal, Shaft

26356.1000 - Kit, Shaft Seal (Includes 6 Seals)

12 28428.1000 3 Motor, Whipper 120V (Includes item 16)

28428.0006* 3 Motor, Whipper 240V (240V & 230V “A” Model dispensers) (Includes item 16)

13 28865.0000 6 Nut, Whipper Motor/Receptacle Mounting

14 28867.0000 3 Slinger

15 02434.0009* 2 Gasket, Silicone 2.25” LG (Order item 17)

16 32306.0000 6 Spacer

17 02434.1000 - Gasket, Silicone 18” LG

18 32906.0000 - Kit, Preventive Maintenance (Includes items 4 thru 11 and 25903.0000 Elbow)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

15

29171.1 010413

TANK, HEATER AND OVERFLOW PROTECTION

FMD-3

FMD DBC-3

FMDA DBC-3

10

11

12

13

6

14

9

8

7

1

2

3

4

5

16

17

18

15

19

20

21

8

16

P1441

29171.1 062912

TANK, HEATER AND OVERFLOW PROTECTION

ITEM PART NO. QTY. DESCRIPTION

1 28281.0000 1 Lid, Tank

00908.0000 11 Nut, Hex #8-32

2 22978.0000 1 Gasket, Tank Lid

3 00943.0000 2 Gasket, Tank Heater

4 20201.4151 1 Tank Heater Kit, 1700W 120V (Includes item 3)

20201.0750 1 Tank Heater Kit, 3500W 240V (240V & 230V “A” Model dispensers)
(Includes item 3)

5 37978.1000 1 Tank

37978.1001 1 Tank (Used with Hot Water Valve dispensers)

02308.0000 2 Screw, Pan Head - Serrated #8-32 x .375”

01311.0003 2 Screw, Truss Head - BLK Locking #8-32 x .250”

01311.0001 2 Screw, Truss Head - SST Locking #8-32 x .250”

6 05515.0000 1 Gasket, Overflow Tube

7 00942.0000 2 Nut, Hex .50”-20

8 02536.0000 2 Grommet, .375” I.D.

9 07412.1002 1 Probe Kit (Includes items 10, 11 & 12)

10 00908.0000 1 Nut, Hex #8-32

11 20203.0100 1 Lockwasher, Internal Tooth #8

12 01501.0000 1 Washer, Flat .16” I.D. x .375” O.D.

13 28292.0000 1 Tube Assy, Overflow

00908.0000 3 Nut, Hex #8-32

14 29329.1000 1 Thermostat, Limit

15 03803.0000 1 Switch Assy, Liquid Level (Includes items 16, 17 & 18)

00946.0000 1 Nut, Hex .125” FPT

16 03807.0000 1 Clip, Spring

17 - - - - - - - - 3 Washer, Adjusting (DO NOT USE IN THIS APPLICATION)

18 03633.0000 2 Gasket, Float Switch (Only 1 used in this application)

19 12552.0000 1 Overflow Cup

00908.0000 2 Nut, Hex #8 - 32

20 28526.0000* 1 Tube, Silicone .312” I.D. x .562 x 11.5” (Order item 23)

21 21801.0002 1 Tube, .375” O.D. x 1.50”

22 01570.0000 2 Wire Nut, 2 - 24 AWG

23 28526.1000 - Tube, Silicone .312” I.D. x .562” O.D. x 12”

28526.1001 - Tube, Silicone .312” I.D. x .562” O.D. x 36”

28526.1002 - Tube, Silicone .312” I.D. x .562” O.D. x 60”

28526.1003 - Tube, Silicone .312” I.D. x .562” O.D. x 120”

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

17

Not Illustrated

29171.1 062912

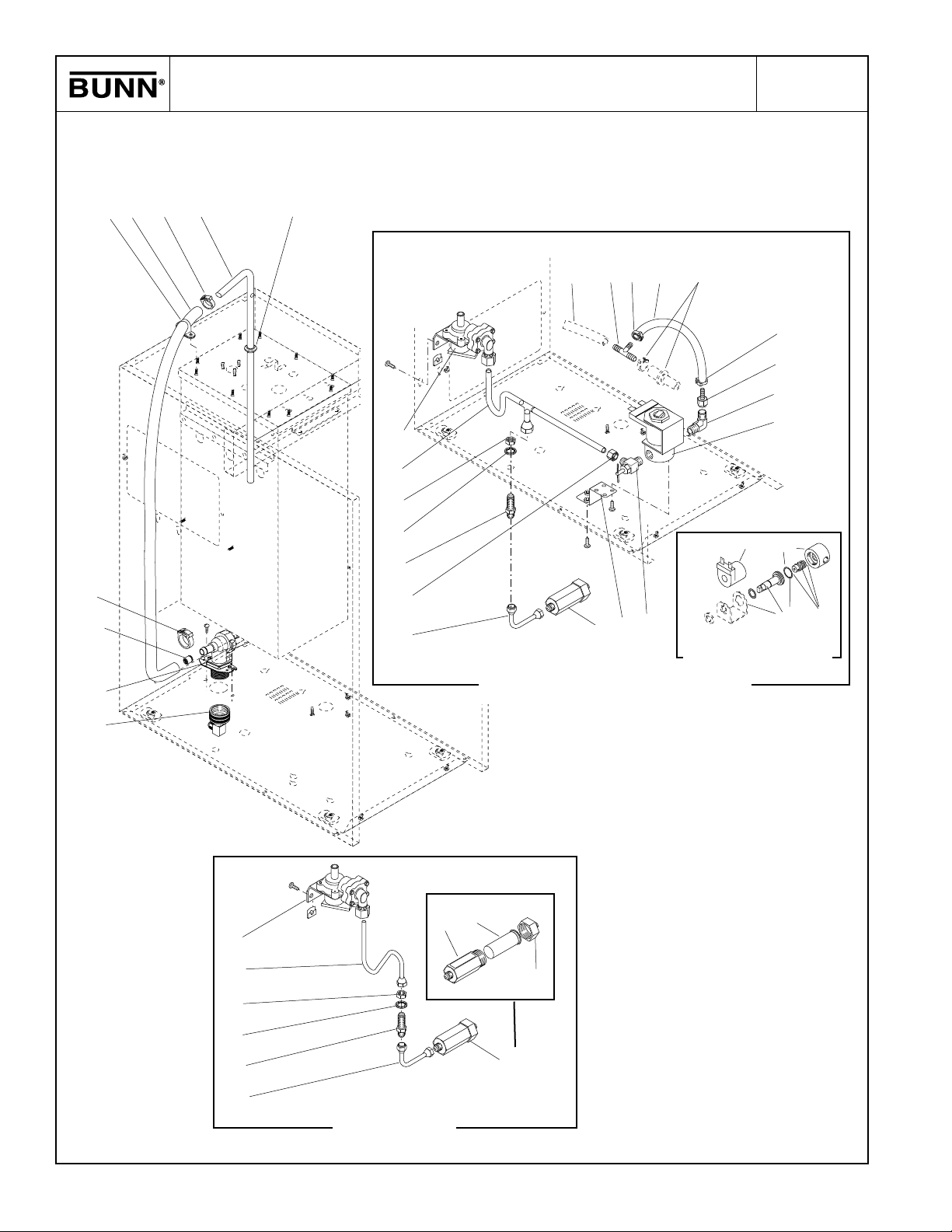

STRAINER, SOLENOID, FILL VALVE AND LINES

15 4 3 1 2

FMD-3

FMD DBC-3

FMDA DBC-3

29 24 22 23 29

22

21

20

19

5

6

7

3

32

30

31

8

25 26

9

18

10

11 16 17

27 28

SOLENOID REPAIR

PARTS

EARLY MODELS W/COLD WATER VALVE

12 13

5

6

14

7

8

9

10

EARLY MODELS

18

11

P1442.50

29171.1 010413

STRAINER, SOLENOID, FILL VALVE AND LINES

ITEM PART NO. QTY. DESCRIPTION

1 28298.0000 1 Tube, Tank Fill

2 02536.0000 1 Grommet, .375” I.D.

3 12422.0001 2 Clamp, Hose .59”/.66” I.D. (One less used on Late Models)

12422.0005 1 Clamp, Hose .62”/.71” I.D. (Late Models)

4 28526.0004* 1 Tube, Silicone .312” I.D. x .562” O.D. x 22.75” (Order item 33)(Early Models)

20976.0085* 1 Tube, Silicone .312” I.D. x .562” O.D. x 22.75” (Order item 37)(Late Models)

5 26135.1001 1 Valve Assy, Solenoid 120V (Serviced only as an assembly) (See Item 34)

26135.0002 1 Valve Assy, Solenoid 240V (240V & 230V “A” Model dispensers) (Serviced only as
an assembly) (See item 31)

02322.0002 2 Screw, Truss Head - BLK #8-32 x .375”

01315.0000 2 Screw, Truss Head - SST #8-32 x .375”

00938.0000 2 Fastener, U-Type #8-32

6 26661.0000 1 Tube Assy, Water Inlet (Models w/out cold water valve)

28330.1000 1 Tube Assy, Water Inlet (Models w/cold water valve)

7 00463.0001 1 Nut, Hex .438”-20

8 01532.0000 1 Lockwasher, Internal Tooth .438”

9 00459.0000 1 Fitting, Bulkhead

10 21814.0016 1 Tube Assy

11 23820.1000 1 Water Strainer Assy (Includes item 12 thru 14)

12 - - - - - - - - 1 Body (Not available order item 11)

13 23721.0000 1 Screen

14 22249.0000 1 End Cap

15 00620.0000 1 Clamp, Hose

16 28275.0000 1 Bracket, Solenoid Mounting

01311.0004 2 Screw, Truss Head - Locking BLK #8-32 x .25”

17 00408.0001 1 Valve, Needle .25” Tube (Includes item 18)

18 00443.0000 1 Nut/Sleeve Assy, Compression

19 01085.0002 1 Solenoid Valve Assy, 120V

01326.0000 2 Screw, Truss Head #10-32 x .25”

20 00400.0001 1 Elbow, Male .25” Male Flare x .125” MPT

21 004251000 1 Fitting, .25” Barb x .25” Flare Nut

22 12422.0000 2 Clamp, Hose .47”/.54” I.D.

23 11707.0026* 1 Tube, Silicone .25” I.D. x 9.5” LG (Order item 35)

24 26442.0000 1 Tee, Barb .375” x .375” x .25”

25 28480.0000 1 Coil, Solenoid Valve 120V

26 28479.0000 1 Base Kit, Solenoid Valve (Includes O-Ring)

27 28481.0000 1 Guide Kit, (Includes Washer & O-Ring)

28 01111.0002 1 Solenoid Valve Repair Kit (Includes Spring, Plunger and O-Ring)

29 -------------- - Tube & Clamp (See DISPENSE VALVES AND LINES)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

19

29171.1 062912

STRAINER, SOLENOID, FILL VALVE AND LINES

15 4 3 1 2

FMD-3

FMD DBC-3

FMDA DBC-3

29 24 22 23 29

22

21

20

19

5

6

7

3

32

30

31

8

25 26

9

18

10

11 16 17

27 28

SOLENOID REPAIR

PARTS

EARLY MODELS W/COLD WATER VALVE

12 13

5

6

14

7

8

9

10

EARLY MODELS

20

11

P1442.50

29171.1 010413

STRAINER, SOLENOID, FILL VALVE AND LINES

ITEM PART NO. QTY. DESCRIPTION

30 36233.1000 1 Valve, Inlet Solenoid 120V (Late Models)(See item 36)

32283.0000 2 Screw, Pan Head M4 x 6mm

31 37297.0006 1 Elbow (Late Models)

32 36378.0001 1 Check Valve 2.5psi (Late Models)

33 28526.1001 - Tube, Silicone .312” I.D. x .562” O.D. x 36”

28526.1002 - Tube, Silicone .312” I.D. x .562” O.D. x 60”

28526.1003 - Tube, Silicone .312” I.D. x .562” O.D. x 120”

34 26131.0000 - Kit, Nut/O-ring (Includes Nut, Spacer, Grab Ring, Washer & 2 O-Rings)

35 11707.1000 - Tube, Silicone .25” I.D. x .50” O.D. x 12”

11707.1001 - Tube, Silicone .25” I.D. x .50” O.D. x 36”

11707.1002 - Tube, Silicone .25” I.D. x .50” O.D. x 120”

36 43644.0000 - Kit, Valve Rebuild

37 20976.1000 - Tube, Silicone .38" ID x 12.0" (Use as required)

20976.1001 - Tube, Silicone .38" ID x 36.0" (Use as required)

20976.1002 - Tube, Silicone .38" ID x 120.0" (Use as required)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

21

29171.1 062912

FMD-3

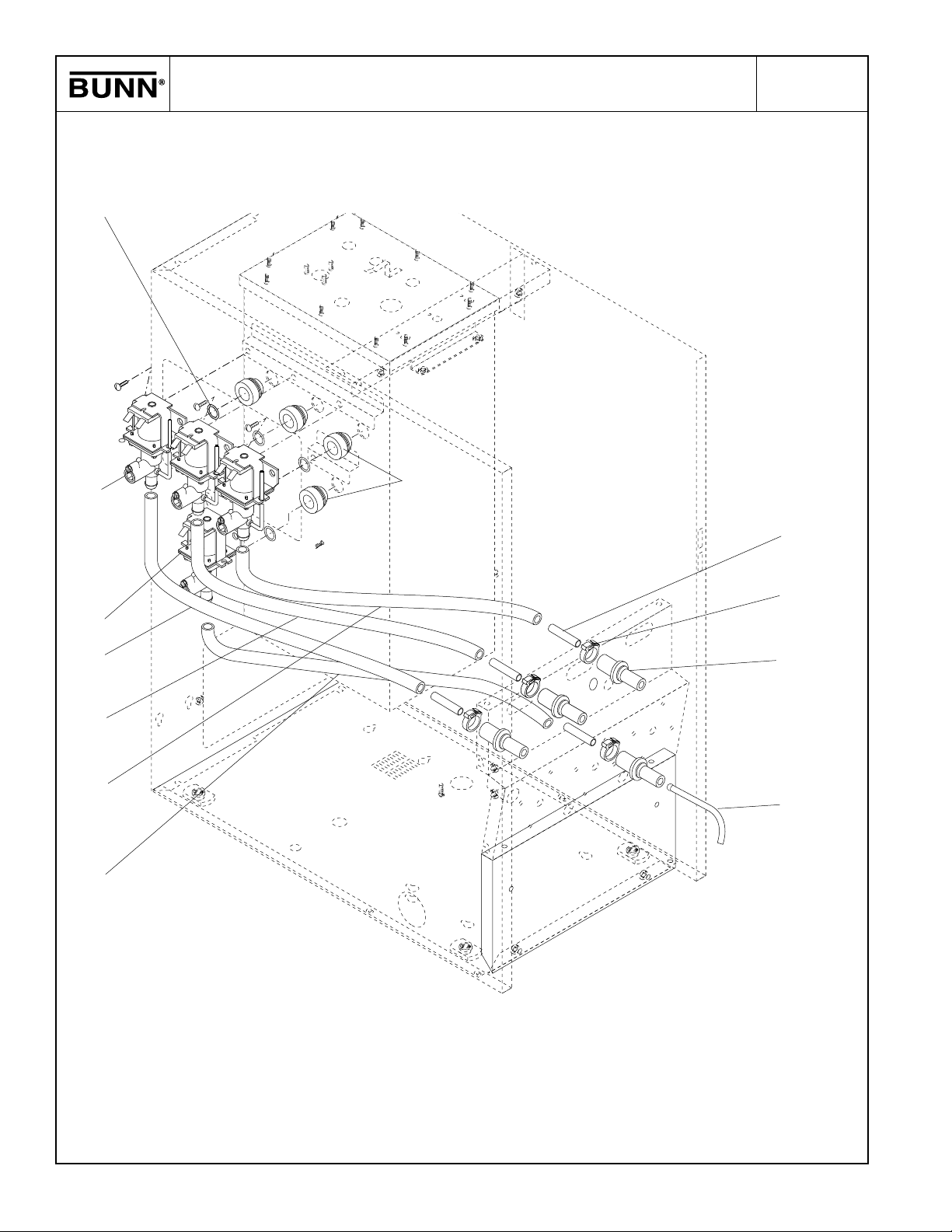

DISPENSE VALVES AND LINES

1

FMD DBC-3

FMDA DBC-3

2

12

8

9

3

4

10

5

6

11

7

22

P1443.75

29171.1 062912

DISPENSE VALVES AND LINES

ITEM PART NO. QTY. DESCRIPTION

1 24733.0011 3 O-Ring (One additional used on Models with Hot water valve)

2 39285.1001 3 Valve, Liquid Dispense 120V (Includes item 1)

39285.1002 3 Valve, Liquid Dispense 240V (Includes item 1) (240V & 230V “A” Model dispensers)

01326.0000 3 Screw, Truss Head #10-32 x .250”

3 39316.1001 1 Valve, Liquid dispense (Models w/hot water valve)

39316.1002 1 Valve, Liquid dispense (Models w/hot water valve)(230V “A” Model dispensers only)

01326.0000 1 Screw, Truss Head #10-32 x .250”

4 28526.0001* 1 Tube, Silicone .312” I.D. x .562” O.D. x 18.5” (Order item 13)
(Models w/out cold water valve)

28526.0005* 1 Tube, Silicone .312” I.D. x .562” O.D. x 17.90” (Order item 13)
(Models w/cold water valve)

5 28526.0006* 1 Tube, Silicone .312” I.D. x .562” O.D. x 13.5” (Order item 13)

6 28526.0003* 1 Tube, Silicone .312” I.D. x .562” O.D. x 15.75” (Order item 13)

7 28526.0002* 1 Tube, Silicone .312” I.D. x .562” O.D. x 16.0” (Order item 13)
(used on Models w/hot water valve)

8 21801.0002 3 Tube, .375” O.D. x 1.50” (One less used on Models w/cold water valve)
(One additional used on Models w/hot water valve)

9 12422.0001 3 Clamp, Hose .59”/.66” I.D (One additional used on Models w/cold water valve and
hot water valve)

10 25803.0000 3 Water Inlet, Mixing Chamber (One additional used on Models w/hot water valve)

11 32341.0000 1 Tube, Dispense Hot Water (Models w/hot water valve)

12 37970.0000 3 Grommet (One additional used on Models with Hot water valve)

13 28526.1001 - Tube, Silicone .312” I.D. x .438” O.D. x 36”

28526.1002 - Tube, Silicone .312” I.D. x .438” O.D. x 60”

28526.1003 - Tube, Silicone .312” I.D. x .438” O.D. x 120”

14 45964.1000 - Repair Kit, Dispense Valve

Not
Illustrated

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

23

29171.1 062912

HEAT

ER

2

6

52

7

.00

0

2

T

H

ER

MO

STAT

A

SS

EMBLY

BU

NN

-O-M

ATI

C

C

O

R

P

T

E

M

P

ER

AT

U

RE

AD

JU

STMEN

T

+

-

1

6

0

1

2

0V

A

C

®

19

0

J3

J1

J2

7

24

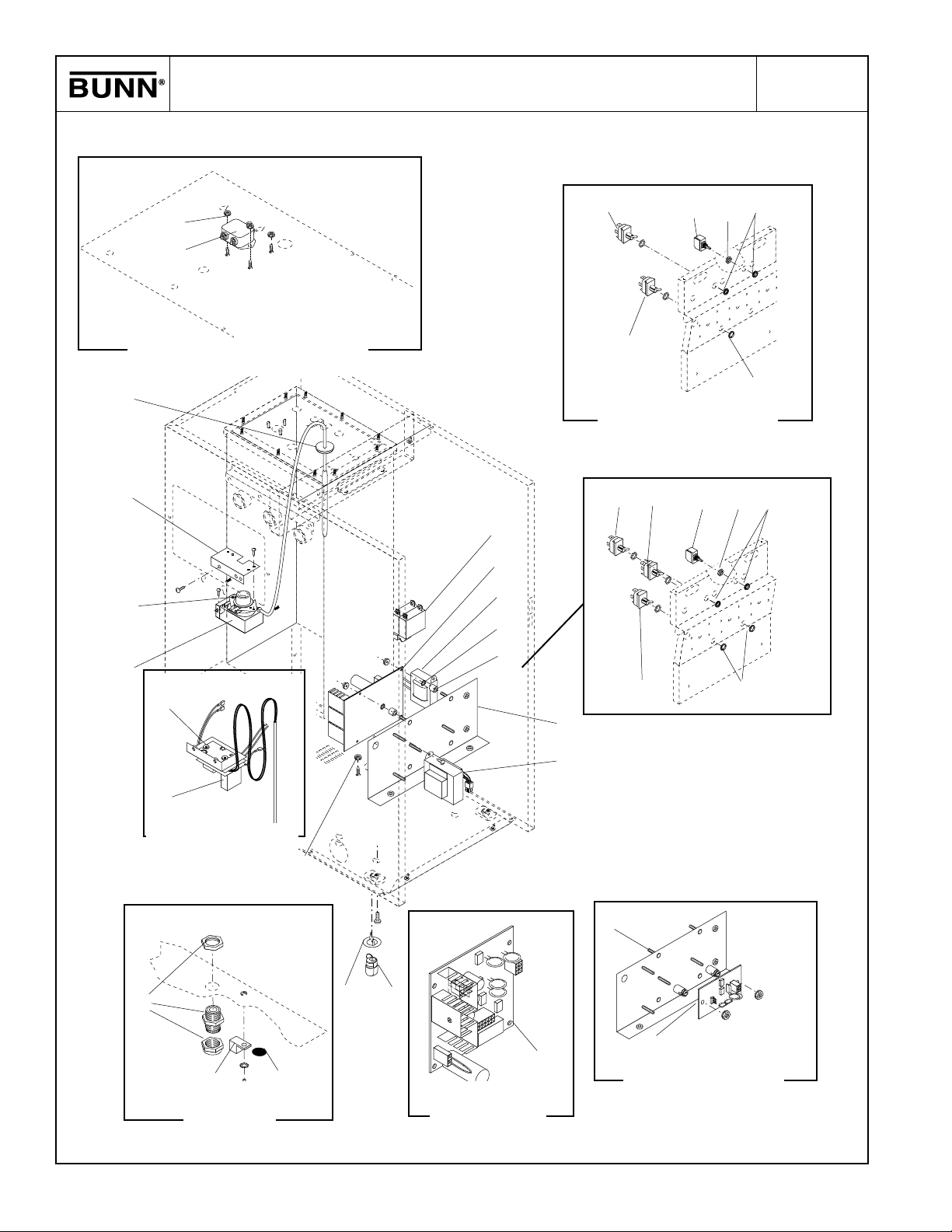

ELECTRICAL CONTROLS

FMD-3

FMD DBC-3

FMDA DBC-3

19 15 16 17

EMI FILTER IN BASE - “A” MODELS

11

12

13

10

20

25

14

17

TOUCHPAD CONTROL W/

HOT WATER

19 14 15 16 17

1

9

3

2

18

17

5

4

10

OPTIONAL ELECTRONIC

THERMOSTAT

8

22 21

“A” MODELS

7

6 8

DISPENSERS W/DIGITAL

TOUCH CONTROL

24

5

1

23

DISPENSERS W/ HOT

WATER VALVE

P1563

29171.1 062912

ELECTRICAL CONTROLS

ITEM PART NO. QTY. DESCRIPTION

1 42996.1000 1 Control Board, 120V & 240V (Dispensers w/o digital touch control)

39332.1000 1 Control Board (120V & 230V “A” Model dispensers) (Includes item 29)
(Dispensers w/digital touch control)

00973.0000 4 Nut, Keps #6-32

2 00450.0000 4 Spacer, .219” I.D. x .34” LG - Brass

3 01510.0000 4 Lockwasher, External Tooth #6

4 28860.0000 1 Transformer Assy, 120V to 24V

28860.0001 1 Transformer Assy, 240V to 24V (240V & 230V “A” Model dispensers)

00973.0000 2 Nut, Keps #6-32

5 28869.0002 1 Bracket, Component Mounting

01311.0001 2 Screw, Truss Head - Locking #8-32 x .25”

6 00715.0000 1 Adapter Washer, Strain Relief (Not used on 120V, 120/208V or 120/240V dispensers)

7 00973.0000 2 Nut, Keps #6-32

8 01686.0000 1 Bushing, Strain Relief (120V & 230V “A” Model dispensers)

28683.0000 1 Bushing, Strain Relief (120/208V & 120/240V dispensers)

9 28327.0000 1 Ballast, 120V-60HZ W/Terminals

39642.0000 1 Ballast. 240V-50HZ W/Terminals (240 & 230V “A” Model dispensers)

02308.0000 2 Screw, Pan Head - Serrated #8-32 x .375”

10 -------------- 1 Thermostat Assembly 120V - Mechanical (Not Available. Order Item 33)

02328.0003 2 Screw, Pan Head #6-32 x .25” (Mounting)

20762.0000 2 Screw, Binding Head #8-32 x .25” (Terminal)

40791.1006 1 Thermostat Assembly 120V - Electronic (Includes item 20)

01311.0000 2 Screw, Truss Head - SST #8-32 x .25”

01311.0003 2 Screw, Truss Head - BLK #8-32 x 25”

28367.1000 1 Thermostat Assembly - Electronic (Includes item 20)
(230V “A” Model dispensers Only)

01311.0000 2 Screw, Truss Head - SST #8-32 x .25”

20762.0000 2 Screw, Binding Head #8-32 x .25”

11 07073.1000 1 Grommet - Mechanical Thermostats

12570.0000 1 Grommet - Electronic Thermostats

12 28224.0000 1 Bracket, Thermostat Mounting - Mechanical Thermostat

01311.0003 2 Screw, Truss Head - BLK #8-32 x .25”

01311.0000 2 Screw, Truss Head - SST #8-32 x .25”

13 00720.0000 1 Knob, Thermostat Adjustment - Mechanical Thermostat

14 28857.1000 1 Switch, Toggle Run/Rinse/Program (Includes item 16, also order item 17)
(Dispensers w/out digital touch control)

02686.0000 1 Switch, Toggle ON/OFF (Includes item 16, also order item 17) (Dispensers w/digital
touch control)

15 23522.1000 1 Switch, Toggle ON/OFF-Tank Heater (Includes item 16, also order item 17)

16 23696.0000 4 Nut, Hex .469” - 32

17 23697.0000 4 Nut, Plastic Face .469” - 32

18 28856.1000 1 Switch, Toggle - Increase/Decrease (Includes item 16, also order item 17)
(Dispensers w/out digital touch control)

(Continued)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

25

29171.1 010413

HEAT

ER

2

6

52

7

.00

0

2

T

H

ER

MO

STAT

A

SS

EMBLY

BU

NN

-O-M

ATI

C

C

O

R

P

T

E

M

P

ER

AT

U

RE

AD

JU

STMEN

T

+

-

1

6

0

1

2

0V

A

C

®

19

0

J3

J1

J2

24

FMD-3

ELECTRICAL CONTROLS

(Continued)

19 15 16 17

7

FMD DBC-3

FMDA DBC-3

EMI FILTER IN BASE - “A” MODELS

11

12

13

10

20

25

14

17

TOUCHPAD CONTROL W/

HOT WATER

19 14 15 16 17

1

9

3

2

18

17

5

4

10

OPTIONAL ELECTRONIC

THERMOSTAT

8

22 21

“A” MODELS

7

6 8

DISPENSERS W/DIGITAL

TOUCH CONTROL

26

5

1

23

DISPENSERS W/ HOT

WATER VALVE

P1563

29171.1 062912

ELECTRICAL CONTROLS

ITEM PART NO. QTY. DESCRIPTION

19 05761.0000 1 Switch, Toggle ON/ON - Cold Water Valve (Includes item 16, also order item 17)

20 26536.0003* 1 Decal - Thermostat Adjustments - Electronic Thermostat

21 00824.0002 1 Decal, Ground

22 27705.0000 1 Terminal Lug, Ground

01375.0000 1 Screw, Pan Head Brass #10-32 x .50”

01512.0000 1 Lockwasher, Internal Tooth #10

23 38737.1000 1 Circuit Board, Auxiliary Control (used only on dispensers w/HWV)

29081.0002 2 Spacer

00973.0000 2 Nut, Keps #6-32

24 36801.0001 1 EMI Filter, 15Amp (230V “A” Model dispensers only)

02308.0000 2 Screw, Pan Head #8-32 x .375”

25 38894.0001 1 Switch, Master ON/OFF

01308.0002 2 Screw, Truss Hd., Locking #6-32 x .25" (mounting)

01327.0000 4 Screw, Pan Hd. #10-32 x .38"

01512.0000 4 Lockwasher #10

The following items are not illustrated

26 20630.0008 1 Cord Assembly, Power 120V

28680.0001 1 Cord Assembly, Power 120/208V & 120/240V (w/o Master ON/OFF Sw.)

28680.0004 1 Cord Assembly, Power 120/208V & 120/240V (w/ Master ON/OFF Sw.)

33529.0006 1 Cord Assembly, Power 230V

35155.0000 1 Cord Assembly, Power 240V

terminals

27 28548.0000 1 Wiring Harness, Control - 120V & 240V (Dispensers with
mechanical thermostat & w/out digital touch control)

29067.0000 1 Wiring Harness, Control - 120V (Dispensers with mechanical
thermostat & w/digital touch control)

29067.0001 1 Wiring Harness, Control - 120/208V & 120/240V (Dispensers with
Hot water valve)

29067.0007 1 Wiring Harness, Control - 230V (230V “A” Model dispensers)
(Dispensers with hot water valve & w/digital touch control)

28548.0001 1 Wiring Harness, Control - 120/208V & 120/240V (Dispensers w/out
digital touch control)

28548.0002 1 Wiring Harness, Control - 120V & 240V (Dispensers with
electronic thermostats and dispensers w/out digital touch control)

28 38920.0008 1 Wiring Harness, Master ON/OFF Sw.

29 27605.0000 1 Wiring Harness, Cold Water Valve

30 - - - - - - - - 1 Wiring Harness, Door (See Door, Lamps and Panels)

31 28862.0000 1 Lead Assembly, Jumper (Dispensers w/out cold water valve)

32 02244.0000 1 Jumper, Two Position (Dispensers w/out digital touch control)

29199.0000 1 Jumper Assembly, Rinse Timer (Dispensers w/digital touch control)

33 40791.1006 - Thermostat Kit (Includes items 10, 12 & 13)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

27

29171.1 010413

NUMERICAL INDEX

PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.

00400.0001......................... 19

00408.0001......................... 19

00425.1000......................... 19

00443.0001......................... 19

00450.0000......................... 25

00459.0000......................... 19

00463.0000......................... 19

00619.0010........................... 5

00619.0011........................... 7

00620.0000......................... 19

00656.0001........................... 7

00713.0000......................... 25

00715.0000......................... 25

00720.0000......................... 25

00824.0002......................... 27

00831.0000........................... 7

00908.0000......................... 17

00938.0000......................... 19

00942.0000......................... 17

00943.0000......................... 17

00946.0000......................... 17

00973.0000.................... 25,27

00991.0000........................ 5,9

00991.0002......................... 13

01085.0002......................... 19

01111.0002......................... 19

01308.0000......................... 11

01308.0002......................... 27

01311.0000.............. 5,7,13,25

01311.0001.............. 5,7,13,15

01311.0001............... 17,19,25

01311.0004......................... 19

01311.0003................. 7,17,25

01315.0000......................... 19

01326.0000.................... 19,23

01327.0000......................... 27

01375.0000......................... 27

01383.0001...................... 9,11

01390.0000........................... 9

01501.0000......................... 17

01510.0000......................... 25

01511.0000......................... 13

01512.0000......................... 27

01522.0000........................... 9

01532.0000......................... 19

01570.0000......................... 17

01686.0000......................... 25

02244.0000......................... 27

02308.0000............ 5,17,25,27

02322.0002......................... 19

02328.0002........................... 9

02328.0003......................... 25

02336.0000...................... 9,15

02434.0009......................... 15

02434.1000......................... 15

02536.0000.................... 17,19

02686.0000......................... 25

03633.0000......................... 17

03803.0000......................... 17

03807.0000......................... 17

03996.0000........................... 7

05515.0000......................... 17

05761.0000......................... 27

07073.1000......................... 25

07412.1002......................... 17

11685.0000......................... 13

11707.0026......................... 19

11707.1000......................... 21

11707.1001......................... 21

11707.1002......................... 21

12422.0000......................... 19

12422.0001.................... 19,23

12422.0005......................... 19

12517.0001........................... 9

12552.0000......................... 17

12570.0000......................... 25

13255.0003........................... 7

20201.0750......................... 17

20201.4151......................... 17

20203.0100......................... 17

20630.0008......................... 27

20762.0000......................... 25

20960.0000......................... 13

20976.1000......................... 21

20976.1001......................... 21

20976.1002......................... 21

21004.0338......................... 11

21355.0001......................... 13

21357.0000......................... 13

21358.0000......................... 13

21365.0000......................... 13

21436.0000........................... 7

21716.0000........................... 9

21801.0002.................... 17,23

21814.0016......................... 19

22249.0000......................... 19

22978.0000......................... 17

23164.0002........................... 7

23522.1000......................... 25

23696.0000......................... 25

23697.0000......................... 25

23721.0000......................... 19

23820.1000......................... 19

24733.0010......................... 15

24733.0011......................... 23

25292.0000........................... 9

25732.0000......................... 15

25733.0000......................... 15

25734.1000......................... 15

25734.7002......................... 15

25736.0000......................... 15

25743.0000......................... 13

25794.0001......................... 13

25803.0000......................... 23

25902.0000......................... 15

25903.0000......................... 13

26112.0001......................... 13

26131.0000......................... 21

26135.1001......................... 19

26135.0002......................... 19

26239.0000........................... 9

26247.0000......................... 13

26247.1000......................... 13

26356.0000......................... 15

26356.1000......................... 15

26401.0000......................... 13

26435.0000......................... 13

26435.0001......................... 13

26436.0000......................... 13

26441.0000......................... 13

26442.0000......................... 19

26444.0000........................... 9

26449.0000......................... 13

26504.0000........................... 5

26522.0000........................... 7

26523.0000........................ 5,7

26524.0000........................... 5

26527.1003......................... 25

26528.0000........................... 7

26536.0003......................... 27

26537.0000......................... 11

26537.0001......................... 11

26537.0003......................... 11

26661.0000......................... 19

26892.0000........................... 9

26940.0002......................... 13

27298.0500........................... 9

27543.1001......................... 11

27543.1002......................... 11

27543.1005......................... 11

27543.1006......................... 11

27605.0000......................... 27

27619.0000........................... 9

27705.0000......................... 27

27728.0002......................... 27

28061.0000......................... 13

28067.0000......................... 13

28147.1000........................... 9

28147.1002........................... 9

28206.0000........................... 7

28208.1000......................... 15

28209.1000........................... 5

28209.1001........................... 5

28224.0000......................... 25

28261.0000........................... 9

28261.0001........................... 9

28267.0000........................... 5

28268.0000........................... 5

28270.0000........................... 5

28270.0001........................... 5

28275.0000......................... 19

28281.0000......................... 17

28286.0000......................... 13

28292.0000......................... 17

28295.0000......................... 15

28295.0001......................... 15

28296.1000........................... 9

28297.0000......................... 15

28298.0000......................... 19

28301.0003........................... 9

28322.0000........................... 9

28325.0000........................... 9

28327.0000......................... 25

28330.1000......................... 19

28332.0003......................... 11

28332.0004......................... 11

28332.1000........................... 9

28335.0000........................... 9

28336.0000......................... 11

28362.0000........................... 9

28366.0000........................... 5

28366.1000........................... 7

28366.1001........................... 7

28366.1002........................... 7

28368.0000........................... 7

28368.0004........................... 7

28424.1003......................... 13

28424.1004......................... 13

28425.0000......................... 13

28428.0006......................... 15

28428.1000......................... 15

28436.0000........................... 5

28436.0003........................... 5

28436.0004........................... 5

28479.0000......................... 19

28480.0000......................... 19

28481.0000......................... 19

28526.0000......................... 17

28526.0001......................... 23

28526.0002......................... 23

28526.0003......................... 23

28526.0004......................... 19

28526.0005......................... 23

28526.0006......................... 23

28526.0025......................... 19

28526.1000......................... 17

28526.1001............... 17,21,23

28526.1002............... 17,21,23

28526.1003............... 17,21,23

28543.0000........................... 9

28

29171.1 010413

NUMERICAL INDEX

PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.

28543.0003........................... 9

28548.0000......................... 27

28548.0001......................... 27

28548.0002......................... 27

28549.0000......................... 11

28661.0006........................... 5

28661.1000........................... 5

28661.1002........................... 5

28668.0000........................... 7

28670.0000........................... 5

28671.0000........................... 5

28680.0001......................... 27

28680.0004......................... 27

28682.0000........................... 9

28683.0000......................... 25

28684.0000........................... 7

28833.0000......................... 11

28833.0001......................... 11

28856.1000......................... 25

28857.1000......................... 25

28860.0000......................... 25

28860.0001......................... 25

28862.0000......................... 27

28864.0000......................... 15

28865.0000......................... 15

28866.0000......................... 15

28867.0000......................... 15

28869.0002......................... 25

28870.0000........................... 9

28872.0000........................... 7

28874.0000........................... 7

28910.0000........................... 7

29066.0000......................... 11

29066.0001......................... 11

29067.0000......................... 27

29067.0001......................... 27

29067.0007......................... 27

29081.0002......................... 27

29199.0000......................... 27

29216.0000........................... 5

29216.0001........................... 5

29216.0002........................... 5

29218.0000........................... 7

29218.0002........................... 7

29218.0007........................... 7

29243.0000........................... 5

29243.0001........................... 5

29243.0002........................... 5

29308.0000........................... 9

29329.1000......................... 17

29448.0000........................... 9

29642.1001......................... 13

29713.0000......................... 13

29933.1000......................... 13

32283.0000......................... 21

32306.0000......................... 15

32337.0000......................... 13

32341.0000......................... 23

32383.0000......................... 13

32386.0000......................... 13

32386.0001......................... 13

32394.0000......................... 13

32906.0000......................... 15

33886.0000........................... 5

33886.0001........................... 5

34130.0000........................... 9

35155.0000......................... 27

36233.1000......................... 21

36378.0001......................... 21

36801.0001......................... 27

37297.0006......................... 21

37724.1001........................... 7

37881.0000........................... 7

37970.0000......................... 23

37978.1000......................... 17

37978.1001......................... 17

38031.0000........................... 9

38031.0001........................... 9

38053.0000........................... 7

39285.1001......................... 23

39285.1002......................... 23

39316.1001......................... 23

39316.1002......................... 23

39332.1000......................... 25

39642.0000......................... 25

38737.1000......................... 27

38894.0001......................... 27

38920.0008......................... 27

39803.0000........................... 7

40768.0000........................... 9

40782.0000........................... 9

40791.1006.................... 25,27

42996.1000......................... 25

43644.0000......................... 21

45964.1000......................... 25

29

29171.1 010413
