BT Broadband Module, Broadband Module Plus User Manual
Broadband Module/
Broadband Module Plus
BT Versatility
Broadband Module/Broadband Module Plus Manual
Table of Contents
INTRODUCTION ....................................................................................... 1
CONNECTIONS........................................................................................ 2
INDICATORS........................................................................................... 2
RESET BUTTON ....................................................................................... 3
LOCAL AREA NETWORK ............................................................................. 3
WIDE AREA NETWORK .............................................................................. 3
Ports.......................................................................................................................3
Examples .................................................................................................................4
Routes ....................................................................................................................5
FIREWALL.............................................................................................. 5
VOIP................................................................................................... 5
Bandwidth Requirements ............................................................................................5
Number of VoIP Channels............................................................................................6
QUICK SETUP ......................................................................................... 7
Connecting a PC to the LAN ........................................................................................7
Set up the PC to automatically obtain an IP address..........................................................7
Setting up the Browser ...............................................................................................9
Connecting to the programming interface ....................................................................10
Setting up ADSL......................................................................................................10
Setting up IP Trunks.................................................................................................12
Setting up IP Extensions............................................................................................12
Setting up UM Service ..............................................................................................15
Programming from BT Versatility Wizard.......................................................................................16
BASIC CONFIGURATION............................................................................ 17
Setup Menu............................................................................................................17
LAN Gateway.....................................................................................................................................17

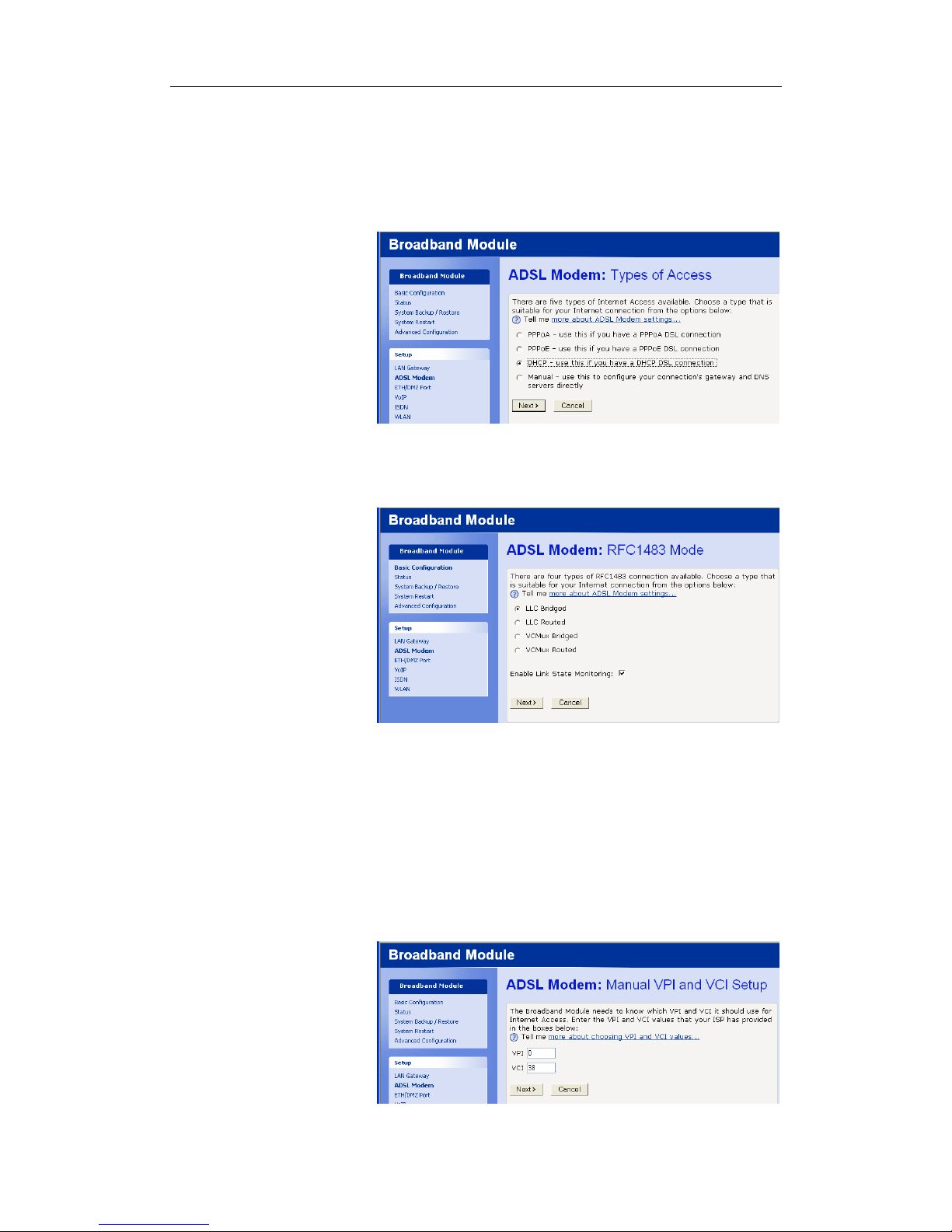

ADSL Modem .........................................................................................................19
(1) PPPoA.........................................................................................................................................19
(2) PPPoE ...........................................................................................................................................21
(3) DHCP............................................................................................................................................23
(4) Manual..........................................................................................................................................24
ETH/DMZ Port........................................................................................................27
(1) PPPoE ...........................................................................................................................................27
(2) IP Gateway ...................................................................................................................................29
(3) DMZ..............................................................................................................................................31
VoIP......................................................................................................................33
Manually Configuring IP trunks .......................................................................................................33
Additional Endpoint Options ...........................................................................................................35
Advanced VoIP Settings ...................................................................................................................36
Unified Messaging Settings .............................................................................................................36
ISDN..................................................................................................................... 36
WLAN ...................................................................................................................40
Quick Setup to WLAN without security..........................................................................................40
Connecting your PC to the Wireless Network................................................................................42
Setting up WLAN with Security .......................................................................................................44
STATUS .............................................................................................. 54
SYSTEM BACKUP/RESTORE ........................................................................ 55
S
YSTEM RESTART .................................................................................. 57
A
DVANCED CONFIGURATION ..................................................................... 58
Admin Accounts ......................................................................................................58
Firewall & Security...................................................................................................59
Security State....................................................................................................................................59
Security Level ....................................................................................................................................60
Security Interfaces ............................................................................................................................61
BT Versatility
Broadband Module/Broadband Module Plus Manual
Policies, Triggers, Intrusion Detection, Logging ...........................................................................
64
IP Routes ...............................................................................................................73
DHCP Server ..........................................................................................................74
Advanced ISDN.......................................................................................................78
ADSL Test..............................................................................................................80
DSL Status.........................................................................................................................................81
Diagnostics ............................................................................................................82
Event Log...........................................................................................................................................82
Ping...................................................................................................................... 83
FLASH UPDATE ..................................................................................... 83
RESET TO DEFAULTS ............................................................................... 83
APPENDIX A......................................................................................... 85
APPENDIX B......................................................................................... 89
BT Versatility
Broadband Module/Broadband Module Plus Manual
1
INTRODUCTION
The BROADBAND MODULE and the BROADBAND MODULE PLUS are BT Versatility system
modules that provide multi-user high-speed Internet access as well as VoIP (Voice over IP)
connectivity. It also provides a LAN (Local Area Network) that allows users to network PCs and
share printers and other resources within the office.
The BROADBAND MODULE has the following features:
• Wide Area Networking
• Local Area Networking
• Wireless Local Area Networking
• Multi-user Internet Access
• DSL/Broadband
• ISDN
• Firewall
• VoIP Gateway supporting 2 IP trunks
• Management
The BROADBAND MODULE PLUS has all the above features but includes a VoIP Gateway with
12 endpoints that can be configured as IP trunks, IP extensions, or any combination of both. It
also supports Unified Messaging.
BT Versatility
Broadband Module/Broadband Module Plus Manual
2
CONNECTIONS
The following connectors are located under the top cover
• ADSL RJ-11
• 10 Base-T WAN (ETH/DMZ Port) RJ-45
• LAN Port 1 RJ-45
• LAN Port 2 RJ-45
• LAN Port 3 RJ-45
• LAN Port 4 RJ-45
INDICATORS
There are six indicators (LEDs) on the MDF cover.
• Heartbeat – steady to indicate normal processor activity
• ADSL - a solid light indicates ADSL line synchronisation – flashes with activity
• LAN 1 - a solid light indicates an Ethernet connection – flashes with activity
• LAN 2 - a solid light indicates an Ethernet connection – flashes with activity
• LAN 3 - a solid light indicates an Ethernet connection – flashes with activity
• LAN 4 - a solid light indicates an Ethernet connection – flashes with activity
An additional two indicators (LEDs) on the MDF indicate:-
• Not used – permanently lit
• WAN (ETH/DMZ) - a solid light indicates an Ethernet connection
BT Versatility
Broadband Module/Broadband Module Plus Manual
3
RESET BUTTON
The MDF is equipped with a white reset button. When this button is pressed, the moduleresets.
LOCAL AREA NETWORK
The module is equipped with a 4-port LAN with the following characteristics.
Feature Description
Speed 10/100 Mb/s switched Ethernet
Mode The LAN device can operate in FDX (Full Duplex) or HDX (Half Duplex)
mode.
MDI/ MDI-X The port will automatically detect whether a straight or crossover cable is
used to connect the LAN device and will adjust itself accordingly.
Autosensing The port will automatically adapt to the speed and mode of the device that is
connected to it.
Connectors RJ-45
WIDE AREA NETWORK
PORTS
The module is equipped with the following ports for Wide Area Networking.
Port MDF Interface Description
ADSL RJ-11 This is for "wires only" ADSL service. ITU-T G.992.1
Annex A (G.DMT) and ITU-T 992.2 (G.Lite) are supported.
ETH/DMZ Port RJ-45 This port supports10/100 Ethernet, FDX/HDX, and is
used to connect to an external broadband gateway or
DMZ host.
It does not support MDI/MDI-X
ISDN N/A A single 64 kb/s dial-up connection can be established
over any ISDN line connected to the PBX.
BT Versatility
Broadband Module/Broadband Module Plus Manual
4
EXAMPLES
The on-board ADSL modem is used to connect to the Internet using a "wires only" service. See
page 10.
The ETH/DMZ port is used to connect to an external SDSL or Cable modem. See page 27.
The ETH/DMZ port is used to connect to a Gateway into a private network. See page 27.
Private
Network
Internet
Internet
M
Splitter
Line
G
Line
M
BT Versatility
Broadband Module/Broadband Module Plus Manual
5
ROUTES
A single route using PPP (including PPPoE and PPPoA) and a second route using static or
dynamic IP are concurrently supported. The following combinations of ports and protocols are
possible.
Port Protocol Port Protocol
ADSL Modem PPPoE/PPPoA and ETH/DMZ IP
ISDN PPP and ETH/DMZ IP
For example, the ADSL Modem could be used to connect to the Internet for web browsing and
the ETH/DMZ port could be connected to a gateway into a private wide area network.
FIREWALL
The module is equipped with a firewall that has the following features:
• Stateful Inspection
• Packet Filter Definition
• Network Address Translation
• Intrusion Detection
• Security Logging
VOIP
The BROADBAND MODULE is equipped with a VoIP gateway with the following features:
• 2 endpoints which support IP trunks
• Proxy server registration
• Codecs - G.711, G.729
• Quality of Service
The BROADBAND MODULE PLUS is equipped with a VoIP gateway with the following features:
• 12 endpoints which support trunks, extensions, unified messaging or any combination
of all three
• Proxy server registration
• Codecs - G.711, G.729
• Quality of Service
B
ANDWIDTH REQUIREMENTS
The BROADBAND MODULE and BROADBAND MODULE PLUS support two different codecs,
each with different bandwidth requirements. In addition to the bandwidth used by a codec, there
is also an overhead imposed by the various protocols used in transporting the IP packets as well
as signalling. When this is taken into account, the actual bandwidth required for each codec
increases significantly.
In order to ensure good voice quality, it is recommended that the following bandwidth is
available on the broadband connection for IP trunks and extensions
BT Versatility
Broadband Module/Broadband Module Plus Manual
6
Codec IP Trunk or Extension
G.711 100 kb/s
G.729 50 kb/s
NUMBER OF VOIP CHANNELS
The following chart shows the bandwidth required to support up to 12 VoIP channels. When
calculating the number of VoIP channels that can be used over ADSL, always use the lower
(upload) data rate. Note that data applications for browsing etc., will require additional
bandwidth.
0
200
400
600
800
1000
1200
1400
123456789101112
G.711
G.729
BT Versatility
Broadband Module/Broadband Module Plus Manual
7
QUICK SETUP
CONNECTING A PC TO THE LAN
SET UP THE PC TO AUTOMATICALLY OBTAIN AN IP ADDRESS
A
DSL
Port 1
Port 2
Port 3
Port 4
Power up the PC
Connect the Ethernet port on the
PC to any LAN port (1 - 4) on the MDF
using a Cat 5 cable/patch cord.
Check that the LED on the MDF cover for the
port the PC is connected to, is lit permanently. This
indicates a good Ethernet connection between the
PC and the Broadband Module
Click Start and Control Panel
BT Versatility
Broadband Module/Broadband Module Plus Manual
8
The PC is now set up to automatically obtain an IP address.
Click Network Connections
Right click Local Area Connection,
Click Properties
Select Internet Protocol (TCP/IP), click
Properties
Select Obtain an IP address automatically,
Obtain DNS server address automatically, click OK
BT Versatility
Broadband Module/Broadband Module Plus Manual
9
SETTING UP THE BROWSER
The browser is now set up.
Click Tools, Internet Options
Select Connections, click LAN
Settings
Uncheck “Use a proxy server for your LAN”, click OK
BT Versatility
Broadband Module/Broadband Module Plus Manual
10
CONNECTING TO THE PROGRAMMING INTERFACE
In order to provide maximum security, PCs connected to the WLAN are not allowed to program
the module via the web interface. If programming from a wireless network PC is required, the
WLAN interface should be changed to LAN (page 51).
S
ETTING UP ADSL
The module contains an on-board ADSL modem. The connection to the modem is via an RJ-11
connector on the MDF.
Obtain the following information from your ADSL service provider:
Username
Password
Type of Access
VPI and VCI values
Launch the browser on any PC connected to the LAN,
enter 0Hhttp://192.168.1.1
in the address field, press return
Enter User name (admin) and Password (admin)
Connect the data port on the splitter to
the ADSL RJ-11 port on the MDF. Connect the
telephone port on the splitter to a telephone
or fax machine
The Basic Configuration screen is
displayed
Splitter
Line
BT Versatility
Broadband Module/Broadband Module Plus Manual
11
Enter the programming menu
Click ADSL Modem in the Setup
menu
Click Change the ADSL Modem
settings here …
PPPoA is selected by
default, click Next >
Enter the PPP Username and PPP
Password, retype the password, click
Next >
The default VPI and VCI values
(0/38) are shown, if different values are
required, enter them here, click Next >
Click Confirm Changes
BT Versatility
Broadband Module/Broadband Module Plus Manual
12
The ADSL setup is now complete.
S
ETTING UP IP TRUNKS
The following procedure is used to set up the BROADBAND MODULE and the BROADBAND
MODULE PLUS to operate with the BT Broadband Voice service.
A broadband connection must first be established before VoIP can be programmed. Refer to the
VoIP section (page 6) to find out how many IP trunks can be supported on your broadband
connection.
When you subscribe to the BT Broadband Voice service, you will be given a URL to link to and a
username and password. Connect to the URL from any PC on the LAN and enter the username
and password. The VoIP trunks will then be automatically configured.
To verify that the trunks have registered with the BT Broadband Voice service
• Select “Status” from the main menu, scroll down to VoIP and verify that each trunk has
registered as indicated by .
S
ETTING UP IP EXTENSIONS
The BROADBAND MODULE PLUS supports up to twelve IP endpoints which can be configured
as either trunks, extensions, or a combination of both. Note that when Unified Messaging
Service is required, one endpoint must be permanently assigned to it.
V-IP Featurephones must be used as local or remote extensions. (Note that other manufacturers
IP phones will not work with the system). Refer to the V-IP Featurephone Quick Reference User
Guide for setting up and connecting the phone.
Select “VoIP” from the Setup menu
The new settings are displayed,
Restart the module
BT Versatility
Broadband Module/Broadband Module Plus Manual
13
Select Change VoIP Endpoint
types here …
Select ITP Extension for each
endpoint to be configured as an
extension
Select Next >
Select Confirm Changes
Enter the Password and MAC
address for each extension. The
MAC address is printed on a label
on the base of the V-IP
Featurephone.
Select Next>
BT Versatility
Broadband Module/Broadband Module Plus Manual
14
The IP Extension programming is now completed.
The following extension numbers are assigned to each endpoint. These are the default settings.
The extension numbers can be changed in the PBX Flexible Numbering option.
Extension Endpoint
150 1
151 2
152 3
153 4
154 5
155 6
156 7
157 8
158 9
159 10
160 11
161 12
Select Confirm Changes
Restart the module
BT Versatility
Broadband Module/Broadband Module Plus Manual
15
SETTING UP UM SERVICE
Unified Messaging provides email notification of voicemail messages left in the PBX voicemail
system. One IP endpoint must be permanently assigned to UM.
Select Change VoIP Endpoint
types here …
Select a free endpoint and
select UM Service
Select Next >
Select Confirm Changes
Restart the module
Select “VoIP” from the Setup menu
BT Versatility
Broadband Module/Broadband Module Plus Manual
16
PROGRAMMING
All BROADBAND MODULE AND BROADBAND MODULE PLUS parameters can be programmed
using BT Versatility Wizard or via a browser on any PC connected to the LAN. The Welcome
screen and all subsequent screens presented are identical for both methods of access.
Programming from BT Versatility Wizard
Connect the PC with BT Versatility Wizard directly to the V.24 interface on the PBX and launch
BT Versatility Wizard.
• Select “Connect”
• On the pop-up menu select the COM port and speed. The default setting for the speed is
115,200 bps. This can be changed if required.
• Select “Connect”
• When the connection is established, select "Broadband Module" on the main menu
BT Versatility
Broadband Module/Broadband Module Plus Manual
17
The Basic Configuration screen is displayed
BASIC CONFIGURATION
The Basic Configuration screen shows the current Internet access settings as well as the
hardware and firmware versions.
SETUP MENU
The Setup menu contains the following:
LAN Gateway
The LAN Gateway address is set by default to 192.168.1.1.
The following procedure is used to change this setting.
• Select “LAN Gateway” in the Setup menu.
The following screen is displayed:
The current settings are shown.
• Select “Change the Broadband Module address settings here …
”
The following screen is displayed: -
BT Versatility
Broadband Module/Broadband Module Plus Manual
18
• Enter the new IP address and Subnet Mask.
• Select “Next”
The following screen is displayed
• Select “Confirm Changes”
The following screen is displayed
When the new parameters have been saved, the following screen is displayed showing the new
settings
Note that the DHCP Server address range for LAN hosts will automatically change in the
Advanced Configuration settings to reflect the new address range.
BT Versatility
Broadband Module/Broadband Module Plus Manual
19
ADSL MODEM
To set up the ADSL modem, obtain the following information from your service provider.
- Type of Access
- Username
- Password
- VPI/VCI
• Select “ADSL Modem” from the Setup menu.
The following screen is displayed
This screen shows the current settings.
• Select “Change the ADSL Modem settings here …
”
The following screen is displayed
Four options are presented for Type of Access:-
(1) PPPoA
This option uses Point-to-Point Protocol over ATM
• Select “PPPoA” from the “ADSL Modem: Types of Access” screen
• Select “Next”
The following screen is displayed
BT Versatility
Broadband Module/Broadband Module Plus Manual
20
• Enter a Username and Password. Retype the Password.
• Select “Next”
The following screen is displayed.
VPI/VCI
VPI/VCI (Virtual Path Identifier/Virtual Circuit Identifier) specify the ATM connection between the
ADSL modem and the service provider. The VPI range is 0 – 4095. The VCI range is 0 – 65535.
The default values are 0/38
• Enter the VPI and VCI values if they are different from the default values
• Select “Next”.
The following screen is displayed
• Select “Confirm Changes”
The new parameters are saved and the new ADSL Modem settings are displayed.
BT Versatility
Broadband Module/Broadband Module Plus Manual
21
• Restart the module.
The ADSL Modem setup is now complete.
(2) PPPoE
This option uses Point-to-Point Protocol over Ethernet.
• Select “PPPoE” from the “ADSL Modem: Types of Access” screen
• Select “Next”
The following screen is displayed
• Enter a Username and Password. Retype the Password.
• Select “Next”
The following screen is displayed.
BT Versatility
Broadband Module/Broadband Module Plus Manual
22
VPI/VCI
VPI/VCI (Virtual Path Identifier/Virtual Circuit Identifier) specify the ATM connection between the
ADSL modem and the service provider. The VPI range is 0 – 4095. The VCI range is 0 – 65535.
The default values are 0/38
• Enter the VPI and VCI values if they are different from the default values
• Select “Next”
The following screen is displayed
• Select “Confirm Changes”
The following screen is displayed
• Restart the module
The ADSL Modem setup is now complete.
BT Versatility
Broadband Module/Broadband Module Plus Manual
23
(3) DHCP
This option uses RFC 1483 Routed. DHCP (Dynamic Host Configuration Protocol) is used to
automatically obtain the IP addresses.
• Select “DHCP” from the “ADSL Modem: Types of Access” screen
• Select “Next”
The following screen is displayed
• Select one of the following modes. Your service provider will advise you on the mode to be
selected
LLC Bridged
LLC Routed
VCMux Bridged
VCMux Routed
“Enable Link State Monitoring” should be ON
• Select “Next”
BT Versatility
Broadband Module/Broadband Module Plus Manual
24
VPI/VCI
VPI/VCI (Virtual Path Identifier/Virtual Circuit Identifier) specify the ATM connection between the
ADSL modem and the service provider. The VPI range is 0 – 4095. The VCI range is 0 – 65535.
The default values are 0/38
• Enter the VPI and VCI values if they are different from the default values
• Select “Next”
The following screen is displayed
• Select “Confirm Changes”
The following screen is displayed
• Restart the module
The ADSL Modem setup is now complete.
(4) Manual
This option uses RFC 1483 Routed. Static IP addresses will be provided by the service provider
and are manually entered.
• Select “Manual” in the “ADSL Modem: Types of Access” screen.
• Select “Next”
The following screen is displayed
BT Versatility
Broadband Module/Broadband Module Plus Manual
25
• Select “Next”
The following screen is displayed
• Enter the required IP addresses and Subnet mask.
• Select “Next”
The following screen is displayed
• Select one of the following modes. Your service provider will advise you on the mode to be
selected
LLC Bridged
LLC Routed
VCMux Bridged
VCMux Routed
“Enable Link State Monitoring” should be ON
• Select “Next”
BT Versatility
Broadband Module/Broadband Module Plus Manual
26
The following screen is displayed
VPI/VCI
VPI/VCI (Virtual Path Identifier/Virtual Circuit Identifier) specify the ATM connection between the
ADSL modem and the service provider. The VPI range is 0 – 4095. The VCI range is 0 – 65535.
The default values are 0/38
• Enter the VPI and VCI values if they are different from the default values
• Select “Next”
The following screen is displayed
• Select “Confirm Changes”
The following screen is displayed
• Restart the module
The ADSL Modem setup is now complete.
Loading...
