BT BIG Button phone User Manual

Userfriendly
Guide
BIG Button phone
Lift flap
1
2
3
45
6
7
8
9
0
1471
Redial
S (secrecy) button
Held down, this button allows you to speak to someone in the same room without the person on the other end of the line hearing your conversation.
2
At a glance
R (recall) button
Recall button for use with some BT Select Services and switchboards.
Memory
label
For making a note of names and numbers stored in the Quickdial memories.
Handset hook
When the phone has been wall-mounted it keeps the handset in place.
Store button
Allows you to store phone numbers in the Quickdial and One-touch memories.
Amplify button
This button allows you to amplify your voice or the caller’s voice. Use the +/– buttons to increase/ decrease the level of amplification on your call.
Redial button
Redials the last number dialled.
Quickdial button
Enables you to dial up to 10 phone numbers stored in the memory.
One-touch memory buttons
Enables you to quickly dial your most regularly used numbers or a stored number for emergencies.
1471 button
Allows you to check the phone number of the last person who called you.
Handset park
When the BIG Button phone is wall­mounted, you can hook the handset on this if you need to temporarily move away from the phone.
Ringing volume, tone and
amplification setting
The switches on the phone base give you the option to change the ringing volume, ringing tone and incoming or outgoing amplification.
Indicator light
This will flash when the phone rings.
Handset
To use the inductive coupler, switch your hearing aid to the T setting.
3
Introduction
Your BIG Button phone is designed for ease of use and made to the high standards set by BT
We thank you for making the right choice and expect that your phone will give you many years of quality service.
Please read the instr uctions carefully before use, and keep this User Guide for future reference.
This user guide is available in the following formats:–
• Large Print.
• Braille.
• Tape recording. If required, please ring
BT on Freefone0800 800150 (0800 243123 for textphone users only).
Contents
At a glance 2 Introduction 3 Installing your
BIG Button phone 4 Using your
BIG Button phone 8 Wall-mounting 14 Technical
information 16 Index 18
In this user guide, we’ve included helpful tips and useful notes. These are shown in yellow boxes.
Hints and tips
boxes
Introduction
4
Installing your BIG Button phone
The emergency services can be contacted in the UK by dialling 999. You may also dial 112, which is valid in any countr y that is a member of the European Community.
You may not be able to make an emergency call in cer tain situations:
• If the telephone line is disconnected.
• If there is a fault on the line from your phone or on the network.
If your BIG Button phone is connected to a PBX (switchboard), you may have to dial an access number before 999 to contact the emergency services.
IMPORTANT
Check that your
BIG Button phone is
complete. When you
unpack you should
find:
BIG Button phone with
telephone line cable
attached and a plinth
Screws and wall plugs for
wall mounting
Installing
5
Plan where you will
put your BIG Button
phone
It should be within two metres of a phone socket.
Do not stand it on carpets or other similar sur faces that generate fibres as this may reduce the ringing sound and clog inside mechanisms.
Your BIG Button phone can be positioned in three alter native ways:
Flat on a table sur face. Raised position on a table
sur face. Wall-mounted.
See ‘Wall-mounting’ on page 14.
Do not cover or enclose the phone; allow a free flow of air to its sur faces.
If you do not have a modern style socket, call BT on Freefone 0800 800 150 and ask for a BT engineer to come and fit the cor rect socket.
This may be a chargeable service.
Your BIG Button phone is only designed to be operated in a normal domestic or office environment. It should not be used in bathrooms or near water.
Warning
Installing
Plug your BIG Button
phone into the wall
socket
6
Ringer volume
Switch found on base of phone.
Set the volume of the ringer to Either High, Low or Of f.
Ringer tone select
Switch found on base of phone.
This switch allows you to select the pitch required for the ringer.
R1:For a low pitched
tone.
R2: For a medium pitched
tone.
R3:For a high pitched
tone.
Installing
7
Using the Amplify button
will increase the volume of
all sounds that enter the
microphone, so if you can,
reduce any background noise whenever you use
this feature.
Your BIG Button phone
is now ready for use
Amplify selection
Switch found on base of phone.
Choose between either incoming or outgoing settings. Incoming makes the caller’s voice louder. Outgoing makes your voice louder at the other end of the call.
Switch found on base of phone.
Your phone will already be set to TB. If you are a residential customer this will help you to use some Network Services such as Call Waiting, as long as you subscribe to this service.
Call BT on Freefone
0800 800 150 for details.
Time Break Recall
and Earth Recall
selection
Installing
8
Using your BIG Button phone
To make a call
Lift the handset and listen for a dialling tone.
Dial the number you require.
To end the call, replace the handset.
1
2
To receive a call
When the phone rings pick up the handset and speak.
1
2
To redial the last
number dialled
Lift the handset.
Press the REDIAL button. The phone will automatically redial the last number dialled.
Using
9
Your BIG Button phone has three ‘one-touch’ memory buttons.
These allow you to store three numbers that may be dialled at the touch of a button. These should be your most commonly used numbers.
You can store a phone number under each of these buttons and dial the number by pressing just the one button; so there is no need to dial the digits every time.
To store numbers in the memory, use the STORE button. This is located under the memory label which is underneath the handset. Push the plastic cover and label to the left to reveal the STORE button and instr uctions.
To store phone
numbers in the
‘one-touch’ memory
1
2
3
Lift up the handset.
Push label to the left. Press the STORE button.
Press the ‘one-touch’ memory button under which you wish to store the number.
Enter the number you wish to store.
Press the STORE button again.
The phone number is now stored. Please replace the handset.
4
5
6
Using
10
Lift the handset.
Press the ‘one-touch’ memory button under which the phone number is stored.
The phone number is dialled automatically.
Each memory location can store a maximum of 21 digits (numbers).
You can write the name of the person with which you wish to associate the number on the label provided or perhaps insert a small photo.
To dial a number
stored in the
‘one-touch’
memory
1
2
1
2
Your BIG Button phone also has 10 ‘two-touch’ memory locations in the keypad, which are dialled by using the QUICKDIAL button.
Lift the handset.
Press the STORE button.
Press the QUICKDIAL button.
Press the 0-9 keypad button under which you want to store the number.
To store phone
numbers in the
Quickdial memory
3
4
Using
Quickdial
0...9
11
Lift the handset.
Press the QUICKDIAL button.
6
Enter the number you want to store.
Press the STORE button.
The phone number is now stored. Please replace the handset.
Repeat these steps for any other numbers you want to store, using a dif fer ent 0-9 location for each one.
Stored numbers can include Select Services using the
and
#
buttons, and switchboard services that ar e appropriate.
Quickdial
memory label
Use the memory label to keep a record of which 0-9 location code you have used for each number.
A large print version of this is included at the end of this user guide. See
‘Quickdial memor y label’
on page 19.
To dial a number
stored in the
Quickdial memory
1
2
5
Using
Quickdial
12
Press the 0-9 location under which the number you require is stored.
The phone number is dialled automatically.
You may hear the
telephone exchange say
‘Please hang up and try
again’. This message does
NOT necessarily mean your
storing of numbers has
failed.
To change
numbers stored in
the memory
To change numbers stored in the memory, simply repeat the process of storing the original numbers but enter the new number. The number stored in that location is automatically replaced by the new number.
This button is used with some network services OR if your phone line is connected to a switchboard.
To find out more about BT Select Services please call BT on
Freefone 0800 800 150.
Using the R button
Using
3
0...9
13
To use your
Amplify button
Press the Amplify button to turn amplification on.
Amplify
and + allows
you to select an appropriate setting between normal and maximum.
There are a total of four settings. The standard setting is for the amplify to be of f.
The setting last used on Amplify will restore each time you turn amplify on.
To increase the amplification press the
+ button.
To decrease, press the
button.
To return to the nor mal setting, just press the amplify button again.
The red LED will light up to show when amplify is switched on.
Using
14
Wall-mounting
Your BIG Button phone can be wall-mounted using the screws and wall plugs provided.
Use the plinth of the BIG Button phone as your wall-mounting template to pencil on the wall a guide for the drill holes.
Before you wall-mount your BIG Button phone, check that:
• the wall can support the weight of the phone;
• the position you choose leaves sufficient space so that the phone is clear of any obstruction on the wall, such as a shelf or cupboard.
1
2
3
Drill two holes (diameter 8mm) for the screws ver tically apart. Inser t the wall plugs provided (if required).
Drive the screws into the wall, leaving about 5mm free on which to hang the phone.
Press the phone line cable into the groove on the base of the phone, so that the phone lies flat against the wall.
WALL
WALL PLUG SCREW
Wall-mounting
102mm
Feed the phone line through the bottom of the wall mounted plinth to allow the cable to rest flat against the wall.
15

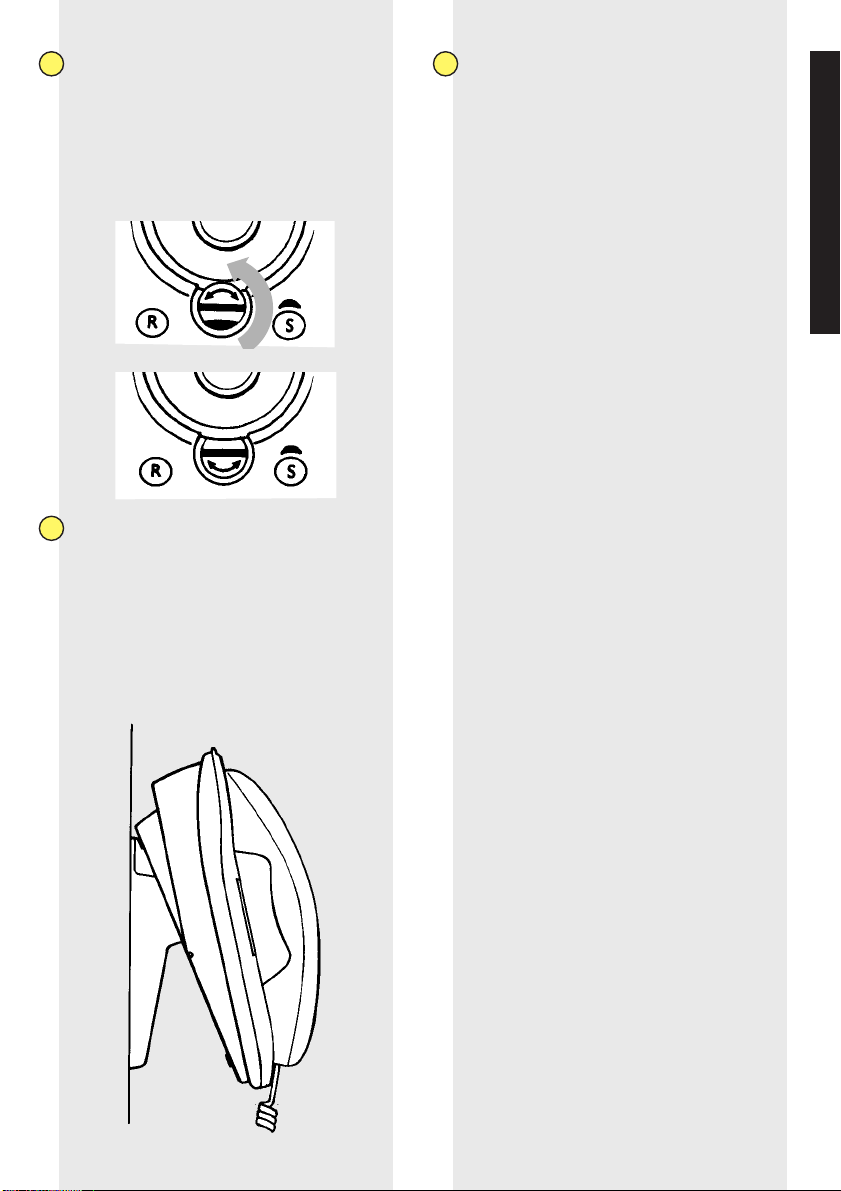

Rotate the handset hook 180°, so that you can hang up the handset when the phone is wall­mounted.
Hang the holes on the back of the phone over the screwheads and gently pull the phone downward to make sure it is securely in place.
4
5
6
Wall-mounting
16
Technical information
All items of telephone equipment have a Ringer Equivalence Number (REN), which is used to calculate the number of items that may be connected to any one telephone line. Your BIG Button phone has a REN of 1.5. A total REN of 4 is allowed from a single telephone line. If the total REN of 4 is exceeded, the telephones may not ring. With different telephone types there is no guarantee of ringing, even when the REN is less than 4. Typically 2 or 3 phones can be working simultaneously on the one telephone line.
How many phones
can you have?
Technical information
Your BIG Button phone may be connected to public networks in the United Kingdom.
It may also be connected to switching systems that use tone (MF) signalling, with timed break or ear th r ecall. If in doubt, your switch supplier or maintainer should be able to of fer help. Advice on connection to BT switching systems can be obtained by dialling BT Freefone 0800 800 152.
Generally your BIG Button phone can be connected to any switchboard where a simple moder n telephone can be used to make and receive calls.
Connection information
17
The goods have not been tampered with or repaired by anyone other than BT, its staff or agents. If a fault does occur in this product, and you bought the unit yourself, provided that you retur n it to the place of purchase and produce your receipt, it will either be repaired or replaced free of charge. The terms and conditions of this guarantee do not af fect your statutory rights.
Outside guarantee (after 1 year from date of purchase).
We recommend that you call BT on Freefone 0800 800 150, or visit your nearest BT shop, and you will be informed of our recommended repair agents.
Guarantee
Date of purchase:
Place of purchase:
Serial number:
(on base of the telephone)
Purchase price:
(for warranty purposes, proof of purchase is required, so please keep your receipt)
BT guarantees the product for one year provided that:
The goods have only been used for their intended purpose, and have not been subjected to misuse, or been wilfully or accidentally damaged.
For your records
Technical information
Index
18
Index
Amplify 7,13 Dialling, one-touch 10 Dialling, Quickdial 11 Ear th Recall 7 Emergency numbers 4 Guarantee 17 Labels,Quickdial 11,19 Make a call 8 Memory, Quickdial 10 Memory,changing 12 Memory,one-touch 9 Quickdial 10,11 R button 12 Receive a call 8 Redial 8 REN 16 Ringer tone 6 Storing numbers 9,10 Switchboards 16 Telephone socket 5 Timed Br eak Recall 7 Volume, ringer 6 Volume, increasing 6,7 Wall mounting 14
19
Quickdial
20
Quickdial
Offices in Europe, North America, Japan and Asia Pacific.
The Telecommunications services described in this publication are subject to availability and may be modified from time to time. Services and equipment are provided subject to British Telecommunications plc’s respective standard conditions of contract. Nothing in this publication forms any part of any contract.
Touchtone™is a registered trade mark of
British Telecommunications plc in the UK. BT BIG Button is a trade mark of
British Telecommunications plc. © British Telecommunications plc 1998.
Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. Printed in Malaysia. BIG Button phone Issue No.1 (11/98) 3.2. Designed by The Art & Design Par tnership Limited.
CE compliant to 89/336/EEC (EMC Directive) & 73/23/EEC (Low Voltage Directive)
APPROVED for connection to
telecommunication systems specified in the instructions for use subject to
the conditions set out in them
