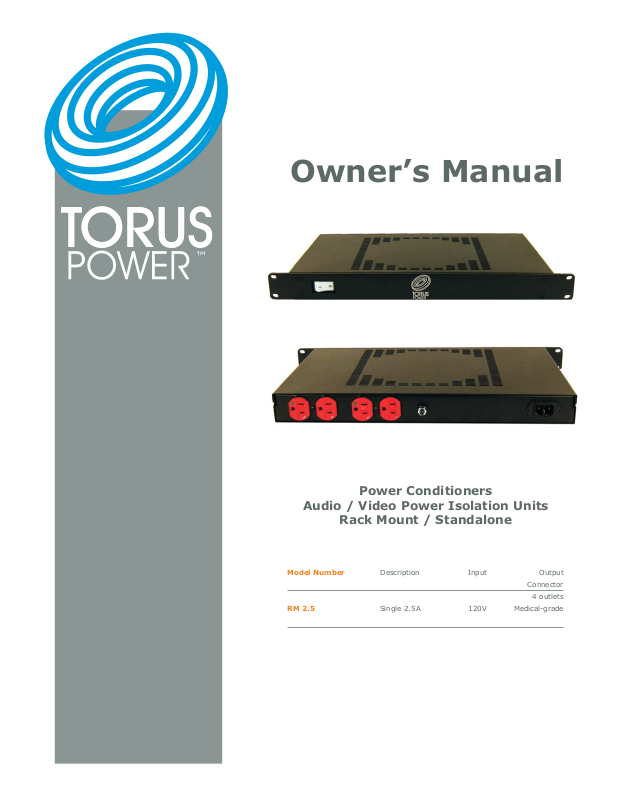

Owner’s Manual
Power Conditioners
Audio / Video Power Isolation Units
Rack Mount / Standalone
Model Number
RM 2.5
Description
Single 2.5A
120V
Output
Connector
4 outlets
Medical-grade
Important Safety Instructions
CAUTION!
To reduce the risk of electric shock and fire, do not remove the cover of this device. There
are no user serviceable parts inside. Please refer all servicing to licensed service technicians.
CAUTION!
The international symbol of a lightning bolt inside a triangle is intended to alert the user to uninsulated “dangerous voltage” within the device’s enclosure. The international symbol of an exclamation point inside a triangle is intended to alert the user to the presence of important operating, maintenance and servicing information in the manual accompanying the device.
CAUTION!
CAUTION!
CAUTION!
To prevent electrical shock, match wide blade of plug to wide slot, fully insert.
To reduce the risk of electrical shock, do not expose this equipment to rain or moisture.
To reduce the risk of electrical shock, ensure the voltage selector switch is selected to the appropriate supply voltage.
CAUTION!
To reduce the risk of electrical shock, ensure the fuses are replaced with the appropriate fuse according to the unit markings.
1. Read Instructions—All safety and operating instructions should be read before operating the device.
2. Retain Instructions—The safety and operating instructions should be retained for future reference.
3. Heed Warnings—All warnings on the device and in the operating instructions should be adhered to.
4. Follow Instructions—All operating and safety instructions should be followed.
5. Water & Moisture—The device should never be used in, on or near water for risk of fatal shock.
6. Carts & Stands—The device should only be used on carts or stands recommended by the manufacturer.
8. Ventilation—The device should always be located in such a way that it maintains proper ventilation. It should never be placed in a built-in installation or anywhere that may impede the flow of air through its ventilation slots.
9. Heat—Never locate the device near heat sources such as radiators, floor registers, stoves or other heat-generating devices.
11. Power Cord Protection—Power cables should be routed so they are not likely to be stepped on or crushed by items placed on them or against them. Special attention should be paid to areas where the plug enters a socket or fused strip and where the cord exits the device.
12. Cleaning—The device should be cleaned in accordance with manufacturer’s instructions.
13. Periods Of Non-Use—The device should be unplugged when not being used for extended periods.
14. Dangerous Entry—Care should be taken that no foreign objects or liquids fall or are spilled inside the device.
15. Damage Requiring Service—The device should be serviced by licensed technicians when:
• The plug or power supply cord has been damaged.
• Objects have fallen or liquid has spilled inside the device.
• The device has been exposed to moisture.
• The device does not appear to be operating properly or exhibits a marked change in performance.
• The device has been dropped or the enclosure becomes damaged.
16. Service—The device should always be serviced by licensed technicians. Only replacement parts specified by the manufacturer should be used. The use of unauthorized substitutions may result in fire, shock, or other hazards.
17. Do not position the equipment so that it is difficult to operate the disconnecting device (power cord).
18. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
Owner’s Manual Audio / Video Power Isolation Units Rack Mount / Standalone 10/07Power Conditioners
www.TorusPower.com
Description
Torus Power PIUs (Power Isolation Units) combine the best surge suppression with unique toroidal transformer technologies from PLITRON to provide the ultimate in AC power conditioning and protection for sensitive audio and video equipment applications.
PIUs use ZeroSurge patented series-mode surge removal
filters to absorb dangerous voltage surges and safely dissipate them without using failure-prone MOVs (metal oxide varistors). Also, unlike MOV-based protection, voltage surges are not shunted to ground.
Isolation is combined with proven proprietary technologies from PLITRON in the over-sized toroidal transformer. NBT works as a low pass filter using the controlled leakage inductance and capacitances within the transformer to effectively reduce noise. LoNo technology has been used for years by high-end audio companies who demand silent transformers. UST provides additional common mode filtering
â
Shipping Carton & Packing Material
Please keep the original shipping box and all packing material. This will ensure the PIU is protected in future transport.
In the unlikely event you have a problem and must return it for service you must use the proper packing material.
Ship the PIU only in the original packing material, as the unit is not insurable by carriers otherwise.
using a highly efficient Faraday screen.
Low-impedance output provides the most unconstrained, yet protected, energy source available to your equipment.
Placement & Ventilation
Torus Power PIUs are extremely efficient devices, however, they are also very high-power devices, and must be adequately cooled.
PIUs have ventilation slots on the base, and the cover. Maintain at least 1” distance from each of these surfaces to anything else. Should your installation conditions be constricted, additional forced air-cooling may be necessary.
Do not install the PIU directly above heat-generating equipment.
Maintain at least 6” behind the PIU for adequate wiring space.
Owner’s Manual Audio / Video Power Isolation Units Rack Mount / Standalone 10/07Power Conditioners
www.TorusPower.com
Front Panel Layout
Illuminated Power Switch / Circuit Breaker
l
O
Rear Panel Layout
Power Outlet
Removable Mounting Feet for Rack Mount
Accessory Ground Stud
ModelNumber
RM2.5
Input
120VAC60Hz, 2.5A max
Output
120V2.5A max
PartNumber
PA-10201-00
SerialNumber
0001
Toronto,Canada
www.TorusPower.com
WARNING
DISCONNECTPOWER BEFOREWORKING WITHIN
Power Inlet
Product Label
Warning Label
Circuit Protection
The front panel power switch is also a circuit breaker. As a circuit breaker, it prevents excessive current from entering the PIU.
When the power is on, the switch is illuminated. When the breaker trips, the switch returns to its “off” position.
Thermal Protection
Torus PIUs will shut-down if internal unit temperature reaches excessive levels.
Wall Receptacles
Torus PIUs are high-power products. The outlets they are plugged into should be sufficient to provide the current to operate them without tripping circuit breakers within your junction panel.
Electrical Specifications
Model Number
RM 2.5
Input Voltage
Nominal
120VAC, 60Hz
Range +/- 10% voltage
57-63Hz
Mechanical Specifications
Model Number
RM 2.5
Owner’s Manual Audio / Video Power Isolation Units Rack Mount / Standalone 10/07Power Conditioners
Input
Connector
(Rear Panel)
IEC 15A
Inlet
Line Cord
(included)
N5/15, 14AWG
C13, 15A/125V
Input
Current
Limiting
2.5A
Circuit Breaker
Front Panel
Suggested
Wall
Receptacle
Standard outlet
NEMA 5-15R
15A - 125V
Load Current Capability
½ cycle
25A
1 second
20A
Output
Connector
(Rear Panel)
Qty 2 (4 outlets)
Medical-grade
10 seconds
.75A
Weight
17 lbs.
www.TorusPower.com
Input Current
Rating
2.5A
Size
(w” x d” x h”)
19.0 x 11.0 x 2.0
With mounting feet
19.0 x 11.0 x 1.75
Without mounting feet
Line Cords
Standard 15A 120V
Equipment end:
5 15P, Straight Blade, 2 pole,
Plug: -
3-wire grounding, 15A 125V
3 x 14AWG
Cord: Length:
2.5 m
IEC C13
Warranty
Torus Power products are warranted to be free from manufacturing defects for a minimum of five years from the original date of sale. This includes parts, labour and return shipping to the first registered owner and all subsequent registered owners. Warranty coverage is extended to applicable products registered or having proof-of-purchase (sales invoice, etc.).
In the event of a defect or malfunction, Torus Power will remedy the problem by repair or replacement, as we deem necessary, to restore the product to full performance.
This warranty is considered void if the defect, malfunction or failure of the product or any component part was caused by damage (not resulting from a defect or malfunction) or abuse while in the possession of the customer. Failure to fully comply with Torus Power operating instructions, voids the warranty.
Torus Power products are marketed worldwide through Bryston Limited. For sales contact jamestanner@bryston.ca www.bryston.ca
10/07
www.TorusPower.com
Torus Power PO Box 30030 Toronto, ON M3J 3L6 Canada 416-667-8473
Specifications subject to change without notice. © Torus Power 2007
ZeroSurge is a registered trademark of Zero Surge Inc.
