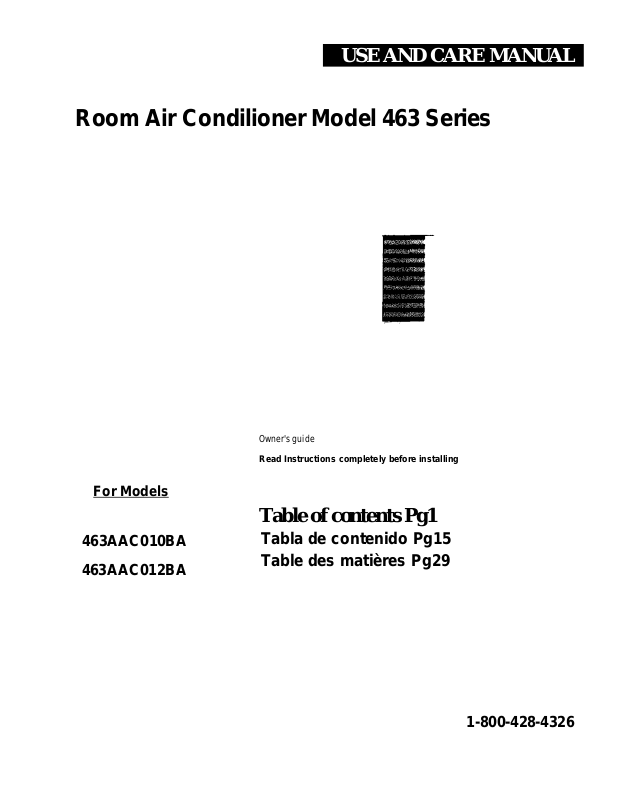

USE AND CARE MANUAL

Room Air Condilioner Model 463 Series

For Models

463AAC010BA 463AAC012BA

Owner's guide

Read Instructions completely before installing

Table of contents Pg1

Tabla de contenido Pg15 Table des matières Pg29

1-800-428-4326

Page 2

Page 3

Part Identification

2.Parts Identification for Model 463AAC012BA

- 2 -

Page 4

Introduction

Thank you for choosing this Bryant Room Air Conditioner to coo) your home This USE AND CARE Manual provides information necessary for the proper care and maintenance of your new Rppm Air Conditioner If properly maintained, your atf conditioner yyitl give you many years of trouble free operation' To avoid installation difficulties, read instructions cdrhpletely before starting This manual contaihs ‘ ' information for the installation and operation of your^^ryant Room Air Conditioner For easy reference, you may want to attach a copy of your sales receipt to this page Note following information provided (on the manufacturer's nameplate located on the nght side of the unit above the power

cord) This information will be needed when you contact a Bryant's Customer Service Representative

Model number Serial number

Date of Purchase

Dealer’s Name and Address

Refer to the trouble-shooting section of this USE AND CARE MANUAL if the unit is not operating correi

If these suggestions do not solve the problem, contact an authorized service representative or call |

1-800-428-4326

Keep these instructions for future reference

This symbol denotes a caution or warning

Specifications*

Model number Unit Specifications*

Voltage Cooling Capacity(Btu/h)

Input Wattage Energy Efficiency Rating (EER) Fan/Cooling Speeds Cooling Area Coverage (Sq ft)

Noise Level (dB) Unit Dimensions Width

Depth Height

Window Kit Dimensions Maximum Width

Minimum Width Height

Shipping Weight

463AAC010BA

115V/60HZ

10,000

1020

98 2/2 500

20 5" 23 0" 28 0"

14 8" 37 8"

25 2"

________

15 7" 1121b

___________ 27 6"

463AAC012BA

115V/60HZ

12,000

1220

9 8 2/2

700

22 8""

15 7" 40 2"

16 7" 120lb

NOTE Specifications are subject to change without further notice

~ 3 -

Page 5

Electrical Specifications

1. All wiring must comply with local and national electrical codes and must be installed by a qualified electrician if you have any questions regarding the following instmctions, contact a qualified electrician

2 Check available power supply and resolve any wiring problems BEFORE installing and operating

this unit

3 This 115V air conditioner uses 12 0 or less nameplate amps and may be used in any properly wired, general purpose household receptacle See {Tabte 1) for specifications for individual branch circuit

4 For your safety and protection This unit is grounded through the power cord when plugged into a matching wall outlet If you are

not sure whether your wall outlet is properly grounded, please consult a qualified electrician

$ggg^sted Individual Branch Circuit

. ^ : Nameplate Amps AWG

5.0 to 12

Avy(^ i^erican Wire Gage

* BaSed^on copper wire at 60 °G temperature rating.

Wire Size*

Table 1

Receptacle and Fuse Types

Rated Volts

AMPS

Wall Outlet

125

Fuse Size

Time Delay Fuse

(or circuit breaker}

Plug type

Table 2

5 The wall outlet(3-pin) must match the plug (3-pin) on the service cord supplied with the unit DO NOT use plug adapters or extension cord. See {Table 2) for receptacle and fuse information

6 The rating plate on the unit contains electrical and other technical data The rating plate is located on the right side of the unit, above the power cord If missing, a second nameplate is located on front chassis (also known as basepan)

- 4 -

Electric Shock Hazard

To avoid the possibility of personal injury, disconnect power to the unit

I before installing or servicing 1

Page 6

Energy-Saving Tips

Your Room Air Conditioner unit is designed to be highly efficient and save energy. Follow thèse ;i^çqnimendations for greater efficiency ; - ,

1 Sélect thehnbstat setting that suits your

comfort needs and leave thé thermostat at that chosen setting

2 The filter is very efficient in removing airborne particles Keep air fitter clean Normally, filter should be cleaned once a month More

frequent cleaning may be necessary depending on outdoor and indoor air quality

3 Use drapes, curtains, or shades to keep direct sunlight from heating your room, but DO NOT obstruct the air conditioner Allow air to circulate around the unit without

obstructions

4 Start your air conditioner before outdoor

air becomes hot and uncomfortable This avoids an initial period of discomfort while

the unit is cooling off the room

5 When outdoor temperature is cool enough, use HIGH or LOW FAN only (depending on your model) This circulates indoor air, providing some cooling comfort, and utilizes less electricity than when operating on a cooling setting

Yodr Bryant Room Air Conditioner is designed for ' easy instaliation in a single or double-hung window NOTE: This unit is NOT designed for vertical (slider type) windows

NOTE: Save the shipping carton and packing materials for future storage or transport of the unit Remove the plastic bag containing the installation hardware kit necessary for the installation of your air conditioner Please check the contents of hardware kit against the corresponding model check list, prior to installation of the unit

Installation Hardware

3/4"Screws (10)

1/4"Screws (18)

Top Channel(1) Bottom Channel(l)

(Factory Installed)

Lock Washers(4)

1-1/2"x1/4 Bolts(4)

0 1/4"Nuts{4)

D-

Mounting

Brackets{2)

Angle

Brackets(2)

Shutter Ctamp(2)

Side Curtain RH(1) Side Curtain LH(1)

Foam

Seal(4)

JSMHMSS

End Cap & Levelling Legs(2)

A CAUTION A

To avoid instaIlation/operating difficulties,

read the instructions thoroughly

Tools Needed for Window Installation Screw drivers: Both Philips and flat head Power drill: 1/8 inch diameter drill bit Pencil Measuring tape Scissors Carpenters level

Adjustable wrench

- 5

Page 7

Installation Instructions

A CAUTION A

Because the compressor is located oh the controls side of the unit (right |ide),. this side will be heavier and more awkward to rriahipulate. Inadequate support on control side ht th!? unit can result in personal injury and damage to your unit and property Therefore, it is recommended to have someone assist you during the installation of this unit

Select the Best Location

A Your Bryant Room Air Conditioner was designed to fit easily into a single or double hung window However, since window designs vary, it may be necessary to make some modifications for safe and proper installation

B Make sure window and frame is structurally sound and free from dry and rotted wood

F Your Bryant unit was designed to evaporate condensation under nottrial conditions However, under extreme humidity conditions, excess condensation may cause basepah to overflow to

the outside. The unit should be Installed where

condensation run-off cannpt drip pn pedestrians or neighboring properties

G A drain connection(excluding hose) is provided If you need to redirect condensation overflow, see

{Fig 19 0T\Page11)

C For maximum efficiency, install the air conditioner on side of the house or building which favors more shade than sunlight. If the unit is in direct sunlight, it is advisable to provide an awning over the unit

D Provide sufficient clearance around the cabinet

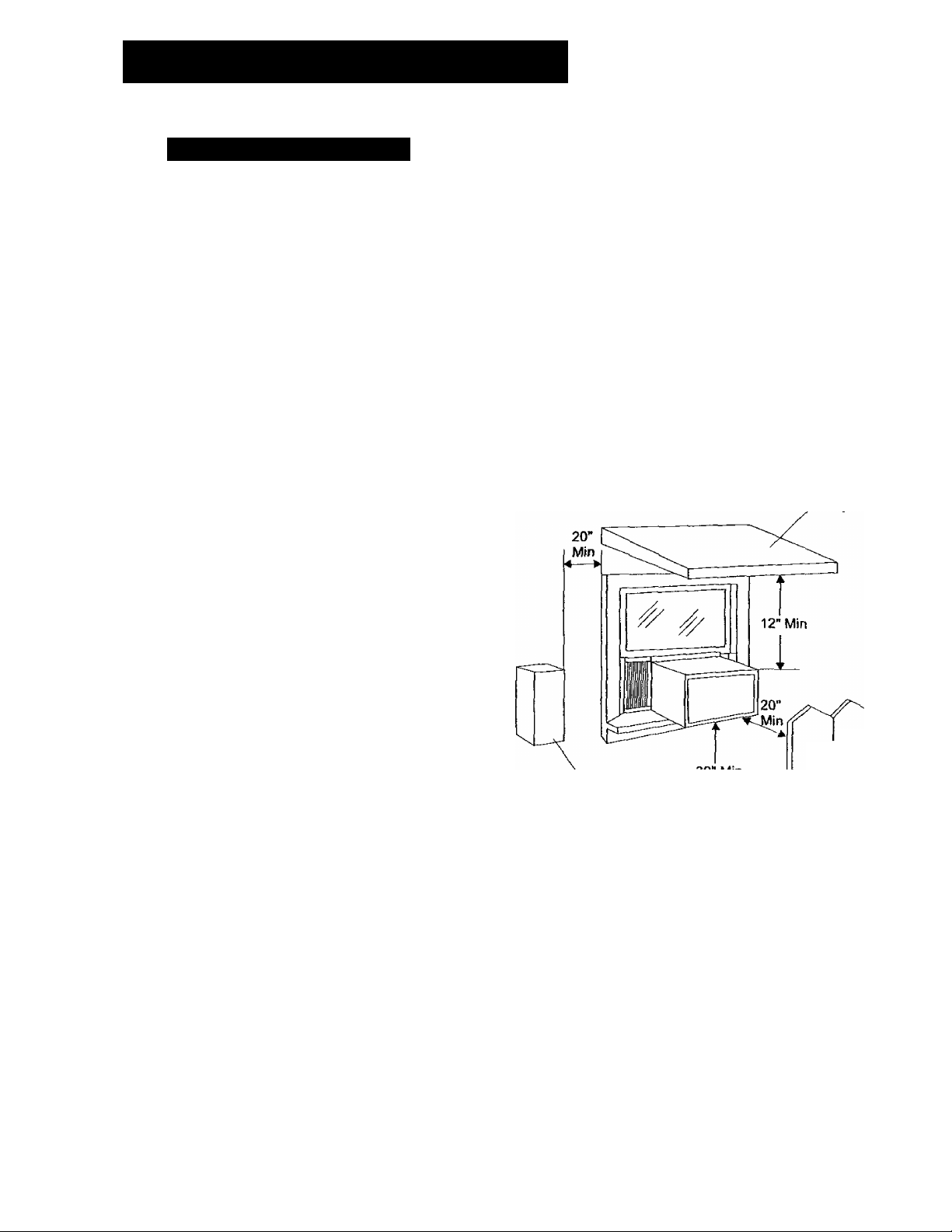

to allow for ample air circulation through the unit See (Dwg 1) The rear of the unit should be outdoors

and not in a garage nor inside of a building Keep unit as far away as possible from obstacles or obstructions and at least 30" above the floor or ground. Curtains and other objects within a room should be prevented from blocking the air flow

E Be certain the proper electrical outlet is within reach of the installation Use only a single outlet circuit rated at 15 amps All wiring should be in accordance with local and national electrical codes

Side obstruction

Fence,

wall, or

other

obstacle

Page 8

Installation Instructions

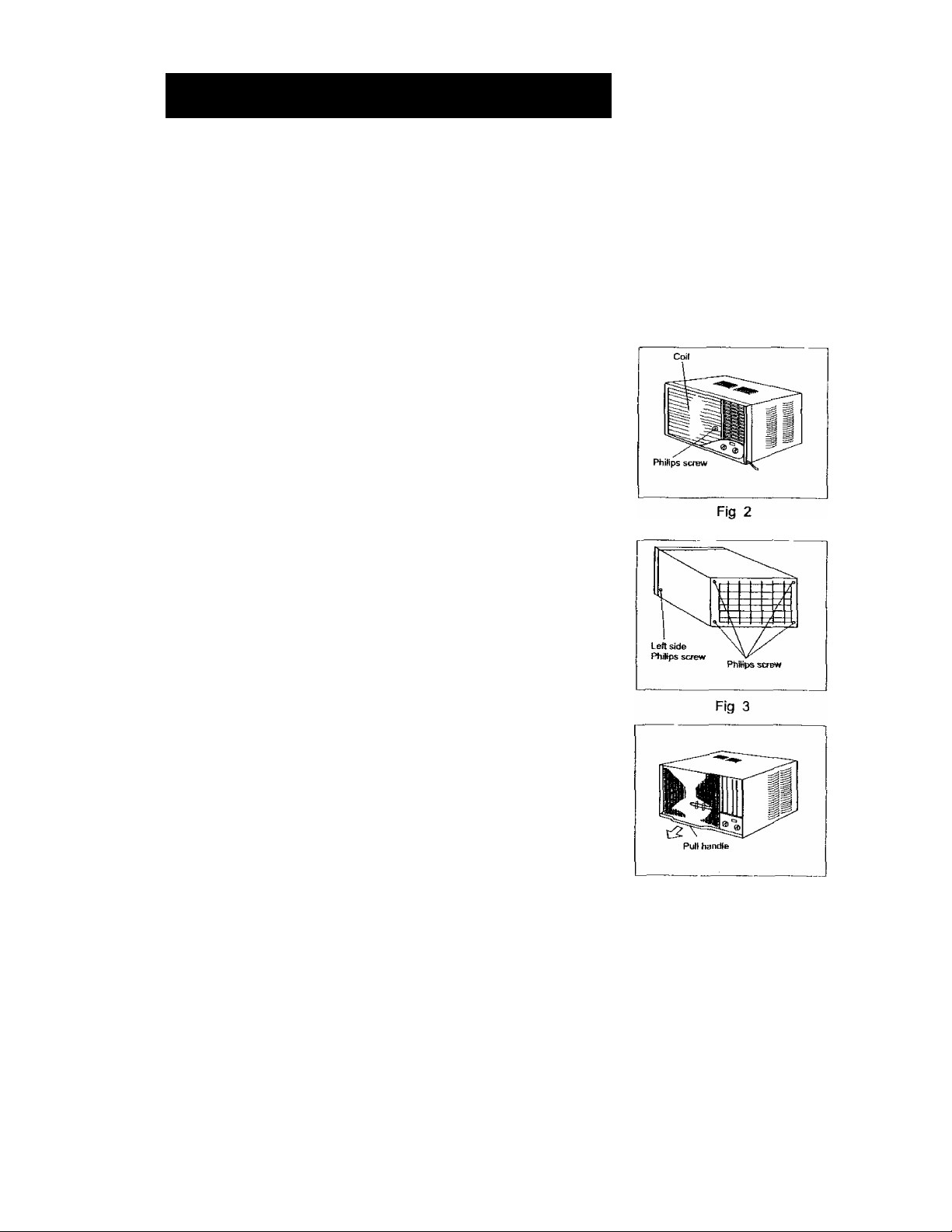

2. Preparation to Rempye the Air Conditioner Slide-Out Chassis

(Mo6b\ 463AAC01 OB A)

A Remove the air inlet grille by sliding the grille to the left (Fig 1)

B Remove the air filter

C Remove the Philips screw located next to the air outlet {Fig 2)

D Remove the front panel by grasping both sides simultaneously and pulling

E Remove total of 6 Philips screws securing the slide-out chassis There are (2) on each side

and (4) on the back of the cabinet {Fig 3)

F Grasp the putt handle at the front of the slide-out chassis and carefully slide the air conditioner out of the cabinet [Fig 4)

3 Preparation to Remove the Air Conditioner Slide-Out Chassis (Model 463AAC012BA)

A Remove total of 4 Philips screws securing the chassis to the cabinet There are (2) screws on each side The set of screws closest to the front of the unit secure the front panel to the cabinet The set of screws closest to the rear of the unit secure the cabinet to the chassis {Fig 5)

Fig 1

B Remove the front panel assembly from the cabinet by gently pulling it

C Grasp the pui! handle at the front of the slide-out chassis and carefully slide the air conditioner out of the cabinet {Fig 4)

NOTE Screws must be reinstalled upon completion of the window installation to secure the slide-out chassis.

Please seek assistance for this procedure

- 7

Fig 4

Fig 5

Right side Philflps strews

Page 9

Installation Instructions

4. Assembly of the upper & lower channels to

e cabinet

A; " L" Shaped Top Channel: Install the T'i shaped top channel to the cabinet as shown in {Fig 6) using (4]i 1/4" screws B “li" shaped Bottom Channel: Install the "U" shaded bottom channel to the cabinet as shown In (Fig 6) using (4) 1/4” screws

"LTStiaped Chanrtel Position (smaHer, space to front)

1/4" Screw

5. Assembly of the side shutters

irtains) to the cabinet

Slide the shutters into the top and bottom channels as shown in {Fig. 7) The shutters are identified {on each frame) as "left" or "right"

Attach the shutters to the cabinet using (4)

1/4" screws on each side

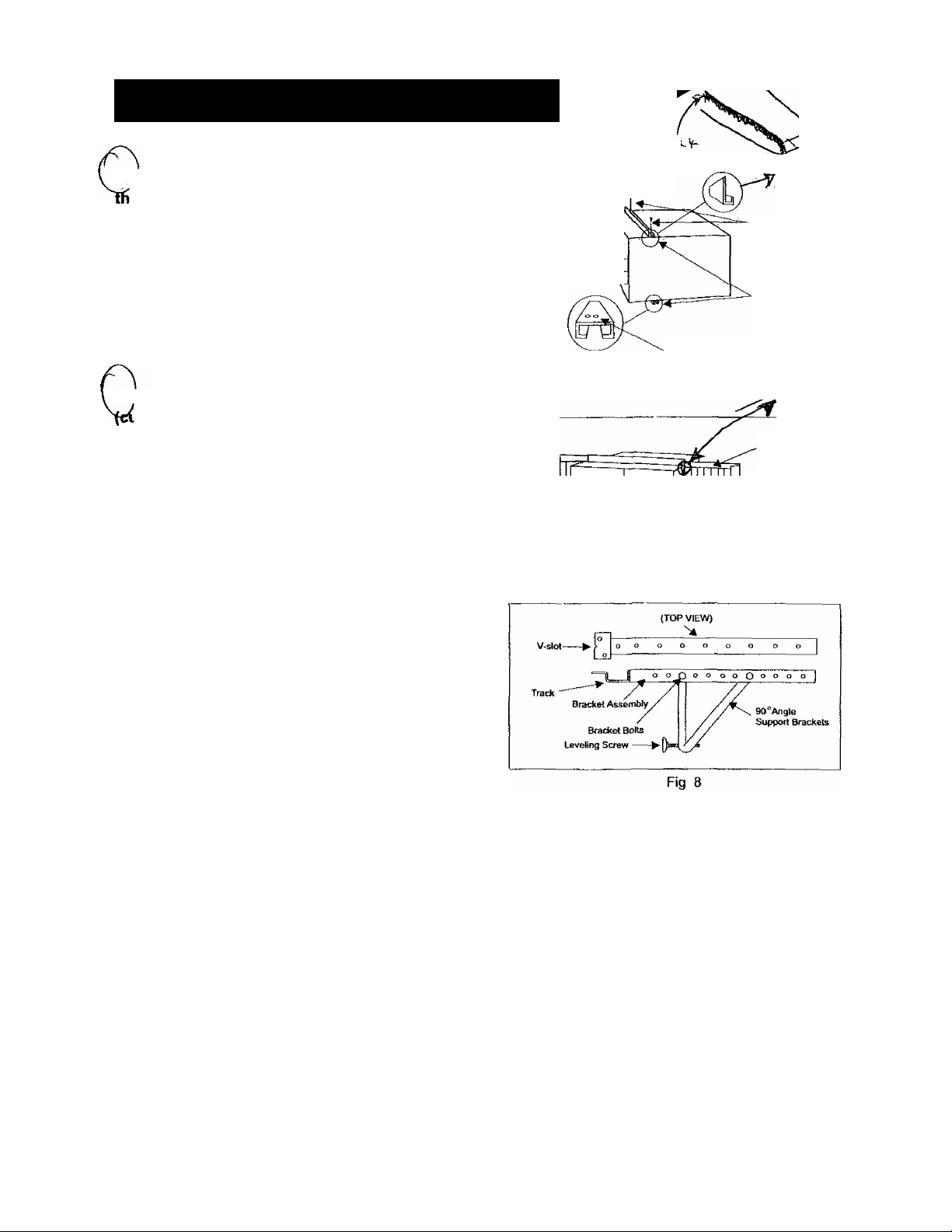

6. Installation of Mounting Brackets and First sealing strip. (Model 463AAC010BA and 463AAC012BA)

NOTE: Windows come in a variety of different styles Therefore, it may be necessary to modify or improve your particular installation

A Attach the bracket assembly to 90°angle support brackets {Fig 8) using (2) 1 1/2" bolts (provided) per bracket Secure with the (2) 1/4" lock washers and (2) 1/4'*nuts. DO NOT immediately tighten these bolts as it may be necessary to adjust the depth of the bracket assembly, depending on the depth of your window sill, see (Fig 9} Install the two leveling screws into the 90“support brackets Test the bracket assembly in the

window before cabinet installation If the leveling screws

are distanced too far away from the wall to provide

stability, it may be necessary for you to shim this area with a solid piece of wood See (Fig 10)

Fig 6

Fig 7

(2) 3/4" screws per bracket

--------

^ t

Bracket Assembly

Levelting Screw

— Outer Wall Construction

Shutter Frame

^ 1/4* screw

- Right Shutter

3/16' Maximum

Fig 9

Page 10

Installation Instructions

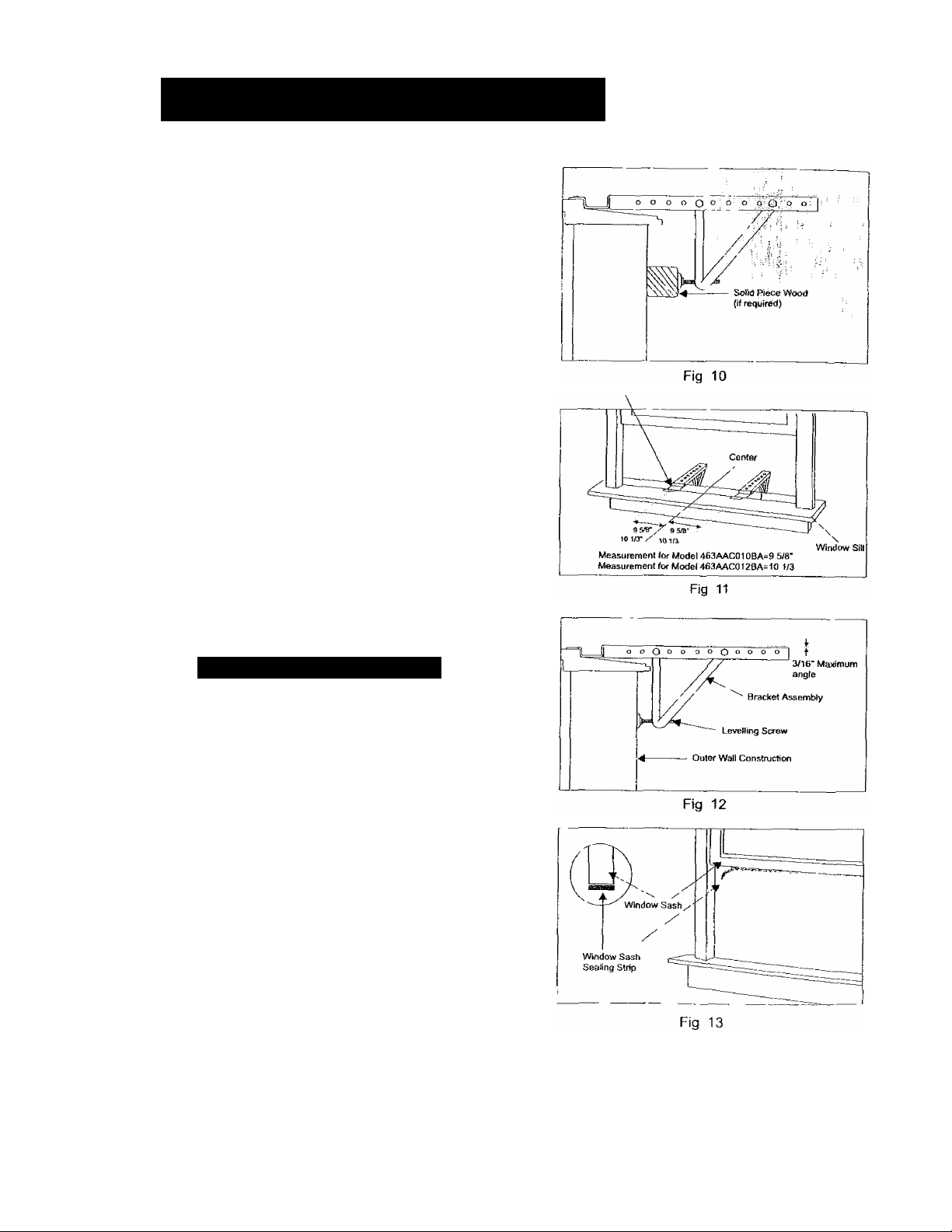

B Measure the inside window sill width and find the center as shown in {Fig 11) Align the Vfsldt in each bracket on these marks and mount thé ibrackets tp

the sill using (4) 3/4” screws Brackets should bp perpendicular to the inside window silli see (Fig. 12).

C For proper condensation run-off it will be necessary to adjust the angle of the window brackets This Is accomplished by adjusting the leveling screw on the outer wall The maximum angle should not exceed more than 3/16" See (Fig 12)

D Cut the first foam sealing strip to fit the underside of the bottom widow sash Remove the peel-off backing on the foam and attach it to this sash See (Fig 13)

V-sJot

A CAUTION A

If additional support to the bracket assembly is required, use a solid piece of wood to provide stability. This will be required when sills are extra deep See (Fig. 10).

Page 11

Installation Instructions

7. instaflation of the cabinet

(Model 463AAC010BA and 463AAC012BA)

A Place the air conditioner cabinet in the window Align ohe hole in the bottom of the cabinet with one

hole in the bracket assembly Secure the cabinet to the brabket using a 1/4” screw provided Repeat the same procedure on the opposite side of the cabinet {Fig 14)

B Ensure the "L” shaped mounting channel is positioned in front of the sash The "U" shaped channel on the bottom of the cabinet should be positioned in the track provided on the bracket assembly Pull the window down until it rests just behind the front of the "L" shaped mounting channel SeefF/g IS).

C Check to make sure that the cabinet is slanted slightly downward on the outside

- 10 -

Page 12

Installation Instructions

»cure shutters

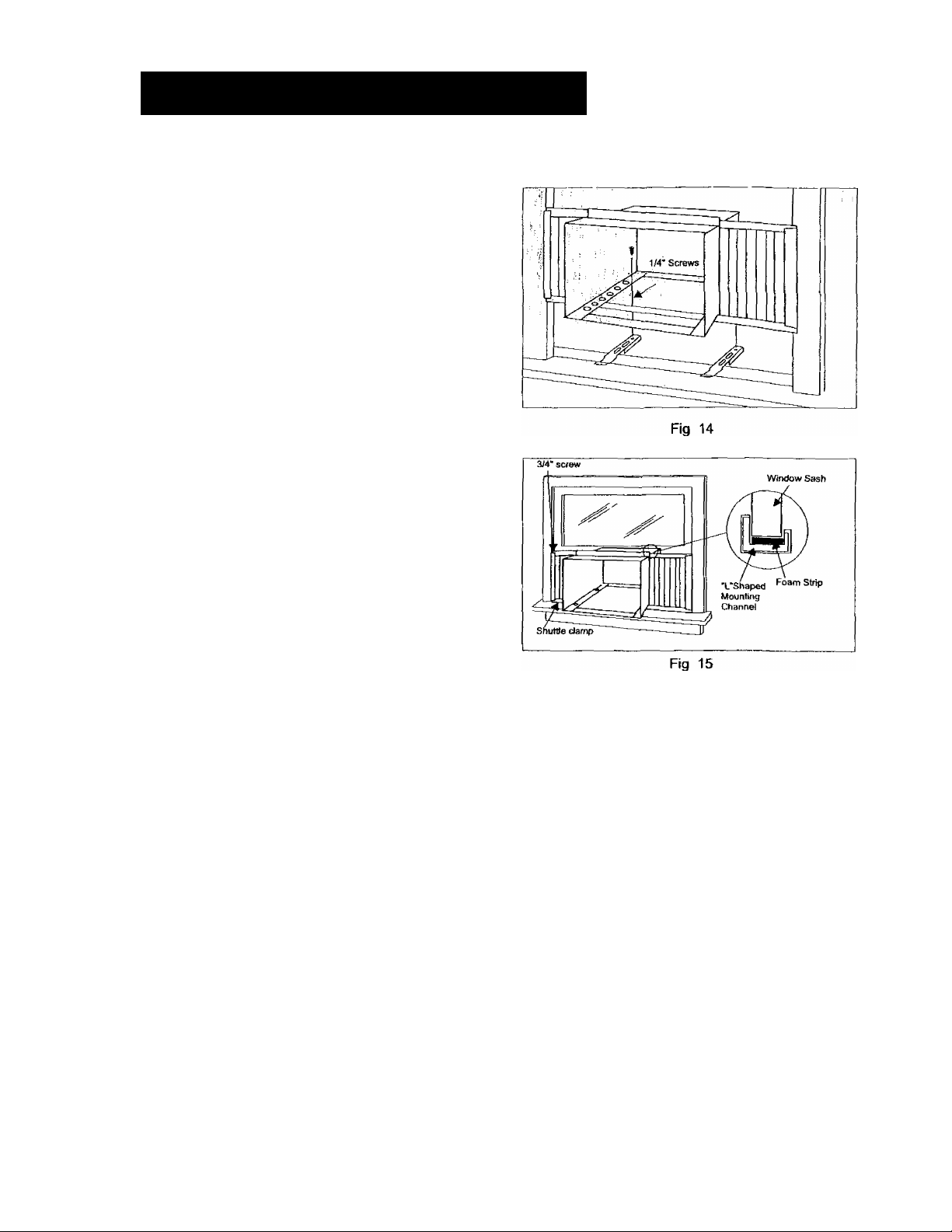

A, Carefully slide the air conditioner back into thè dabineth i

(Please séék assistance for this procedure) , B Reinstall the slide-out-chassis security screws (removed^

earlier) on both sides of the cabinet {Fig 16) Secure the top of the shutter frames to the window sash with (2) 3/4’' screws

C Now, secure bottom frames of shutters using one shutter

clamp and one 3/4" screw on each side (Fig 16)

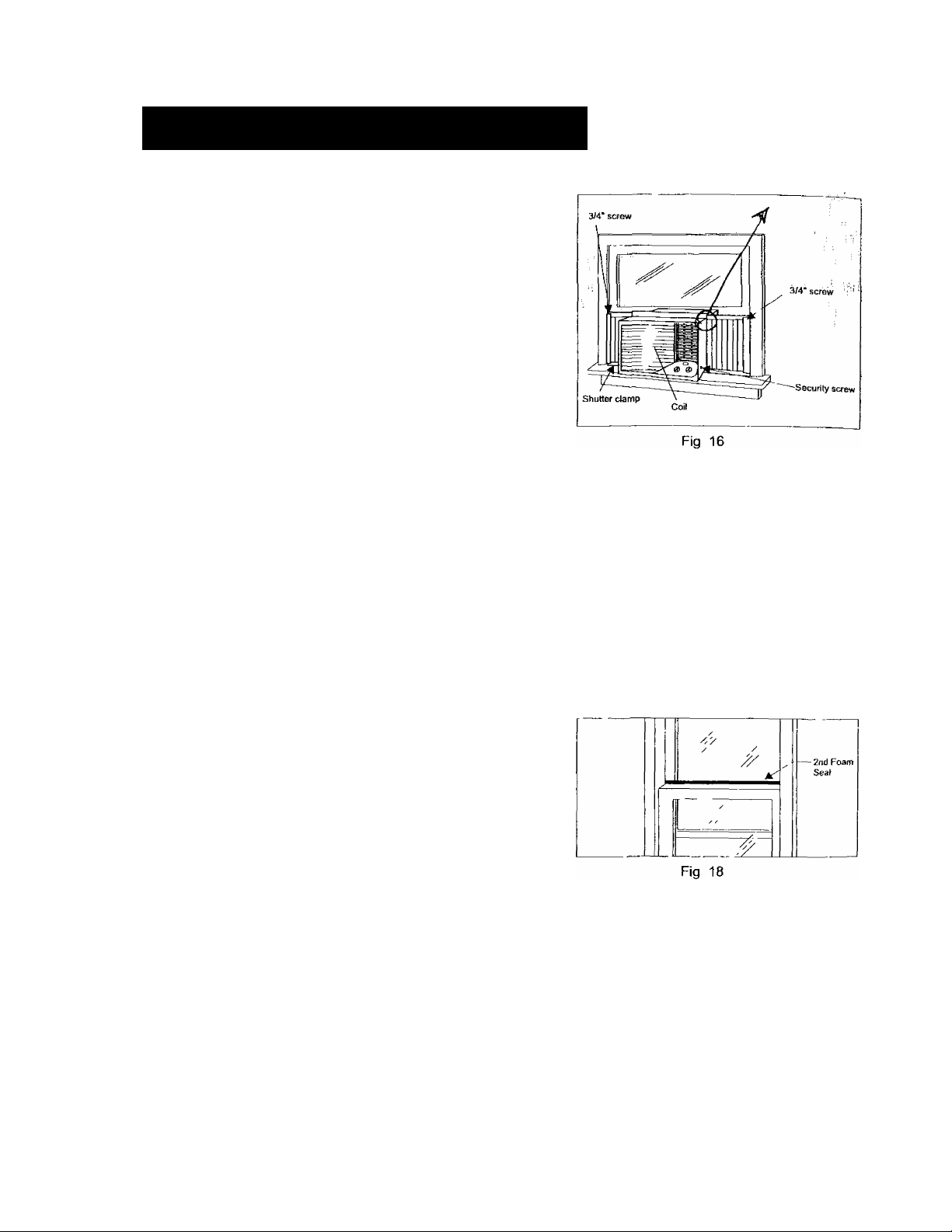

9. Reinstalling Front Panel and Air Inlet Grille (Model 463AAC010BA):

A Position the front panel on the cabinet starting at the top

The front panel lock tabs must be inserted into the retaining slots in the cabinet Repeat this procedure on

all sides

Coil

B Secure the front grille to the cabinet using the Philips screw removed earller(F/g 17)

C Replace the air filter D Position the air inlet grille on the cabinet by gently

pressing on it

10. Reinstalling Front Panel and Air Inlet Grille (Model 463AAC012BA)

A Position the front panel on the cabinet starting at the top The front panel lock tabs must be inserted into the remaining slots in the cabinet

B Secure the front grille to the cabinet using the Philips screw removed earlier

11 Complete the installation

A Cut the second foam seal to fit the opening between the top of the inside and outside window See {Fig 18)

B Some installations may require additional sealing around the window and air conditioner Check for any air teaks and seal where necessary

C In very humid areas, the water removal may be excessive enough to overflow the unit or increase the noise of the air conditioner If this occurs, you may wish to attach a drain hose (not included) to the drain plug allowing condensations to run off conveniently See {Fig 19)

Philips screw

Fig 17

Fig 19

Drain Hose (not ¡nclodeil)

— 11 —

Page 13

Operating Instructions

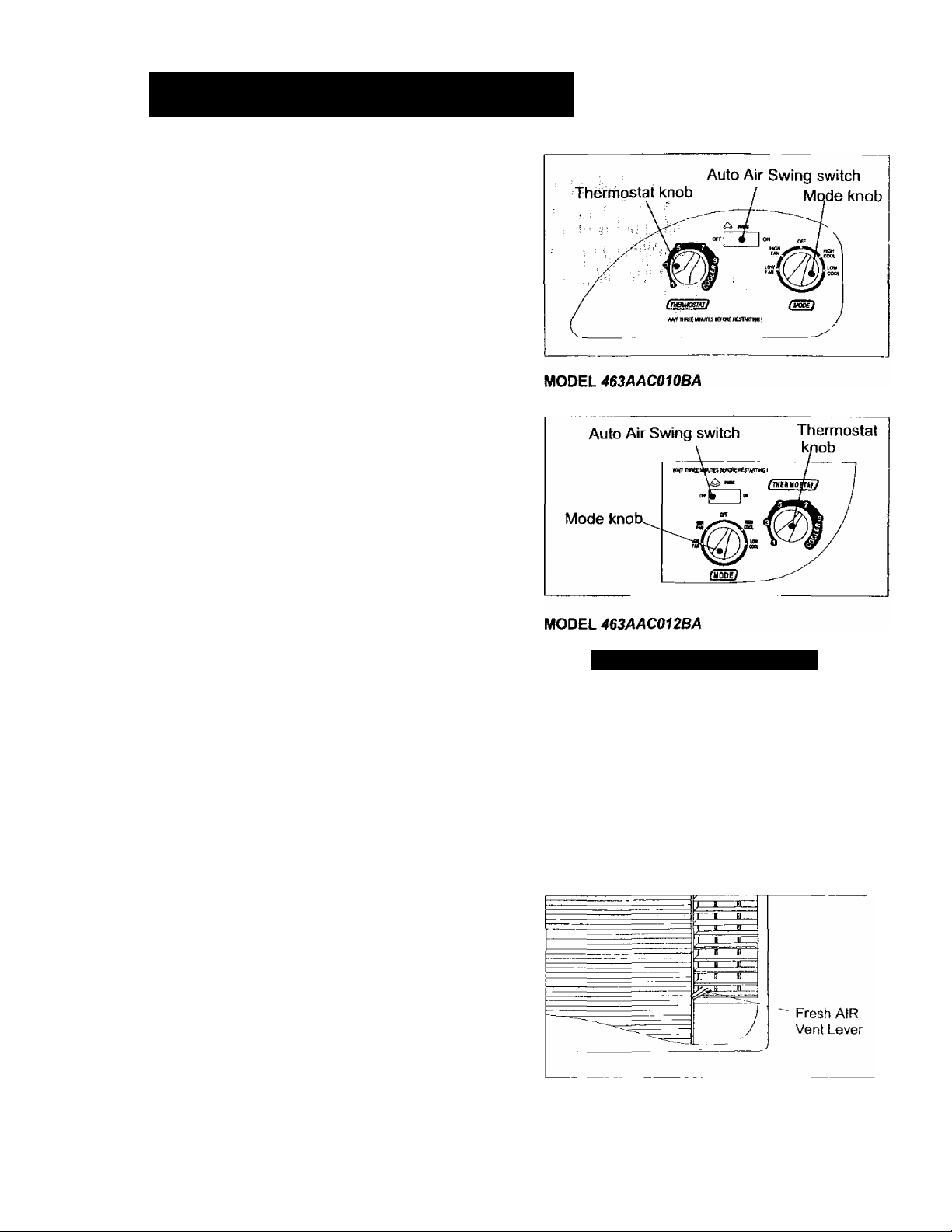

MODE The mode knob controls fan speeds and cooling

speed To set cjeSifed cobfing temperature, simply rotate the mode knob dial to the appropriate setting , 1^' -

AUTO AIR SWING Switch When the Swing switch is turned to the "ON” position, the vertical louvers automatically oscillate sweeping the cold air for comfortable cooling

The vertical louvers may be stopped at any position

when the Swing switch is turned "OFF"

THERMOSTAT The thermostat automatically controls the cooling cycle (compressor) of the air conditioner to maintain room temperature However, the fan motor will continue to operate after the compressor (cooling cycle) is completed

LOW FAN will circulate the air at a minimum speed

without cooling HIGH FAN will circulate the air at a maximum speed

without cooling LOW COOL provides cooling, automatically with

minimum air circulation Recommended for night time use

HIGH COOL provides cooling, automatically with quick cooling or for extremely hot days Once room is cooled, reduce setting to LOW COOL

OFF wii! completely shut-off the unit NOTE* After setting the mode, allow 3

minutes before switching to another mode

Fresh Air Ventilation is usually kept in the closed position Use only when clearing smoke and/or odors from the room Pul! to open

A CAUTION A

When using FAN control, turn slowly allowing unit to adjust

When using THERMOSTAT, be sure to allow three minutes before changing temperature Adjusting too quickly may cause an overload resulting in a blown fuse

— 12

MODEL 463AAC010BA

Page 14

Care and Maintenance

Wheri servicing the air conditioner, be sure to turn the mode switch to the "OFF" position and disconnect the power cord from the electrical outlet

1 DOT NOT uise gasoline, benzine, thinner or other chemicals on the air conditioner as these substances may cause damage to the paint finish and deformation of plastic parts

2 Never attempt to pour water directly to the

front of the unit as this will cause deterioration of the electrical insulation

Cleaning the Air Filter Removal of Air Filter

If the air filter becomes dogged with dust, air-flow is obstructed and reduces efficiency The air filter should be cleaned once a month More frequent cleaning may be necessary depending on outdoor and indoor air quality

Air Filter Removal: (Model 463AAC010BA)

CAUTION

DO NOT :^6fget to install the air filter If the air conditioner is left to operate without the air filter^ cjust is nbt removed from the room and may cauee ybiir air conditioner to fail

When the air filter inlet grill and cabinet are dirty» wipe with lukewarm water (below 40° C) Use oT mild detergent is recommended

Cleaning of Air Filter

1 Remove dust clogged in the filter by

tapping it or vacuum clean it 2 Wash the filter well with lukewarm water below

40“C (104 °F) while rubbing lightly To get better results, wash it with soapy water or a neutral cleaning agent

3 Rinse the filter well using clean water then dry completely

A Remove the air inlet grille by sliding the grille to the left

В Remove the air filter

Air Filter Removal. (Model 463AAC012BA)

To remove the air filter, grasp the filter handle(tab) located on the right (center) side of the air inlet grille and slide the air filter to the right

To reinstall the air filter, reverse the above procedure

End-of-Season Care

1 Operate the fan alone for half a day to dry out

the inside of the unit

2 Turn off power and remove plug from wall socket| 3 Clean filter

4 Store in a dry location

- 13 -

Page 15

Troubleshooting Guide

Frequently, a problem is minor and a service cail may not be necessary, use this troubleshooting guide for a possible solution If the unit continues to operate improperly, call 1-800-428-4326 for a^sistanpe, or cail your closest dealer ' I ' V v : i

PROBLEM

'■ ■ ■

Air conditioner will not operate

Inefficient or no cooling

Noisy unit

Odors

POSSIBLE CAUSE

No power to the unit

Dirty air filter Inappropriate capacity

for application Blocked air flow

Power interruption, settings change too quickly, or compressor overload tripped

Loose parts

Inadequate support

Formation of mold, mildew, or

algae on wet surfaces
