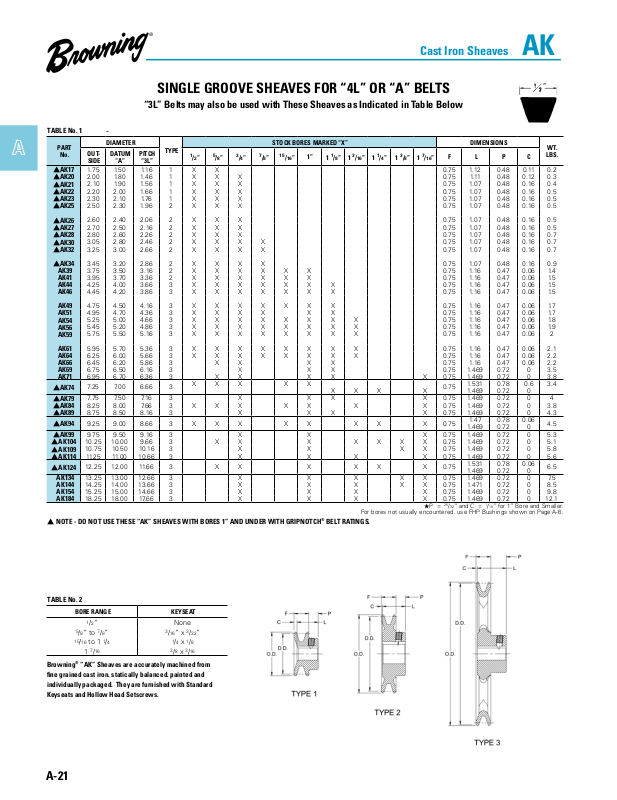

Cast Iron Sheaves AK
SINGLE GROOVE SHEAVES FOR “4L” OR “A” BELTS
“3L” Belts may also be used with These Sheaves as Indicated in Table Below
TABLE No. 1
PART
No.
AK17AK20AK21AK22AK23AK25
AK26AK27AK28AK30AK32
AK34
AK39 AK41 AK44 AK46
AK49 AK51 AK54 AK56 AK59
AK61 AK64 AK66 AK69 AK71
AK74AK79
AK84AK89
AK94
AK99AK104AK109AK114
AK124
AK134
AK144
AK154
AK184
-
DIAMETER
OUT-
DATUM
SIDE
“A”
1.75 1.50 1. 16 1 X X 0.75 1.1 2 0.48 0.11 0.2
2.00 1.80 1.46 1 X X X 0.75 1.11 0.48 0.12 0.3
2.10 1.90 1.56 1 X X X 0.75 1.07 0.48 0.16 0.4
2.20 2.00 1.66 1 X X X 0.75 1.07 0.48 0.16 0.5
2.30 2.10 1. 76 1 X X X 0.75 1.07 0.48 0.16 0.5
2.50 2.30 1.96 2 X X X 0.75 1.07 0.48 0.16 0.5
2.60 2.40 2.06 2 X X X 0.75 1.07 0.48 0.16 0.5
2.70 2.50 2.16 2 X X X 0.75 1.07 0.48 0.16 0.5
2.80 2.60 2.26 2 X X X 0.75 1.07 0.48 0.16 0.7
3.05 2.80 2.46 2 X X X X 0.75 1.07 0.48 0.16 0.7
3.25 3.00 2.66 2 X X X X 0.75 1.07 0.48 0.16 0.7
3.45 3.20 2.86 2 X X X X 0.75 1.07 0.48 0.16 0.9
3.75 3.50 3.16 2 X X X X X X 0.75 1. 16 0.47 0.06 1. 4
3.95 3.70 3.36 2 X X X X X X 0.75 1. 16 0.47 0.06 1. 5
4.25 4.00 3.66 3 X X X X X X X 0.75 1. 16 0.47 0.06 1. 5
4.45 4.20 3.86 3 X X X X X X X 0.75 1. 16 0.47 0.06 1. 5
4.75 4.50 4.16 3 X X X X X X X 0.75 1. 16 0.47 0.06 1. 7
4.95 4.70 4.36 3 X X X X X X 0.75 1. 16 0.47 0.06 1. 7
5.25 5.00 4.66 3 X X X X X X X X 0.75 1. 16 0.47 0.06 1. 8
5.45 5.20 4.86 3 X X X X X X X X 0.75 1. 16 0.47 0.06 1. 9
5.75 5.50 5.16 3 X X X X X X X X 0.75 1. 16 0.47 0.06 2
5.95 5.70 5.36 3 X X X X X X X X 0.75 1. 16 0.47 0.06 2.1
6.25 6.00 5.66 3 X X X X X X X X 0.75 1. 16 0.47 0.06 2.2
6.45 6.20 5.86 3 X X X X 0.75 1. 16 0.47 0.06 2.2
6.75 6.50 6.16 3 X X X 0.75 1.469 0.72 0 3.5
6.95 6.70 6.36 3 X X X X X 0.75 1.469 0.72 0 3.8
7.25 7. 0 0 6.66 3
7.75 7.50 7. 1 6 3 X X X X 0.75 1.469 0.72 0 4
8.25 8.00 7.66 3 X X X X X X X 0.75 1.469 0.72 0 3.8
8.75 8.50 8.16 3 X X X X 0.75 1.469 0.72 0 4.3
9.25 9.00 8.66 3 X X X X X X X X 0.75
9.75 9.50 9.16 3 X X X 0.75 1.469 0.72 0 5.3
10.25 10.00 9.66 3 X X X X X X X 0.75 1.469 0.72 0 5.1
10.75 10.50 10.16 3 X X X X 0.75 1.469 0.72 0 5.8
11.25 11. 0 0 10.66 3 X X X X 0.75 1.469 0.72 0 5.6
12.25 12.00 11.66 3 X X X X X X 0.75
13.25 13.00 12.66 3 X X X X X 0.75 1.469 0.72 0 7. 5
14.25 14.00 13.66 3 X X X X X 0.75 1.471 0.72 0 8.5
15.25 15.00 14.66 3 X X X X 0.75 1.469 0.72 0 9.8
18.25 18.00 17.66 3 X X X X 0.75 1.469 0.72 0 12.1
P = 25/32” and C = 1/16” for 1” Bore and Smaller.
PITCH
“3L”
TYPE
1
/2”5/8”3/4”7/8”15/16”
X X X X X
STOCK BORES MARKED “X” DIMENSIONS
1”
1 1/8” 1 3/16” 1 1/4” 1 3/8” 1 7/16”
X X X X 1.469 0.72 0
For bores not usually encountered. use FHP Bushings shown on Page A-6.
NOTE - DO NOT USE THESE “AK” SHEAVES WITH BORES 1” AND UNDER WITH GRIPNOTCH® BELT RATINGS.
F L P C
1.531 0.78 0.6 3.4
0.75
1.47 0.78 0.06
1.469 0.72 0
1.531 0.78 0.06
1.469 0.72 0
LBS.
4.5
6.5
TABLE No. 2
BORE RANGE KEYSEAT
1
/2”
5
/8” to 7/8”
15
/16 to 1 1/
1 7/
4
16
None
3
/16” x 3/32”
1
/4 x 1/
3
/8 x 3/
8
16
Browning® “AK” Sheaves are accurately machined from fine grained cast iron. statically balanced. painted and individually packaged. They are furnished with Standard Keyseats and Hollow Head Setscrews.
